ASCO 182032 P210 2-Way Air Operated Valve Rebuild Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

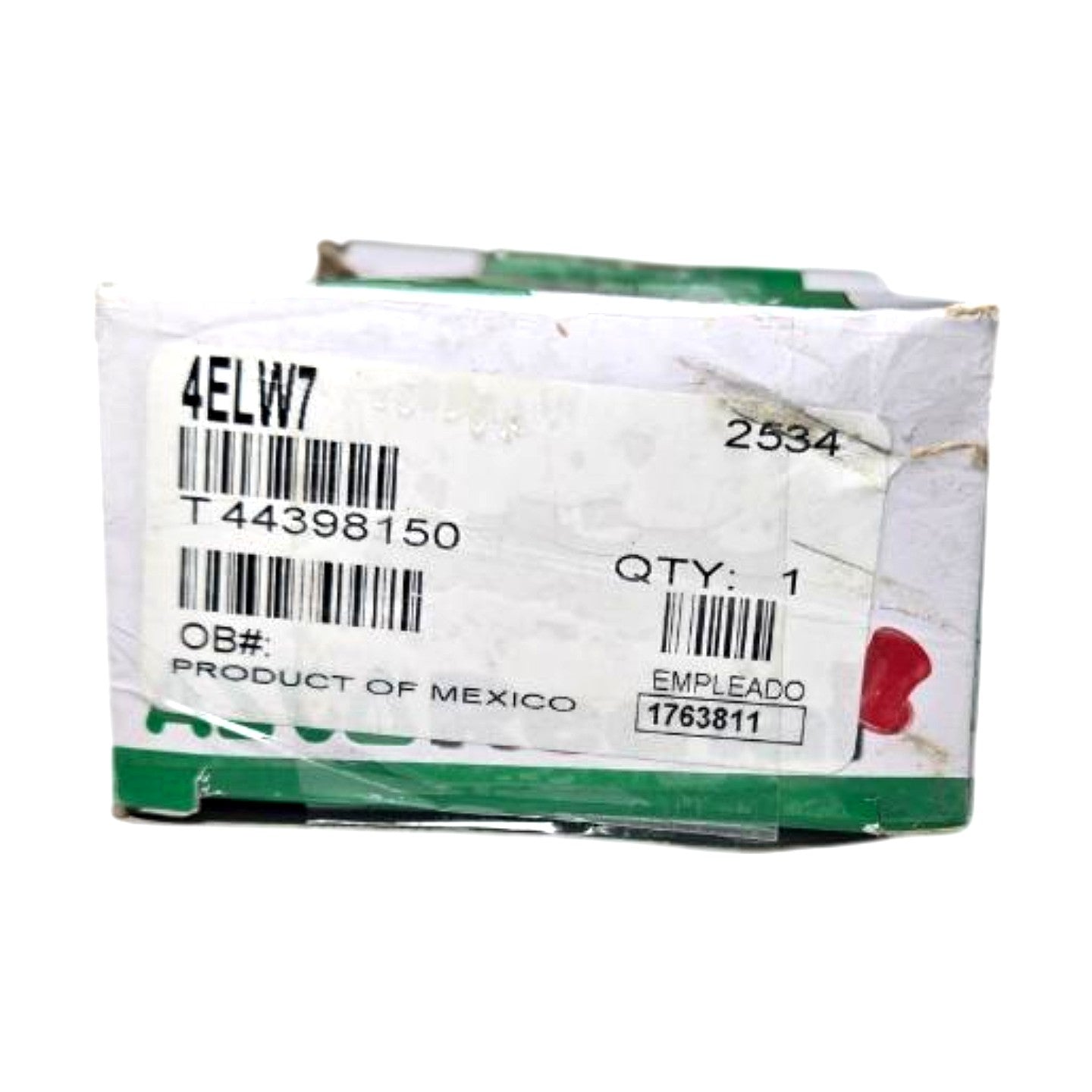

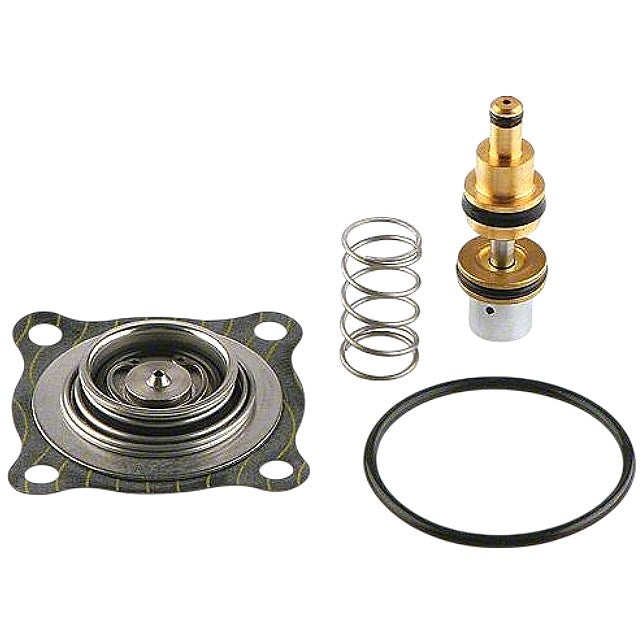

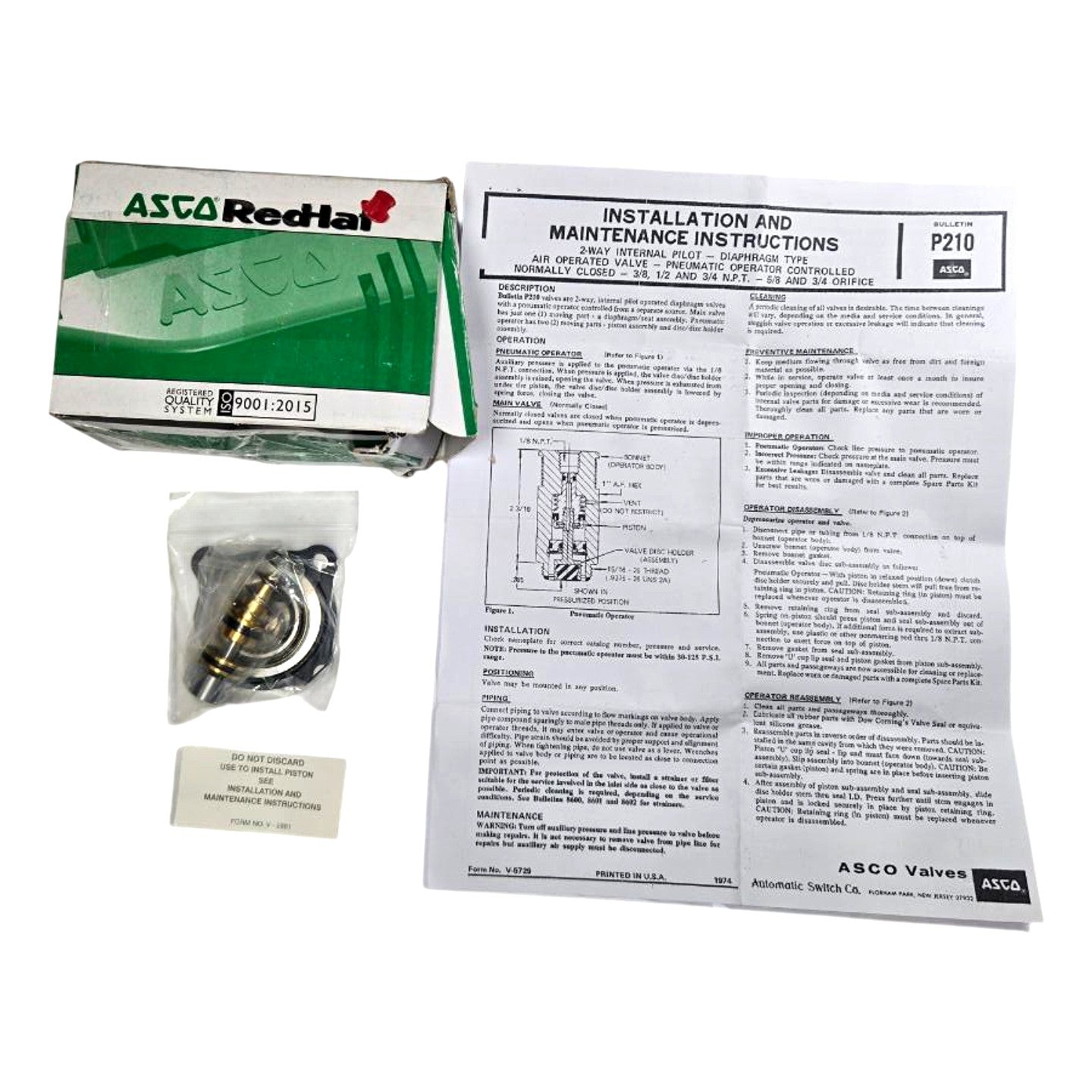

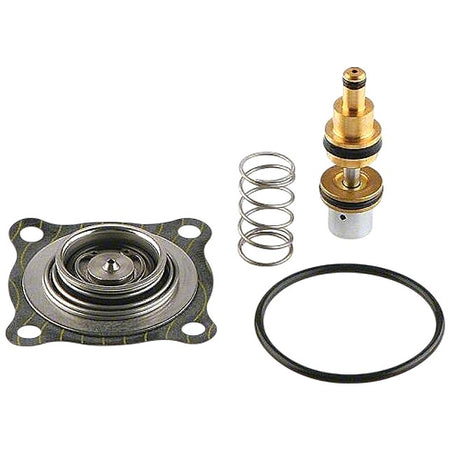

The ASCO 182032 is a new, genuine OEM spare parts kit designed to rebuild ASCO Bulletin P210 series 2-way, normally closed, internal pilot diaphragm-type air-operated valves with pneumatic operator control. Per the visible installation sheet (Bulletin P210, Form No. V-6729), these valves are available in 3/8, 1/2, and 3/4 NPT pipe connections with 5/8 and 3/4 orifice sizes, operating at 50–125 PSI auxiliary pneumatic pressure. The kit includes the complete diaphragm/seal sub-assembly with bonnet gasket, the brass pneumatic piston operator sub-assembly with O-rings, a return spring, and a large body O-ring — all components required for a full operator and main valve rebuild as described in the P210 maintenance instructions. The Grainger catalog label on the box shows cross-reference number 4ELW7 and ASCO internal barcode T44398150. Manufactured in Mexico under ASCO's ISO 9001:2015 quality system; compatible with ASCO Red Hat P210 valves used in air, water, and general-purpose fluid control applications.
Product Specifications
| Brand | ASCO Red Hat |
| MPN | 182032 |
| Cross-Reference # | 4ELW7 |
| ASCO Barcode | T44398150 |
| Compatible Bulletin | P210 |
| Valve Type | 2-Way Internal Pilot, Diaphragm |
| Valve Action | Normally Closed |
| Operator Type | Pneumatic (Air Operated) |
| Pipe Size Compatibility | 3/8 in, 1/2 in, 3/4 in NPT |
| Orifice Size Compatibility | 5/8 in, 3/4 in |
| Pilot Pressure Range | 50–125 PSI |
| Pilot Port Connection | 1/8 in NPT |
| Kit Contents | Diaphragm assy, piston assy, spring, O-rings, gasket |
| Country of Origin | Mexico |
| Quality Standard | ISO 9001:2015 |
| Condition | New |
