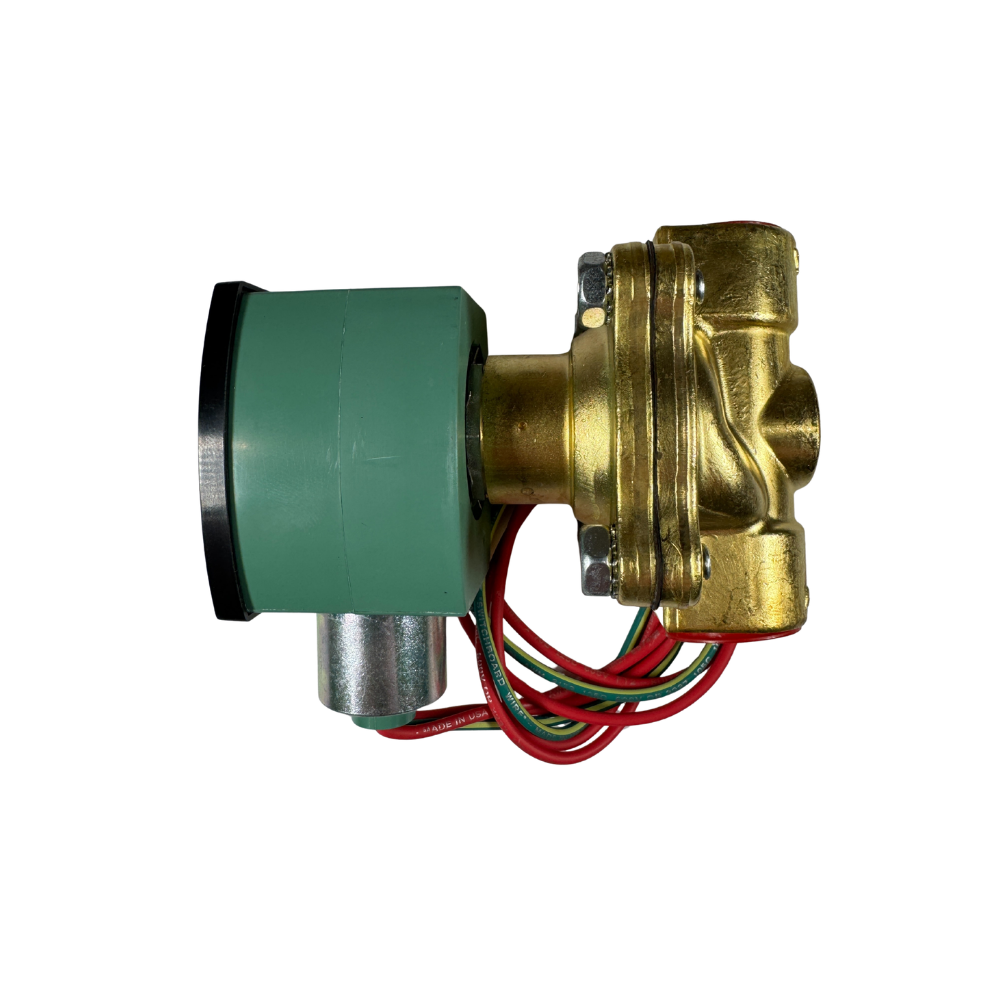

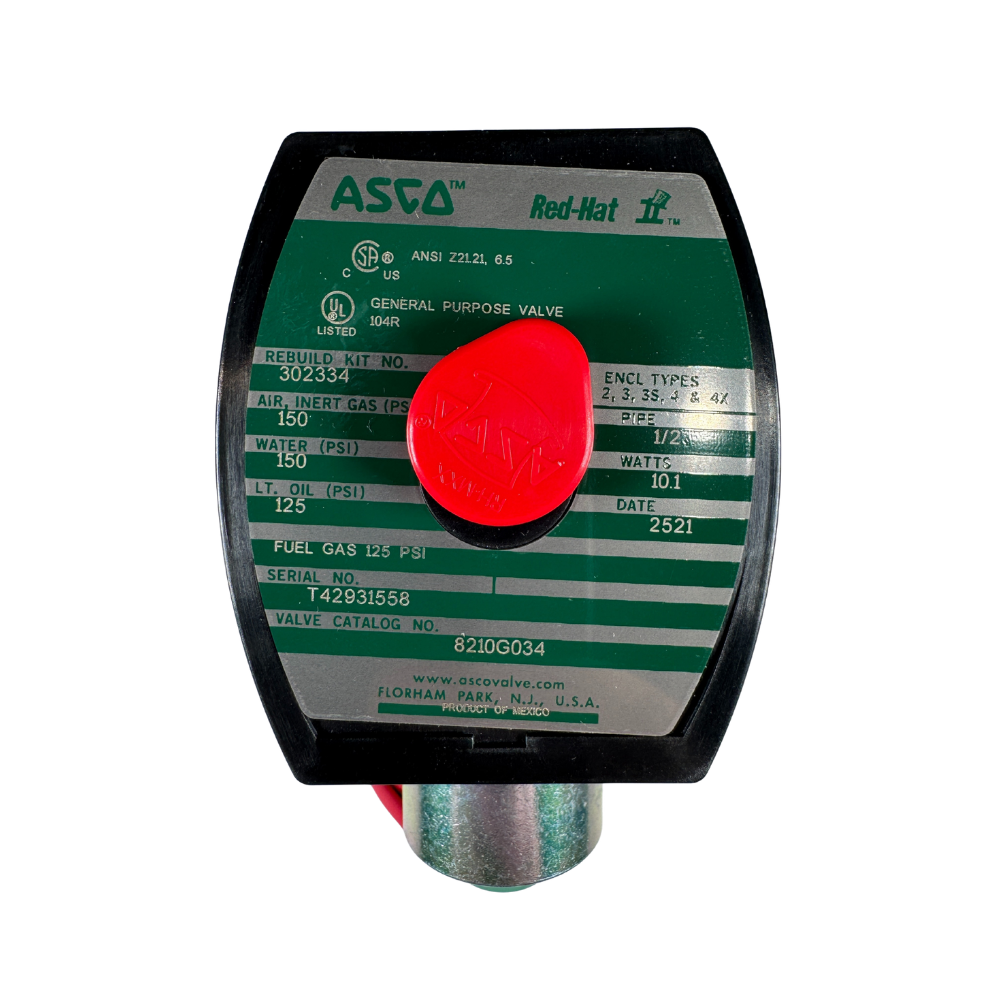

ASCO Redhat 8210G034 1/2" NPTF 110/120VAC 50/60Hz 10.1W 2-Way Solenoid Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Overall Height | 4-3/8 in |
| Suitable Media | Air |
| Operation Type | Pilot Operated |
| Min Ambient Temperature | 14 °F |
| Response Time | 1 sec |
| Wattage | 10.1 W |
| Max Operating Pressure Differential - Air/Inert Gas | 150 PSI |
| Valve Ways | 2-Way |
| MPN | 8210G034 |
| Valve Operation | Solenoid |
| Electrical Connections | 1/2" Conduit Hub |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Max Operating Pressure Differential - Steam | Not Rated |
| Unit Type | Unit |
| Includes Coil | Yes |
| Coefficient of Volume (Cv) | 4 |
| Voltage | 110V AC; 120V A |
| Max Ambient Temperature | 140 °F |
| Overall Width | 2-5/16 in |
| Valve Positions | 2-Position |
| Seal Material | NBR |
| Coil Enclosure | Watertight |
| Unit Quantity | 1 |
| Operating Environment | Indoor; Outdoor |
| Valve Configuration | Normally Open |
| Max Fluid Temperature | 180 °F |
| Inlet and Outlet Connection Type | NPTF |
| Includes Seal | Yes |
| Max Operating Pressure Differential - Water | 150 PSI |
| Nominal Pipe Size | 1/2" NPTF |
| Overall Length | 2-3/4 in |
| Orifice Diameter | 5/8 in |
| Max Operating Pressure Differential - Light Oil | 125 PSI |
| Coil Insulation | ClassF |
| Brand | ASCO Redhat |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Body Material | Brass |
| IP Rating | IP66 |
| Valve Type | High Flow |
| Max. Operating Pressure Differential - Light Oil | 125 PSI |
| Frequency | 50 Hz; 60 Hz |
| Mounting Orientation | Verticak |
| Country of Origin | Mexico |
| Max. Operating Pressure Differential - Wate | 150 PSI |
