| Accuracy |
±0.50% of Full Scale |
| Brand |
My Store |
| Burst Pressure |
1.5x Range |
| Cable Length |
3 ft |
| Electrical Connection |
Cable & Wire Leads ; 1/2 in FNPT Conduit Connection Entry |
| Electrical Connections |
Cable & Wire Leads |
| Enclosure Rating |
IP65 ; NEMA 4X; NEMA 7; NEMA 9 |
| Features |
Ashcroft’s Proven Thin Film Technology |
| IP Rating |
IP65 |
| MPN |
A2XBM0242C25000#G |
| Material |
Stainless Steel |
| Model |
Pressure Transmitter |
| Number of Wires |
2 |
| Output |
4 to 20mA DC |
| Power Required |
12 to 30V DC |
| Pressure Range |
0 psi to 5,000 psi |
| Process Connection |
1/4 in NPT Male |
| Product Type |
Explosion-Proof-Rated Transmitter |
| Safety Rating |
Class I, II and III Div. 1 and 2 Groups A, B, C, D, F and G |
| Series |
A2X |
| Standards |
ATEX; CE; CSA; cUL Listed; FM; RoHS; UL Listed |
| Storage Temperature Range |
–40°F to 257°F (–40°C to 125°C |
| Thermal Error |
±2% (-4° to 185°F) |
| Type |
Pressure Transmitter |
| Unit Quantity |
1 |
| Unit Type |
Unit |
| Wiring Entry |
1/2 in FNPT Conduit Connection |

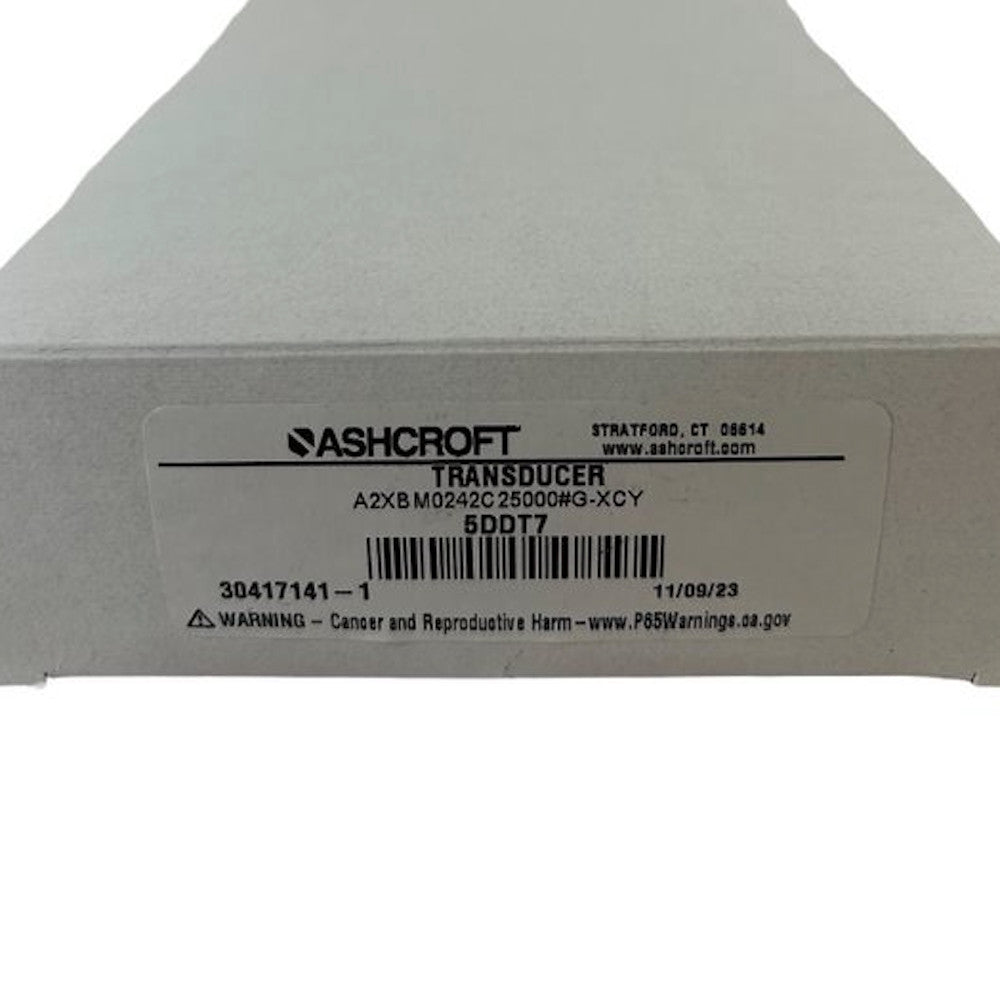

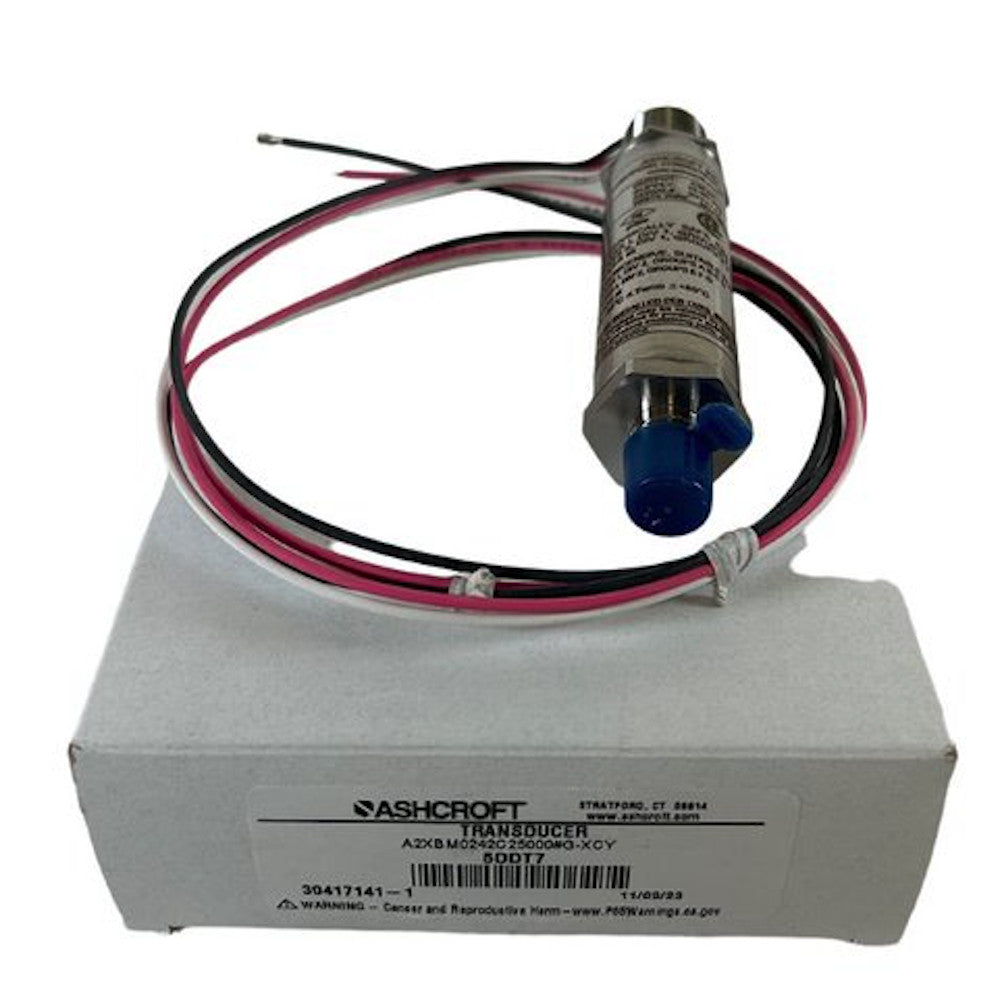

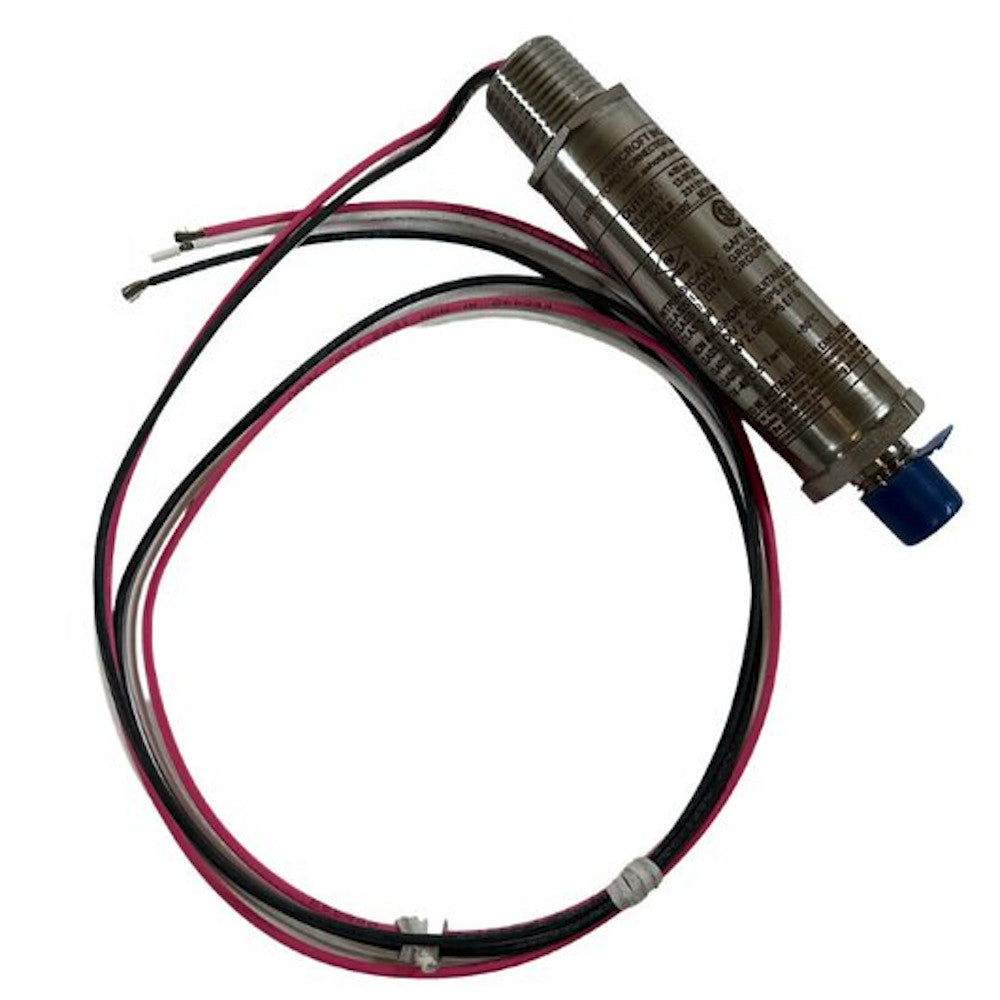

Ashcroft A2XBM0242C25000#G 1/4" 5000 PSI 4 to 20mA DC Pressure Transmitter
/* Template: DDT & More Description: Version: 1.2 */ /* Template: RBT Template Description: Version: 1.2 */ /* Template: main template Description: Version: 1.2 */ /* user colors */ #wpl_store_header .hotline { color: #FFFFFF; background-color: #FF4400; display: block; float: right; } #wpl_wrapper .wpl_description h2 { color: #000000; } #wpl_wrapper h3.bar { color: #FFFFFF; background-color: #555555; background-image: -webkit-gradient(linear, left top, left bottom, from(#555555), to(#000000)); background-image: -webkit-linear-gradient(top, #555555, #000000); background-image: -moz-linear-gradient(top, #555555, #000000); background-image: -ms-linear-gradient(top, #555555, #000000); background-image: -o-linear-gradient(top, #555555, #000000); background-image: linear-gradient(to bottom, #555555, #000000); } /* layout */ #wpl_wrapper { width: 90%; margin-right: auto; margin-left: auto; margin-top: 30px; margin-bottom: 20px; font-size: 14px; font-family:Arial,Helvetica,sans-serif; } #wpl_wrapper h2 { font-size: 24px; line-height: 30px; } #wpl_wrapper h3.bar { margin-top: 30px; margin-bottom: 20px; padding-left: 10px; height: 30px; line-height: 30px; font-size: 16px; font-family: Helvetica, Arial, sans-serif; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; } #wpl_store_header { width:100%; overflow: hidden; } #wpl_store_header .logo { float: left; } #wpl_store_header .hotline { height: 40px; font-size: 16px; line-height: 40px; font-weight: bold; padding-right: 20px; padding-left: 20px; margin-top: 7px; -webkit-border-radius: 5px; -moz-border-radius: 5px; border-radius: 5px; text-decoration: none; text-shadow: 2px 2px 4px #713803; filter: dropshadow(color=#713803, offx=0, offy=1); } #wpl_wrapper .clearfix { clear:both; } #wpl_list_images a { border: 1px solid #ccc; display: block; float: left; height: 75px; margin-bottom: 20px; margin-left: 10px; margin-right: 10px; padding: 12px; width: 75px; } #wpl_wrapper .alignleft { float: left; } #wpl_wrapper .alignright { float: right; } #wpl_wrapper .section p { padding-left: 10px; padding-right: 10px; /* fix for firefox: */ line-height: 1.2em; margin: 1em 0; } #wpl_wrapper .section big { font-size: 18px; font-weight: bold; } .primary_image, .wpl_product_image { width: 100%; } #gallery a { text-decoration: none; } /* these only apply in preview to override default styles from wp-admin */ body.wp-admin #wpl_wrapper ul { list-style: disc inside none; } body.wp-admin #wpl_wrapper ul li { padding-left: 2em; } /** Media queries **/ @media (min-width: 320px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: left; } #gallery { width: 100%; } #wpl_list_images { display: none; } } @media (min-width: 481px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; display: inline-block; } #gallery { display: block; width: 48%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { max-width: 220px; max-height: 225px; } #wpl_list_images { display: block; } #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 100%; } } @media (min-width: 641px) { #wpl_wrapper { width: 95%; } #wpl_store_header .hotline { float: right; } #gallery { display: block; width: 45%; float: left; } #description { width: 48%; float: right; } #gallery #wpl_main_image { width: 100%; height: 100%; max-height: 370px; max-width: 370px; } #wpl_list_images { display: block; } #gallery #wpl_list_images a { width: 80px; height: 80px; } #wpl_list_images a img.wpl_thumb { width: 80px; } } Ashcroft A2XBM0242C25000#G 1/4″ 5000 PSI 4 to 20mA DC Pressure Transmitter Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner. Shipping Shipping cost: Expedited shipping options available. Please contact us for overnight or express shipping. We are happy to offer these services. Delivery time: All items are shipped within one business day of purchase. Payment We accept the following payment methods: Paypal Credit Card or Debit Card Please contact us if you have any questions. Service Our mission is to please all of our customers. Please let us know if you have any questions or concerns. We are happy to help. Thank you.
Ashcroft A2XBM0242C25000#G 1/4″ 5000 PSI 4 to 20mA DC Pressure Transmitter
Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner.
