Atlantic Blowers AB-602 5HP 3-Phase 230/460V Regenerative Ring Blower
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

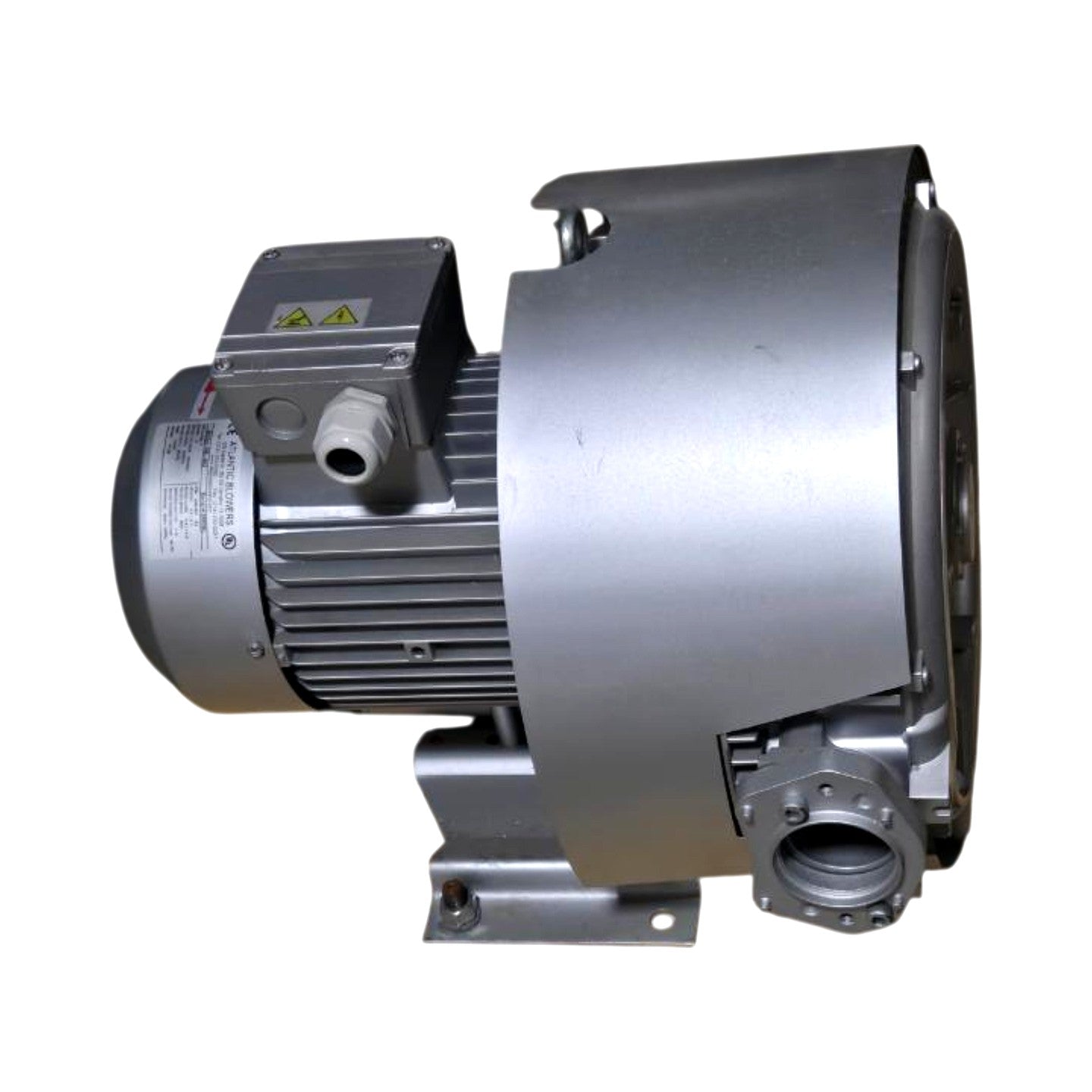

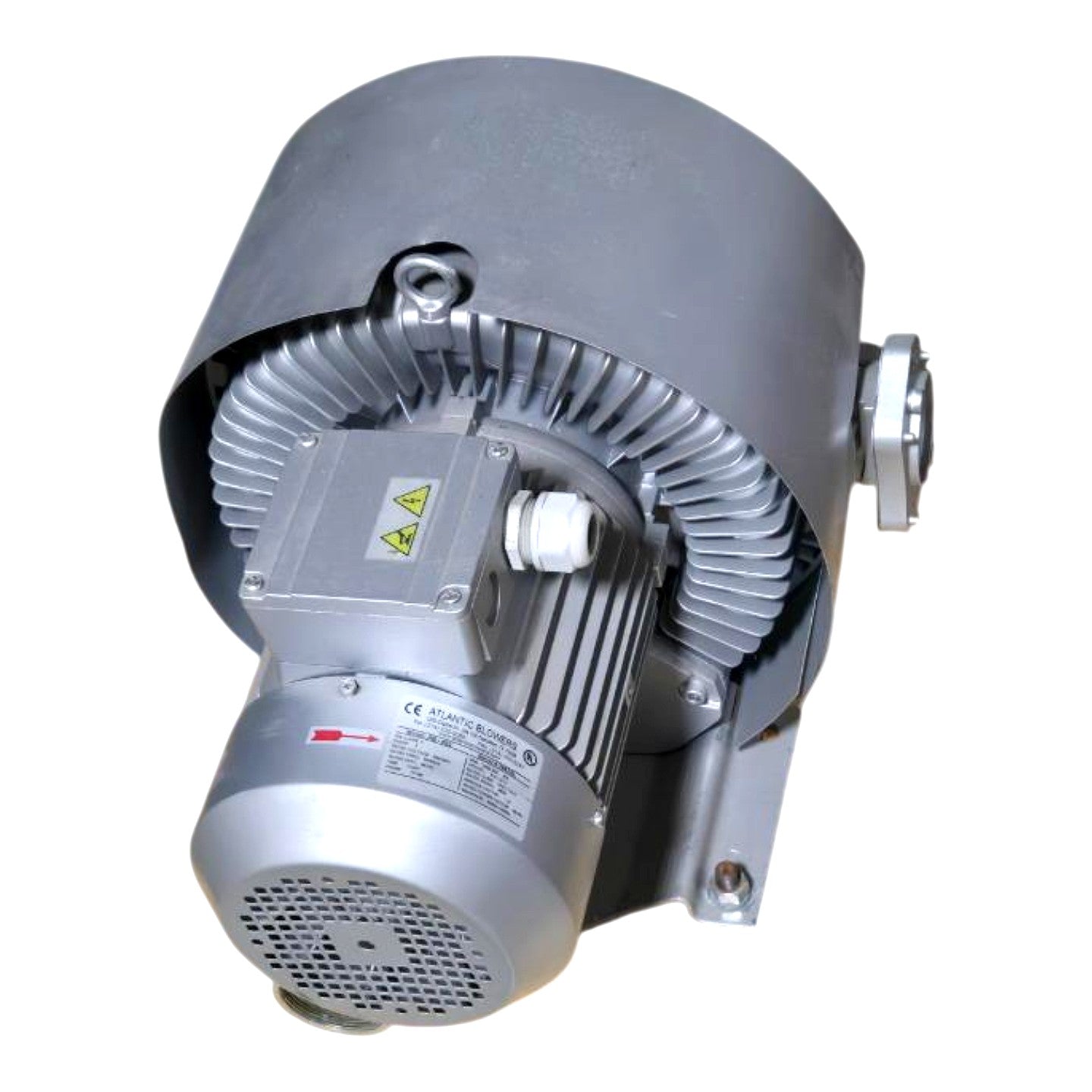

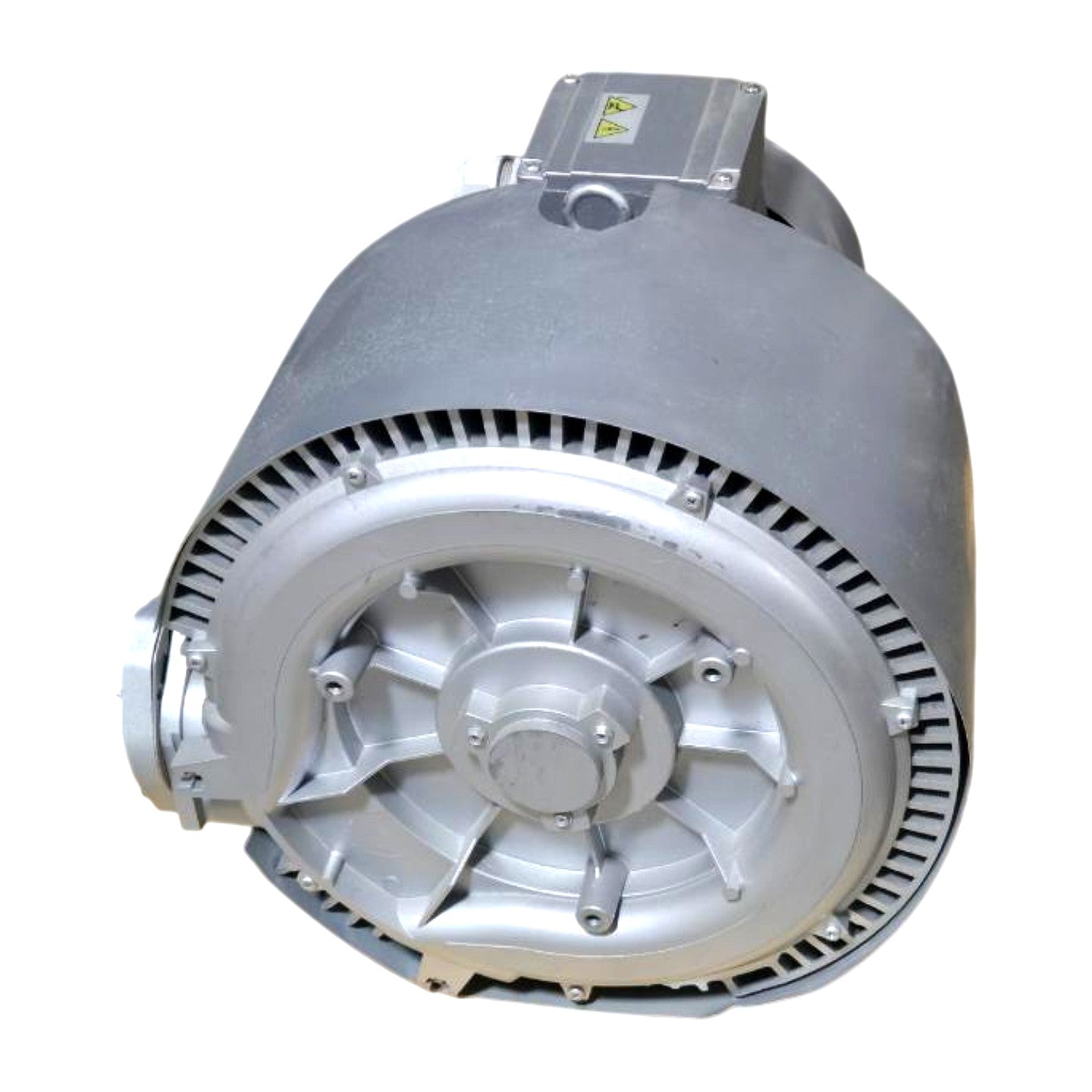

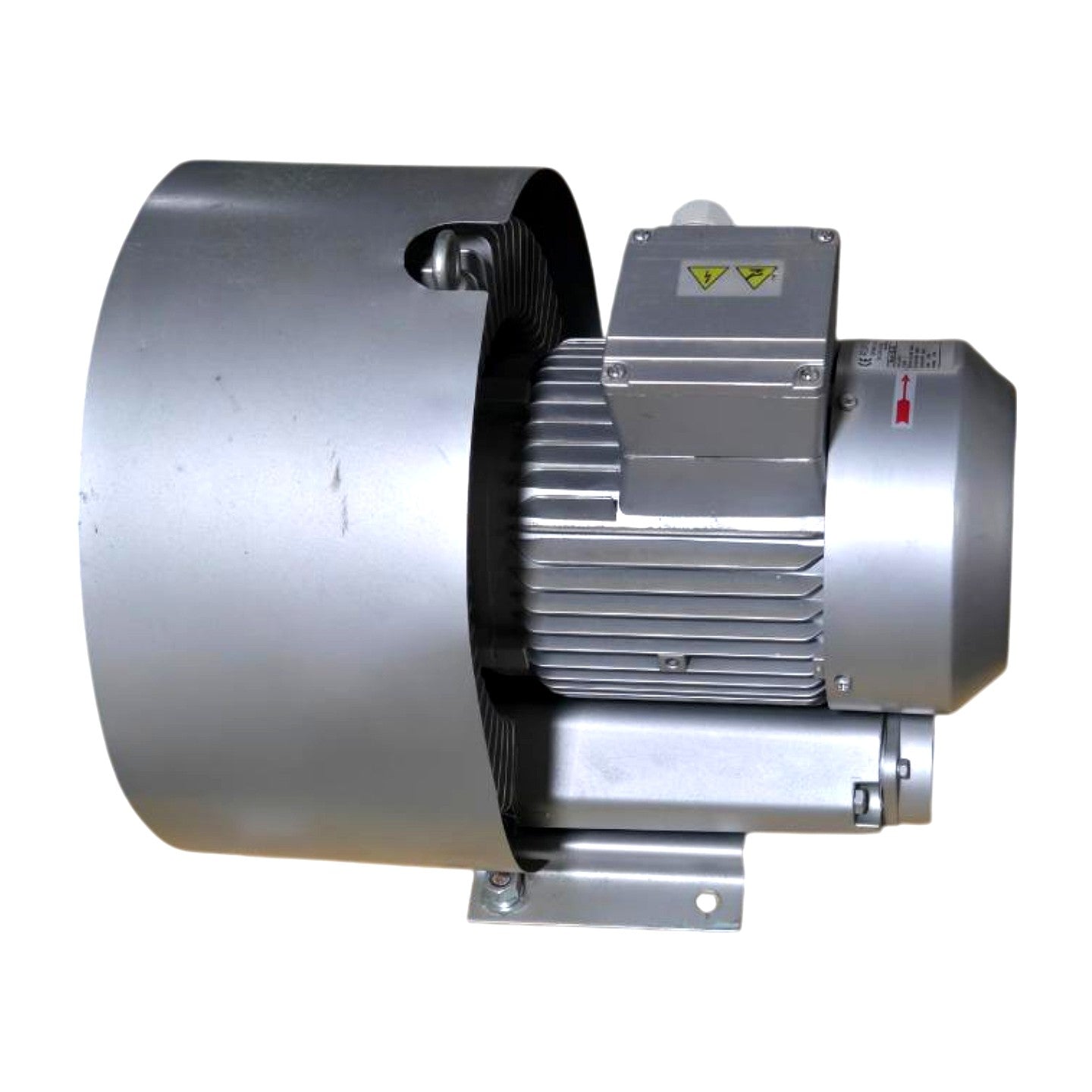

The Atlantic Blowers AB-602 is a new single-stage regenerative ring blower (also called a side-channel or vortex blower) rated at 5.0 HP (3.7 kW) with a 3-phase, 230/460V dual-voltage motor operating at 50/60 Hz and 3600 RPM. The motor carries Insulation Class F rating, IP55 enclosure protection, IE3 premium efficiency at 86.5%, a 1.10 service factor, and a 0.89 power factor, with rated current of 13.6 A at 230V and 7.8 A at 460V. The FF165 frame uses dual 6205Z shielded ball bearings on both drive and non-drive ends, and the unit is UL-listed and CE-marked for North American and European compliance. Regenerative blowers of this type deliver oil-free, pulsation-free airflow suitable for pneumatic conveying, vacuum lifting, wastewater aeration, CNC vacuum tables, aquaculture, and industrial drying applications where continuous-duty (CONT rated) operation is required.

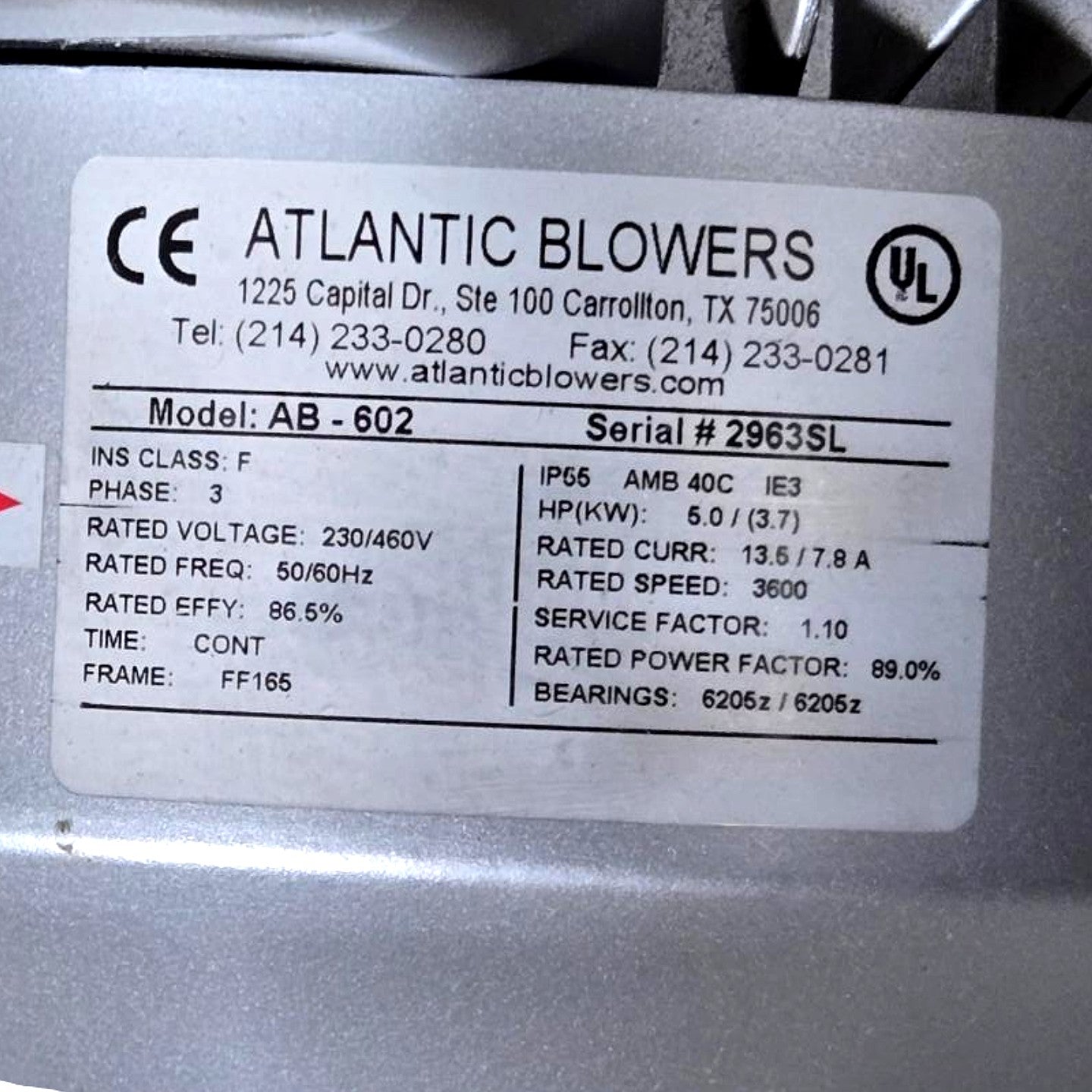

Product Specifications
| Brand | Atlantic Blowers |
| Model Number | AB-602 |
| Serial Number | 2963SL |
| Blower Type | Regenerative Ring Blower (Side-Channel) |
| Power | 5.0 HP (3.7 kW) |
| Phase | 3-Phase |
| Rated Voltage | 230/460V |
| Rated Frequency | 50/60 Hz |
| Rated Current | 13.6 A @ 230V / 7.8 A @ 460V |
| Rated Speed | 3600 RPM |
| Rated Efficiency | 86.5% |
| Efficiency Class | IE3 (Premium Efficiency) |
| Power Factor | 0.89 (89.0%) |
| Service Factor | 1.10 |
| Insulation Class | Class F |
| Enclosure Rating | IP55 |
| Ambient Temperature | 40°C max |
| Duty Cycle | Continuous (CONT) |
| Frame | FF165 |
| Bearings | 6205Z / 6205Z (both ends) |
| Construction Material | Die-cast aluminum housing and impeller |
| Certifications | UL Listed, CE Marked |
| Lubrication | Oil-free (non-contact impeller) |
| Mounting | Base/foot mount, integral mounting feet |
| Condition | New |
