ATS 750-4375 7/16x1x2-3/4 5-Flute AlCrN HP Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

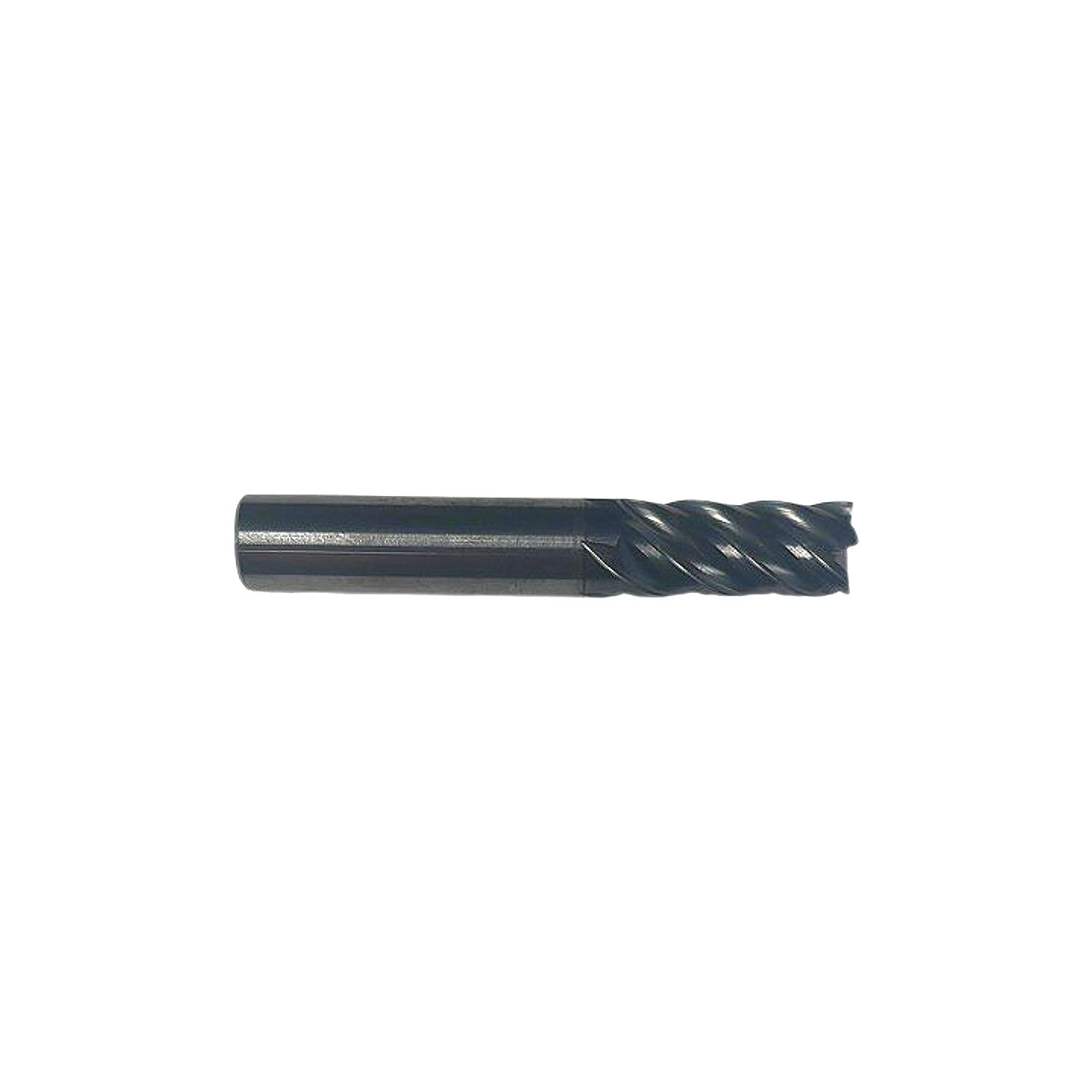

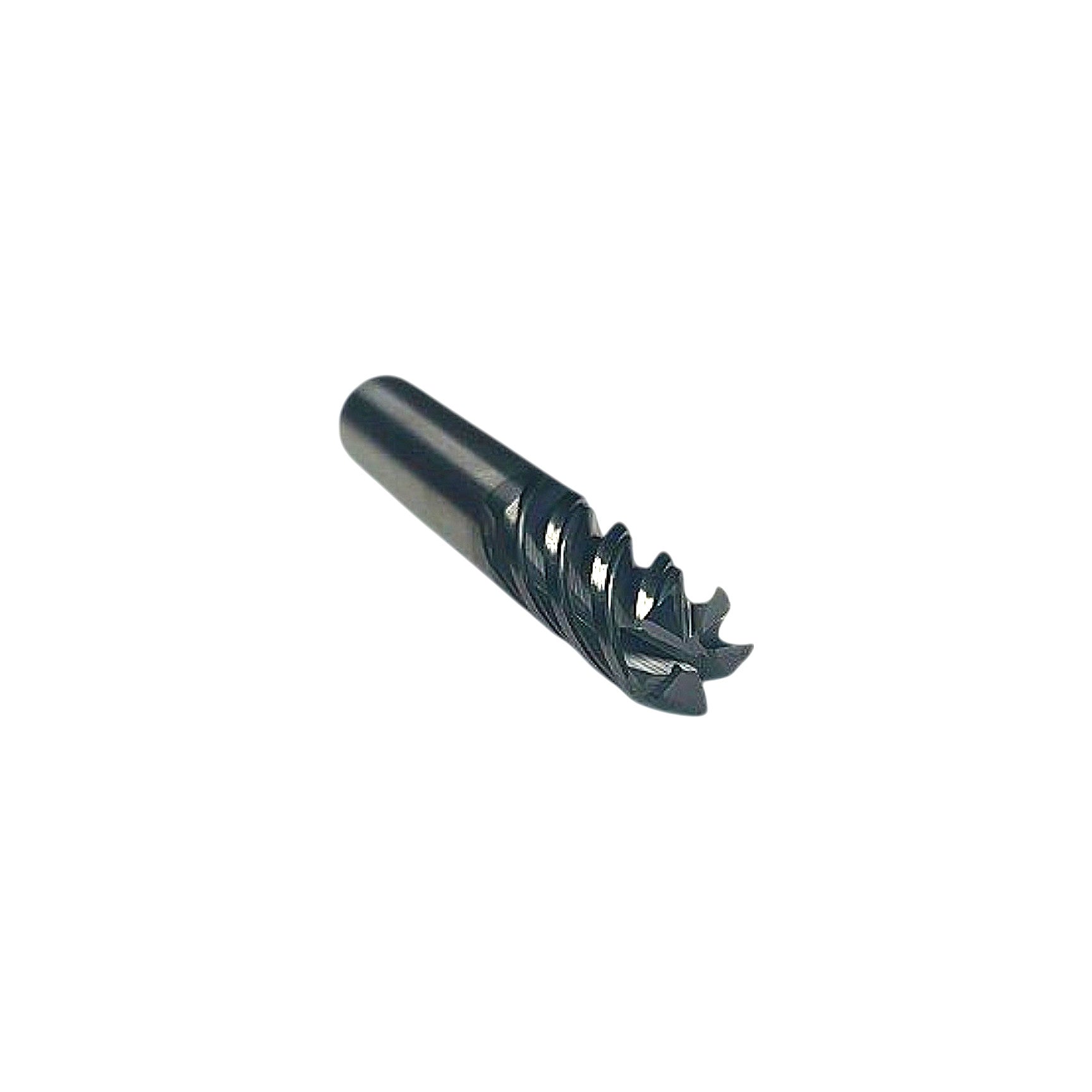

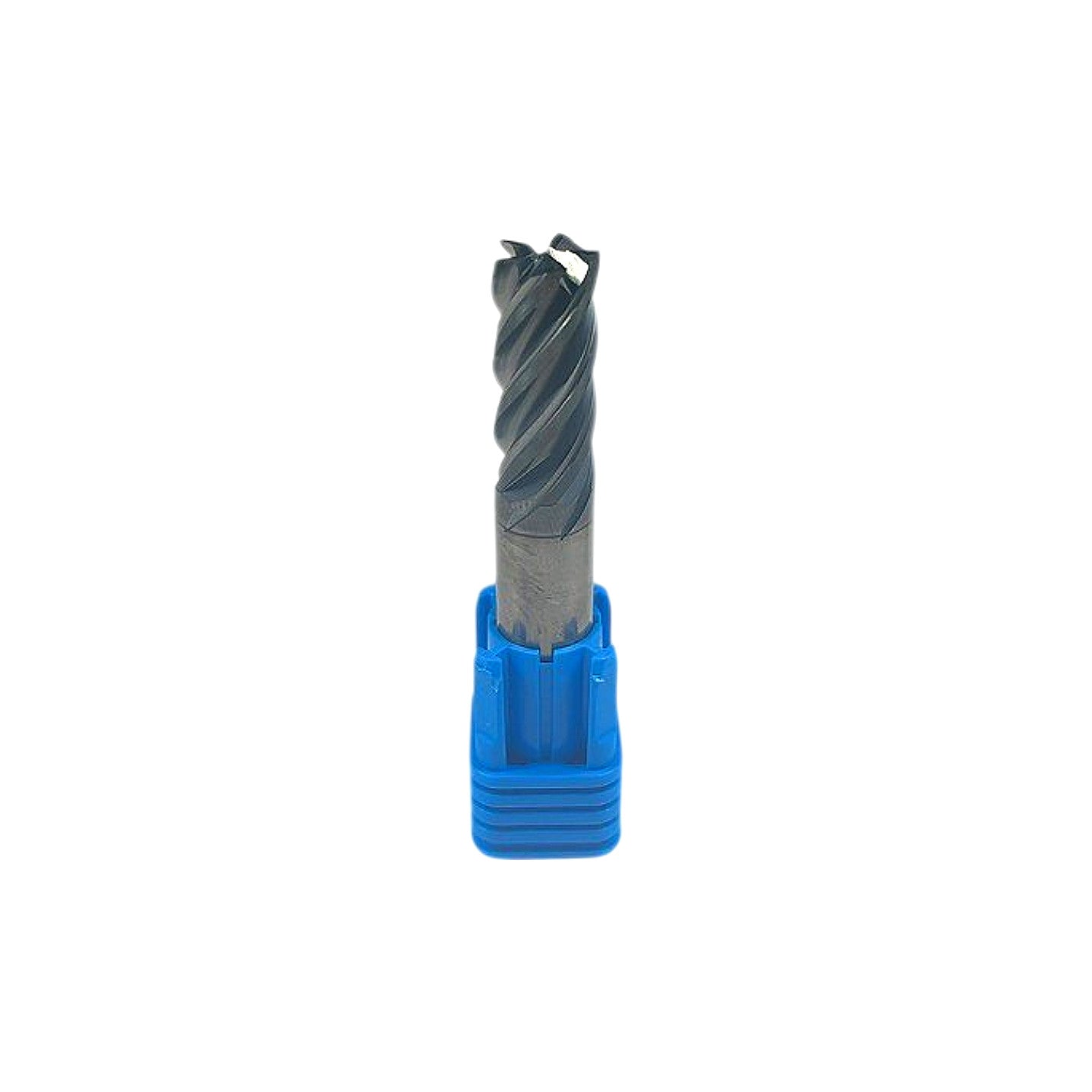

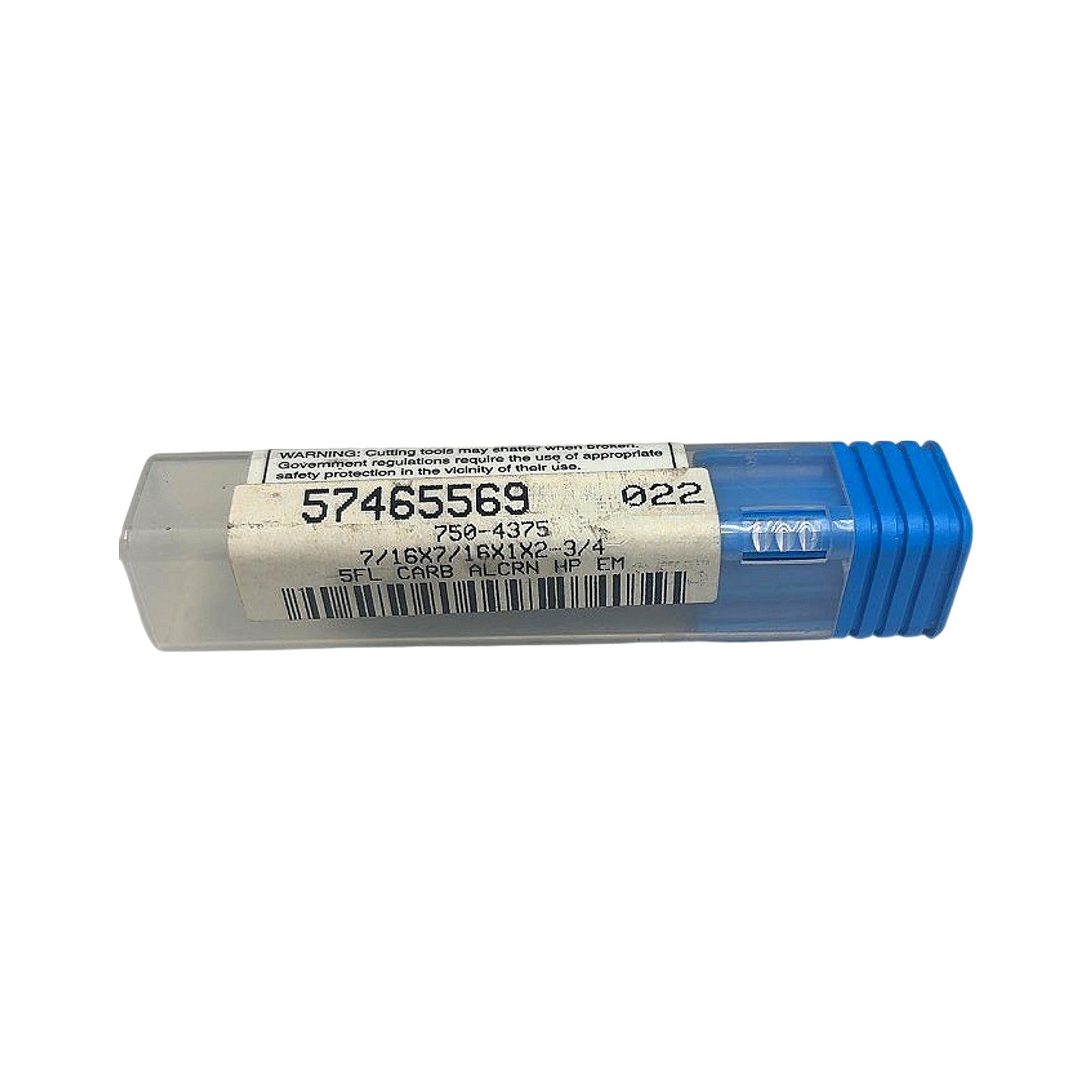

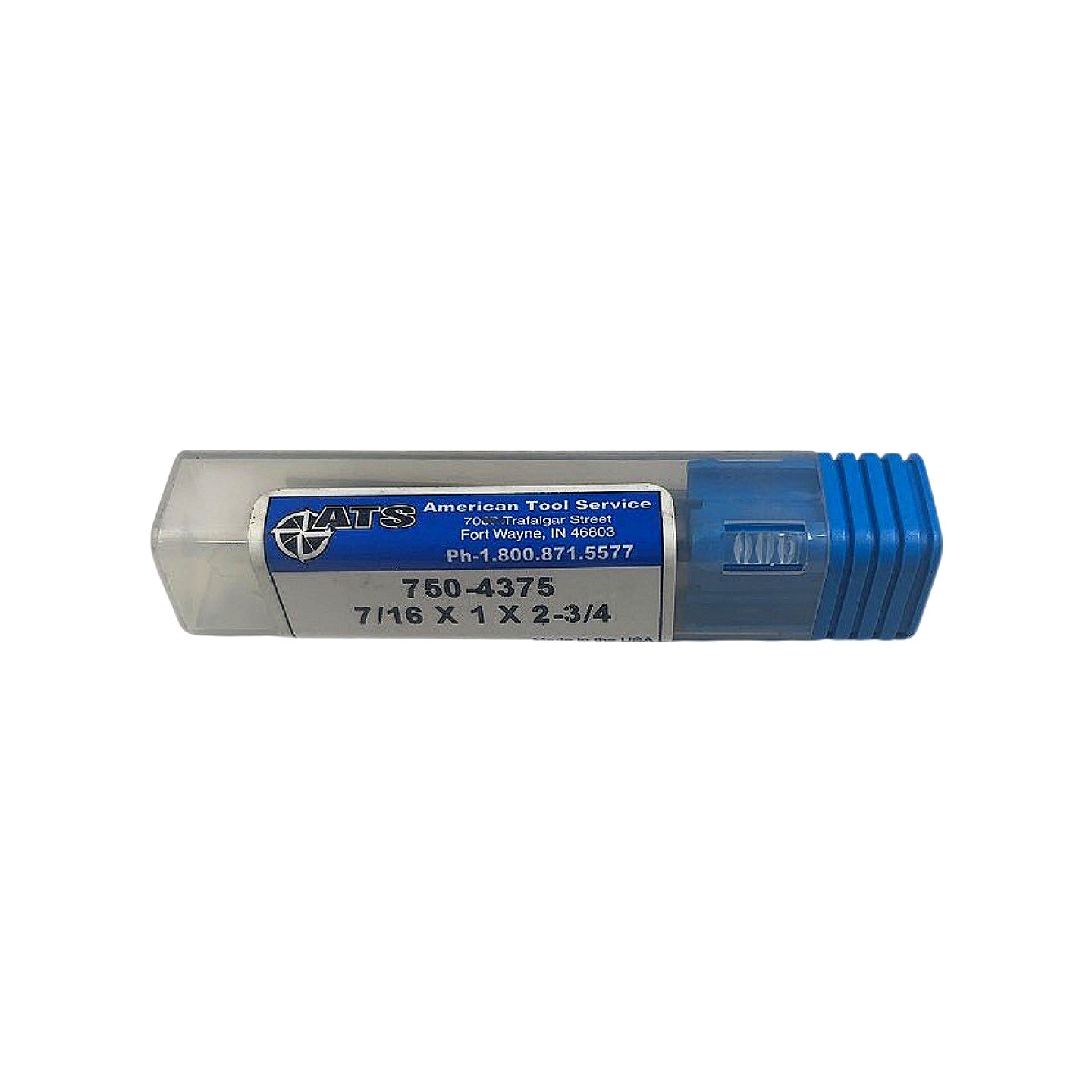

This is a new, unused American Tool Service (ATS) part number 750-4375, a solid carbide 5-flute high-performance (HP) square end mill measuring 7/16 in cutting diameter with a 7/16 in shank diameter, 1 in length of cut, and 2-3/4 in overall length, made in the USA. The tool carries an AlCrN (aluminum chromium nitride) PVD coating, which provides excellent oxidation resistance and hardness at elevated temperatures, making it well-suited for dry or semi-dry machining of hardened steels, stainless steels, and high-temp alloys. The 5-flute geometry increases the number of cutting edges relative to standard 4-flute designs, improving surface finish and material removal rates in finishing and semi-finishing operations on CNC machining centers. The 7/16 in straight cylindrical shank is compatible with standard ER, Weldon, and hydraulic toolholders accepting 7/16 in bore. The tool ships in its original ATS plastic case and is in new, unrun condition.
Product Specifications
| Brand | American Tool Service (ATS) |
| Part Number | 750-4375 |
| Cutting Diameter | 7/16 in (0.4375 in) |
| Shank Diameter | 7/16 in (0.4375 in) |
| Length of Cut (LOC) | 1 in |
| Overall Length (OAL) | 2-3/4 in (2.75 in) |
| Number of Flutes | 5 |
| End Type | Square (Flat) |
| Material | Solid Carbide |
| Coating | AlCrN (Aluminum Chromium Nitride) |
| Series / Style | HP (High Performance) |
| Country of Origin | USA |
| Condition | New |
| Shank Type | Straight (Cylindrical) |
| Helix Angle | Variable / High Helix (visible in photos) |
