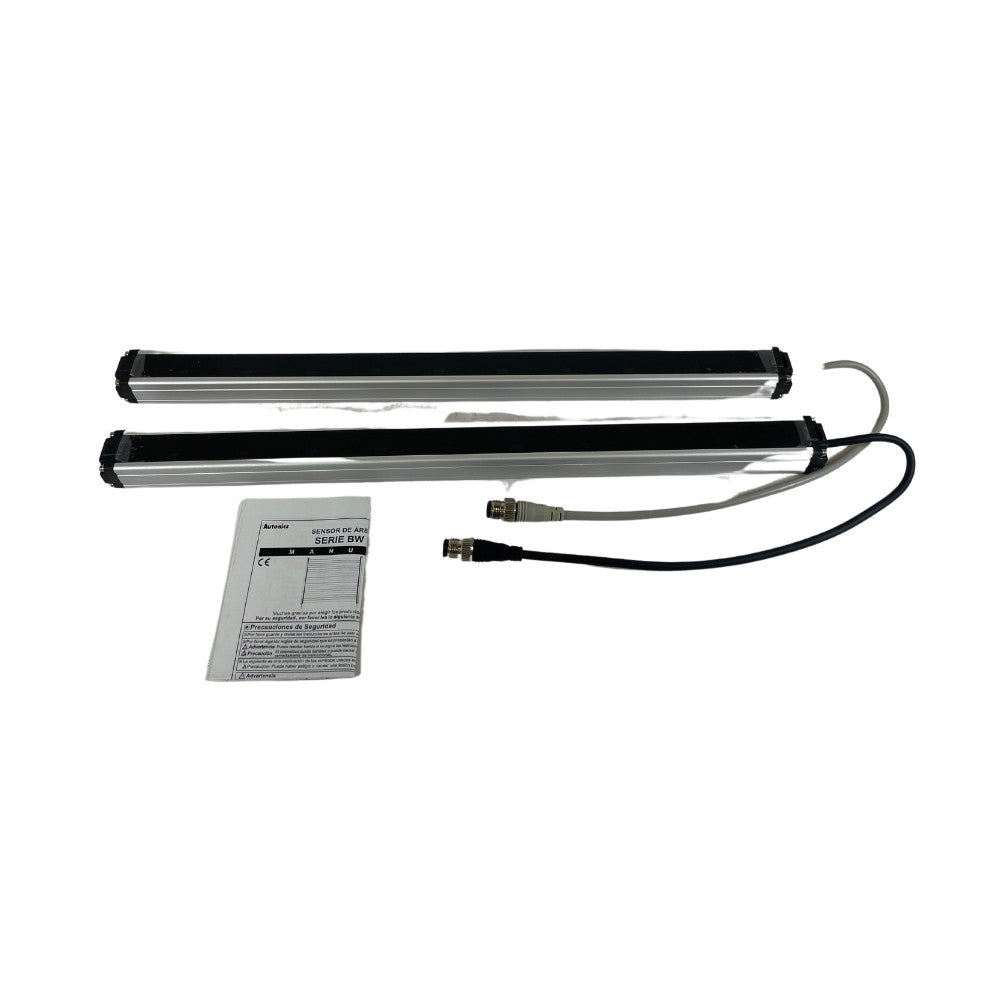

Autonics BW40-10 40 mm 30V 100 mA 10 Beam NPN Photoelectric Area Sensor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Country of Origin | South Korea |
| Brand | Autonics |
| MPN | BW40-10 |
| Type | Area Sensor |
| Model | Area Sensor |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Width | 28.6 mm |
| Depth | 22.6 mm |
| Min. Target Size | Opaque Material 50mm |
| Cable Length | 0.3 m |
| Sensing Height | 360 mm |
| Overall Height | 400 mm |
| Overall Depth | 23 mm |
| Operating Temp. Range | -20 to 60 Degrees C |
| Includes | -20 to 60 Degrees C |
| Max. Load Voltage | 30V DC |
| Max. Load Current | 100 mA |
| Circuit Type | NPN Open Collector |
| Light Source | Infrared LED |
| Current Consumption | 120 mA |
| IP Rating | IP65 |
| Sensing Range | 0.10 to 7.00m |
| Power Source | 12 to 24V DC |
| Number of Beams | 10 |
| Response Time | 10 msec |
| Output Mode | Light-On |
| Housing Material | Aluminum |
| Cable Connection | 4 Pin M12 |
| Operating Temperature - Maximum | 131 Degrees F |
| Series | BW |
| Emitted Sensor Light | Infrared LED |
| Load Voltage - Maximum | 30V DC |
| 4 Pin M12 | 4 Pin M12 |
| Sensing Distance - Minimum | 100 mm |
| Operating Temperature - Minimum | 14 Degrees F |
| Load Current - Maximum | 100 mA |
| Input Voltage - Maximum | 24V DC |
| Sensing Distance - Maximum | 7 m |
| Input Voltage - Minimum | 12V DC |
| California Prop 65 Warning | Does not apply |
Autonics BW40-10 40 mm 30V 100 mA 10 Beam NPN Photoelectric Area Sensor
Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner.
Shipping
Shipping cost:
Expedited shipping options available. Please contact us for overnight or express shipping. We are happy to offer these services.
Delivery time:
All items are shipped within one business day of purchase.
Payment
We accept the following payment methods:
- Paypal
- Credit Card or Debit Card
Please contact us if you have any questions.
Service
All of our products are brand-new and unused, unless otherwise clearly stated. Packaging for our products has been opened for picture-taking and inspecting only. Products may or may not be in original packaging. Our mission is to please all of our customers. Please let us know if you have any questions or concerns. We are happy to help. Thank you.
