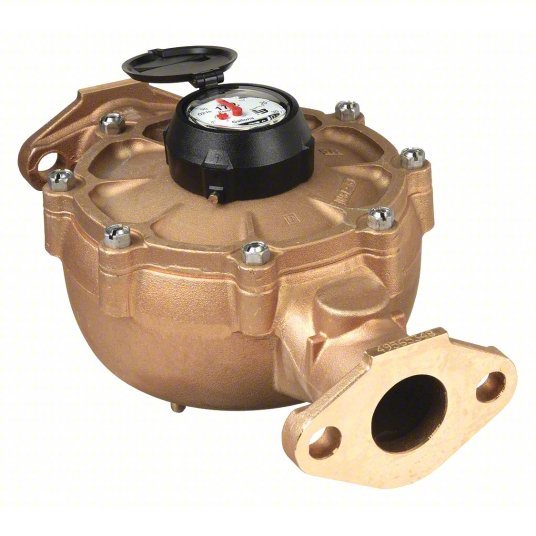

Badger Meter 103-3725 2in 170GPM Lead-Free Bronze Mechanical Flowmeter

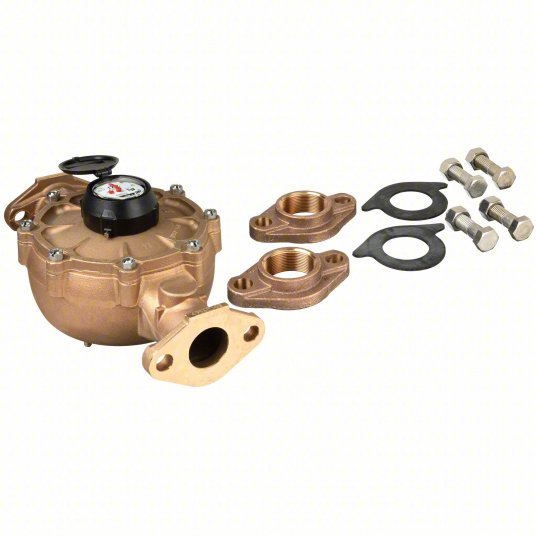

The Badger Meter 103-3725 is a new M170 series positive-displacement mechanical water flowmeter constructed from lead-free bronze alloy (NSF 61-372 compliant), sized for 2-inch pipe with elliptical long-drilled flow disc internals and a top-mounted local register displaying flow in gallons. Per the box label, the catalog number is FB-REB-PFAS-SAD3-Y2-L1XX-2A1X1-L1X-NN-XX-XX-XX-B0A, confirming a potable water application rating, 150 PSI maximum working pressure, and a maximum flow rate of 170 GPM. The unit ships with a complete flange kit including two bronze SAE flanges, four stud bolts, and two gaskets as visible in the product photos, enabling direct bolt-on installation to standard 2-inch SAE flange connections. Registration output is a local mechanical dial register only, with no pulse or remote output in this configuration. This meter is NSF/ANSI 61 certified for use in potable water systems and was assembled in the United States.

Product Specifications
