Badger Meter 103-6641 1 in NPT 70 GPM Bronze Mechanical Water Flowmeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

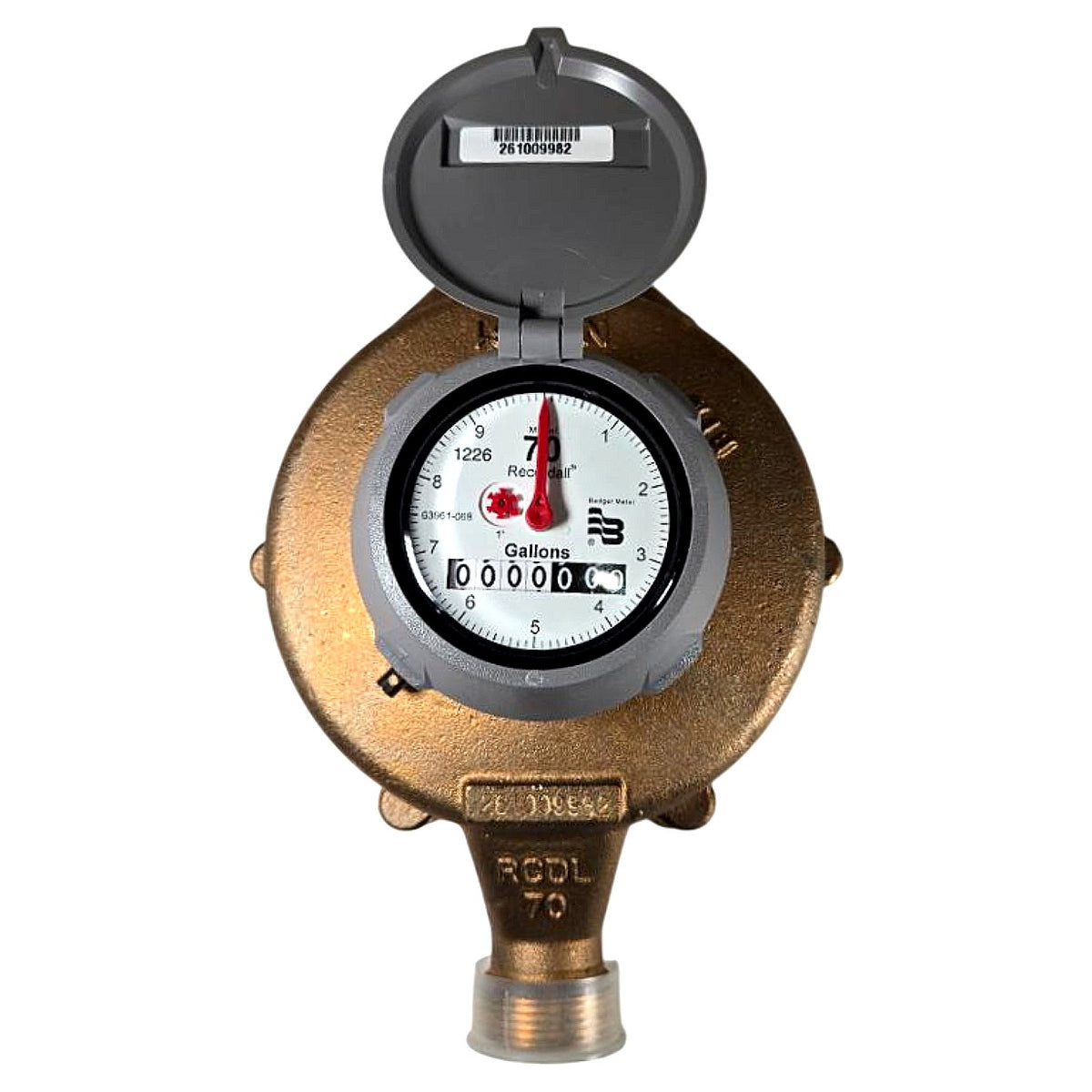

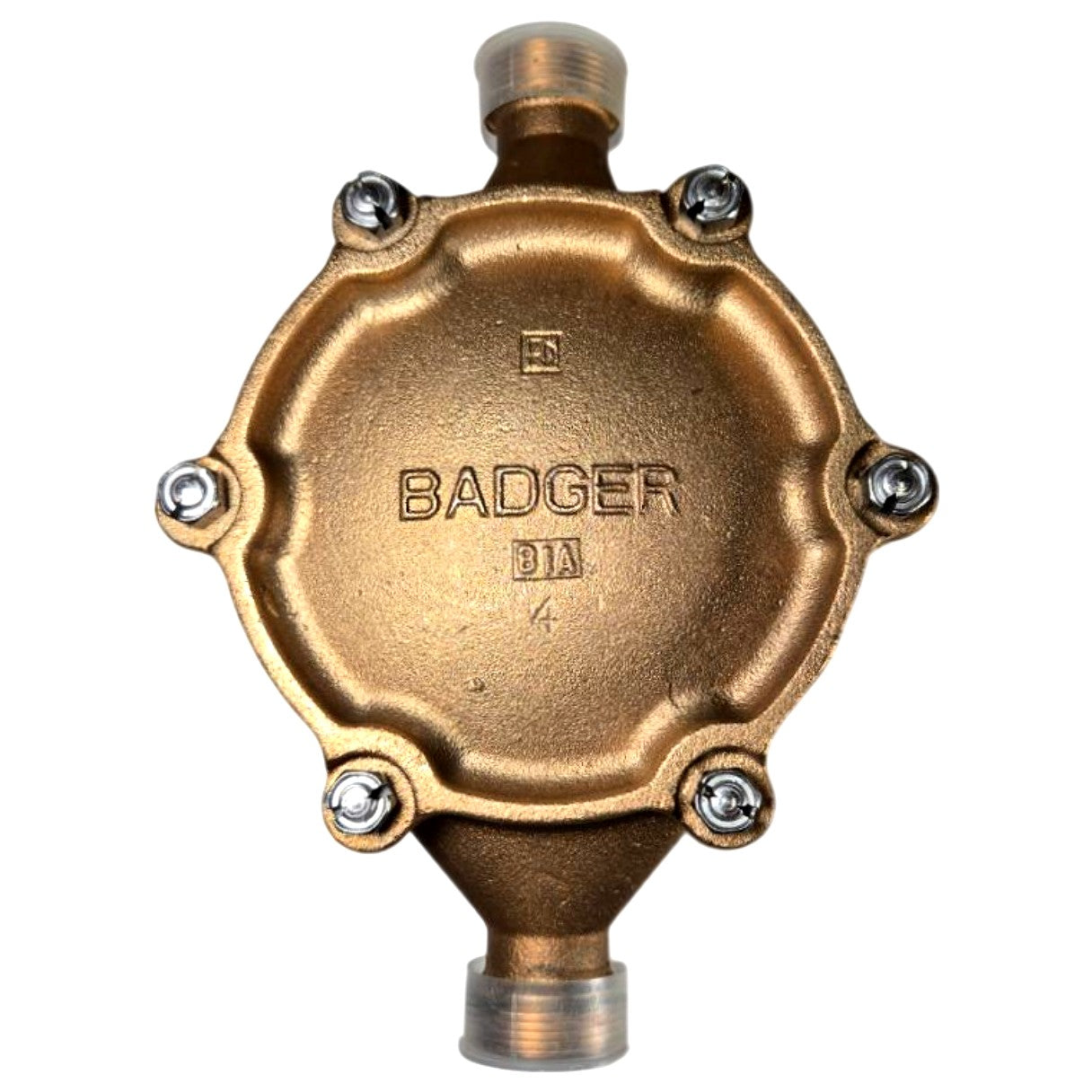

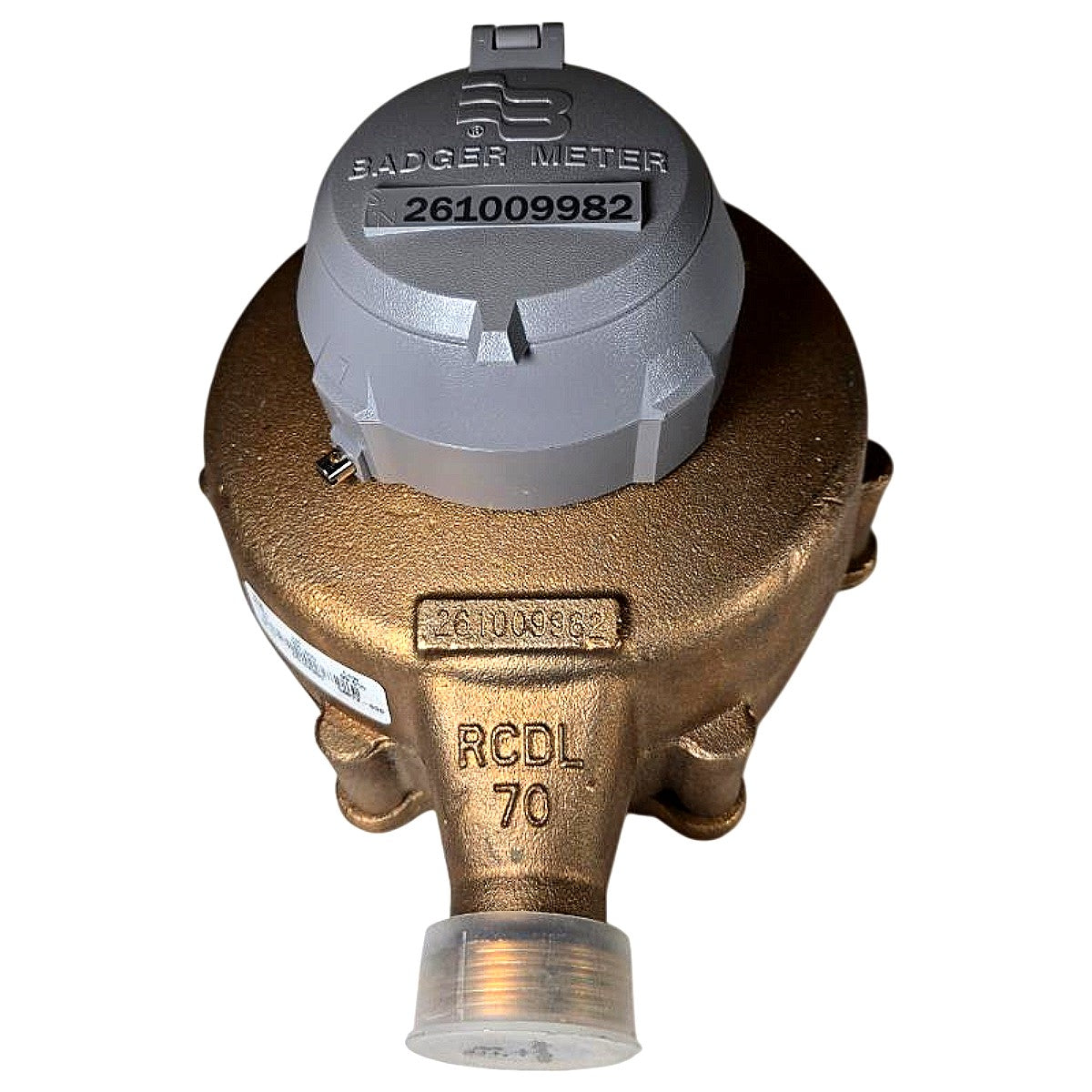

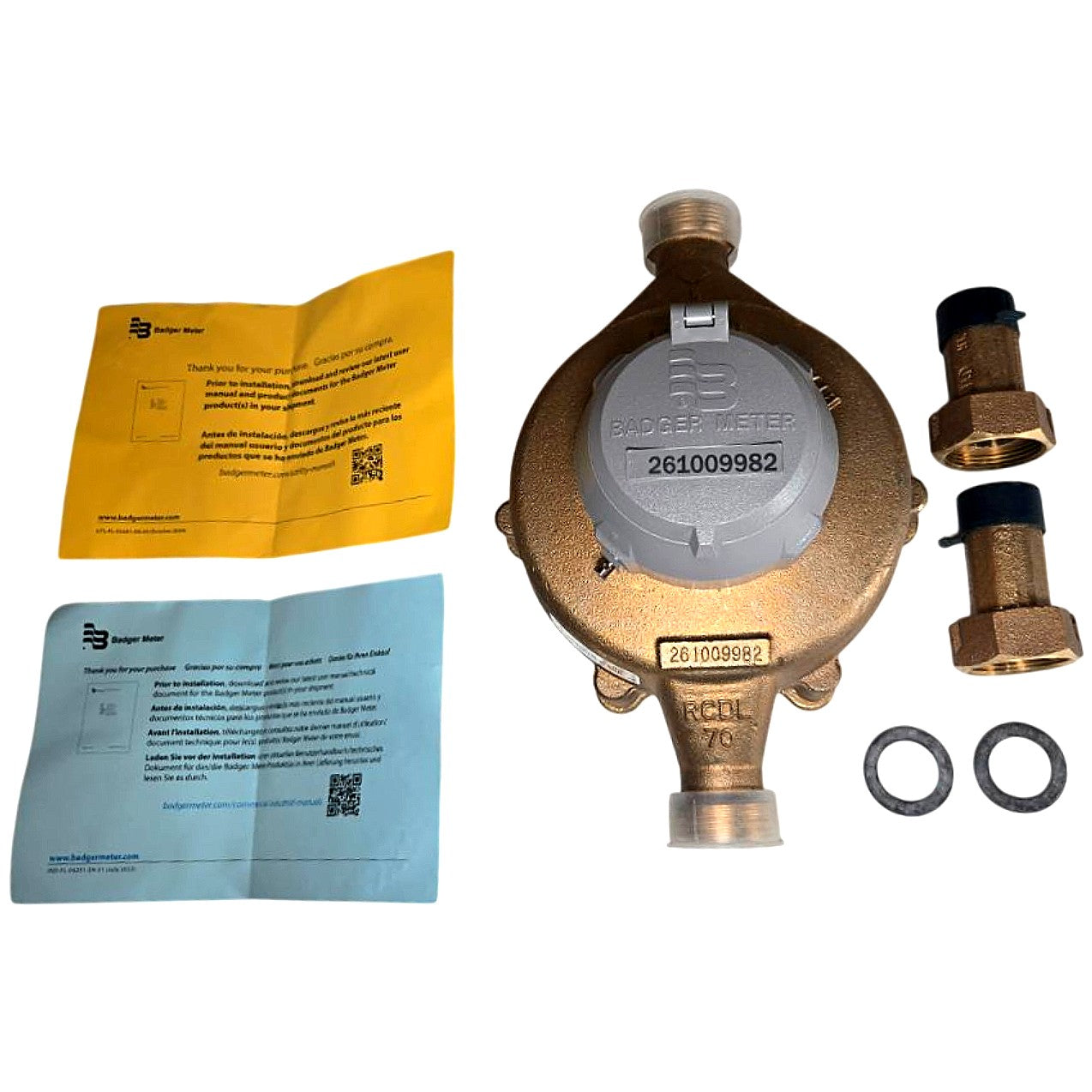

The Badger Meter 103-6641 (catalog number FB-KCC-PB2P-SCD3-Y2-L1XX-2A1X1-L1X-NN-XX-XX-XX-B04) is a new 1-inch NPT positive-displacement bronze water flowmeter from the Recordall series, rated at 70 GPM maximum flow and 150 PSI maximum working pressure, and certified NSF-61 for potable water service. The meter uses the RCDL 70 positive-displacement measuring mechanism with a hermetically sealed, magnetically driven Recordall register that displays in gallons via a 5-digit odometer-style totalizer with a sweep-hand low-flow indicator. The bronze maincase (ASTM B584 alloy) resists corrosion in cold-water municipal and commercial distribution applications; the unit ships new-in-box from Badger Meter (Milwaukee, WI) complete with two brass union couplings, two rubber gaskets, and multilingual installation documentation. The meter is compatible with Badger's ORION and 100 Series AMR/AMI endpoint transmitters and meets AWWA C700 cold-water meter standards.
Product Specifications
| Brand | Badger Meter |
| Item Number (MPN) | 103-6641 |
| Catalog Number | FB-KCC-PB2P-SCD3-Y2-L1XX-2A1X1-L1X-NN-XX-XX-XX-B04 |
| Customer Part Number (CUST) | 29FJ93 |
| Series | Recordall RCDL 70 |
| Meter Type | Positive Displacement |
| Fluid Type | Cold Water (Potable) |
| Connection Size | 1 in |
| Connection Type | NPT (Male) |
| Maximum Flow Rate | 70 GPM |
| Maximum Working Pressure | 150 PSI |
| Display Units | Gallons |
| Register Type | Recordall sealed magnetic-drive totalizer |
| Totalizer Digits | 5-digit odometer + sweep hand |
| Body Material | Bronze |

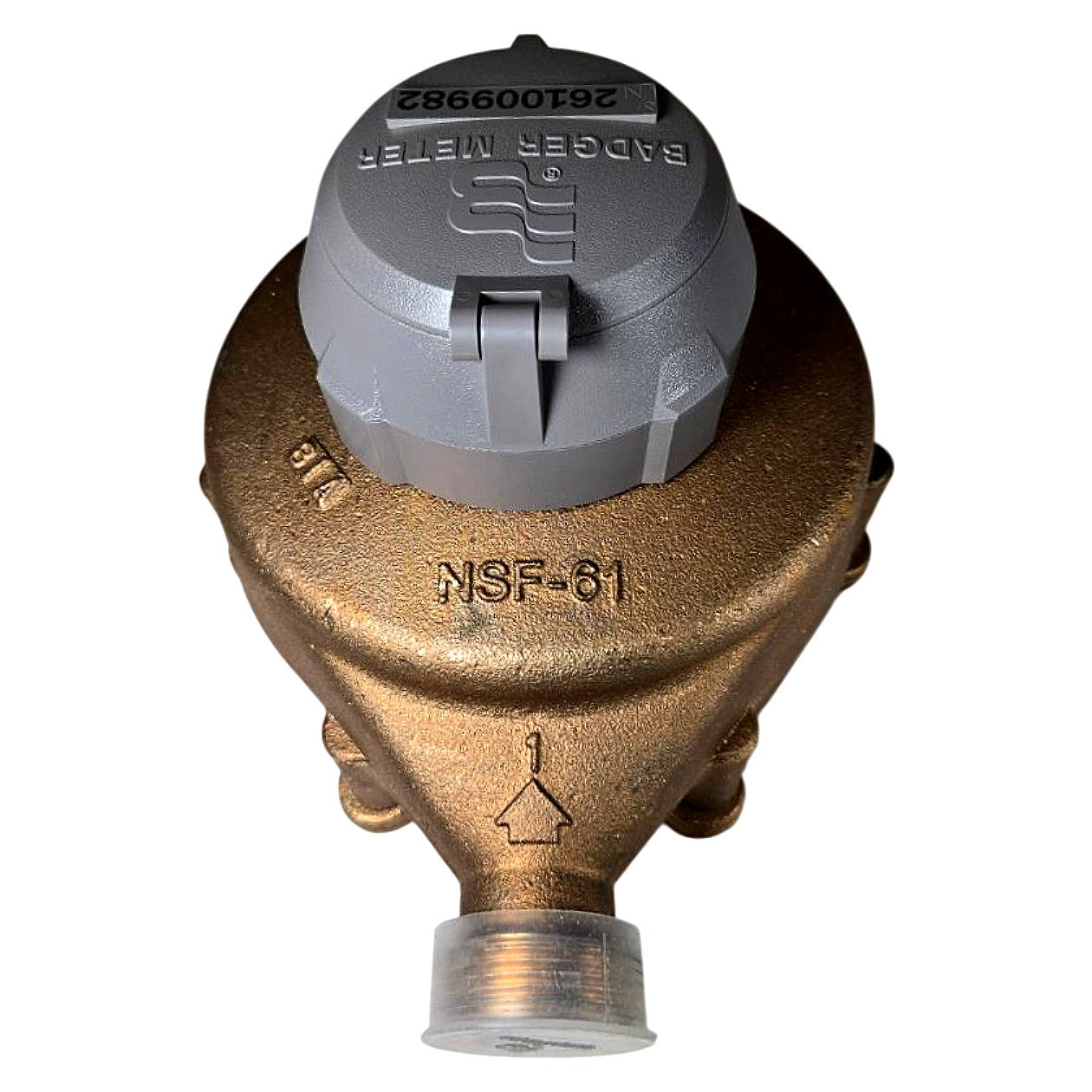

| NSF Certification | NSF-61 (Potable Water) |
| Standard | AWWA C700 |
| Includes | 2 brass union couplings, 2 gaskets, documentation |
| AMR/AMI Compatible | Yes (Badger ORION / 100 Series endpoints) |
| Condition | New |
| Origin | Assembled in Mexico |
