Baldor 36-5587Z571G1 2HP 72V 1600RPM 184CZ TEFC DC Industrial Motor

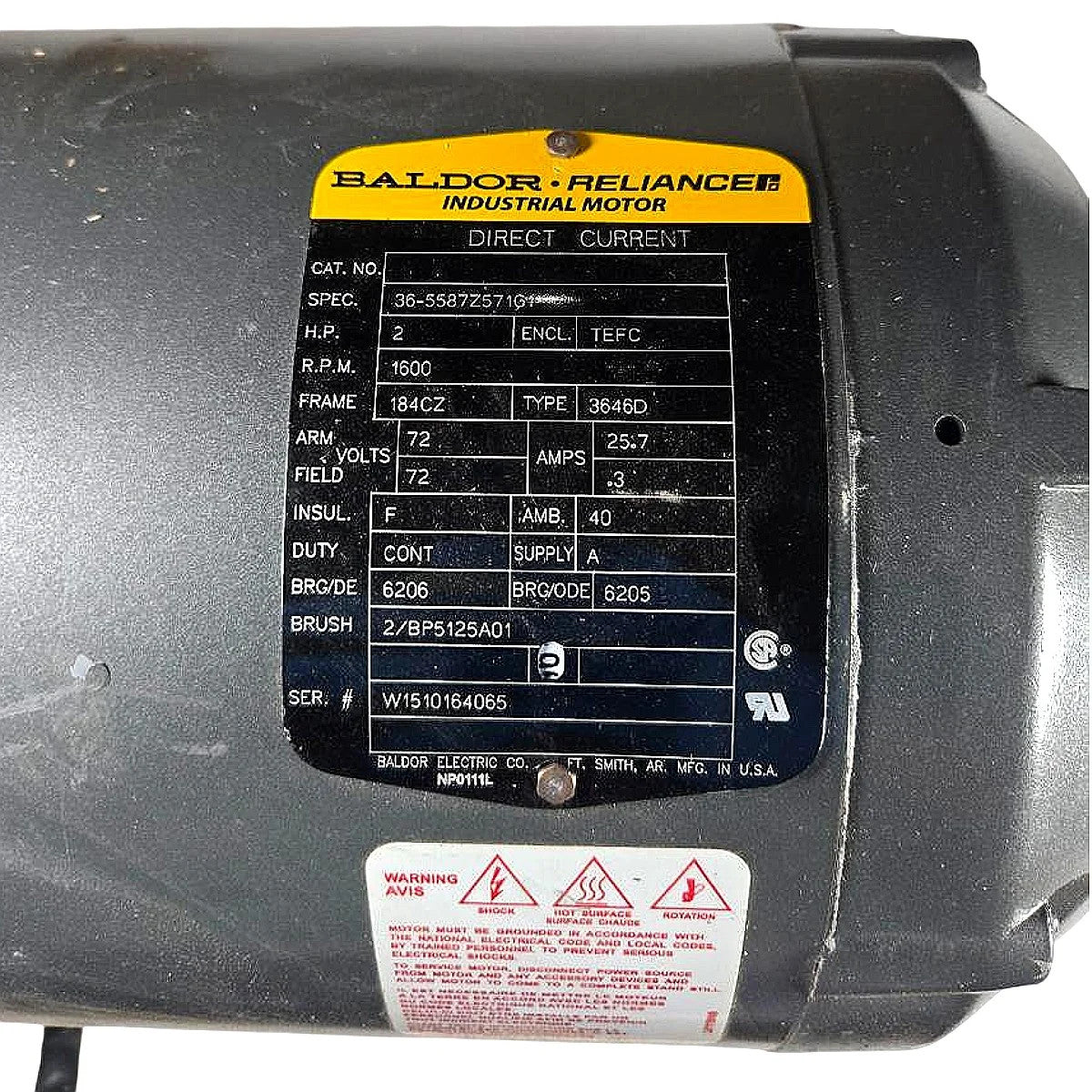

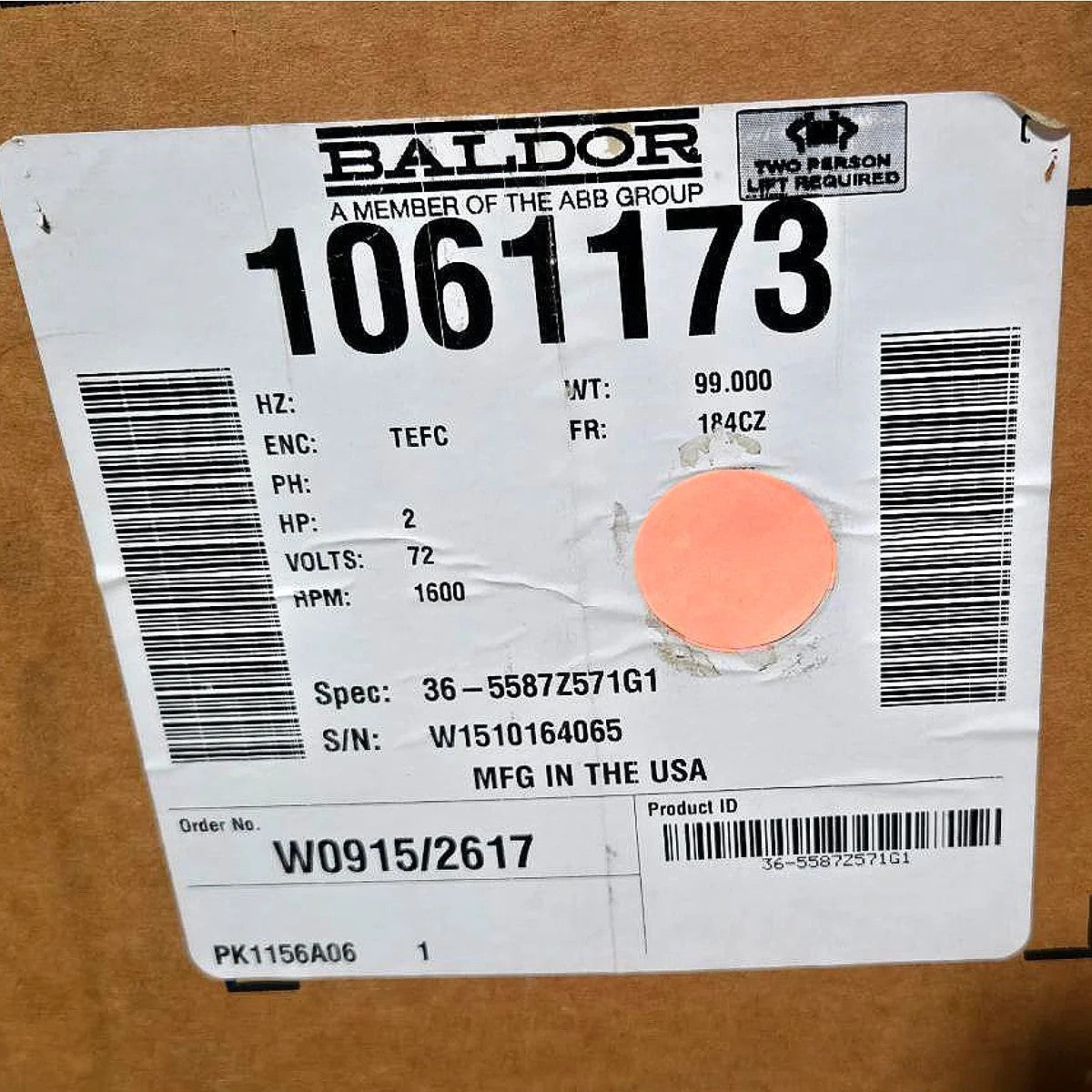

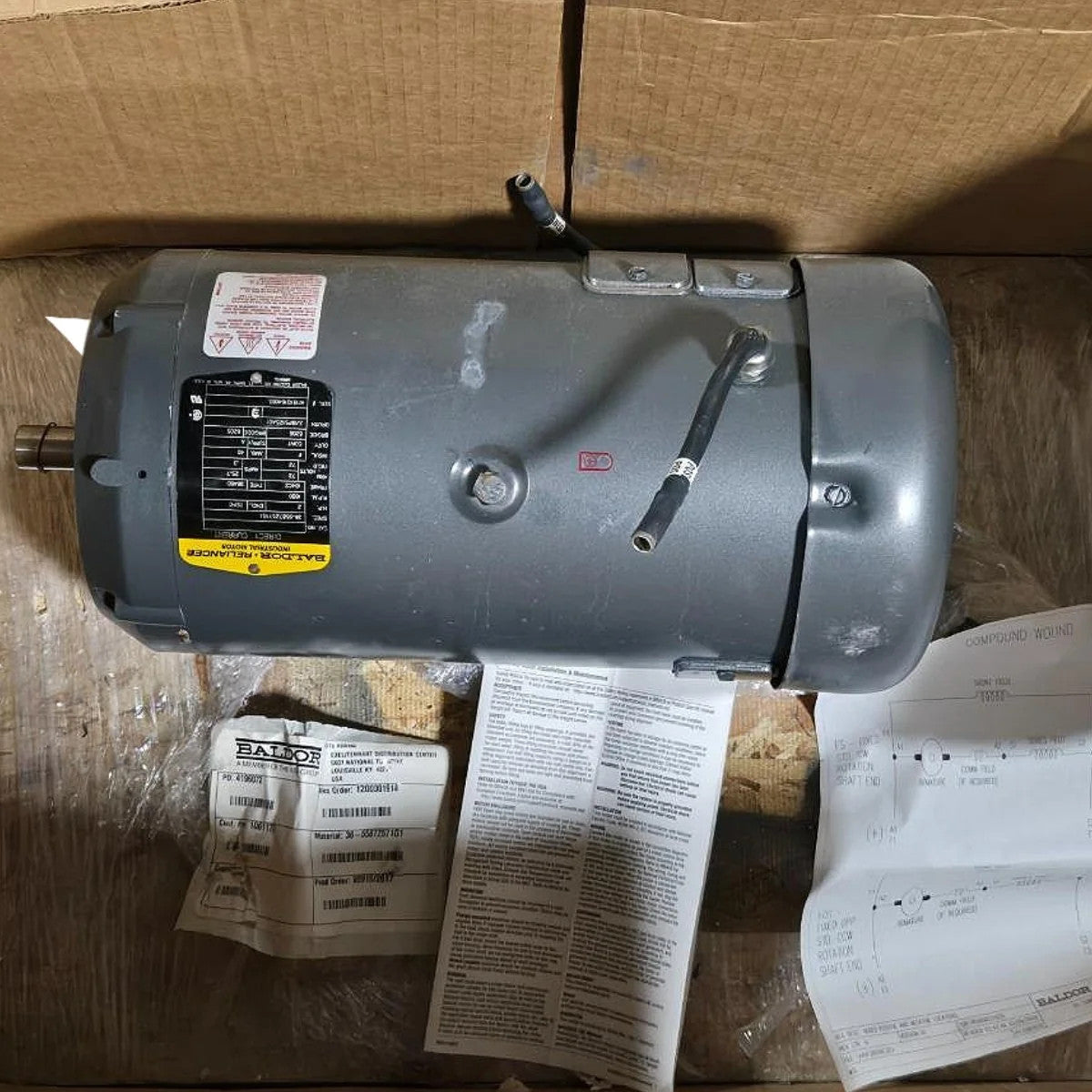

This is a new Baldor-Reliance Direct Current industrial motor, Spec No. 36-5587Z571G1, manufactured in the USA (Ft. Smith, AR), rated 2 HP at 1600 RPM on a 184CZ NEMA frame with TEFC (Totally Enclosed Fan Cooled) enclosure — confirmed from both the nameplate and shipping carton label. Electrical ratings are 72V DC armature, 25.7A armature current, 72V DC field, 0.3A field current, with Class F insulation, 40°C ambient rating, and continuous duty cycle (Supply Type A, indicating separately excited or compound-wound field per the included wiring diagram). Drive-end bearing is a 6206, opposite drive-end bearing is a 6205; brush specification is 2/BP5125A01 (two brushes per Baldor brush part BP5125A01). The 184CZ frame designation indicates a C-face, foot-mount configuration with a Z-suffix denoting a special shaft or mounting variant; this motor is suited for variable-speed DC drive applications such as forklifts, conveyors, machine tools, and other equipment requiring adjustable-speed torque control via a DC drive controller.
