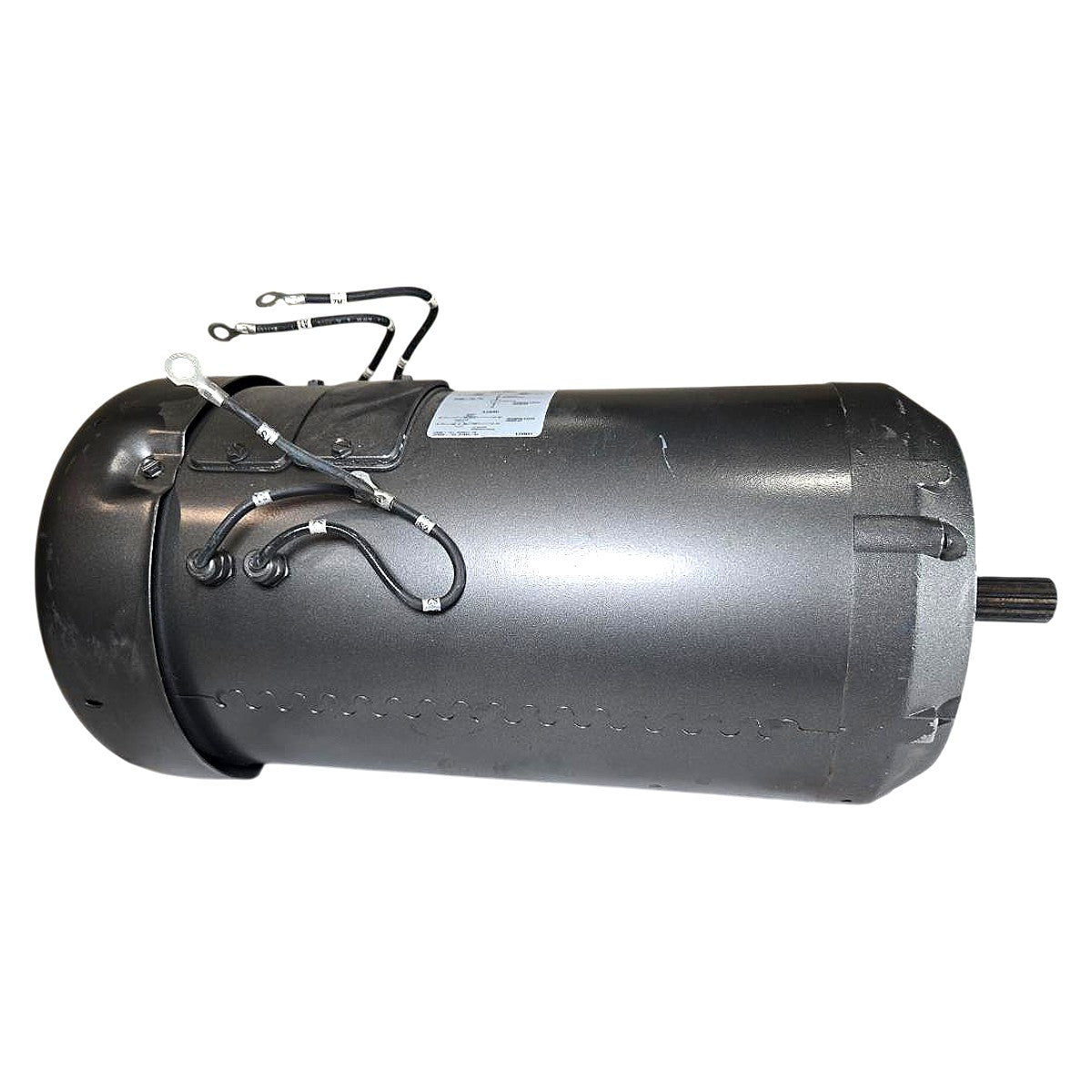

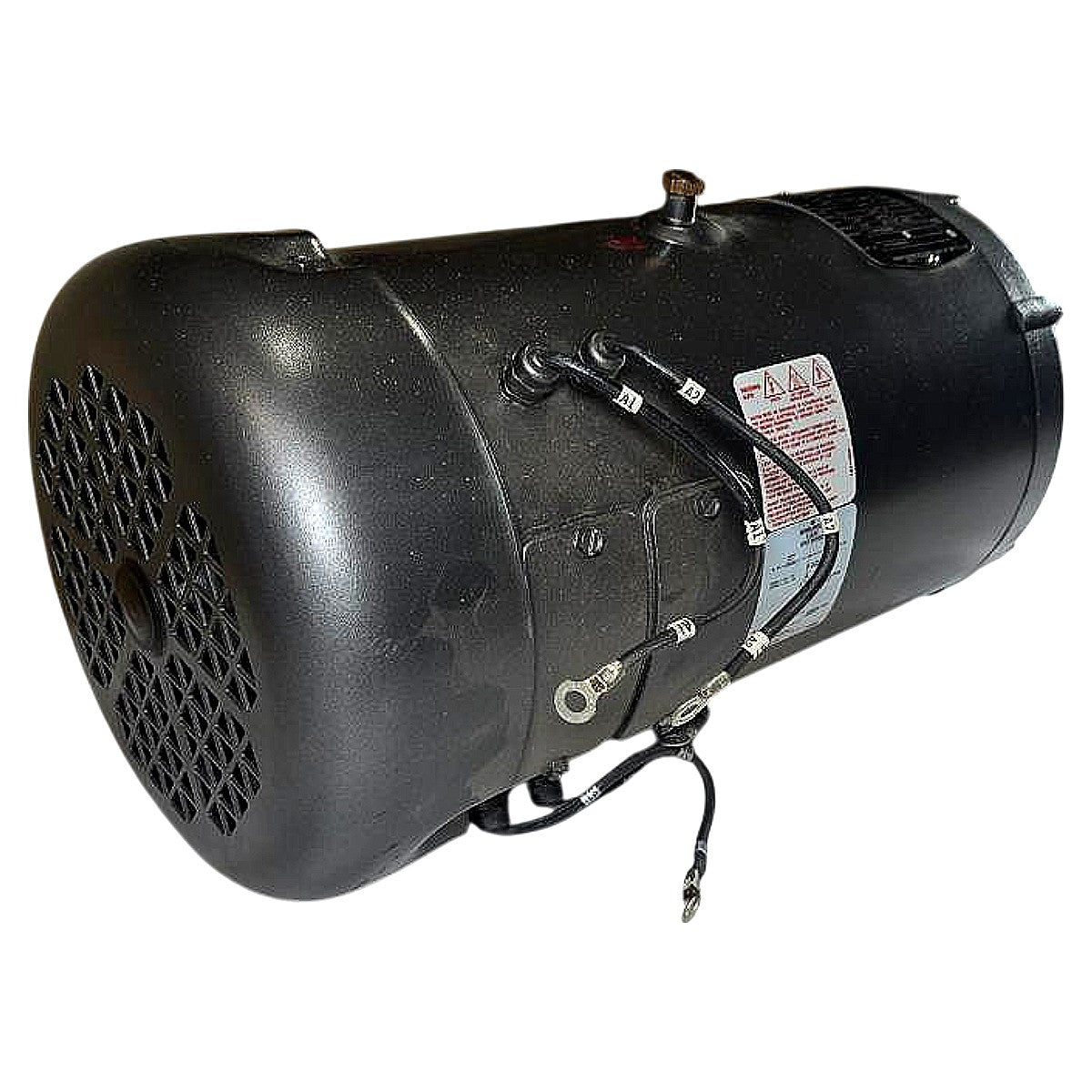

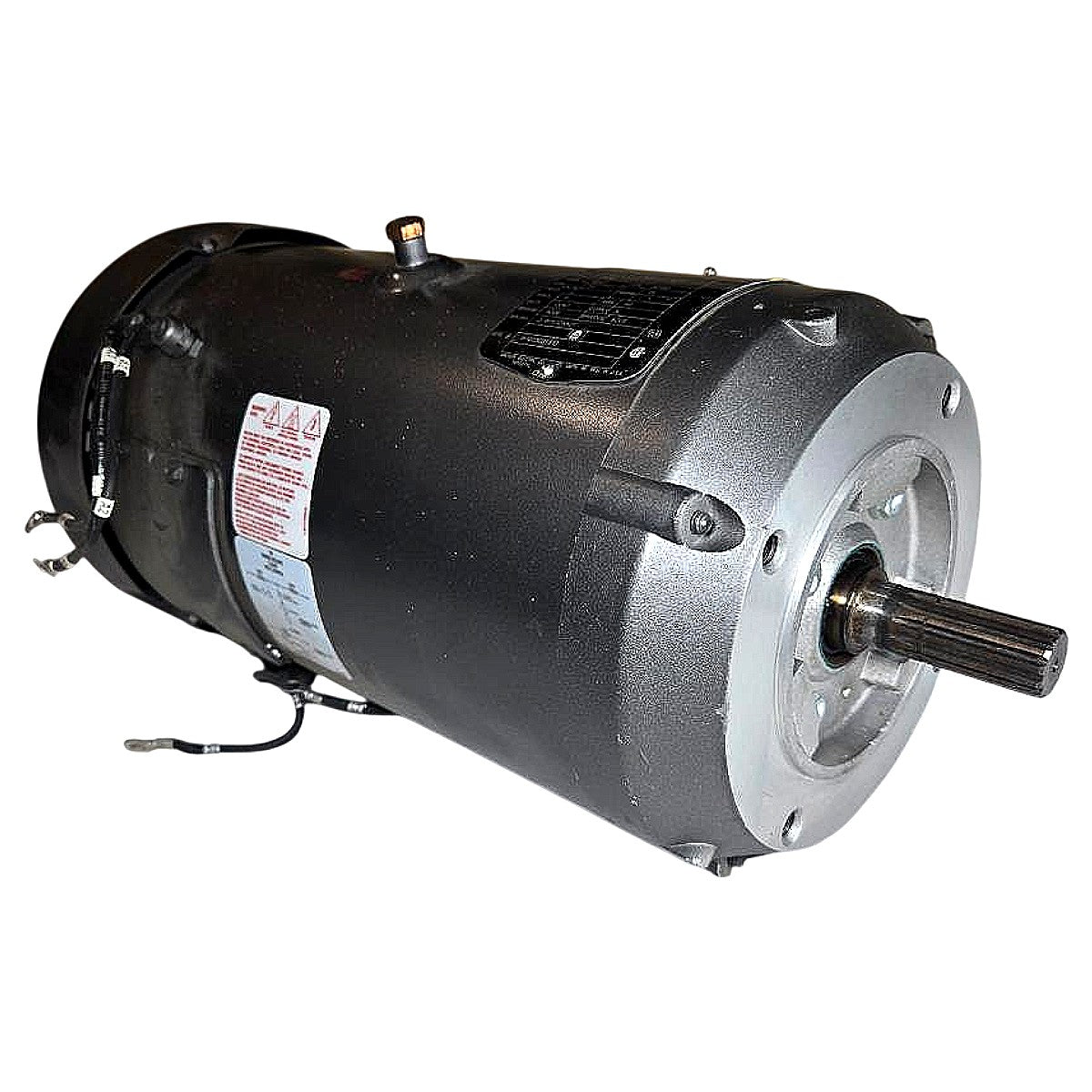

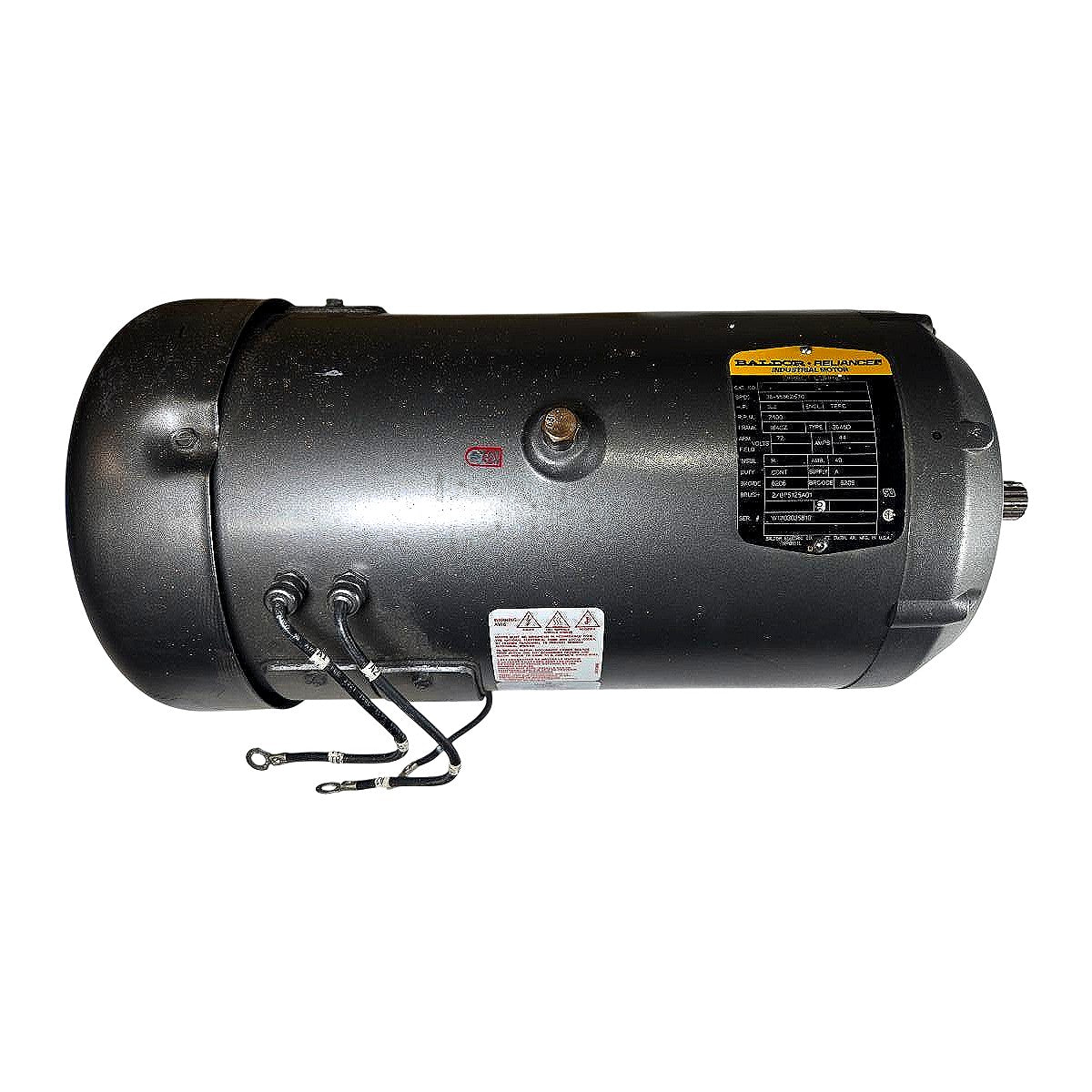

This is a Baldor·Reliance Industrial Direct Current motor, Spec. No. 36-5586Z570, Type 3646D, manufactured at Baldor Electric Co.'s Fort Smith, Arkansas facility (Serial No. W1703035810). The motor is rated 3.2 HP at 2400 RPM with 72V armature voltage and 44A continuous-duty armature current, housed in a NEMA 184CZ frame with a non-standard "Z"-suffix custom shaft configuration — buyers must confirm driven-equipment shaft compatibility before installation. The TEFC (Totally Enclosed Fan-Cooled) enclosure provides IP-rated protection against dust and moisture ingress, making it suited for industrial traction and material-handling drive applications including electric vehicles, forklifts, and floor scrubbers that operate on 72V battery systems. Insulation is Class H rated (180°C max winding temp) with a 40°C ambient rating and continuous duty cycle; drive-end bearing is a 6206, opposite drive-end is a 6205, and the brush specification is 2/BP5125A01. This unit is listed as New — Other condition, indicating it is unused or minimally used surplus stock with no original retail packaging.

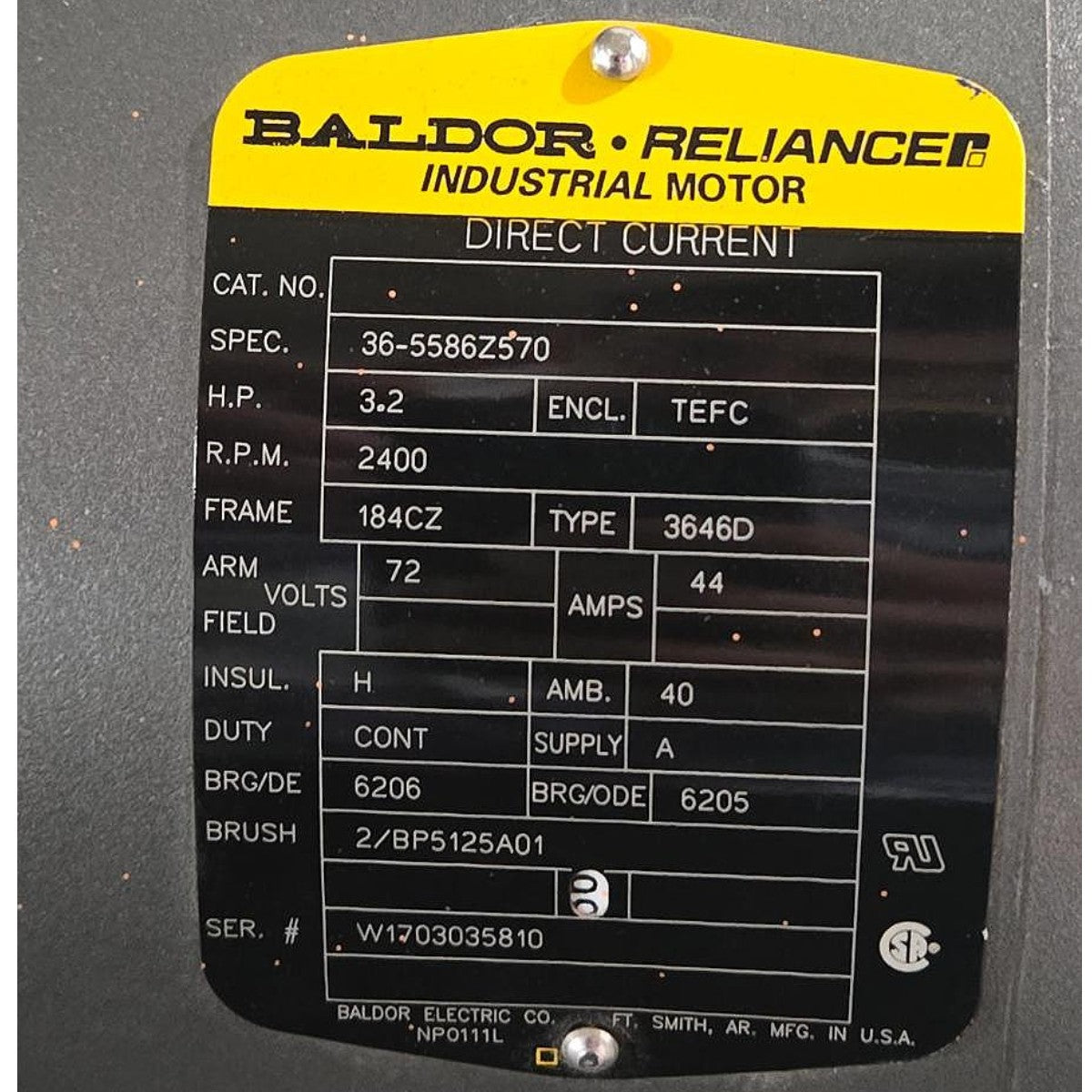

Product Specifications
| Brand | Baldor·Reliance |
| Spec. No. | 36-5586Z570 |
| Type | 3646D |
| Serial No. | W1703035810 |
| Motor Type | DC (Direct Current) |
| Horsepower | 3.2 HP |
| Speed | 2400 RPM |
| Armature Voltage | 72V DC |
| Armature Amperage | 44 A |
| Frame | 184CZ |
| Shaft Type | Non-standard custom (Z-suffix) |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Duty Cycle | Continuous (CONT) |
| Insulation Class | Class H (180°C max) |
| Ambient Temperature | 40°C |
| Supply Type | A (Armature only) |
| Drive End Bearing | 6206 |
| Opposite Drive End Bearing | 6205 |
| Brush Part No. | 2/BP5125A01 |
| Manufacturer Origin | USA (Fort Smith, AR) |
| Condition | New — Other (unused/surplus, no OEM packaging) |
