Baldor VEM3561 3HP 230/460V 1760RPM 56C TEFC AC Induction Motor

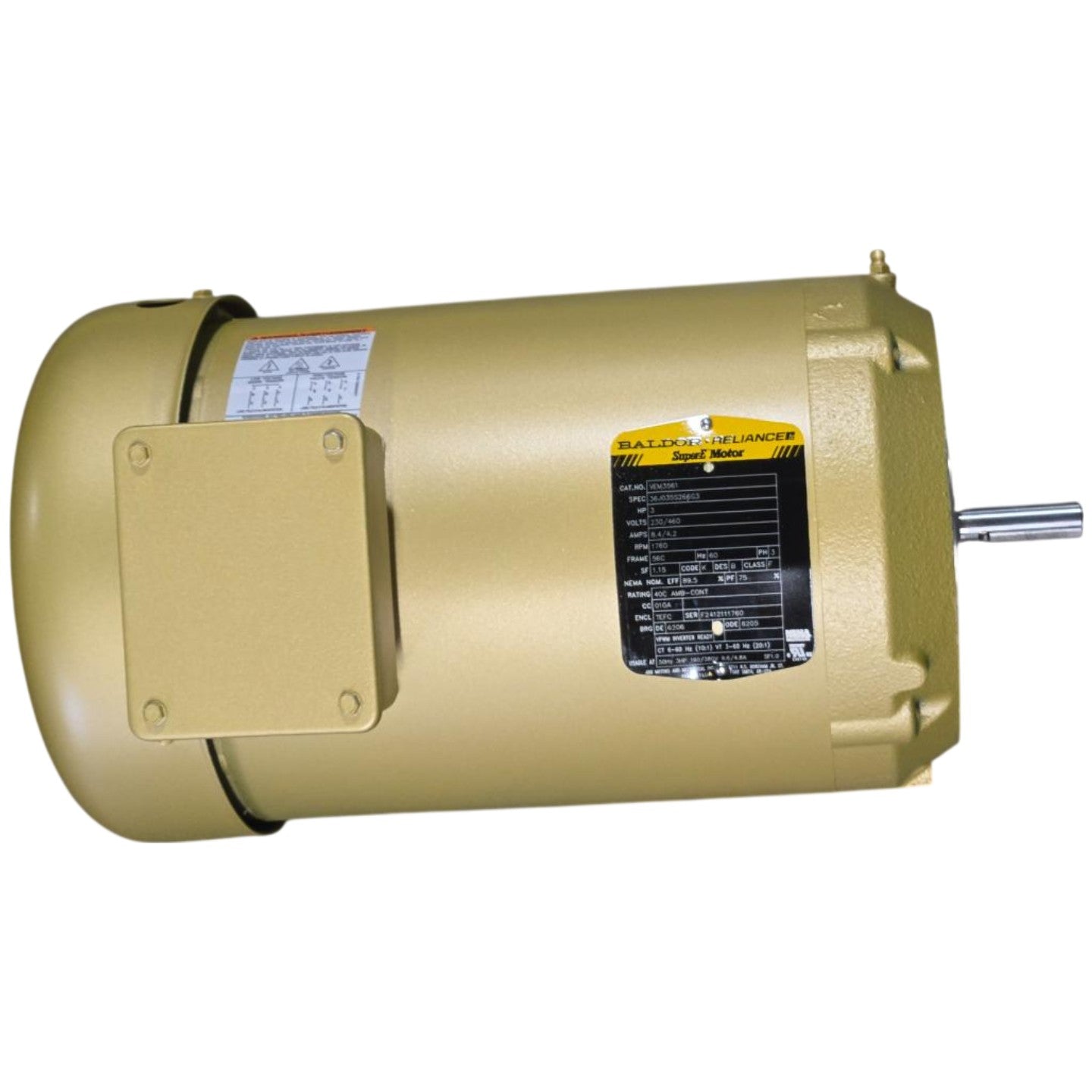

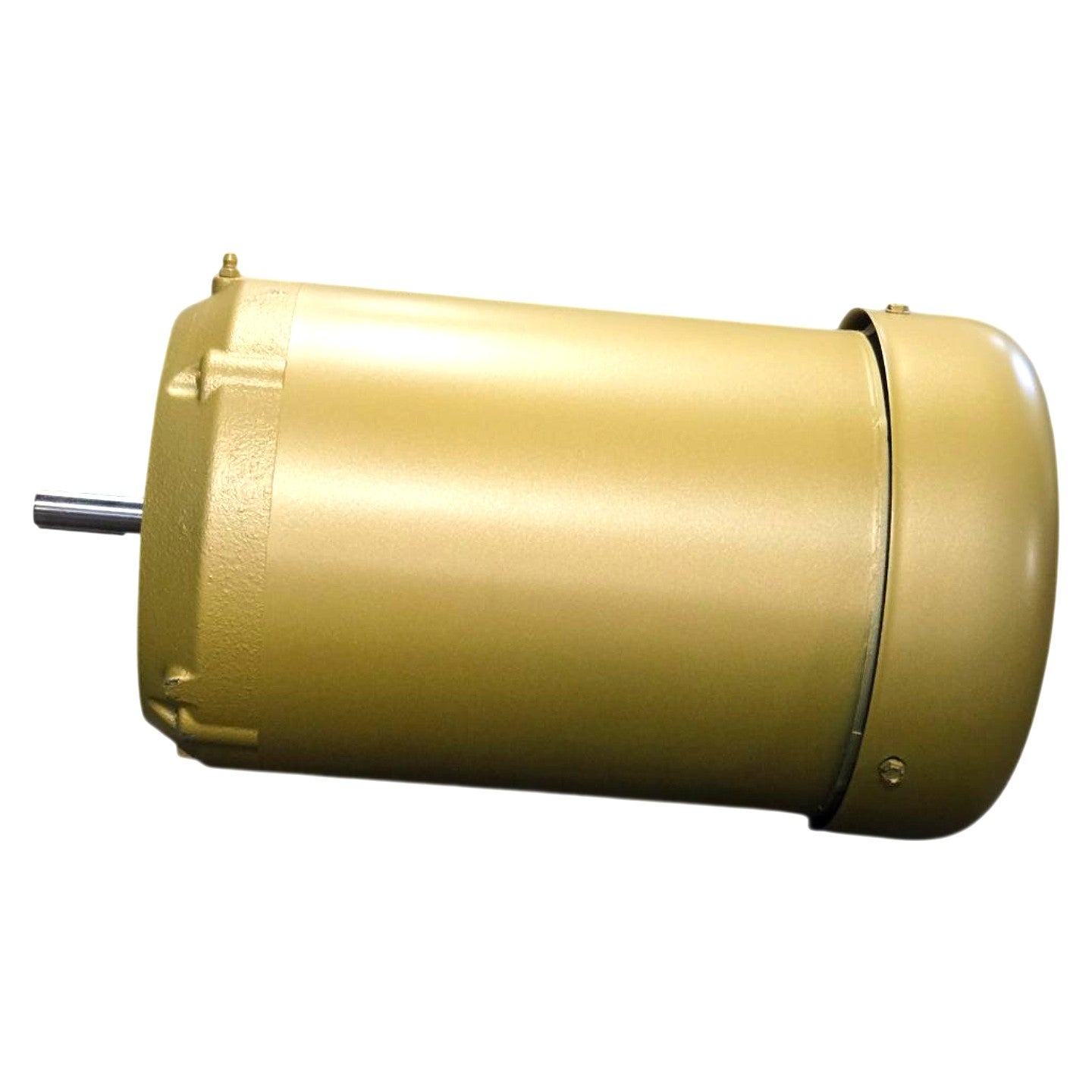

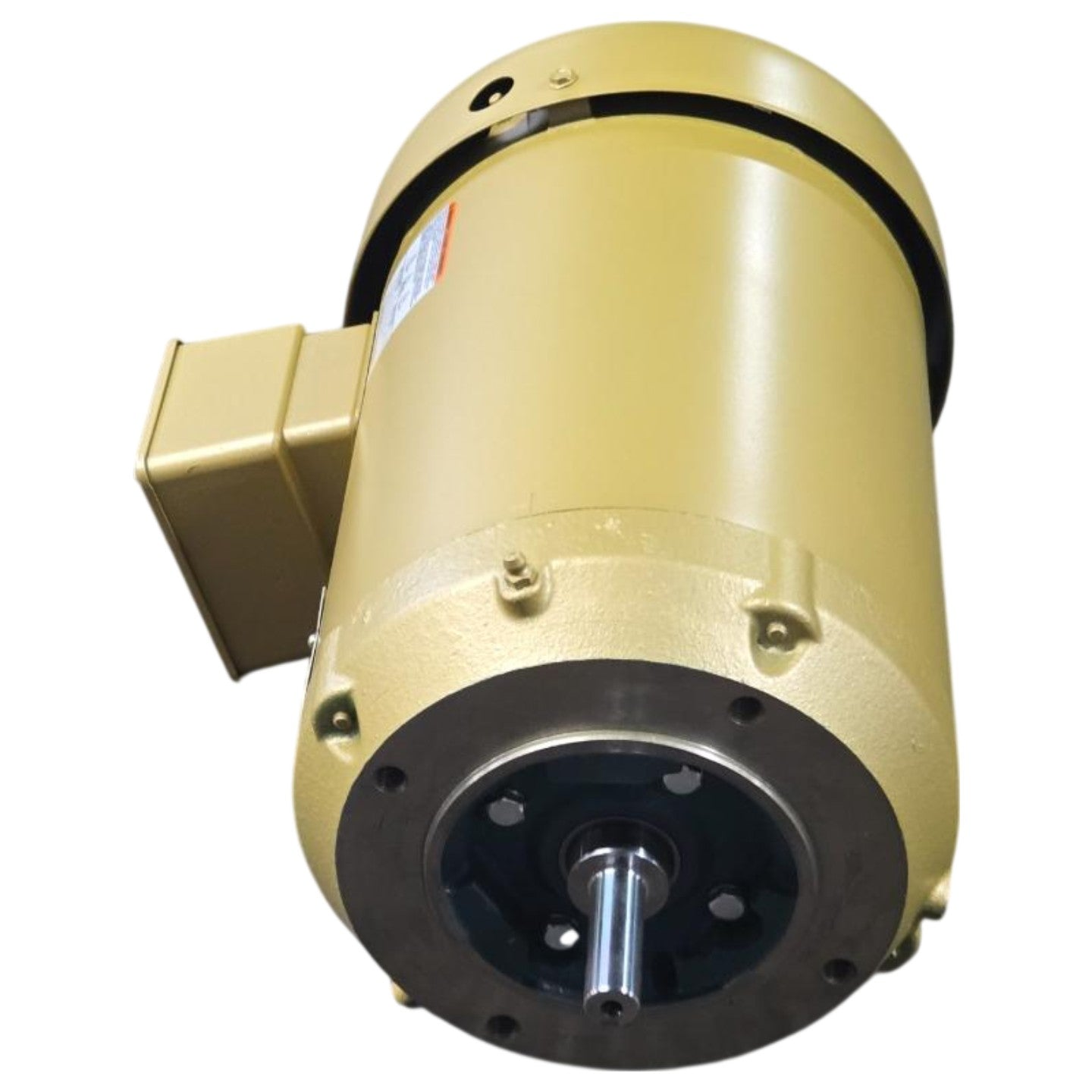

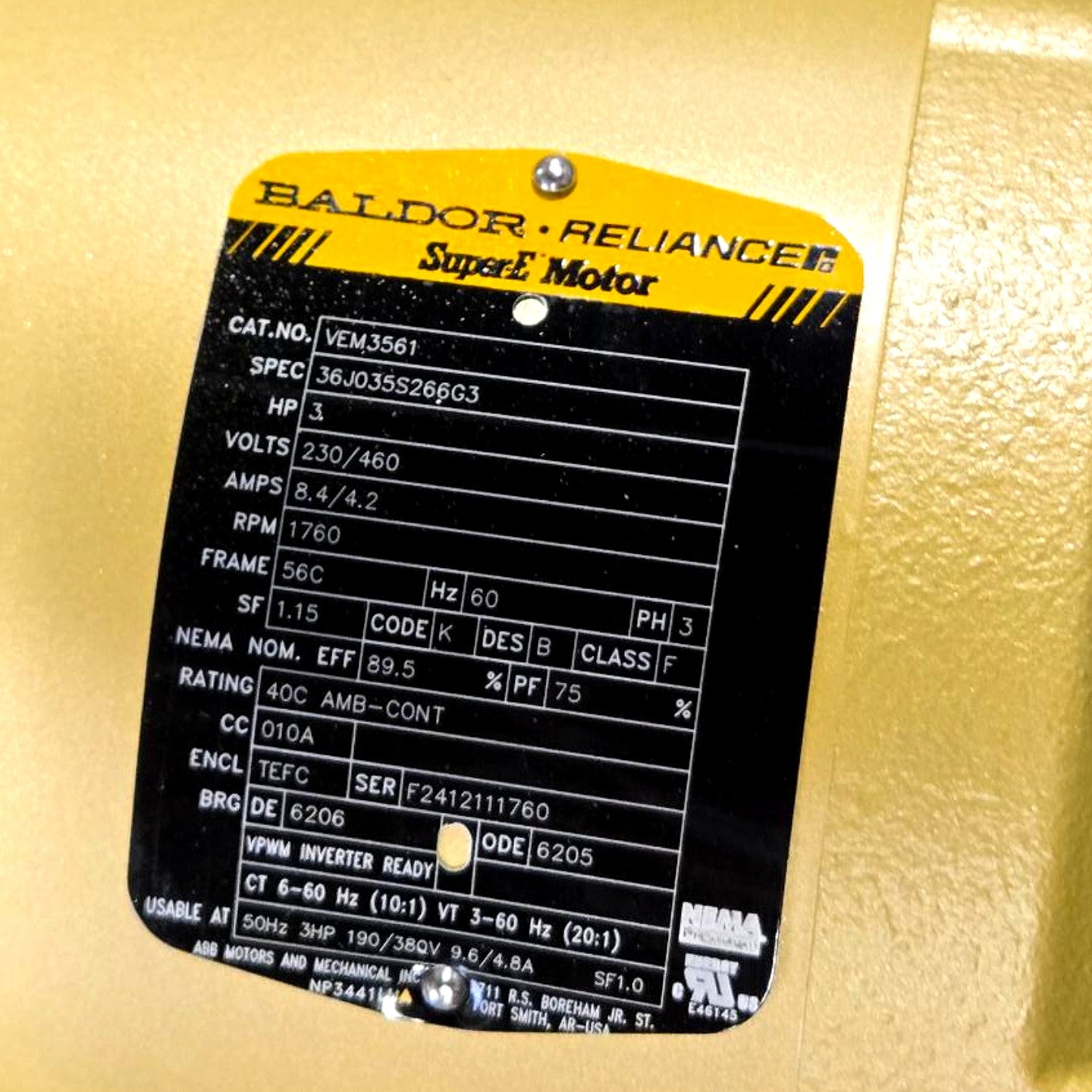

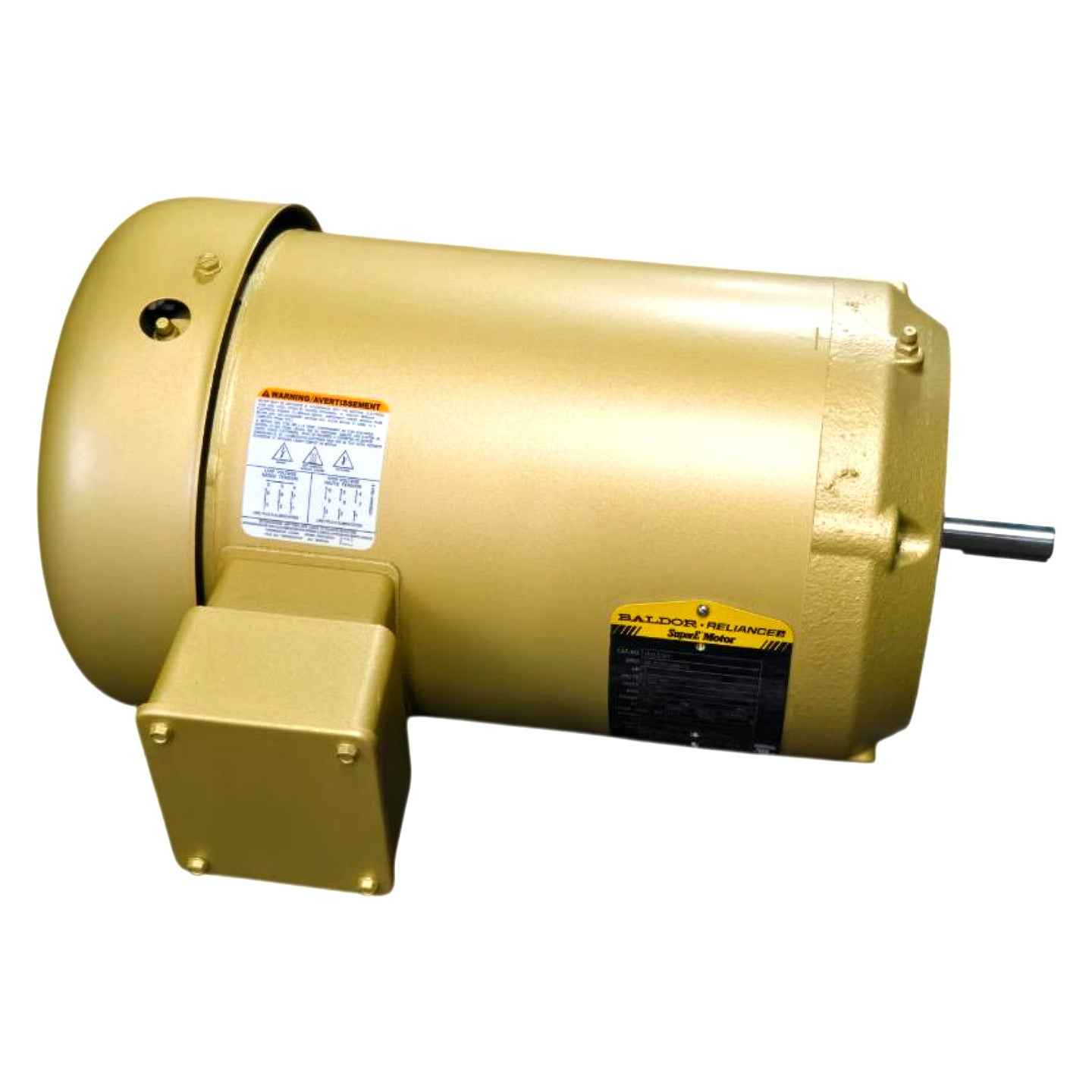

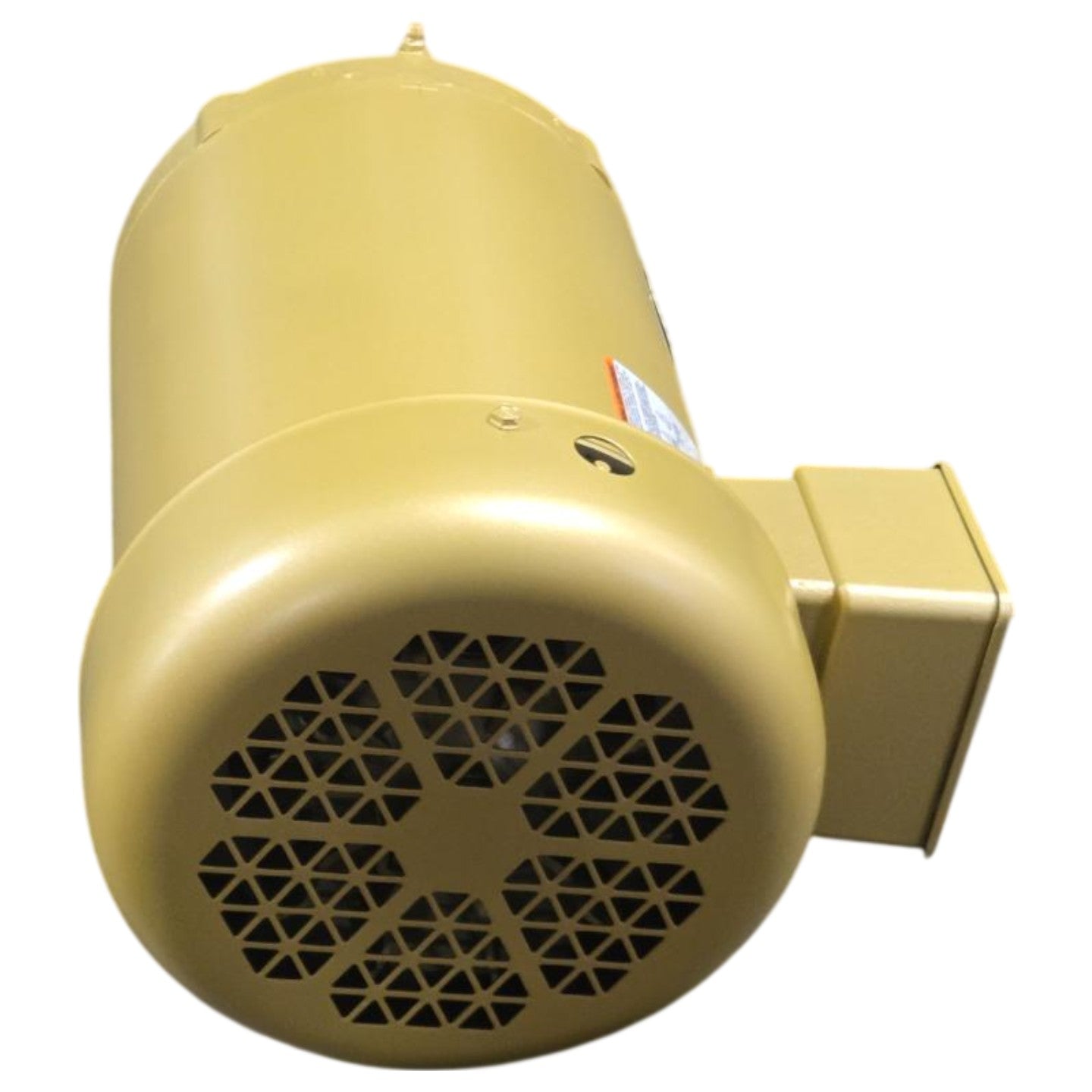

The Baldor-Reliance VEM3561 is a new, surplus SuperE premium efficiency three-phase AC induction motor rated 3 HP at 1760 RPM in a NEMA 56C C-face frame with a TEFC (Totally Enclosed Fan Cooled) enclosure, suitable for wet, dusty, and outdoor environments. Electrical ratings are 230/460V dual voltage, 8.4/4.2A, 60 Hz, three-phase with a 1.15 service factor, NEMA nominal efficiency of 89.5%, and 75% power factor; insulation is Class F rated for 40°C ambient continuous duty. The 56C frame features a C-face bolt pattern with a machined face for direct pump or gearbox mounting, drive-end bearing 6206 and opposite drive-end bearing 6205, and is marked VPWM Inverter Ready with a constant-torque range of 6–60 Hz (10:1) and variable-torque range of 3–60 Hz (20:1), making it compatible with standard VFD/inverter drives. Also rated for 50 Hz operation at 190/380V, 9.6/4.8A, 3 HP, SF 1.0 per the nameplate. Manufactured by ABB Motors and Mechanical Inc. in Fort Smith, AR; serial number F2412111760 indicates a 2024 production date.
