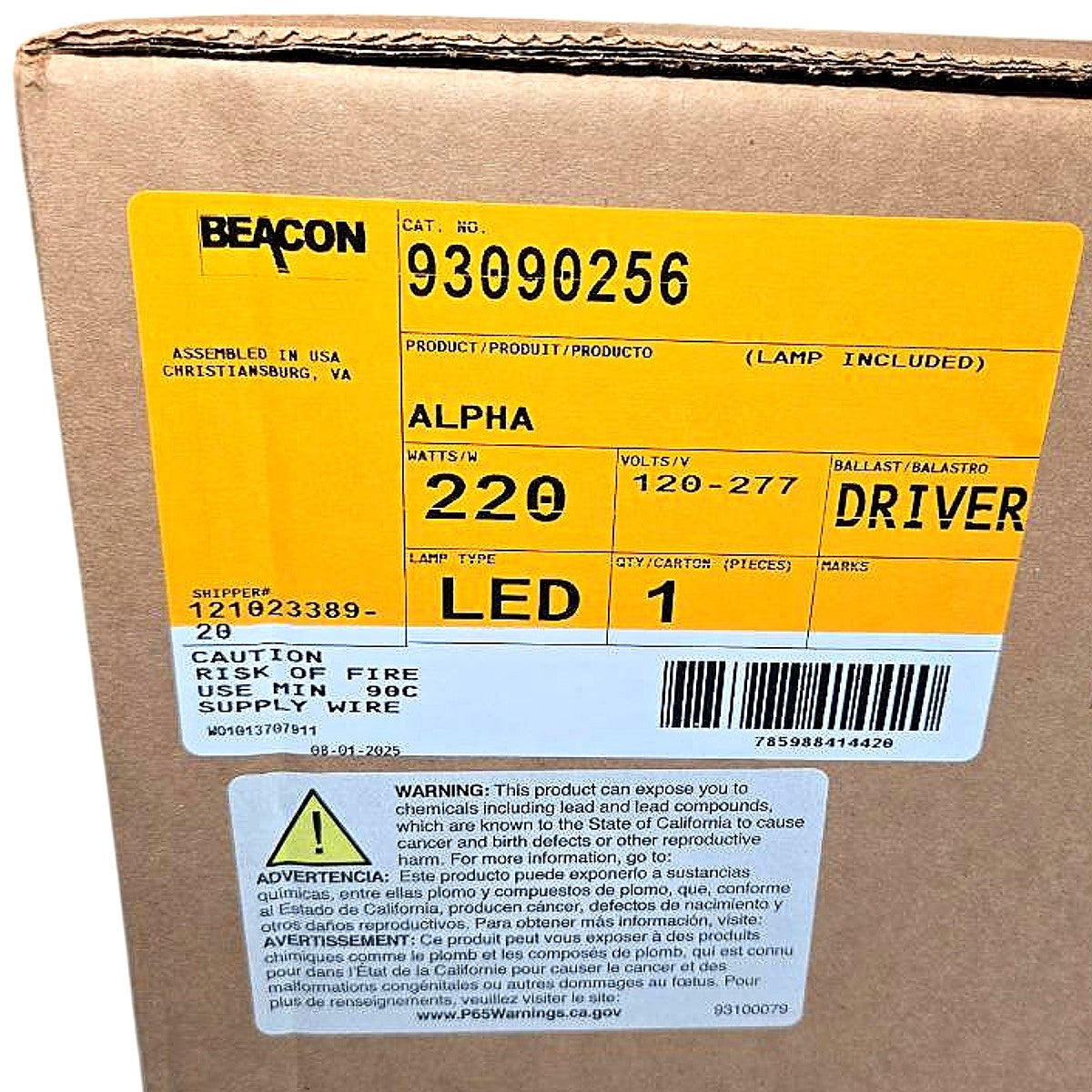

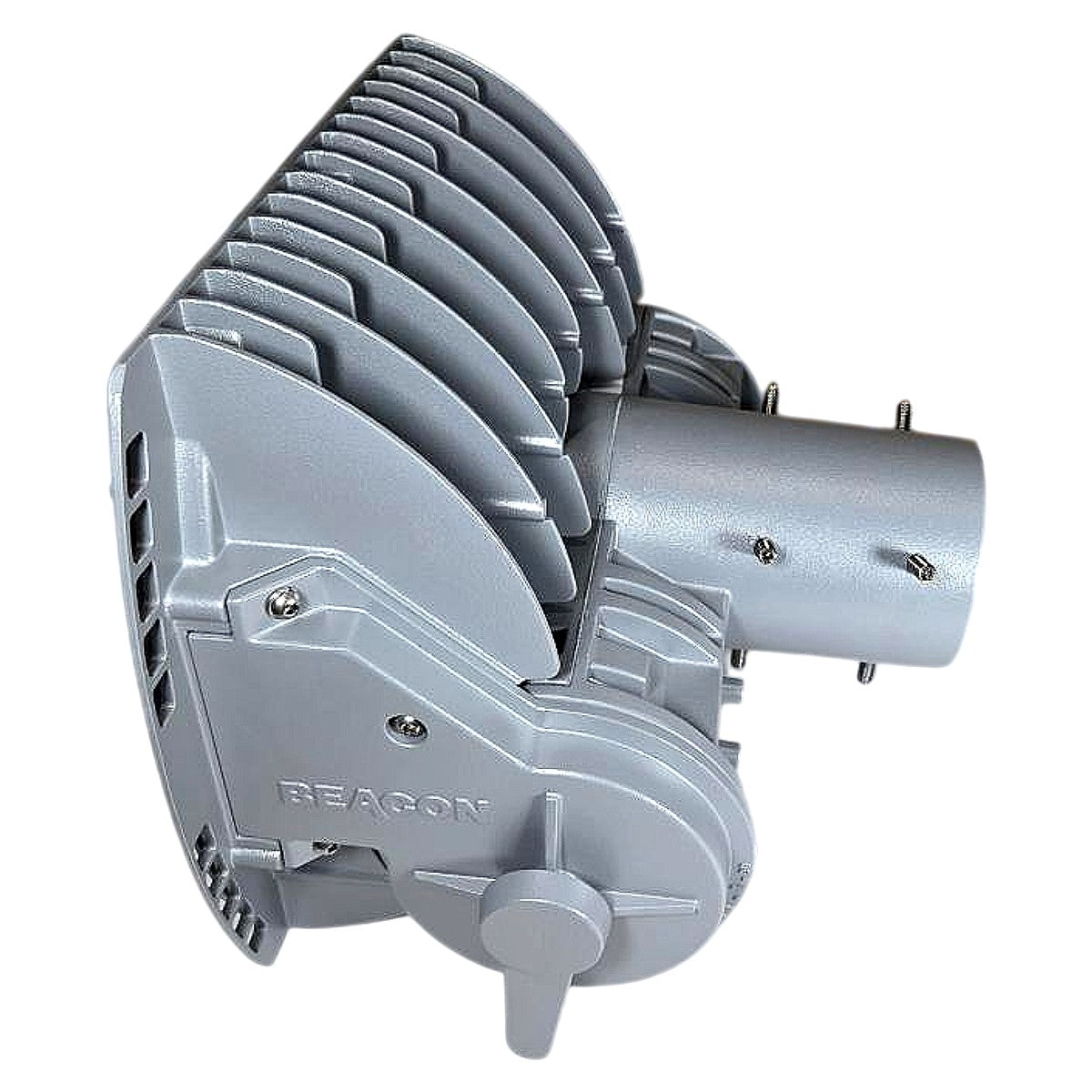

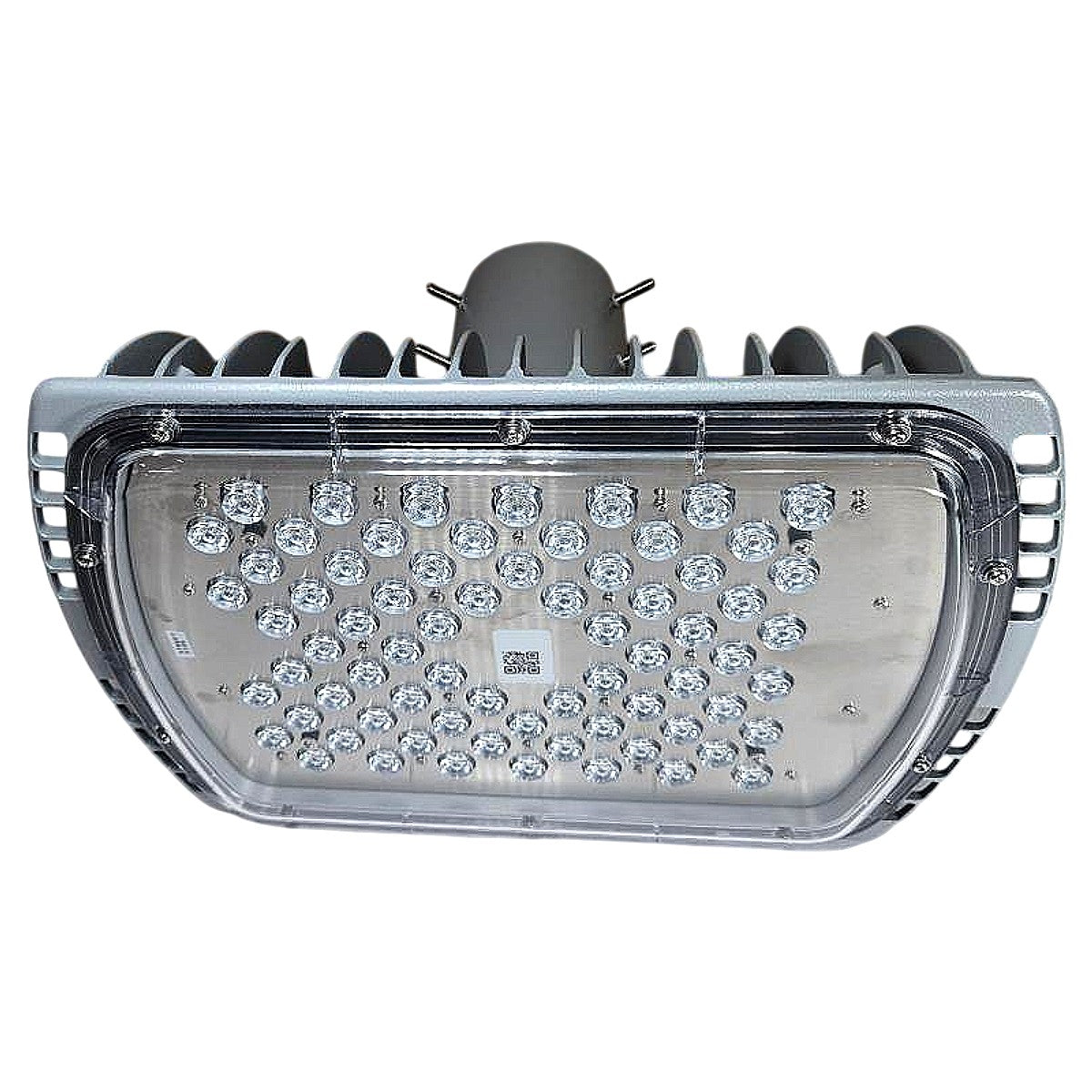

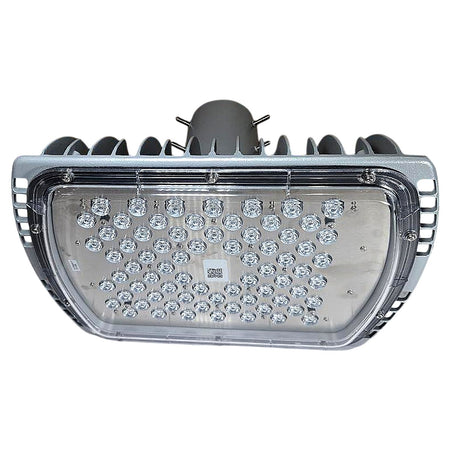

The Beacon Products Alpha 93090256 is a new 220-watt LED area/flood luminaire assembled in the USA (Christiansburg, VA) designed for commercial and industrial outdoor applications including roadways, parking lots, athletic fields, and building facades. The fixture delivers 21,702 lumens at a 5000K correlated color temperature (cool daylight), operating on a universal voltage range of 120–277V AC via an integrated electronic driver — no external ballast required. The die-cast aluminum housing features an integral finned heat sink for passive thermal management, and the lens assembly is sealed against moisture and particulate ingress; the unit accepts both slipfitter and knuckle mount configurations for pole-top or wall mounting. The LED lamp is included as confirmed by the box label ("LAMP INCLUDED"), and a minimum 90°C-rated supply wire is required per the label caution.
Product Specifications
| Brand | Beacon Products |
| Catalog Number / MPN | 93090256 |
| Product Line | Alpha |
| Lamp Type | LED |
| Wattage | 220 W |
| Voltage | 120-277V AC |
| Ballast / Driver | Driver (integrated electronic) |
| Lumens | 21,702 lm |
| Color Temperature (CCT) | 5000K |
| Mount Type | Slipfitter, Knuckle Mount |
| Mounting Location | Pole, Wall |
| Housing Material | Die-cast aluminum |
| Lamp Included | Yes |
| Assembly Origin | Assembled in USA (Christiansburg, VA) |
| Min. Supply Wire Rating | 90°C |
| Qty per Carton | 1 |
