Bell & Gossett 111047 3/4 HP 115/230V 1725 RPM 1PH Circulator Pump Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

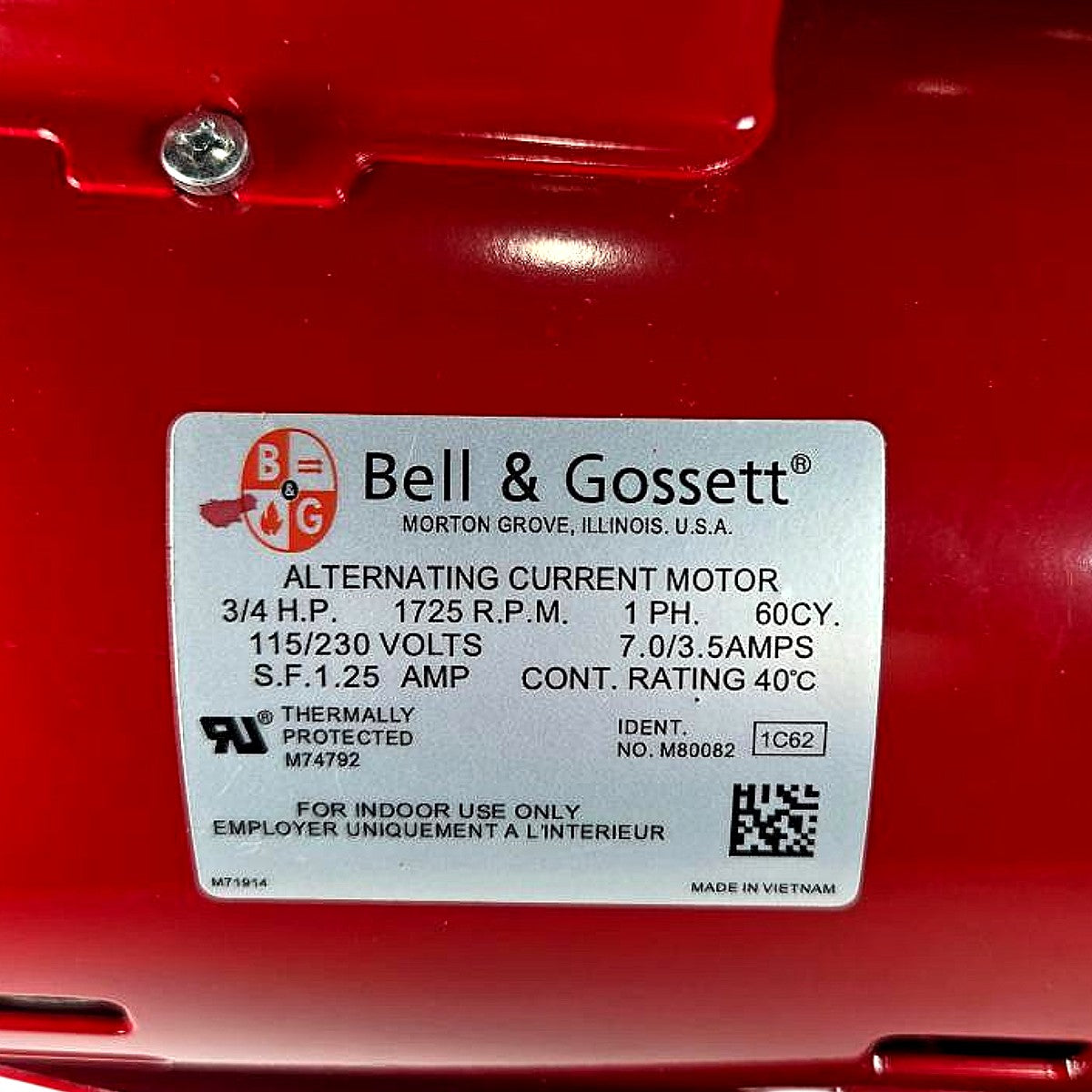

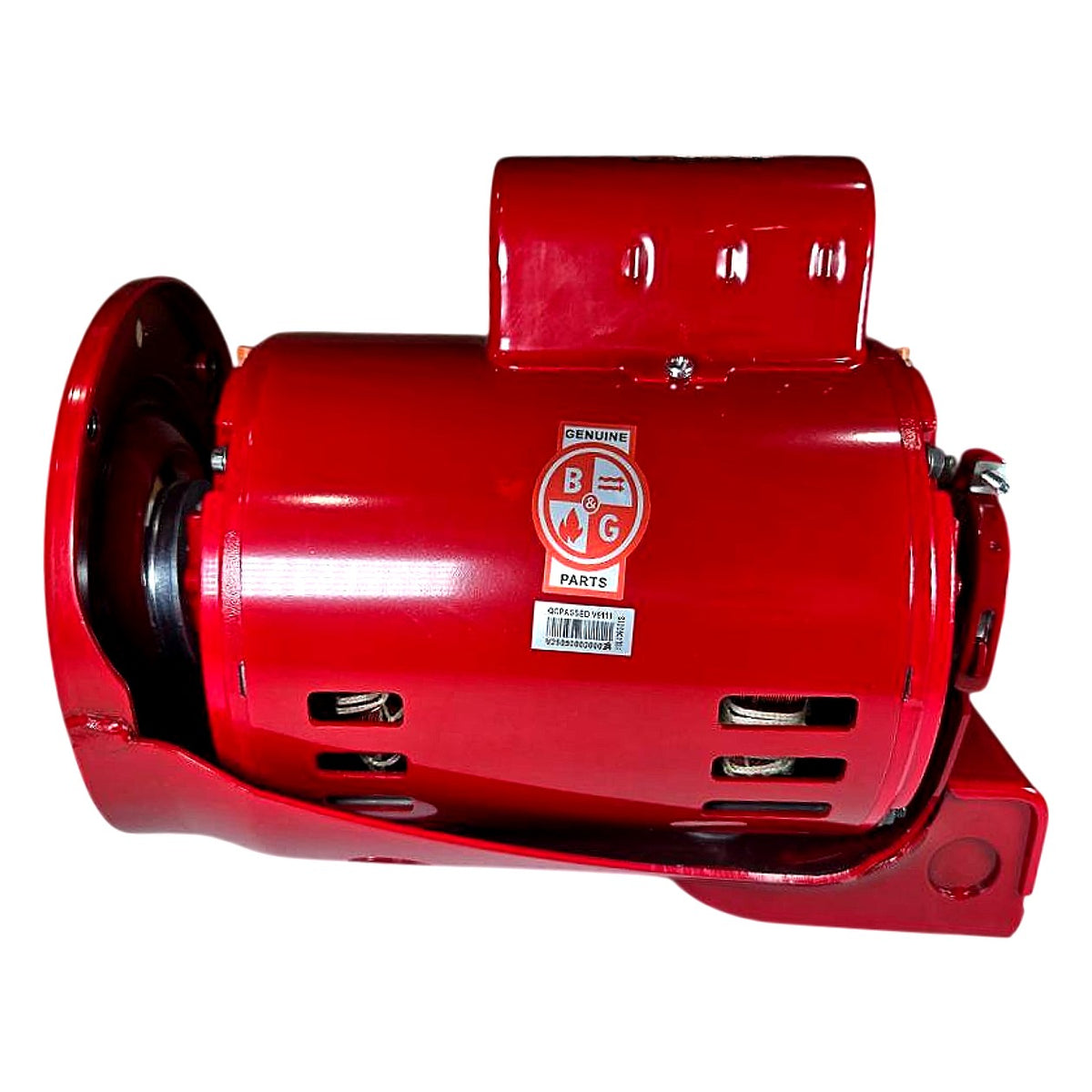

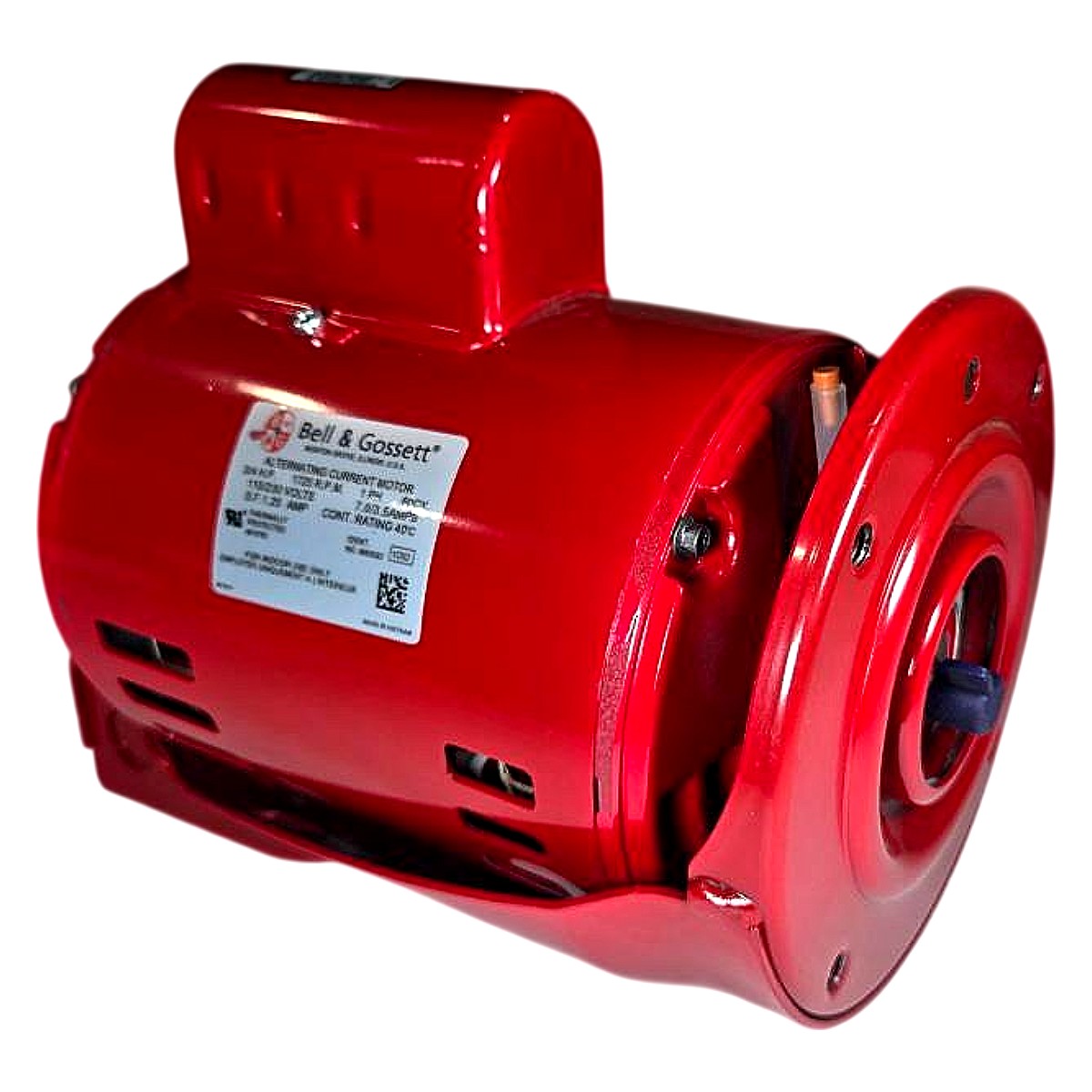

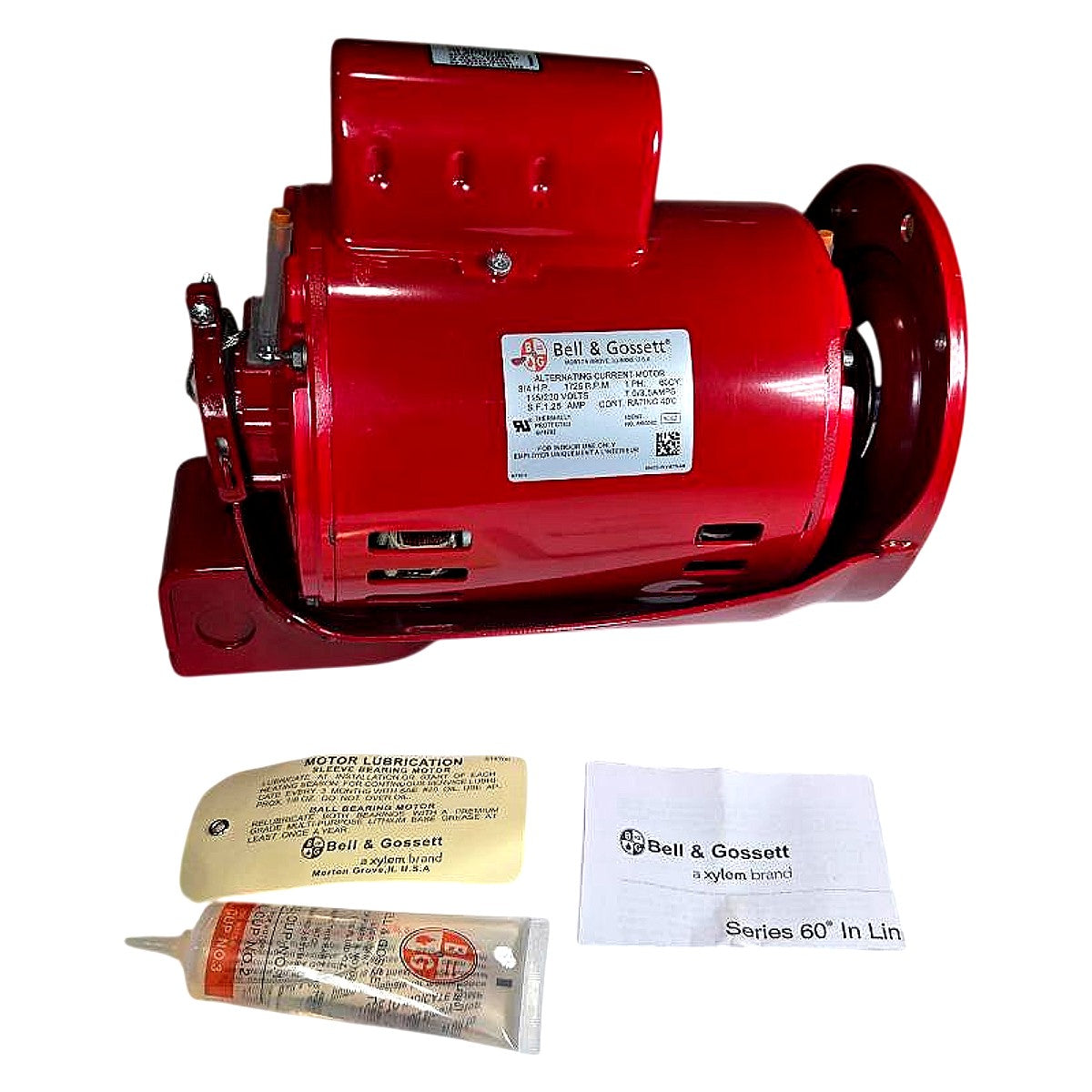

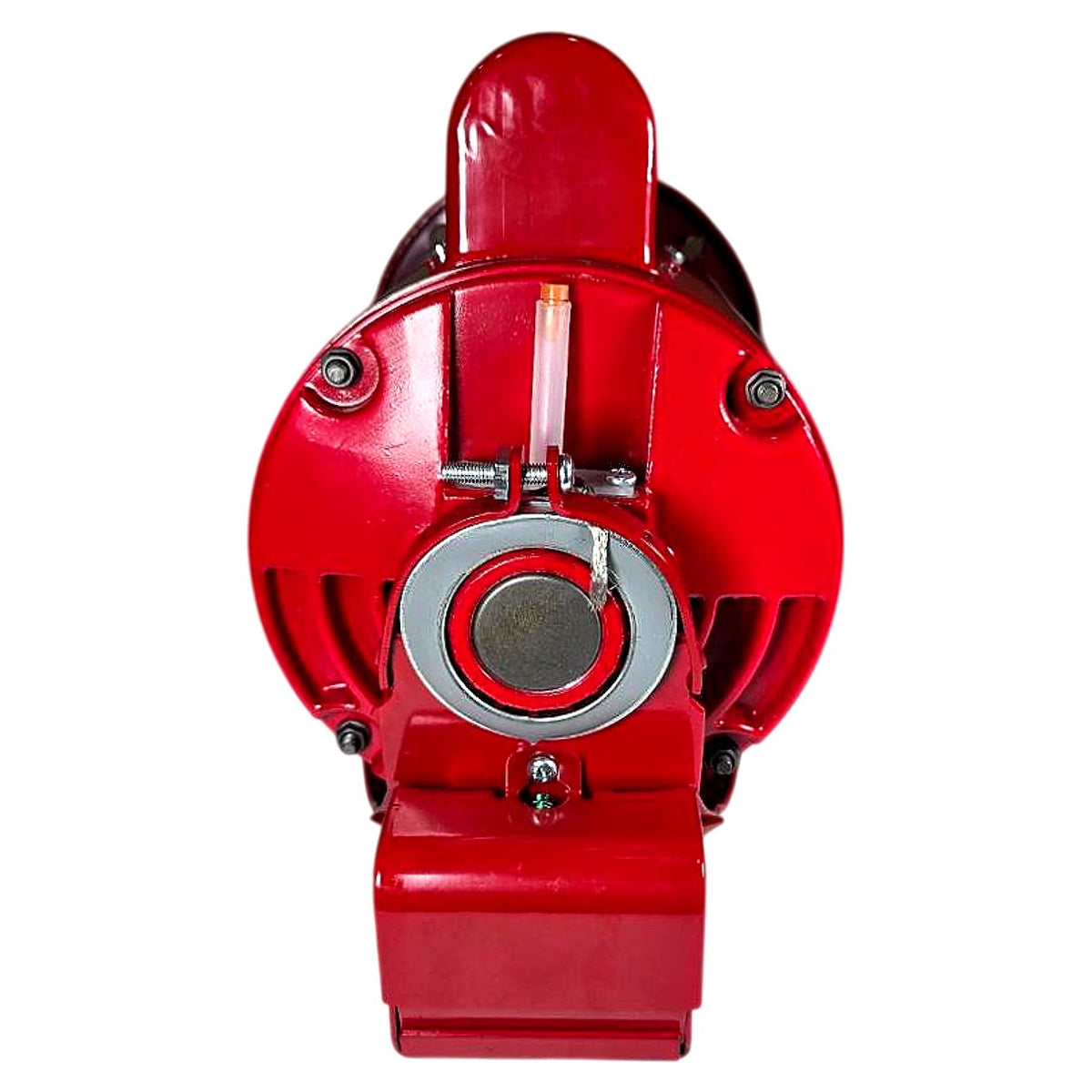

This is a new, genuine Bell & Gossett (Xylem) W11047 replacement power pack motor, designed specifically for Bell & Gossett Series 60 in-line hydronic circulating pumps. The motor is a single-phase, 60 Hz AC induction motor rated 3/4 HP at 1725 RPM, dual-voltage wired for 115/230V operation drawing 7.0/3.5 amps respectively, with a 1.25 service factor and continuous duty rating at 40°C ambient. Ident No. M80082, the unit is UL-listed (M74792) with thermal overprotection, an open drip-proof (ODP) enclosure for indoor use only, and ships complete with the motor, grease tube, lubrication instruction card, and Series 60 installation documentation as shown. This motor is a direct OEM replacement for B&G Series 60 inline circulators used in hydronic heating, chilled water, and HVAC building systems, and mounts via the integral C-face flange end bracket visible in the photos.
Product Specifications
| Manufacturer Part Number | W11047 |
| Brand | Bell & Gossett (Xylem) |
| Ident No. | M80082 |
| Motor Type | AC Induction, Single Phase |
| Horsepower | 3/4 HP |
| Speed | 1725 RPM |
| Voltage | 115/230V AC |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Full Load Amps | 7.0A (115V) / 3.5A (230V) |
| Service Factor | 1.25 |
| Duty Rating | Continuous, 40°C ambient |
| Enclosure | Open Drip-Proof (ODP), Indoor Use Only |
| Thermal Protection | Thermally Protected (UL M74792) |
| Compatible Equipment | Bell & Gossett Series 60 In-Line Circulators |
| Mount Type | C-Face Flange |
| Includes | Motor, grease tube, lubrication card, inst. docs |
| Origin | Made in Vietnam |
| EAN | 603328220147 |
| Condition | New |
