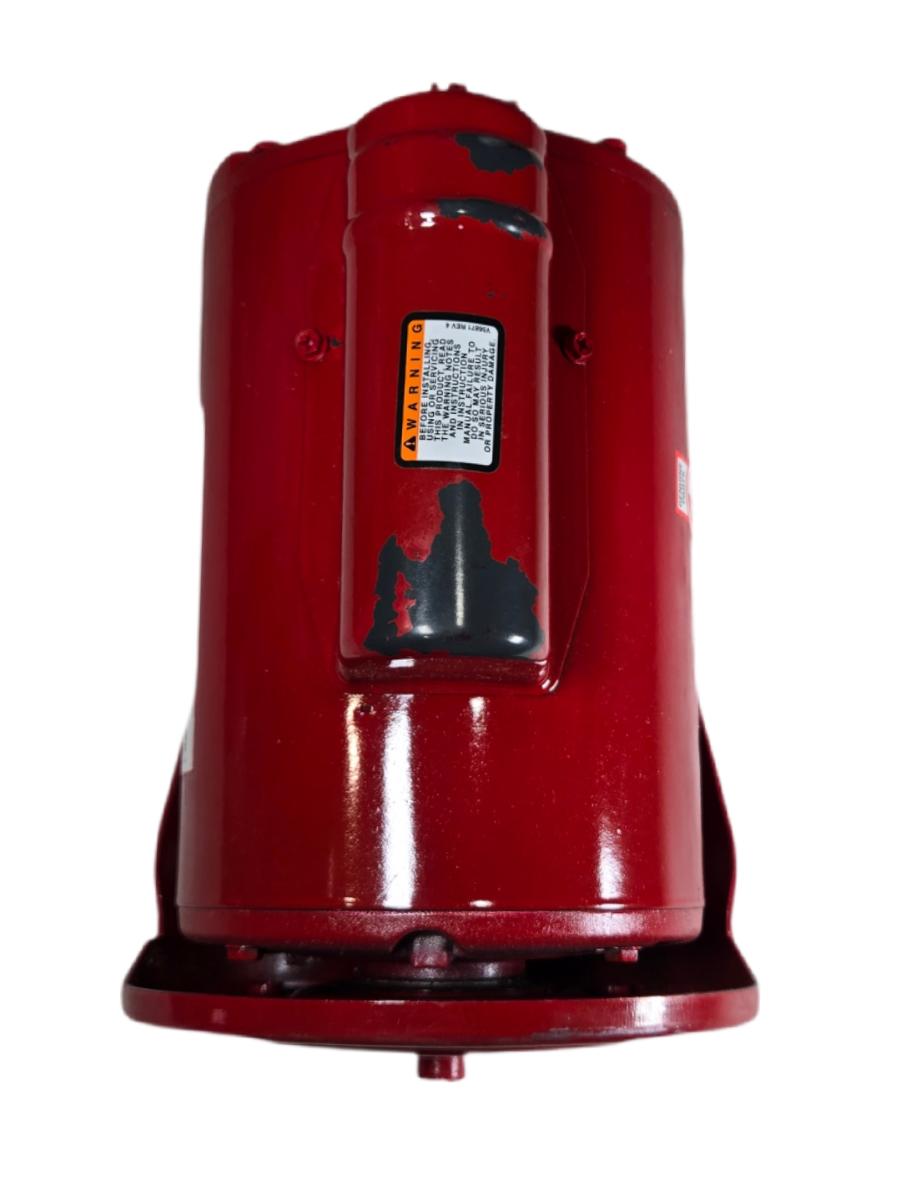

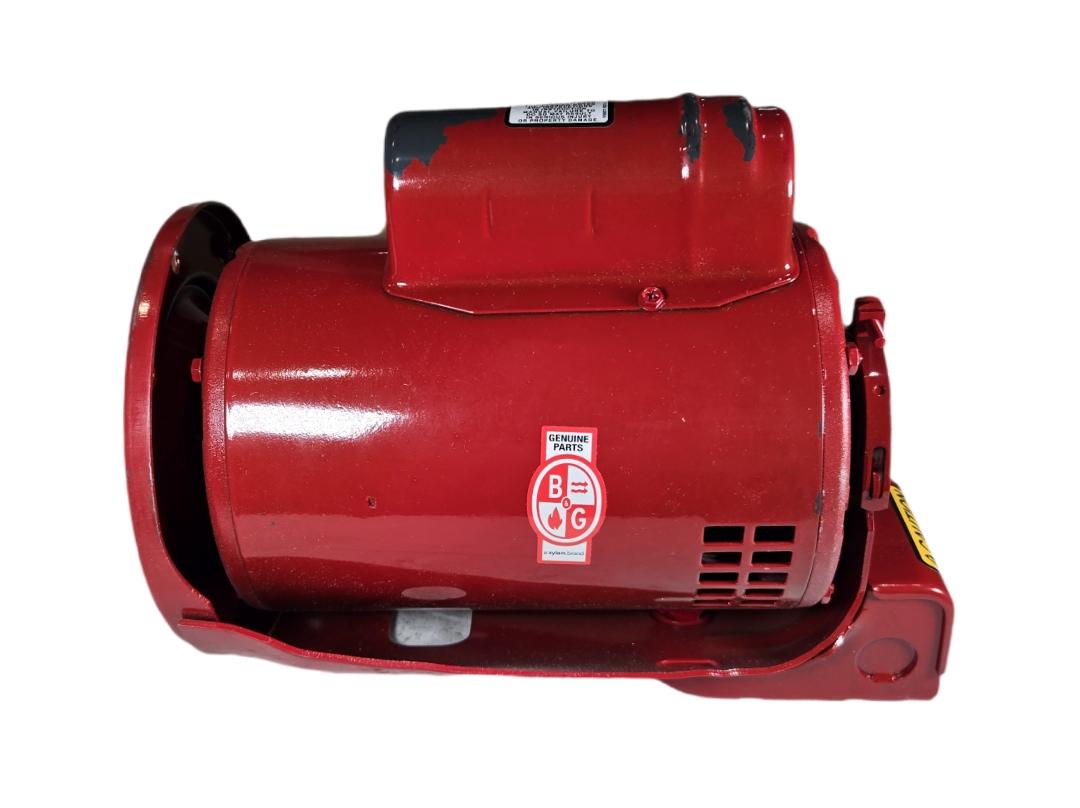

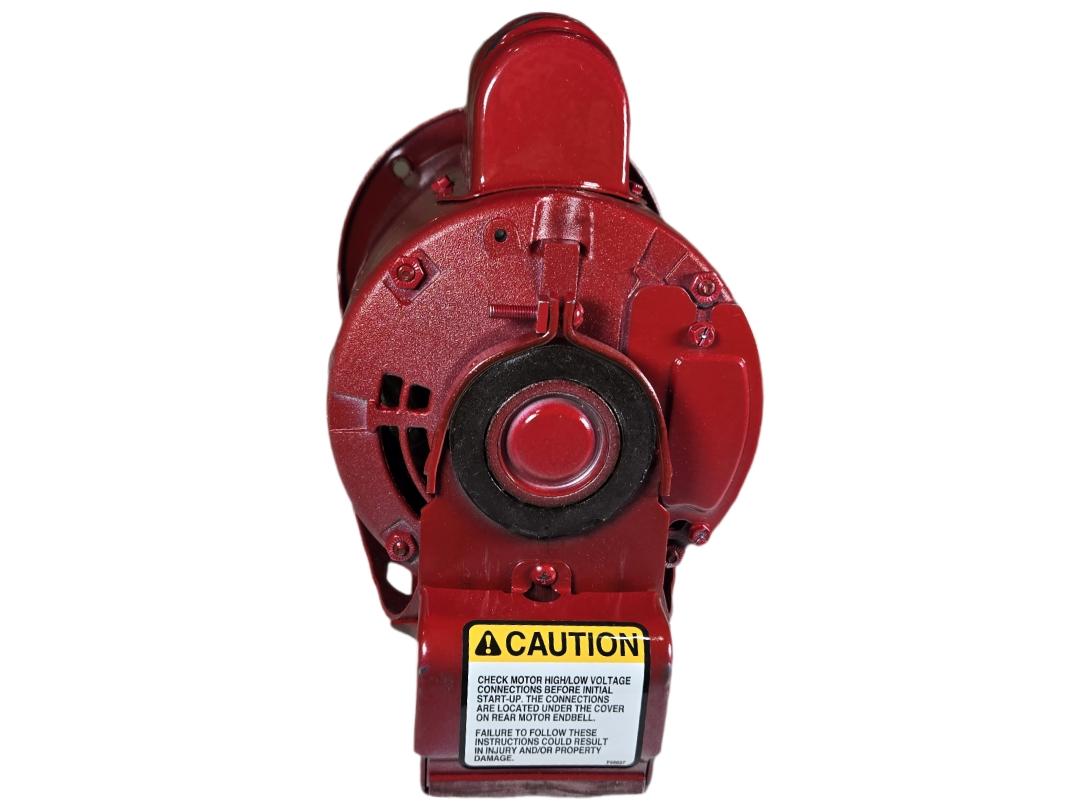

Bell & Gossett 169228 1/2 HP 115/208-230V Circulator Pump Motor

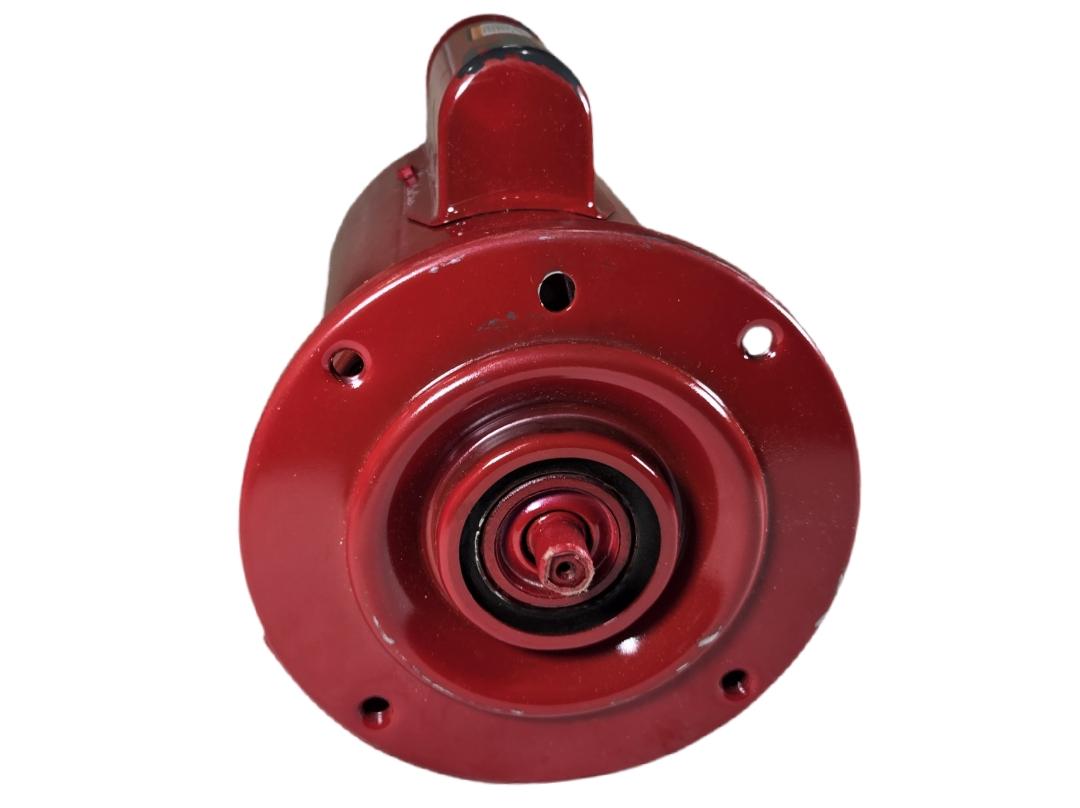

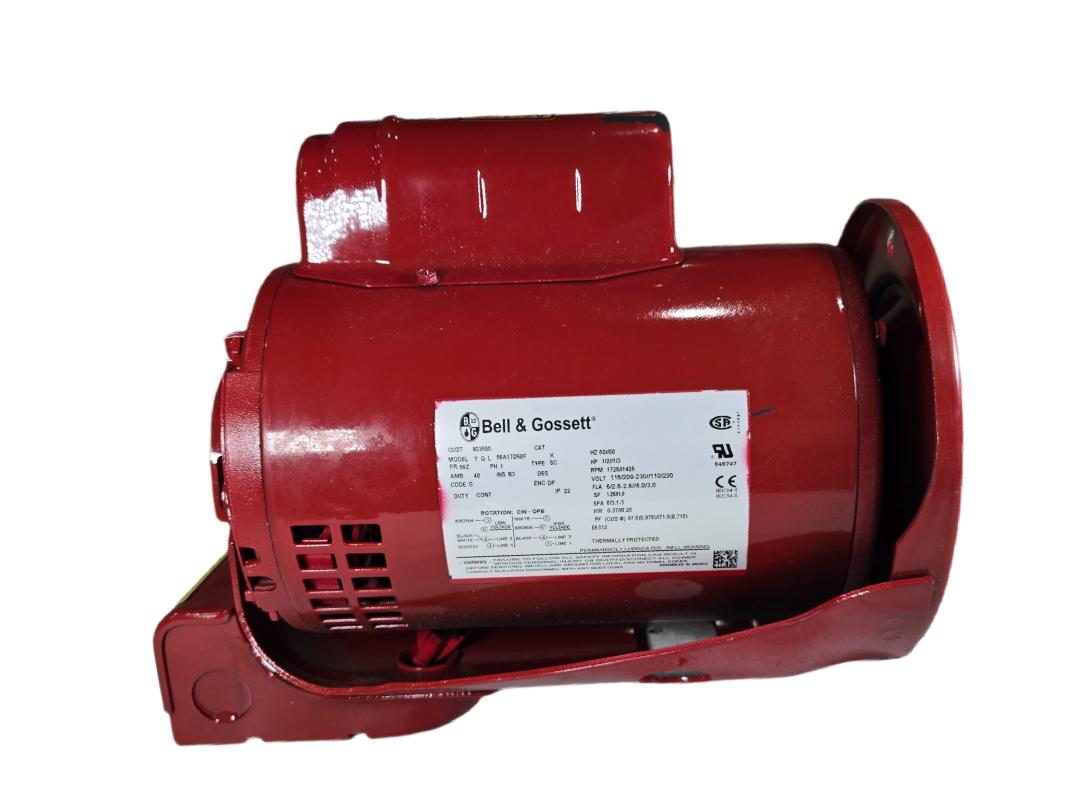

This is a genuine Bell & Gossett (Xylem) replacement circulator pump motor, part number 169228, in new-other condition showing minor cosmetic paint loss on the housing with no functional defects. The motor is rated 1/2 HP, single phase, 1725/1425 RPM, and accepts dual voltage input of 115V or 208-230V AC at 60/50 Hz, with full-load amperage of 6.2/5.2/3.1A as visible on the nameplate label. It carries a 48 frame designation, Class B insulation (INS B3 per label), CONT duty rating, thermally protected, and features clockwise rotation when viewed from the drive end (CW-GPE). This motor is purpose-built for Bell & Gossett Series 100, Series 60, and compatible in-line hydronic heating and cooling circulators, mounting directly to the pump volute via the face-mount flange visible in the photos. The drive-end face plate and exposed shaft with mechanical seal interface are clearly intact and undamaged.

Product Specifications
