Bell & Gossett 1EF067LF e-60 e623S 1.5x7 1HP Hydronic Circulator Pump

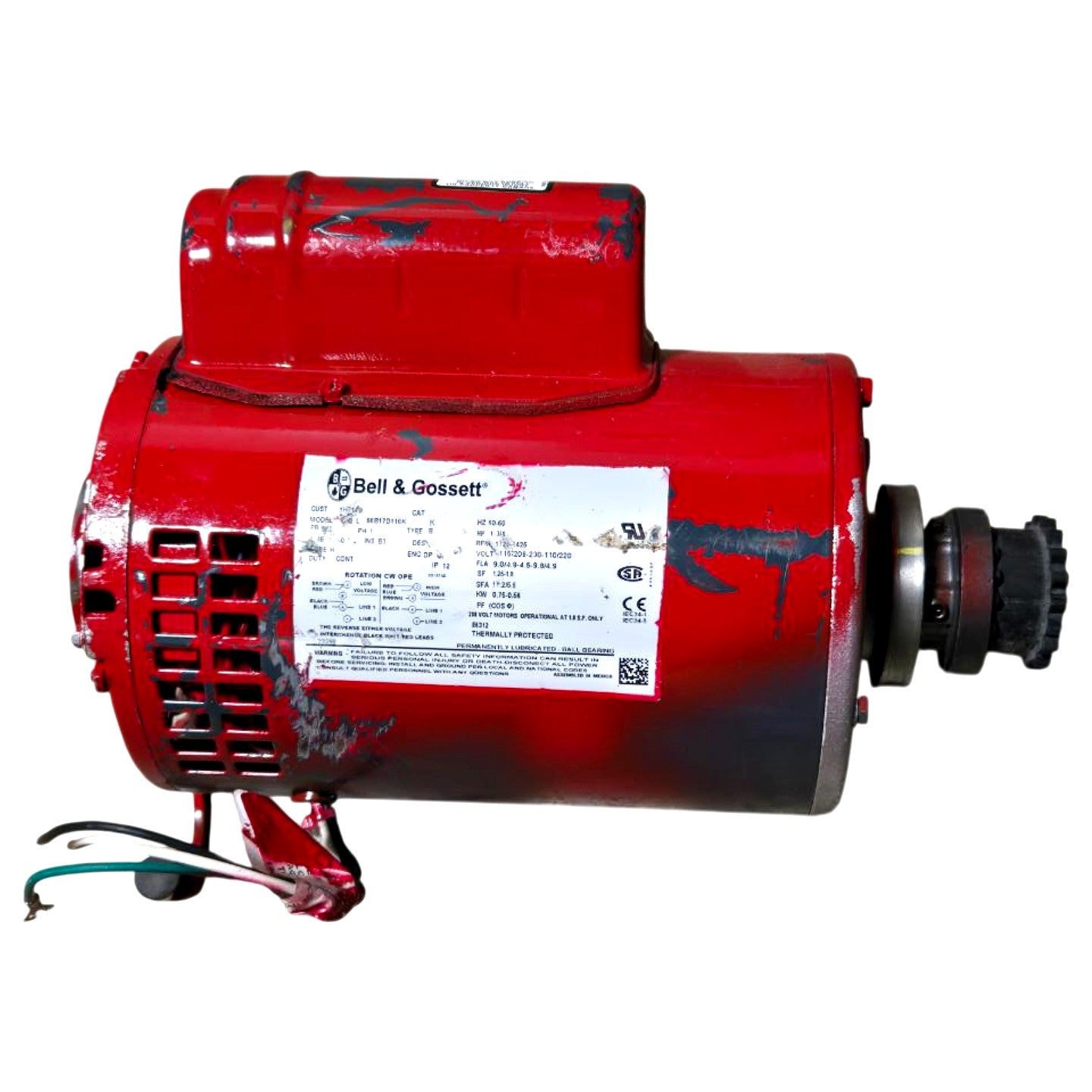

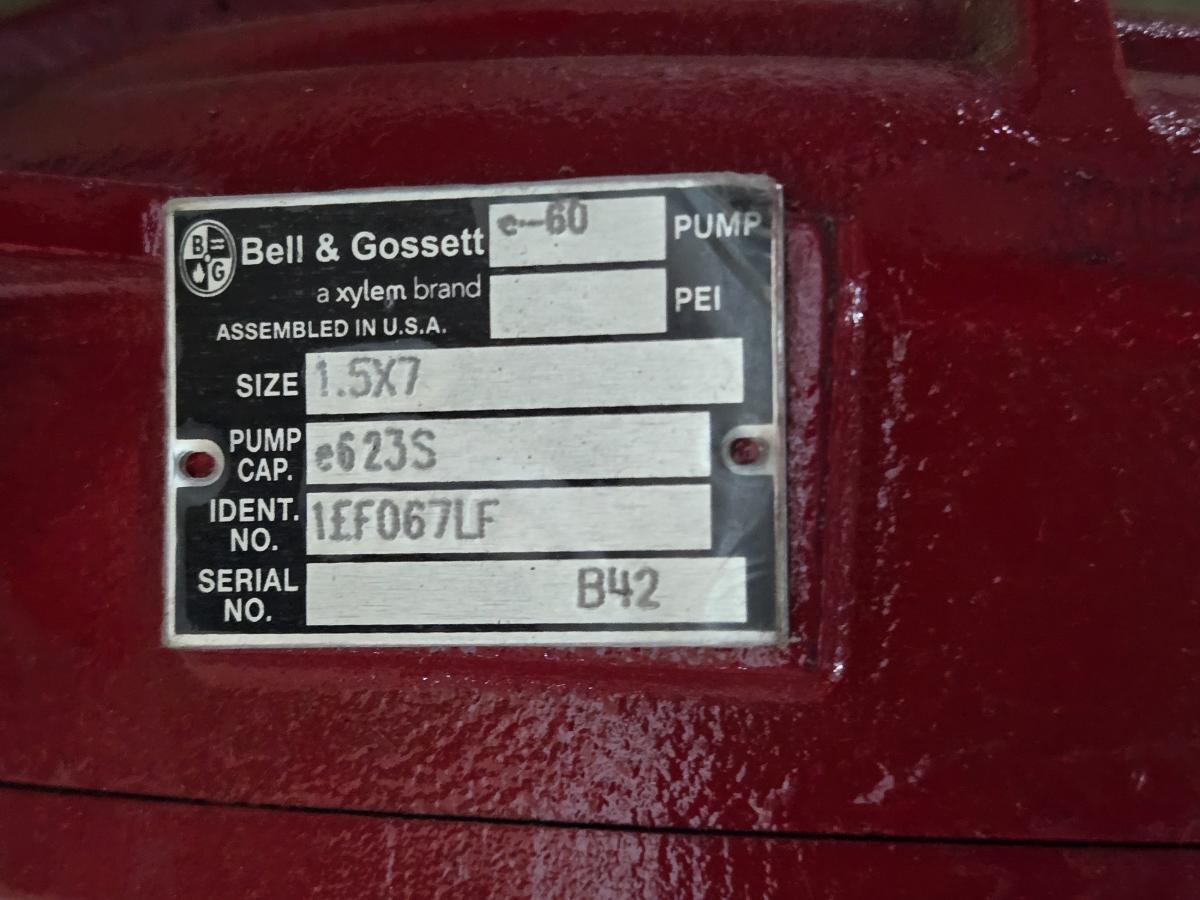

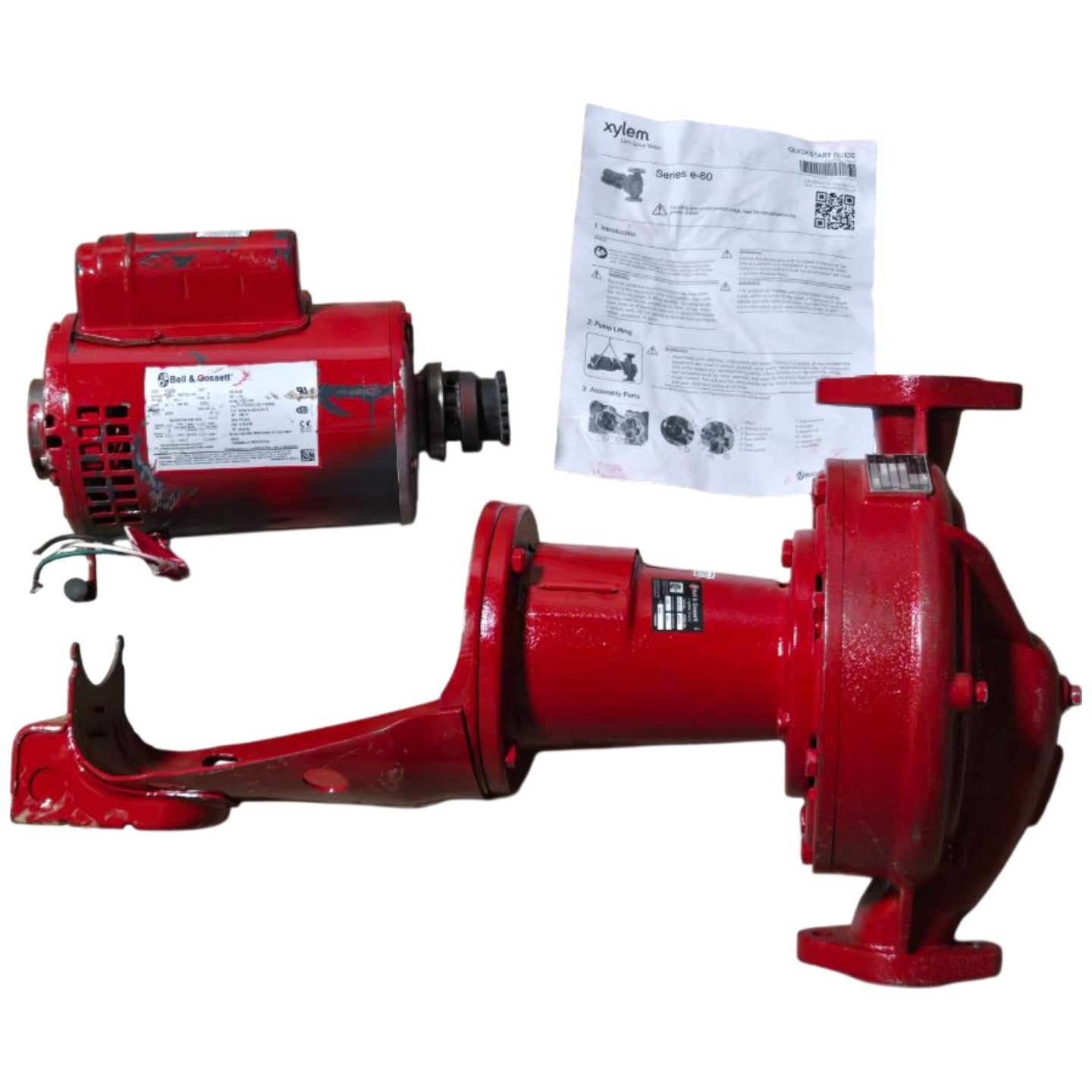

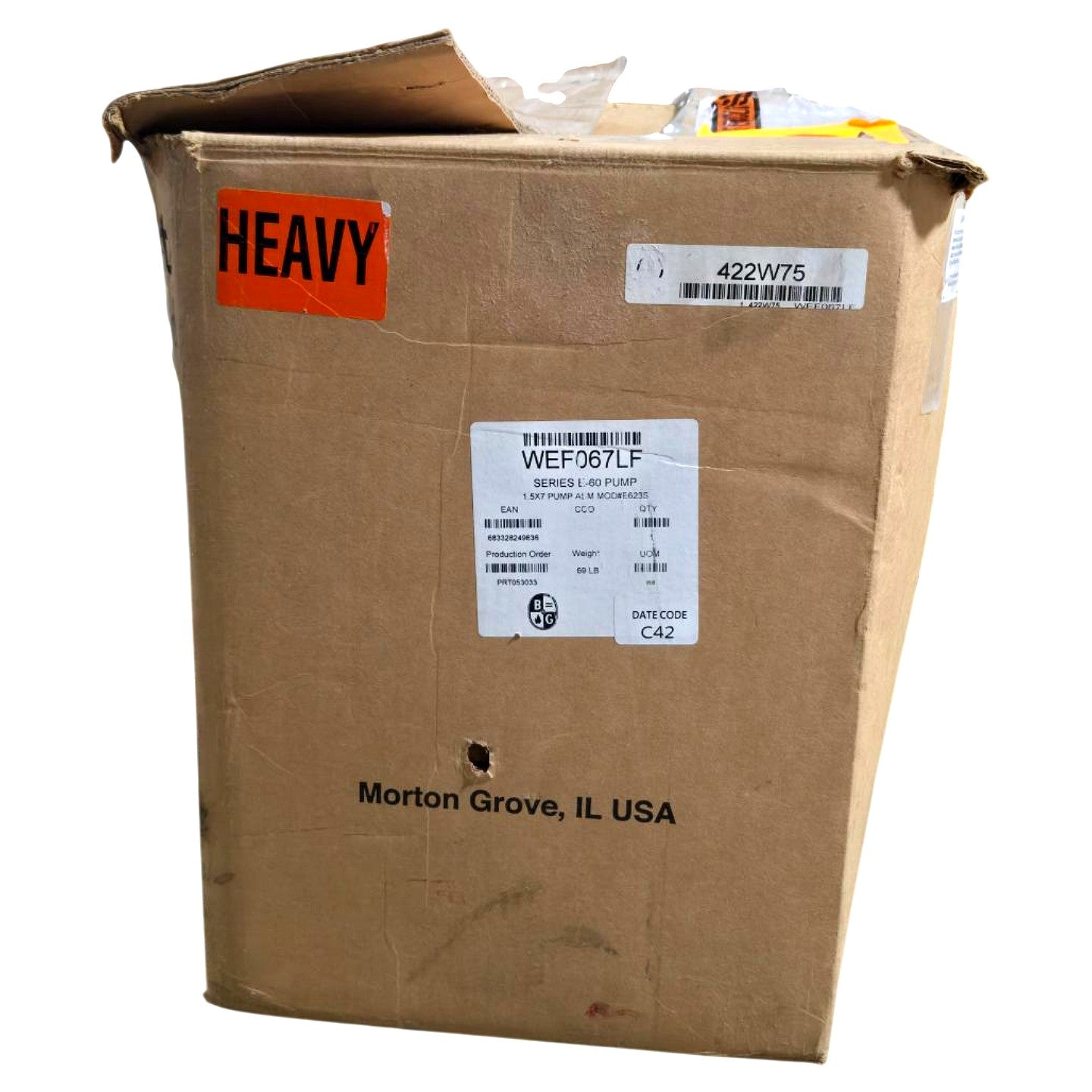

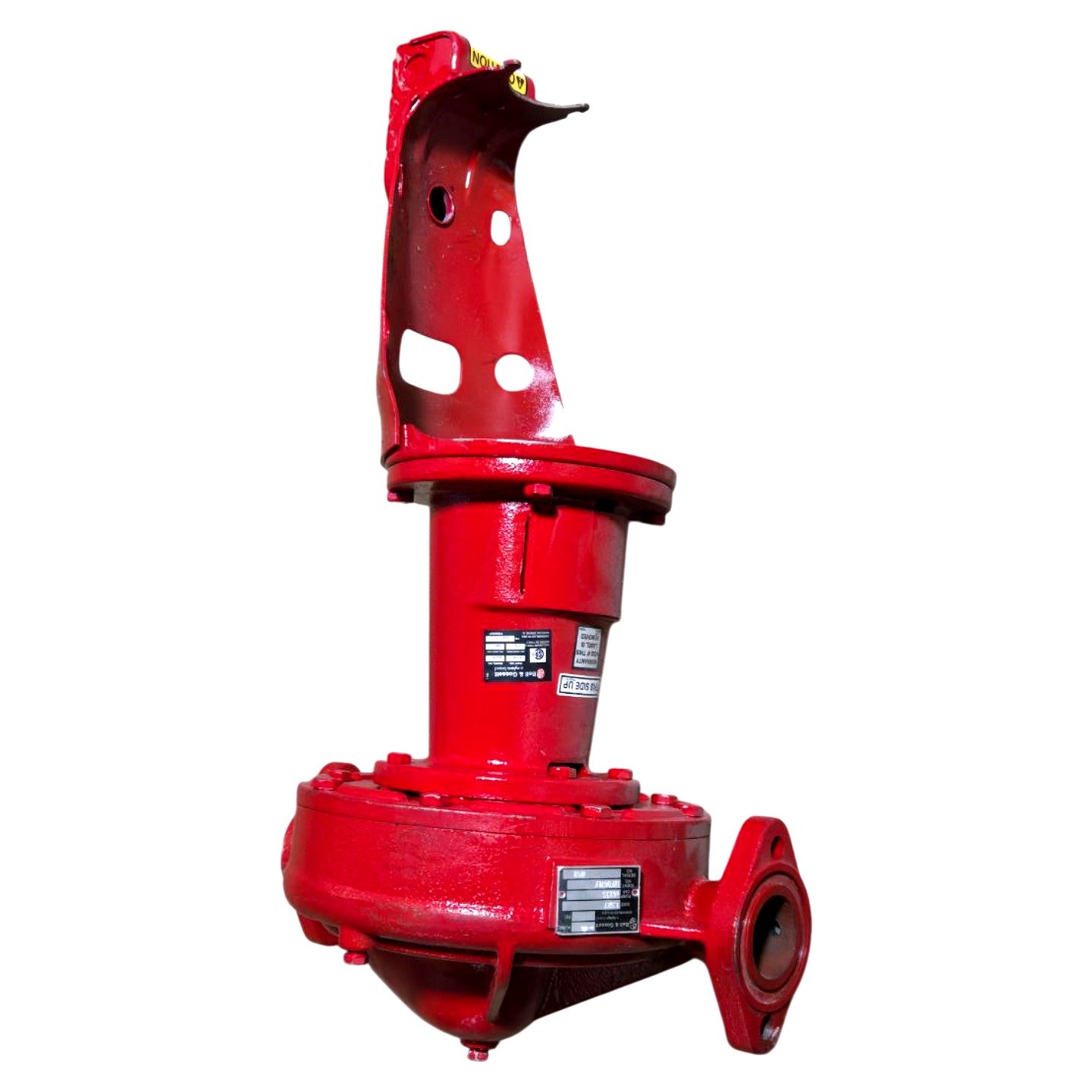

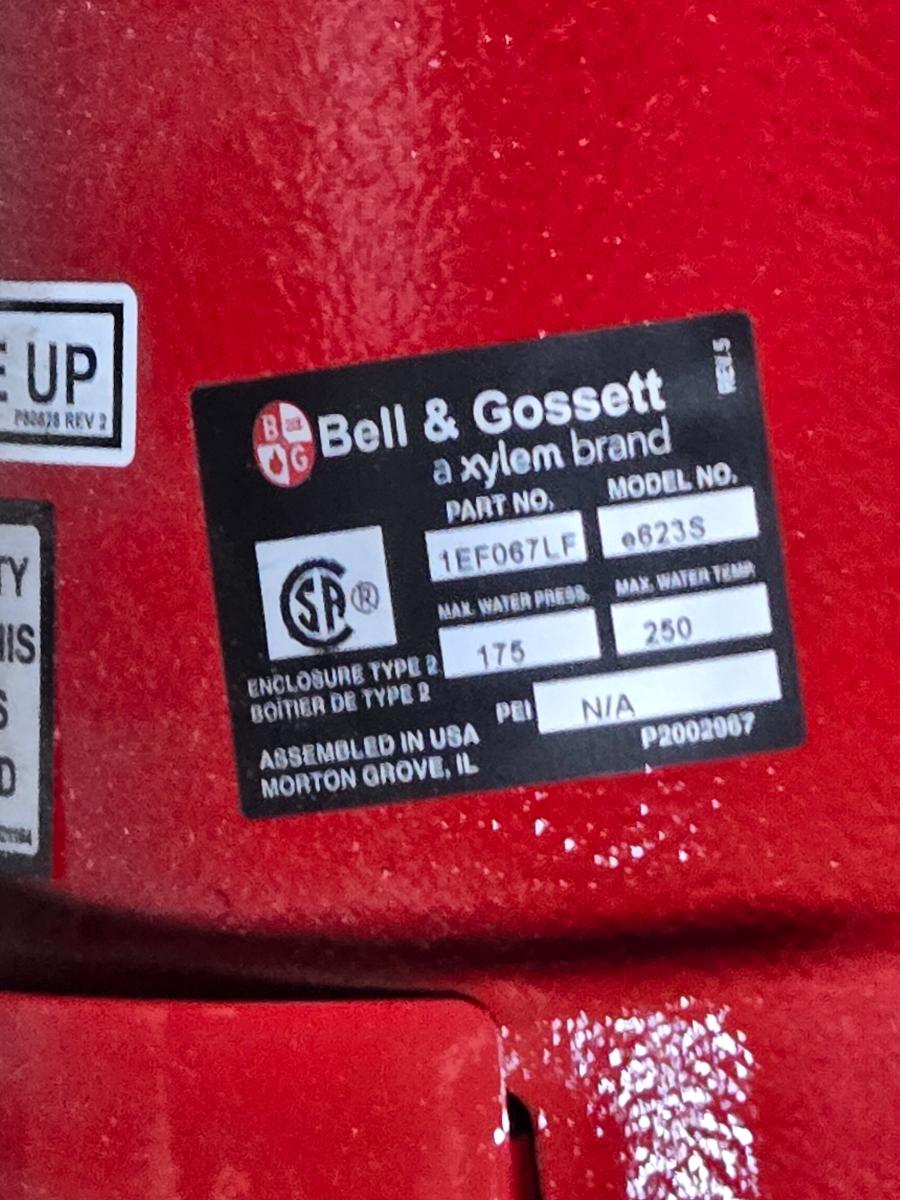

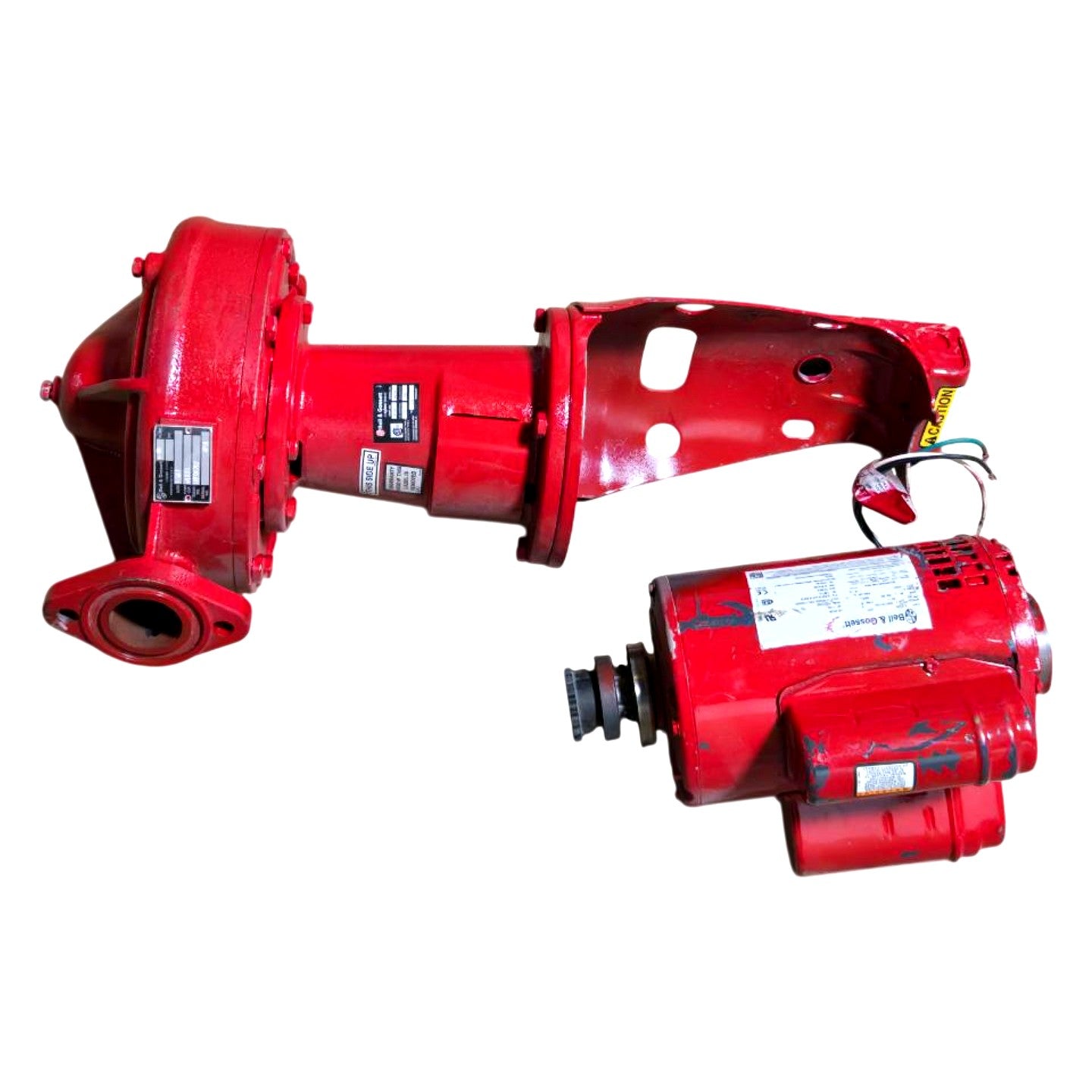

This is a Bell & Gossett Series e-60 hydronic circulating pump, Part No. 1EF067LF, Model e623S, Size 1.5x7, assembled in the USA at Morton Grove, IL — sold new in original box (opened/other condition). The cast iron pump body is rated for a maximum working pressure of 175 PSI and a maximum water temperature of 250°F, with a 1.5-inch flanged suction/discharge connection and a 7-inch impeller diameter. The matched Bell & Gossett motor is rated 1 HP, 1-phase, 60 Hz, 1725/1425 RPM, dual-voltage 115/208-230V AC, with FLA of 9.0/4.9–4.9/9.0 A, SF 1.25/1.3, permanently lubricated ball bearings, thermally protected, IP 22 enclosure, CW rotation (OPE end), and is CSA/UL listed. This pump assembly is designed for closed-loop hydronic heating and cooling systems in commercial and institutional HVAC applications including building heating loops, chilled water systems, and secondary distribution circuits. The unit includes the motor, pump casing with bearing assembly/bracket, and Xylem Series e-60 quick-start guide; the motor is separated from the pump casing in photos indicating disassembled-for-shipping configuration.

Product Specifications
