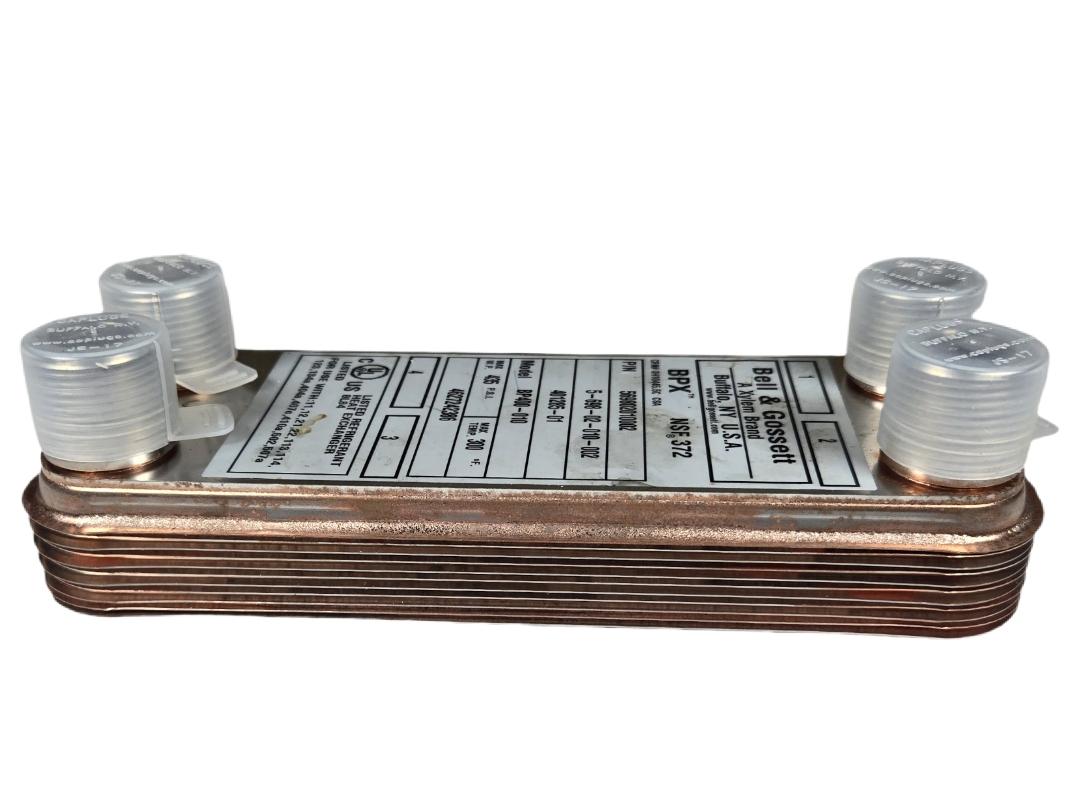

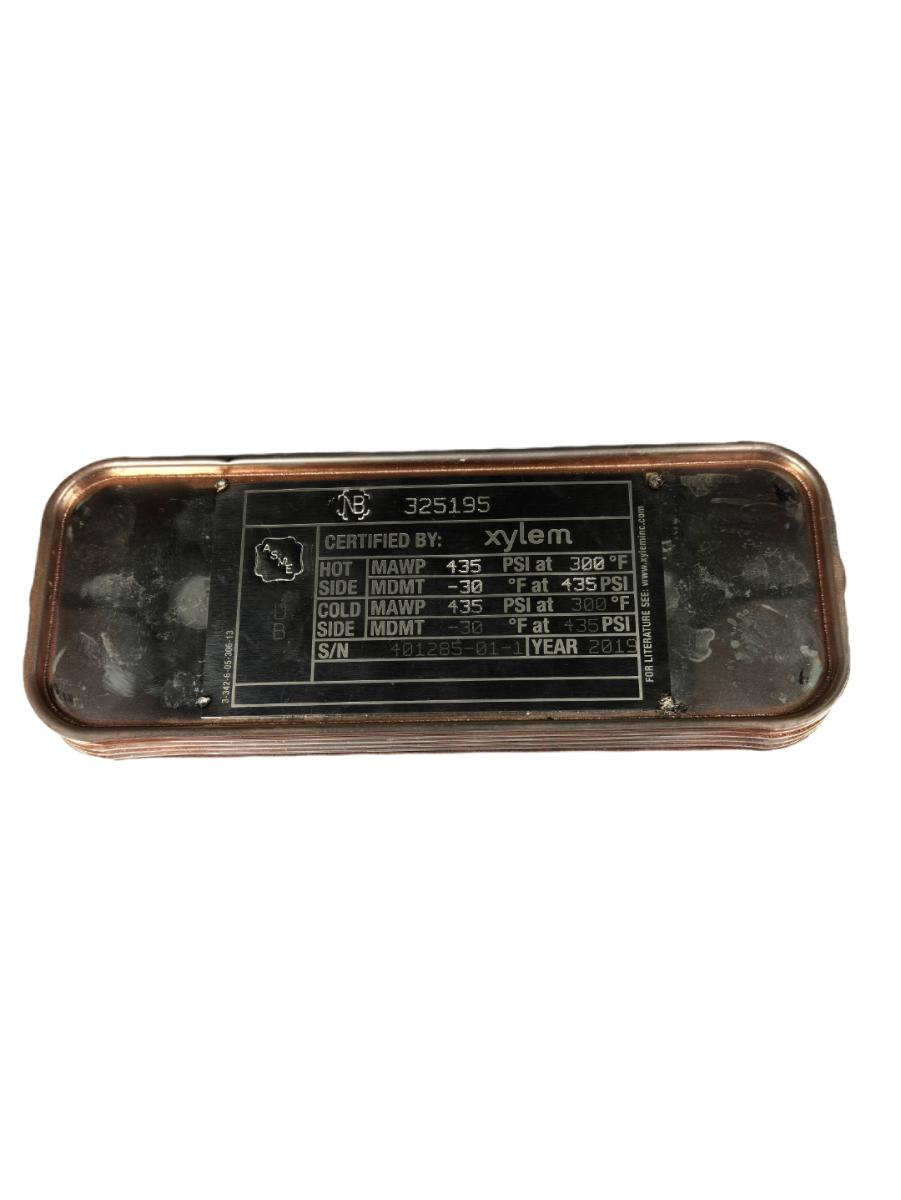

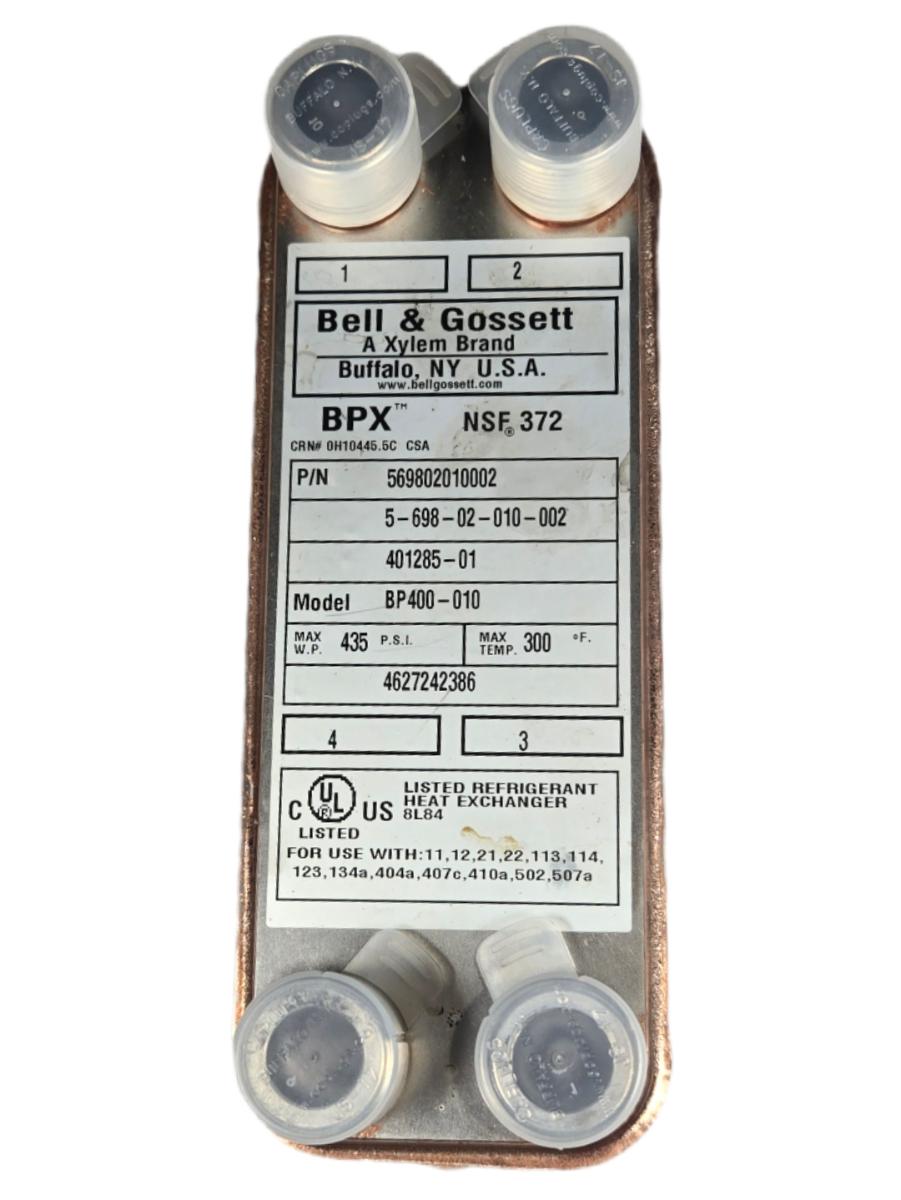

The Bell & Gossett BP400-010 is a new, copper-brazed stainless steel plate heat exchanger from the BPX series, manufactured in Buffalo, NY by Xylem and carrying NSF 372 certification for lead-free compliance. The unit consists of 10 plates and is rated for a maximum working pressure (MAWP) of 435 PSI on both hot and cold sides at a maximum temperature of 300°F, with a minimum design metal temperature (MDMT) of -30°F at 435 PSI, as confirmed by the ASME National Board nameplate (NB# 325195, certified by Xylem, Year 2019). It is UL/cUL Listed as a refrigerant heat exchanger (File 8L84) and approved for use with refrigerants R-11, R-12, R-21, R-22, R-113, R-114, R-123, R-134a, R-404a, R-407c, R-410a, R-502, and R-507a, making it suitable for HVAC, refrigeration, and hydronic heating applications. The four connections are fitted with protective plastic port caps as shipped; CRN# 0H10445.5C confirms Canadian registration under CSA. Part number cross-references include 5-698-02-010-002 and internal drawing number 401285-01.
Product Specifications
| Brand | Bell & Gossett (Xylem) |
| Model Number | BP400-010 |
| Part Number (Primary) | 569802010002 |
| Part Number (Alternate) | 5-698-02-010-002 |
| Drawing / Reference Number | 401285-01 |
| Product Series | BPX |
| Number of Plates | 10 |
| Brazing Material | Copper |
| Plate Material | Stainless Steel |
| Maximum Working Pressure (MAWP) – Hot Side | 435 PSI at 300°F |
| Maximum Working Pressure (MAWP) – Cold Side | 435 PSI at 300°F |
| Maximum Temperature | 300°F |
| Minimum Design Metal Temperature (MDMT) – Hot Side | -30°F at 435 PSI |
| Minimum Design Metal Temperature (MDMT) – Cold Side | -30°F at 435 PSI |
| NSF Certification | NSF 372 (Lead-Free) |
| UL Listing | cULus Listed Refrigerant Heat Exchanger, File 8L84 |
| ASME National Board Number | 325195 |
| ASME Certified By | Xylem |
| Canadian Registration Number (CRN) | 0H10445.5C CSA |
| Year of Manufacture | 2019 |
| Serial Number | 401285-01-1 |
| Number of Ports/Connections | 4 |
| Compatible Refrigerants | R-11, R-12, R-21, R-22, R-113, R-114, R-123, R-134a, R-404a, R-407c, R-410a, R-502, R-507a |
| Country of Origin | USA |
| Condition | New |
