Bell & Gossett SSF-22 103357LF 115V Stainless Hot Water Circulator Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

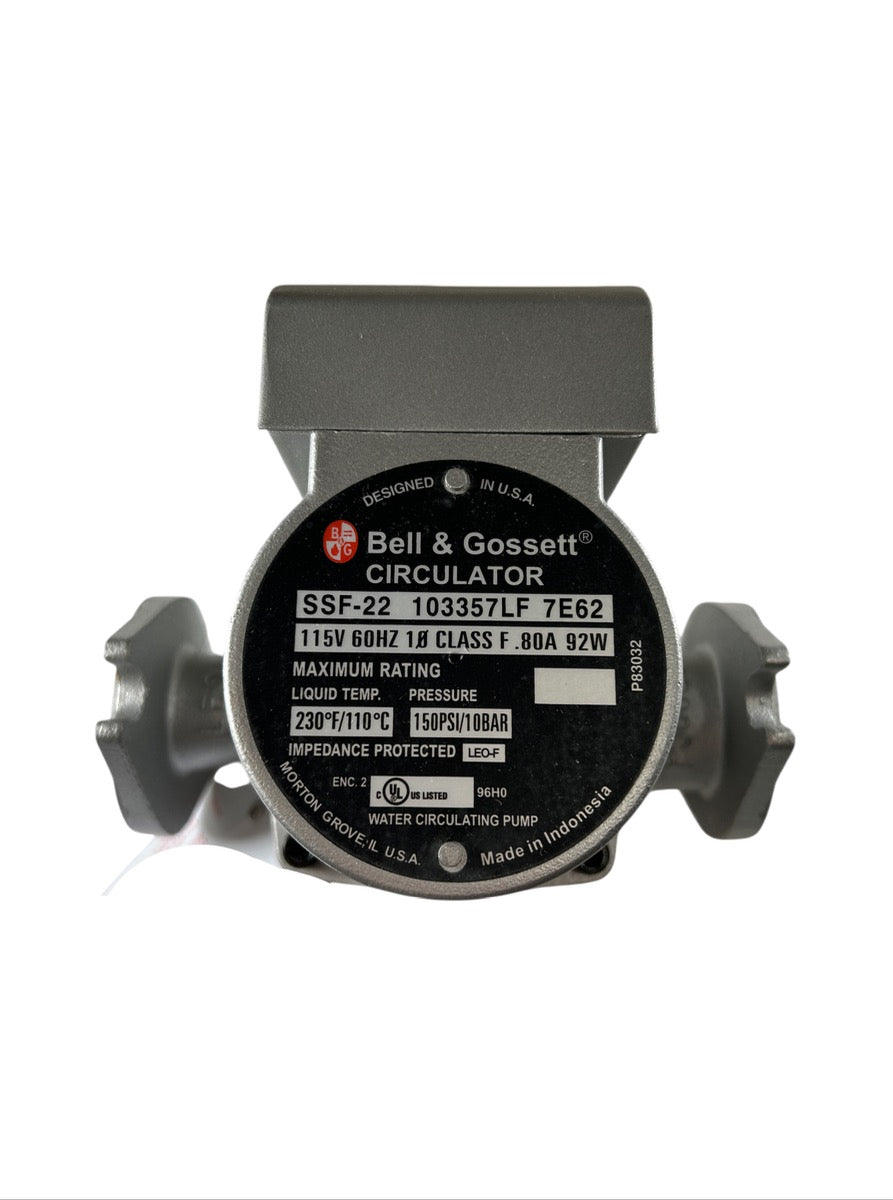

The Bell & Gossett SSF-22 (part number 103357LF, catalog number 7E62) is a new, single-speed stainless steel flanged circulator pump from Xylem's Bell & Gossett line, designed for closed-loop hydronic heating and potable hot water recirculation systems. The 'LF' suffix designates lead-free construction compliant with NSF/ANSI 61 and 372, making it suitable for potable water applications where low-lead compliance is mandated. It operates on 115V/60Hz single-phase power, draws 0.80A at 92W, and carries a Class F motor insulation rating with impedance overload protection (LEO-F enclosure). Rated for liquid temperatures up to 230°F (110°C) and maximum working pressure of 150 PSI (10 BAR), the SSF-22 features Bell & Gossett's Duraglide carbon/ceramic seal technology eliminating the need for external lubrication. The pump ships with two flange O-rings and the B&G instruction manual P58671H, and mounts in any orientation via its swivel flange flanged connections.
Product Specifications
| Brand | Bell & Gossett (Xylem) |
| Model | SSF-22 |
| Part Number | 103357LF |
| Catalog / Order Code | 7E62 |

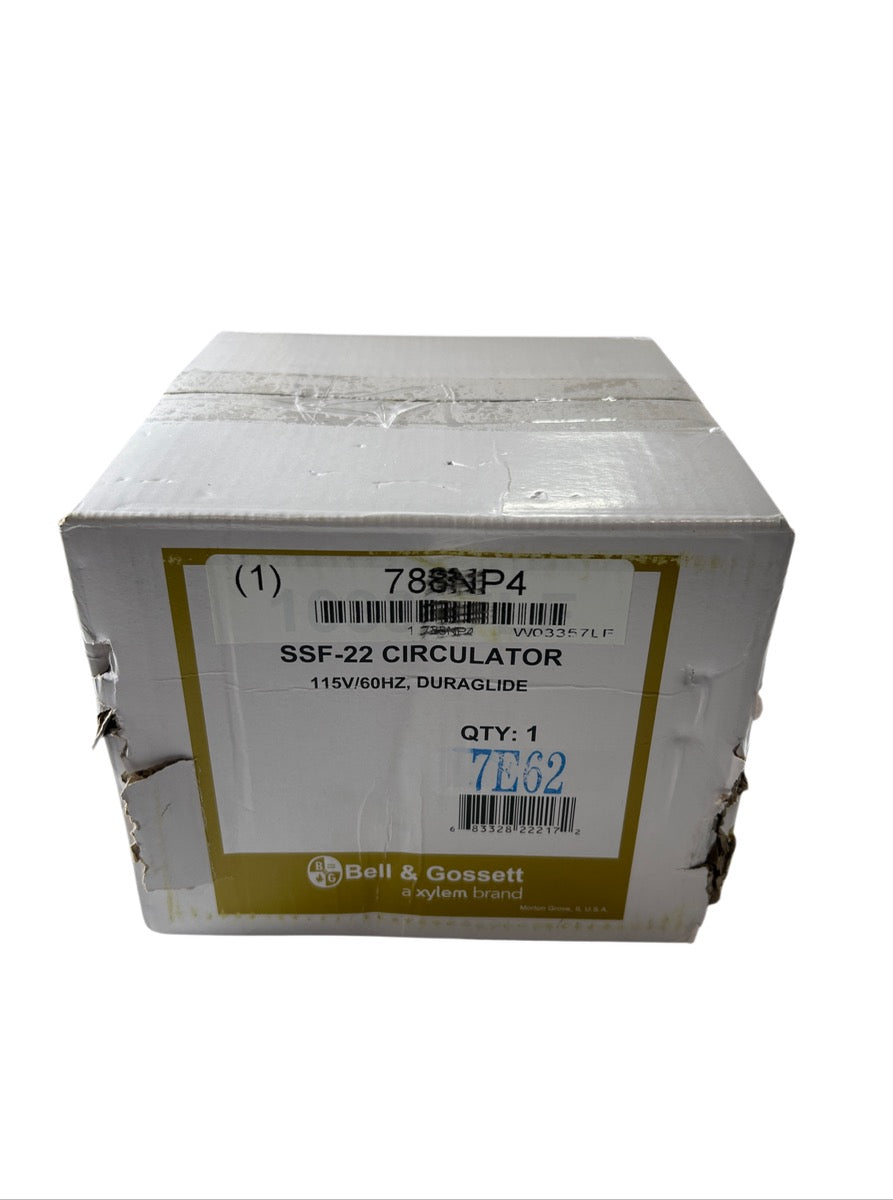

| Box / SKU Number | 788NP4 |
| Voltage | 115V |
| Frequency | 60 Hz |
| Phase | 1-phase |
| Current Draw | 0.80 A |
| Power Consumption | 92 W |
| Motor Insulation Class | Class F |
| Motor Protection | Impedance protected, LEO-F enclosure |
| Max Liquid Temperature | 230°F / 110°C |
| Max Working Pressure | 150 PSI / 10 BAR |
| Lead-Free Compliance | Yes — LF suffix, NSF/ANSI 61 & 372 |
| Seal Type | Duraglide carbon/ceramic, maintenance-free |
| Connection Type | Swivel flange |
| Body Material | Stainless steel (SSF series) |
| Enclosure | ENC. 2 |
| UL Listing | UL Listed — Water Circulating Pump |
| Country of Origin | Indonesia (designed in USA) |
| Wire Rating (Supply) | 90°C rated copper conductors required |

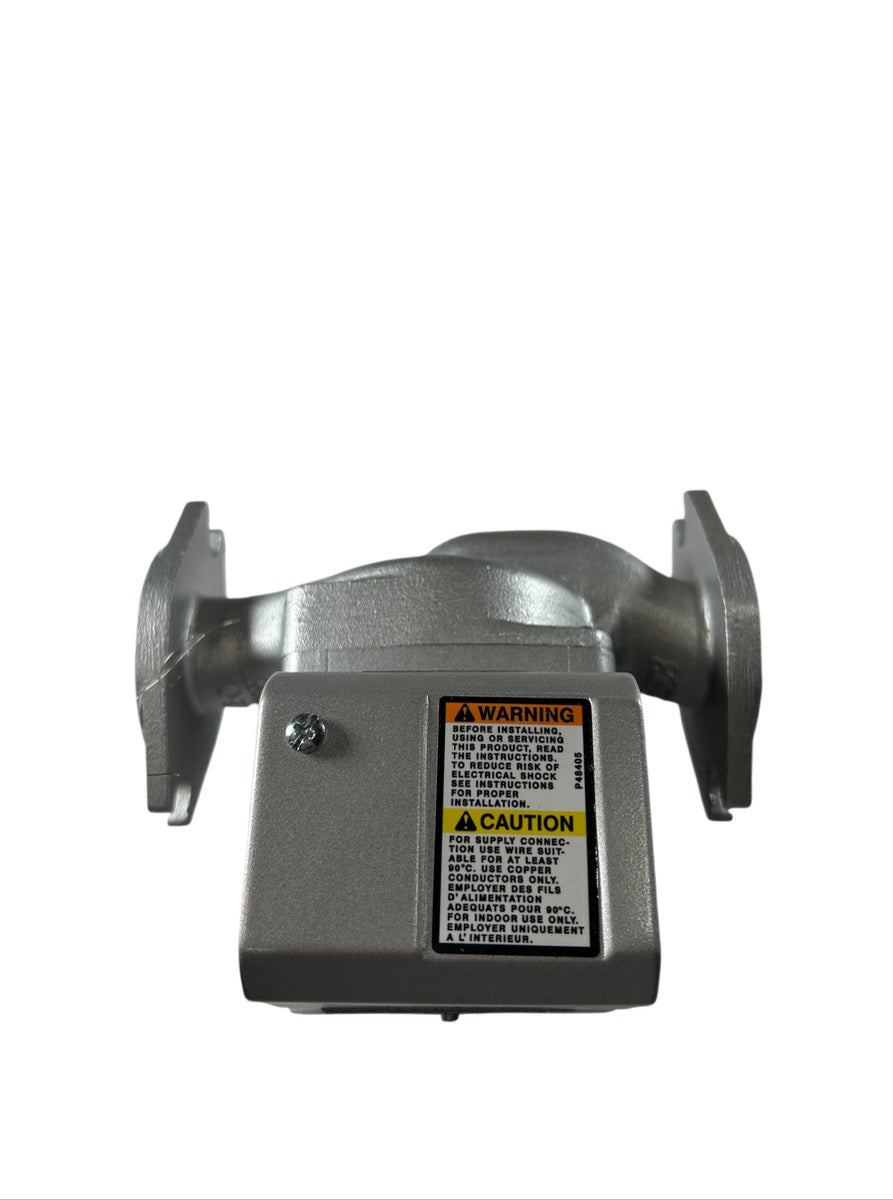

| Indoor/Outdoor Rating | Indoor use only |

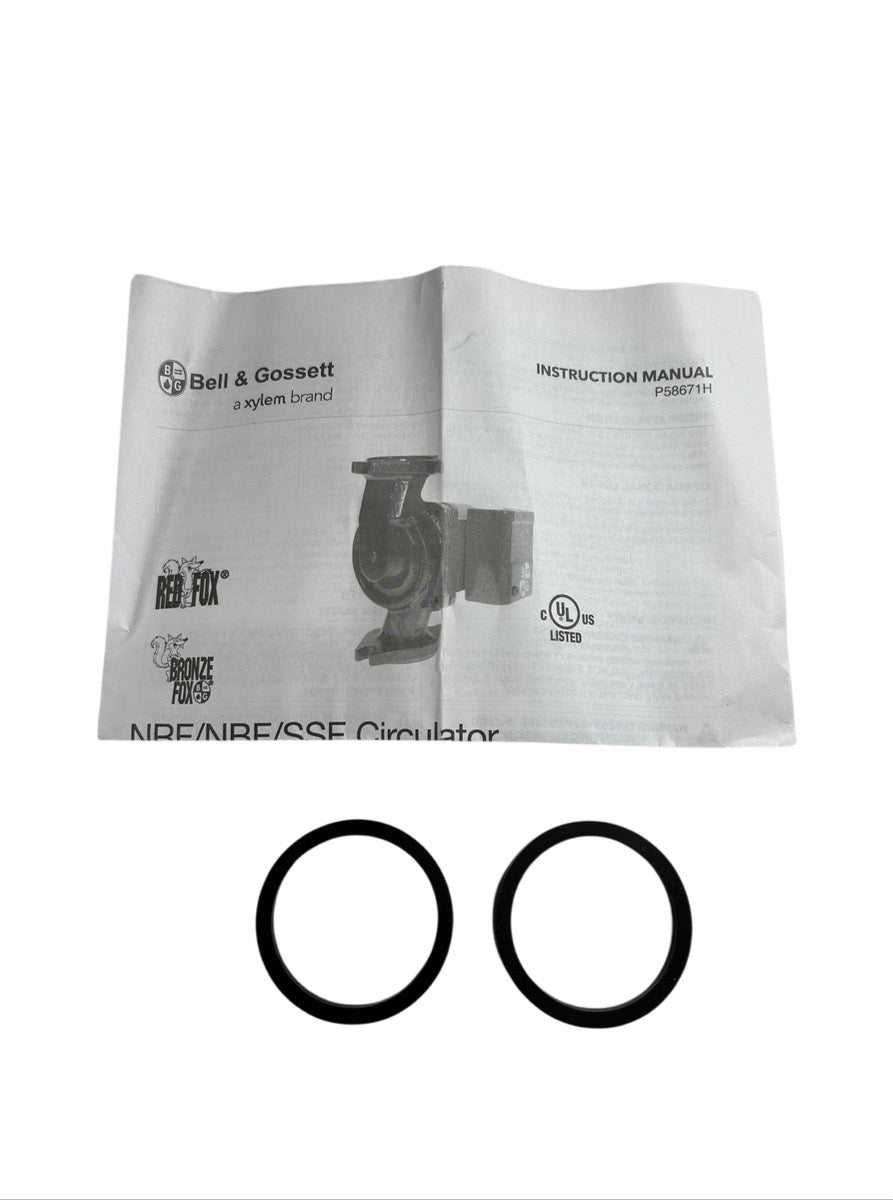

| Included Accessories | 2x flange O-rings, instruction manual P58671H |
| Condition | New |
