Benchmark Carbide 35050020C5 1/2 x 1/2 x 1-1/4 3FL ZrN Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

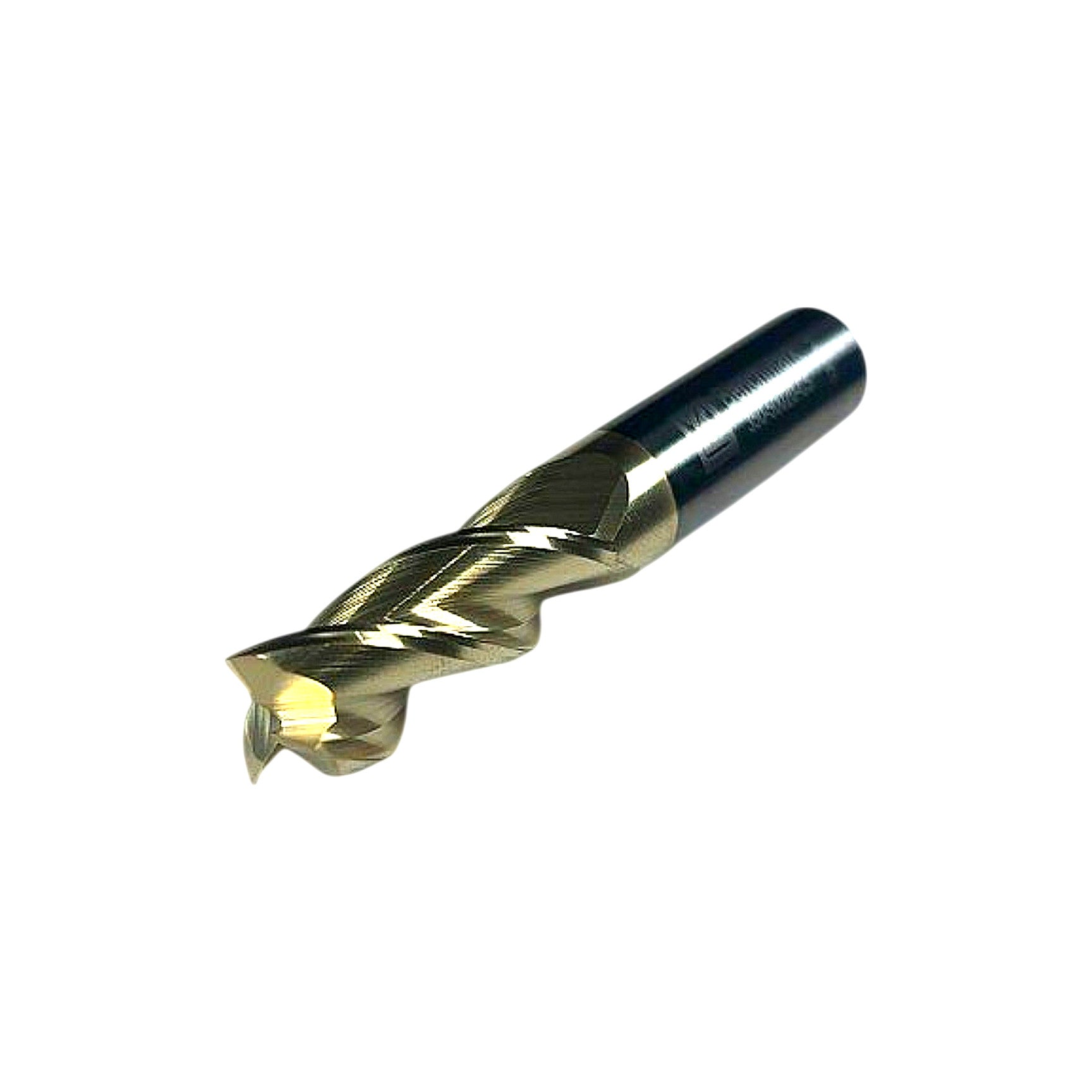

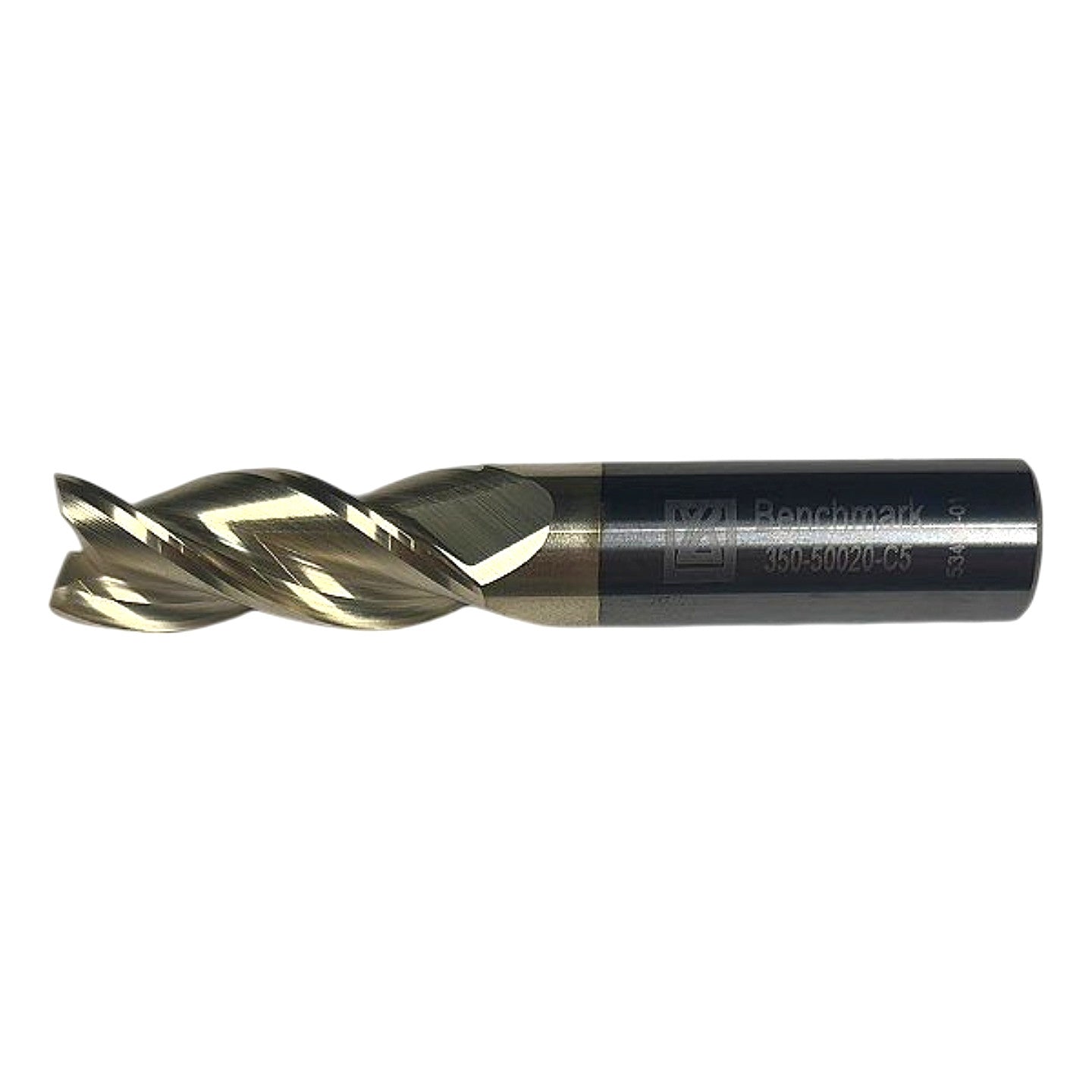

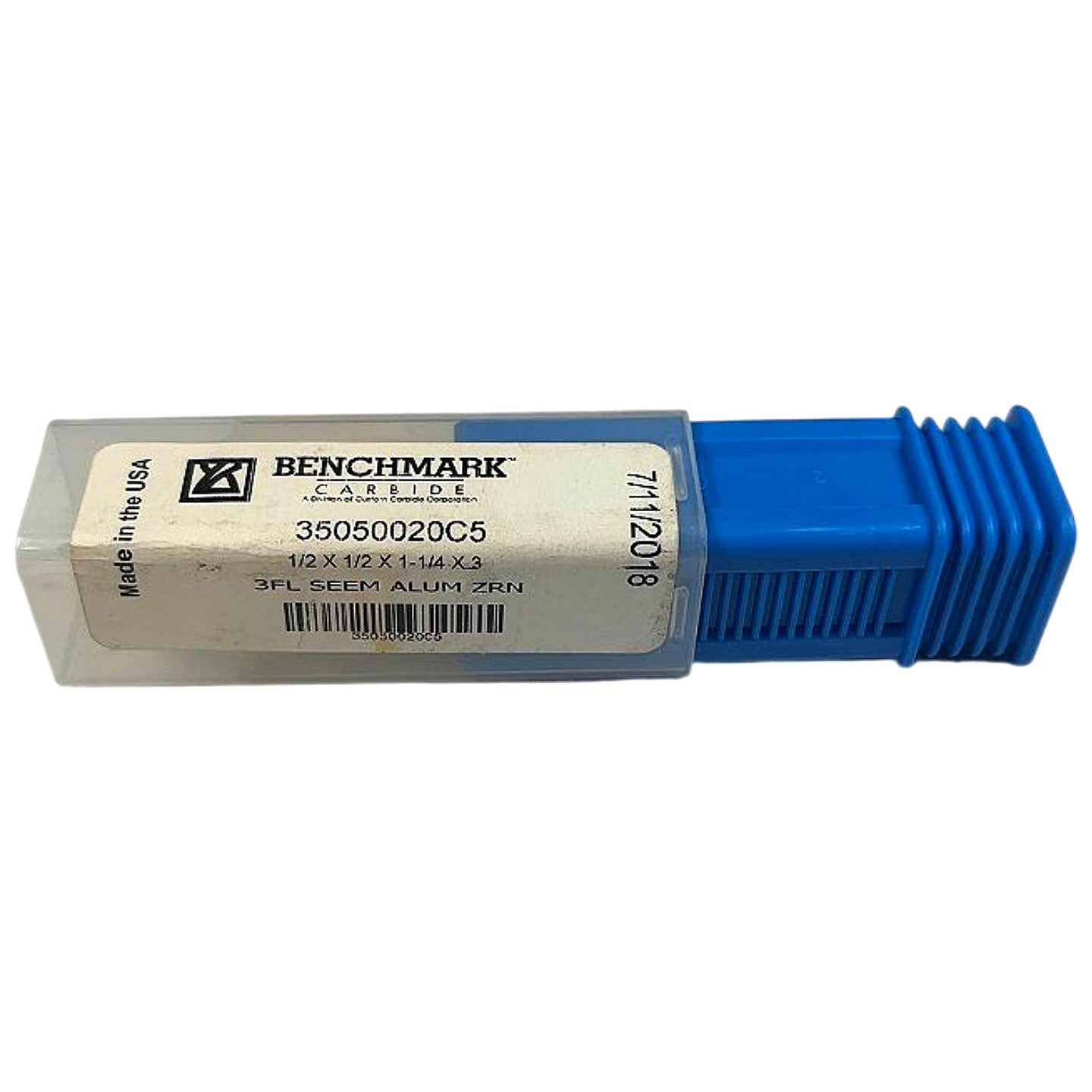

The Benchmark Carbide 35050020C5 (also marked 350-50020-C5) is a new, USA-made solid carbide single-end square end mill specifically engineered for aluminum and non-ferrous machining. It features a 3-flute geometry with a 1/2 in cutting diameter, 1/2 in shank diameter, 1-1/4 in length of cut, and approximately 3 in overall length, as decoded directly from the label "1/2 X 1/2 X 1-1/4 X 3." The tool is coated with ZrN (Zirconium Nitride), a gold-colored PVD coating that provides low friction, exceptional chip adhesion resistance, and extended tool life in aluminum, brass, copper, and other non-ferrous materials. Manufactured by Benchmark Carbide (a division of Custom Carbide Corporation) in the USA, this end mill is compatible with standard 1/2 in collet chucks, end mill holders, and hydraulic/shrink-fit toolholders on CNC machining centers and manual mills.
Product Specifications
| Brand | Benchmark Carbide |
| MPN | 35050020C5 |
| Cutting Diameter | 1/2 in (0.500 in) |
| Shank Diameter | 1/2 in (0.500 in) |
| Length of Cut (LOC) | 1-1/4 in (1.250 in) |
| Overall Length (OAL) | 3 in |
| Number of Flutes | 3 |
| End Type | Square (Flat) |
| Coating | ZrN (Zirconium Nitride) |
| Material | Solid Carbide |
| Application | Aluminum & Non-Ferrous |
| Shank Type | Straight Shank |
| Country of Origin | USA |
| Condition | New |
