Bettis EM SR5M-90-C7-02-307 115VAC 1400 in-lb Electric Valve Actuator

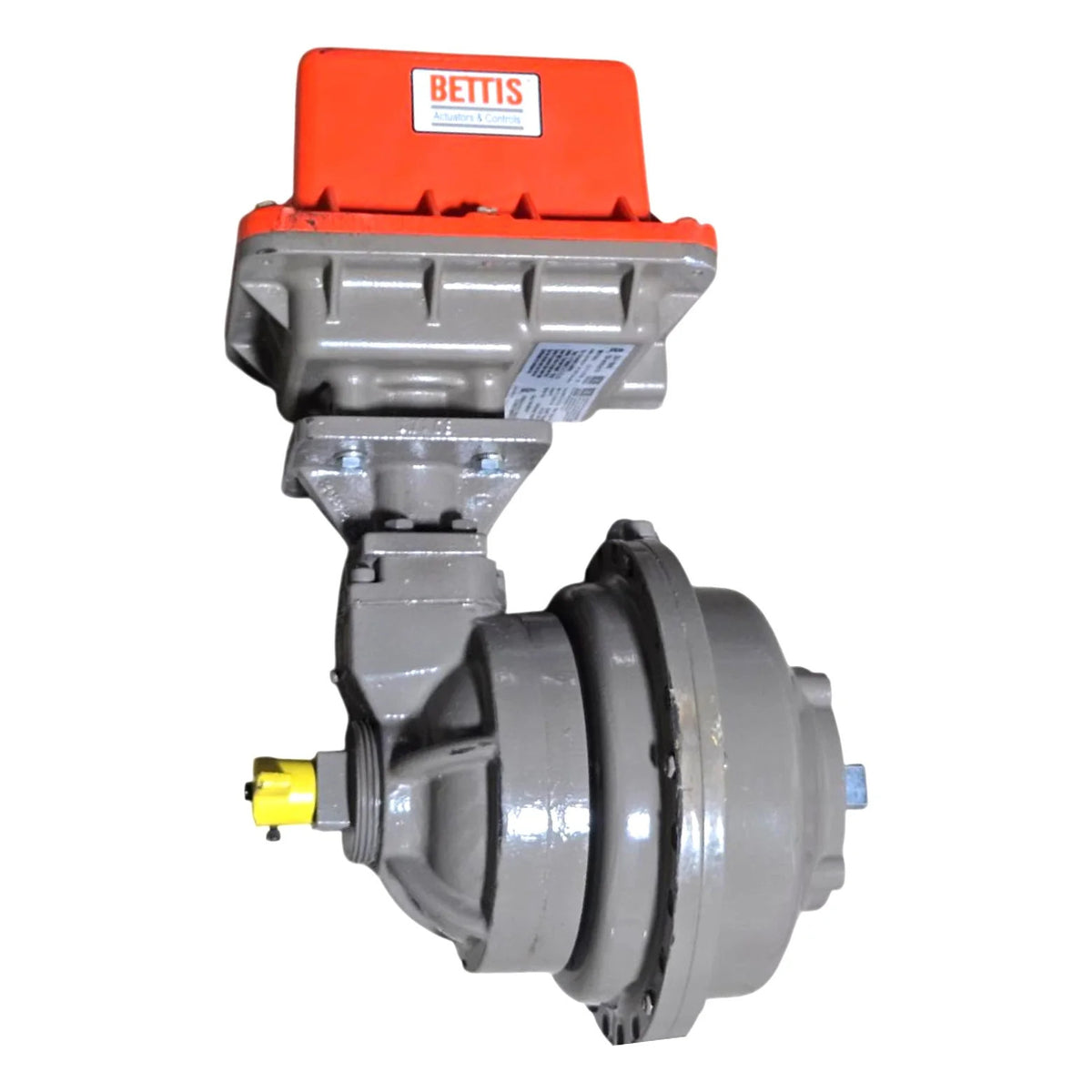

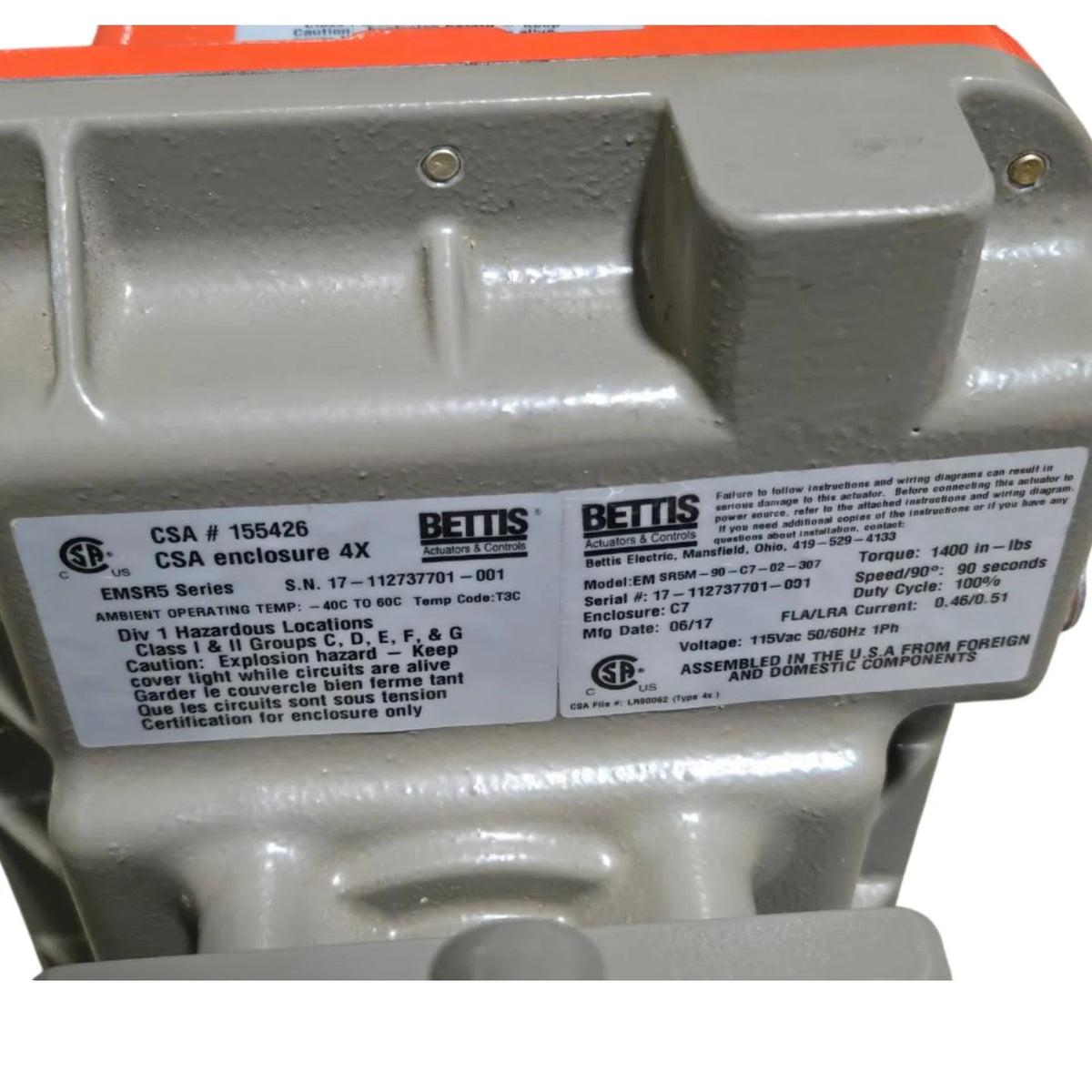

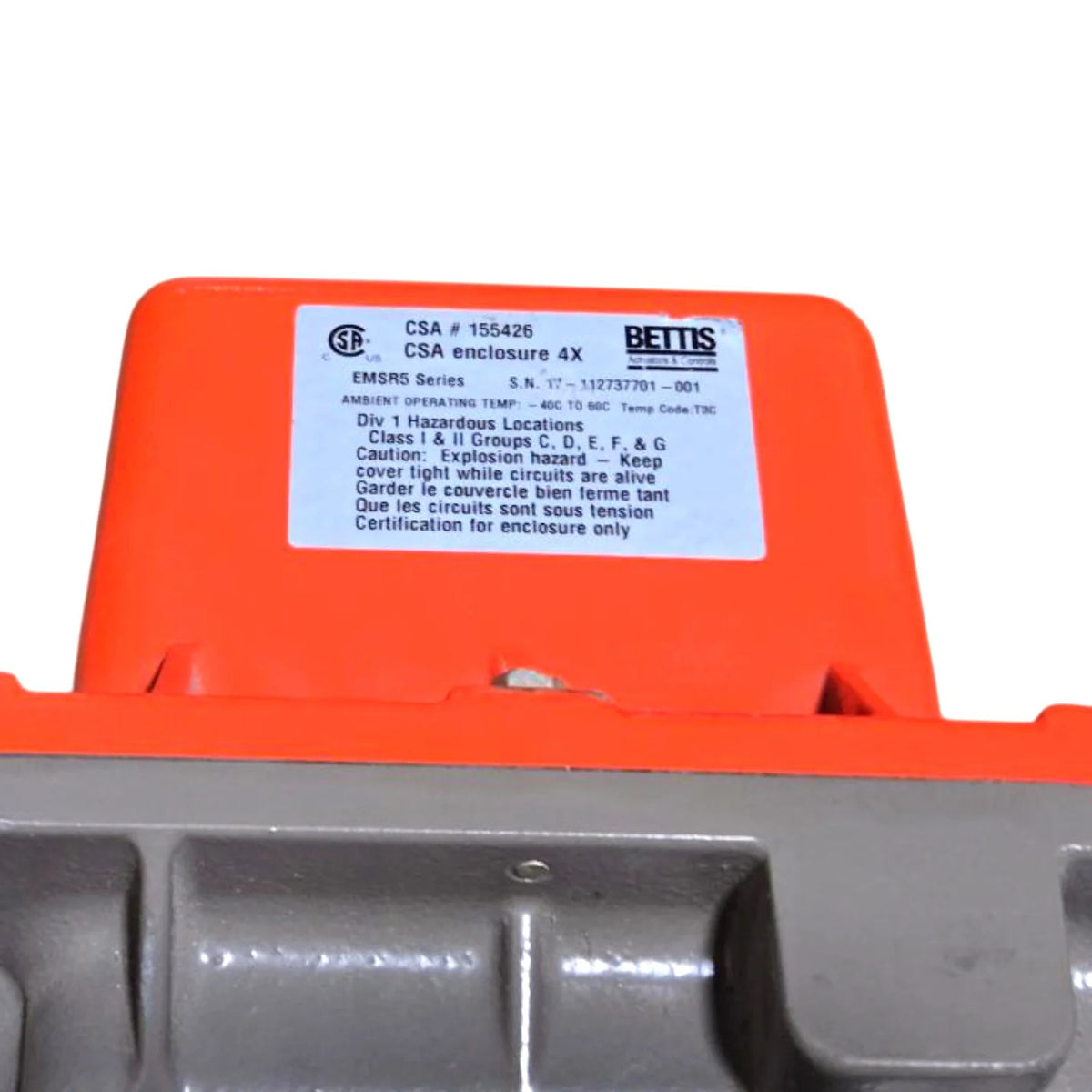

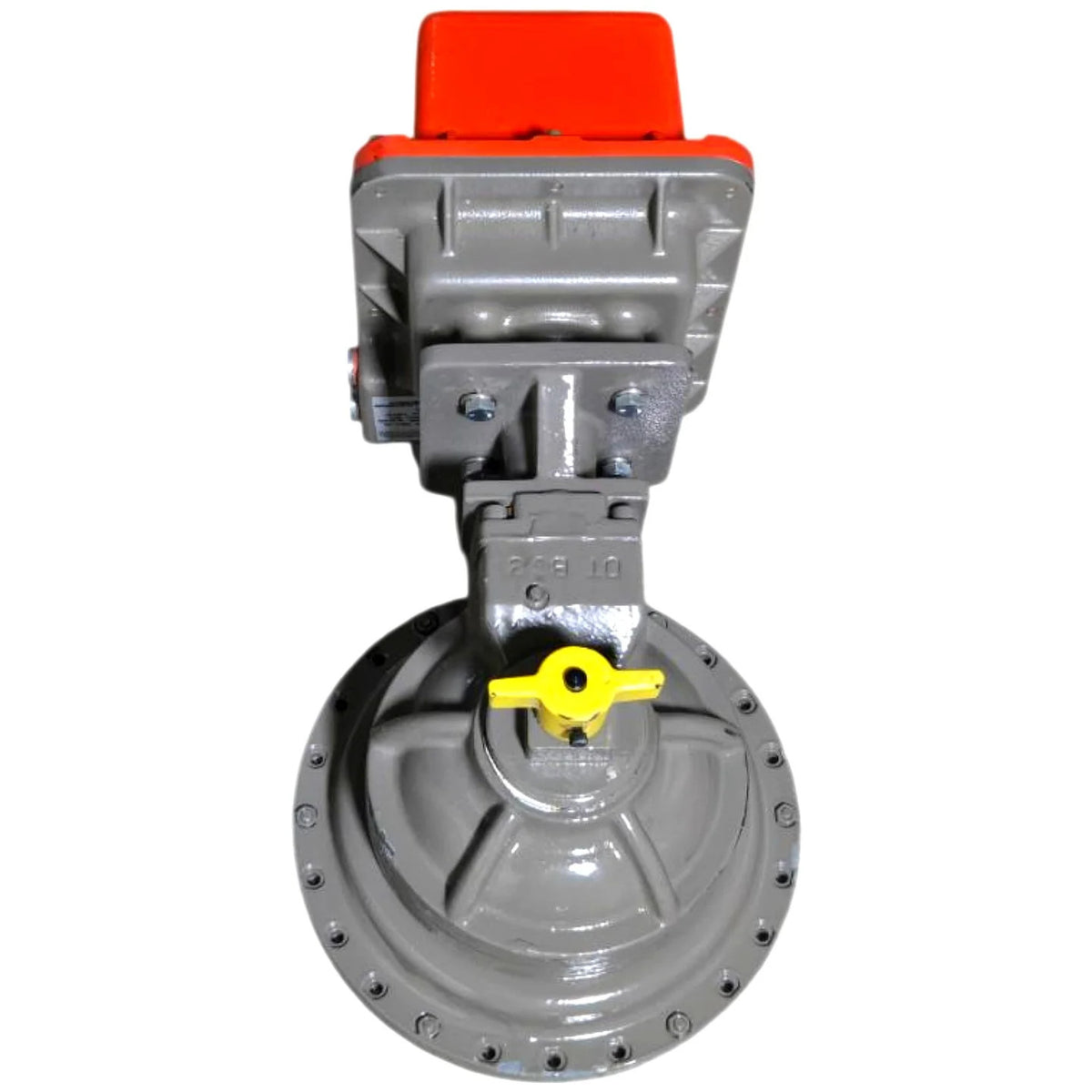

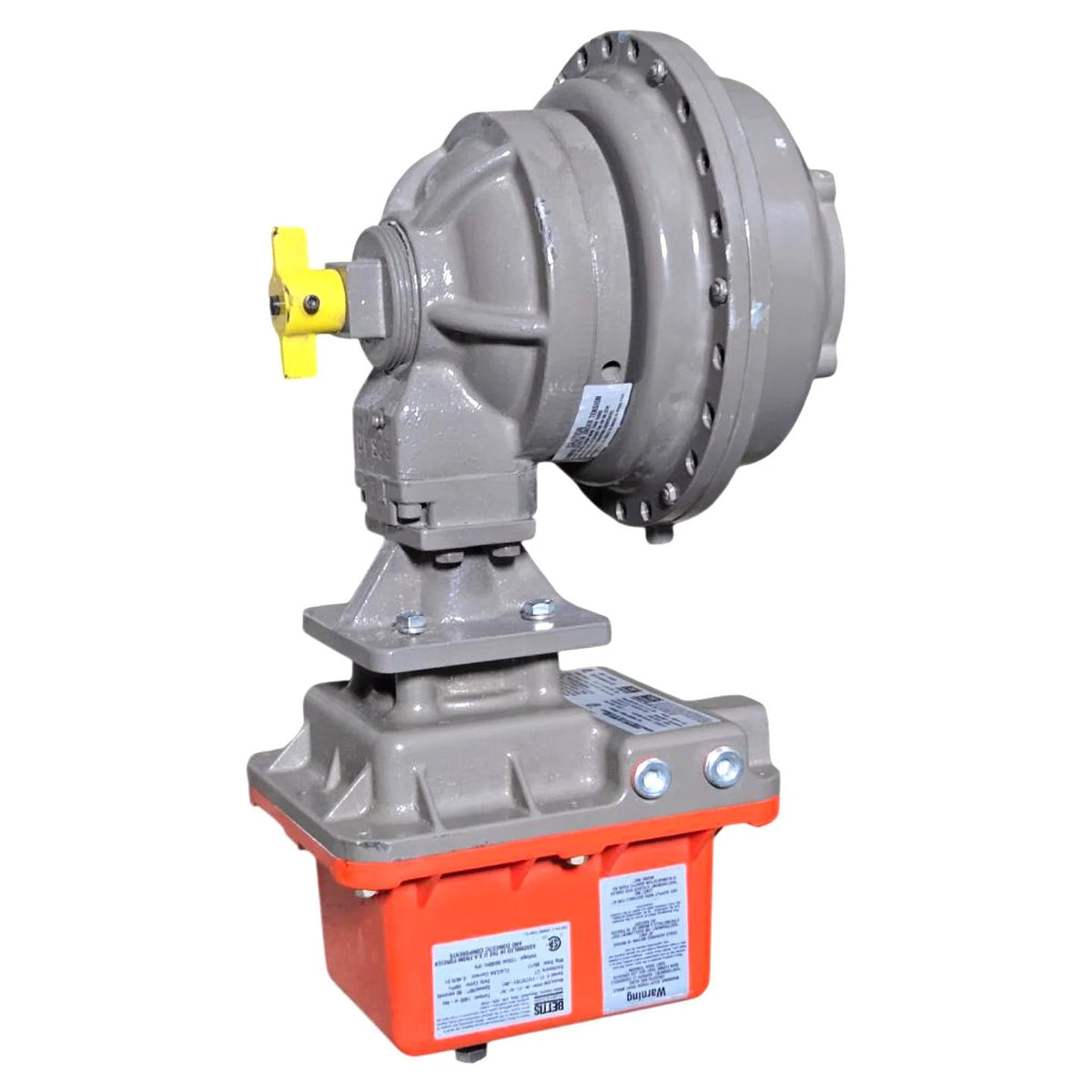

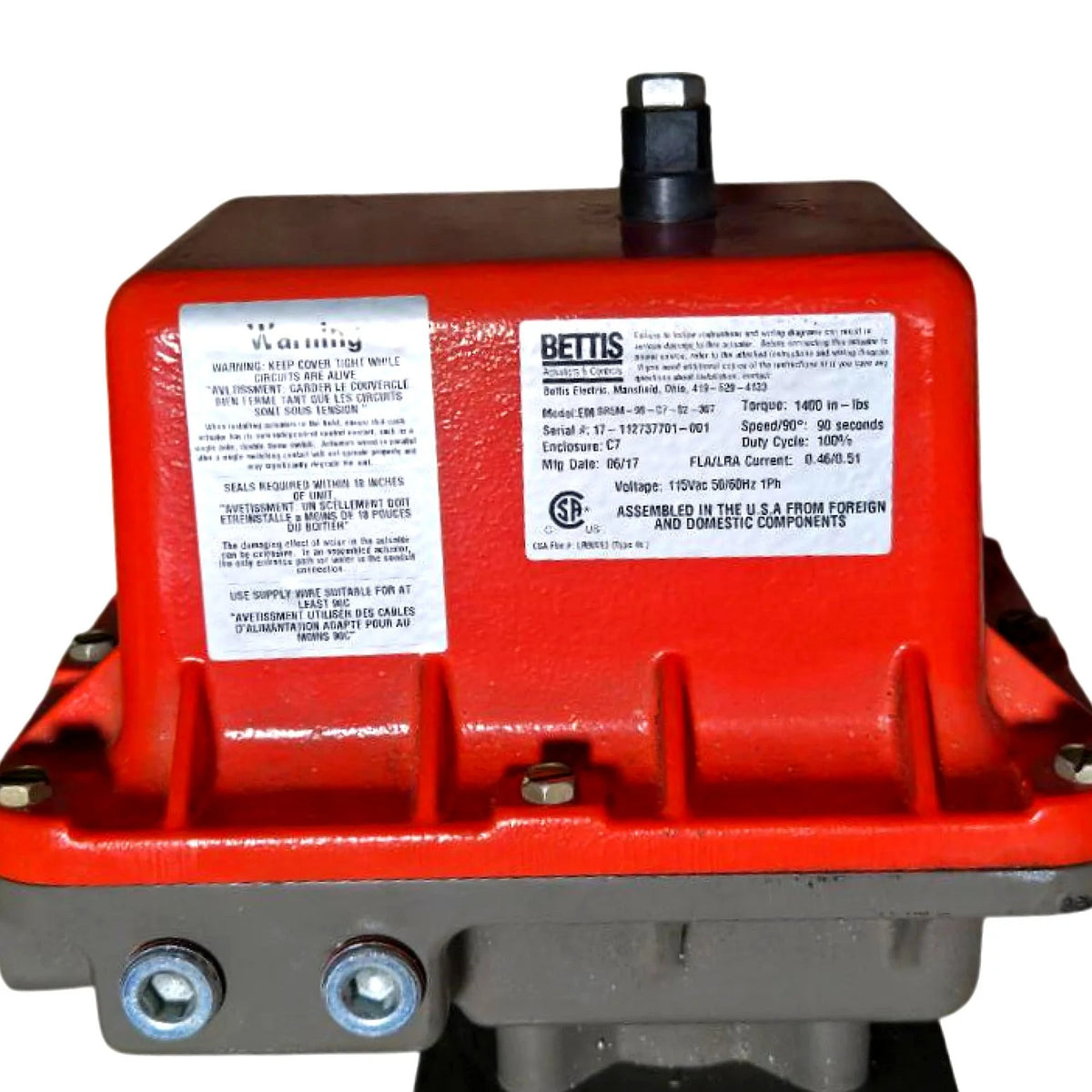

The Bettis EMSR5 Series electric valve actuator, model EM SR5M-90-C7-02-307 (S/N 17-112737701-001, mfg. 06/2017), is a heavy-duty quarter-turn electric actuator designed for modulating or on/off valve control in Division 1 Hazardous Locations. It operates on 115VAC, 50/60Hz, single-phase power and delivers 1,400 in-lb of output torque with a 90° travel time of 90 seconds, running at a 100% duty cycle — meaning it is rated for continuous operation without thermal derating. The unit carries a CSA enclosure Type 4X rating (weatherproof, corrosion-resistant cast housing) and is CSA-certified for Class I & II, Groups C, D, E, F, and G hazardous environments (Temp Code T3C), with an ambient operating range of -40°C to +60°C, making it suitable for oil & gas, petrochemical, and chemical processing applications. FLA/LRA current draw is 0.46/0.51A. The actuator is assembled in the USA from foreign and domestic components and is offered here new in unused condition, with the integral manual override handwheel (yellow T-handle) and gear drive section included as shown. Product Specifications Brand Bettis MPN EM-SR5 Series Model / MPN EM SR5M-90-C7-02-307 Series EMSR5 Actuator Type Electric, Quarter-Turn Voltage 115VAC Phase 1Ph Frequency 50/60 Hz Output Torque 1400 in-lb Travel Angle 90° Speed (90°) 90 seconds Duty Cycle 100% FLA / LRA Current 0.46 / 0.51 A Enclosure Rating Type C7 (CSA 4X) Hazardous Location Rating Div 1, Class I & II, Groups C,D,E,F,G Temp Code T3C Ambient Operating Temp -40°C to +60°C CSA File # LR90062 (Type 4X) CSA Cert # 155426 Manual Override Yes – handwheel (yellow T-handle) Country of Assembly USA (foreign & domestic components) Manufacture Date 06/2017
