Brinkmann STH607B290-XZ+1150 High-Pressure Immersion Coolant Pump

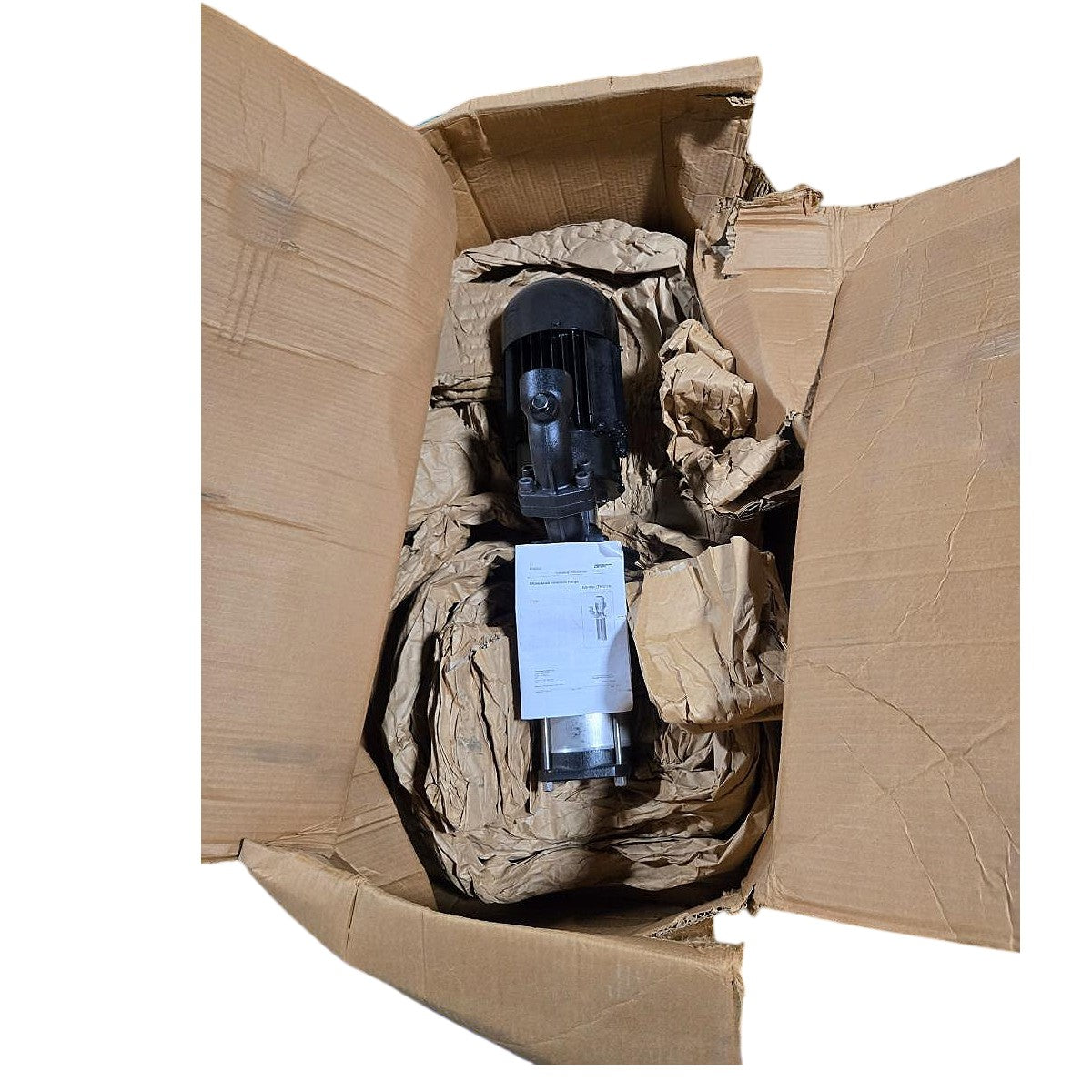

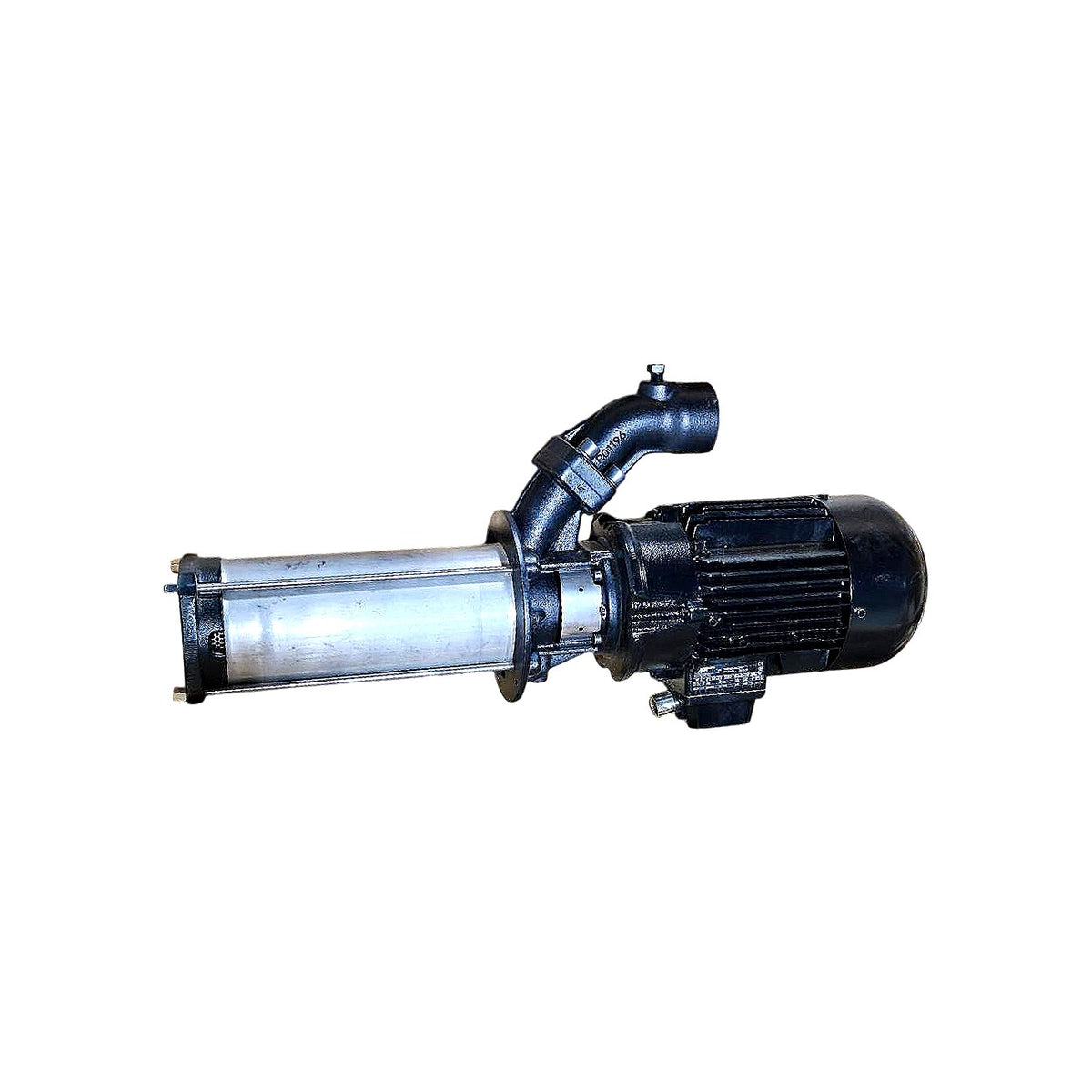

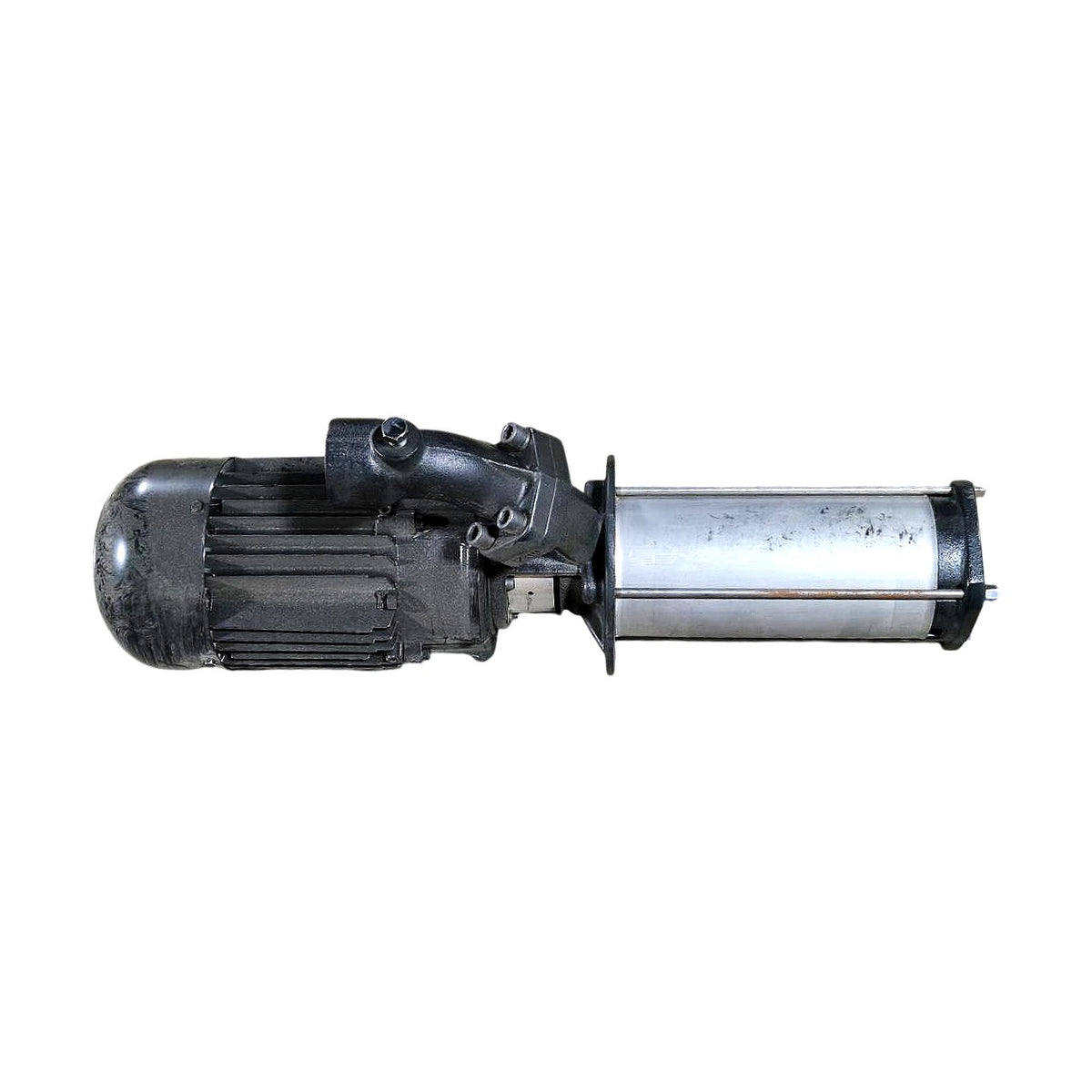

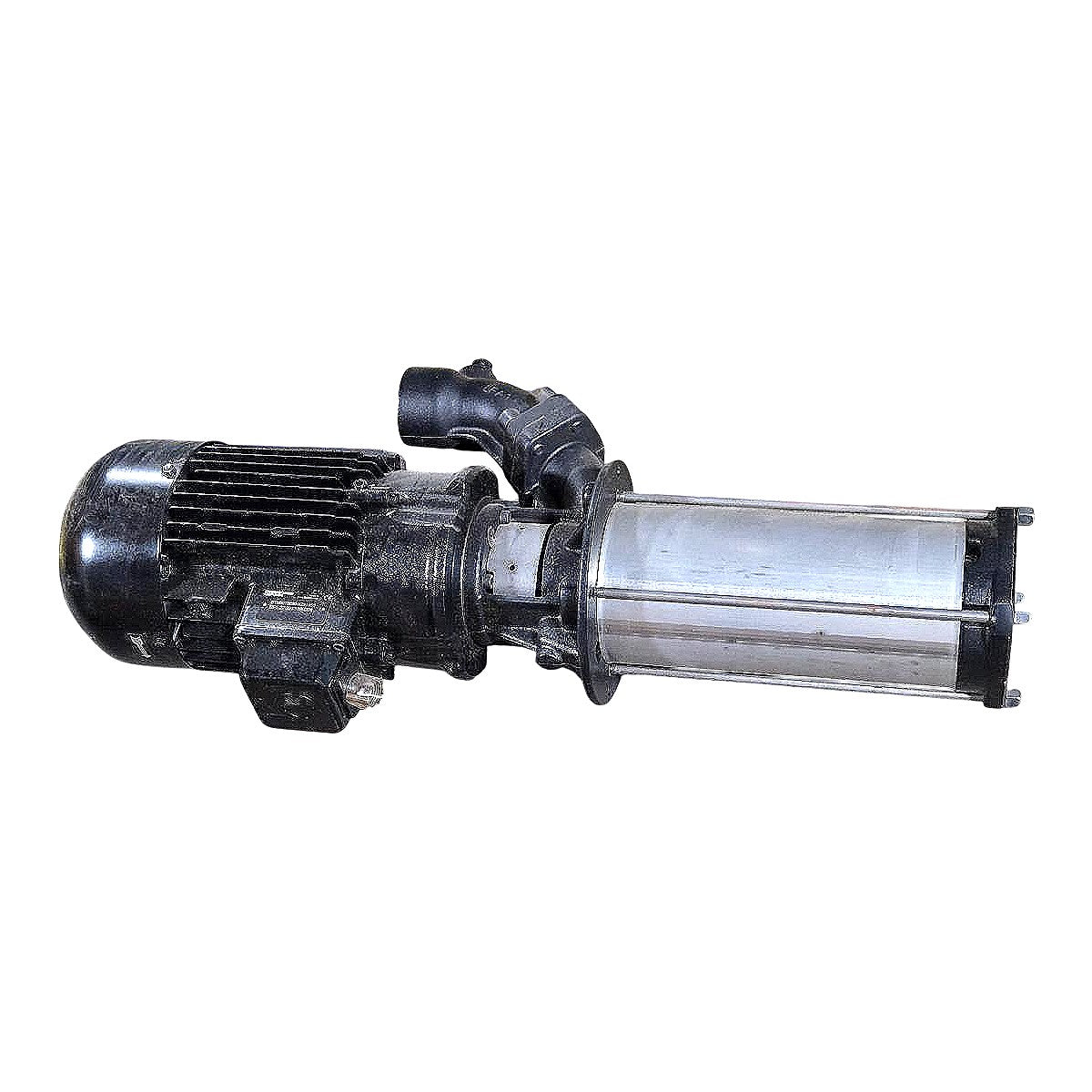

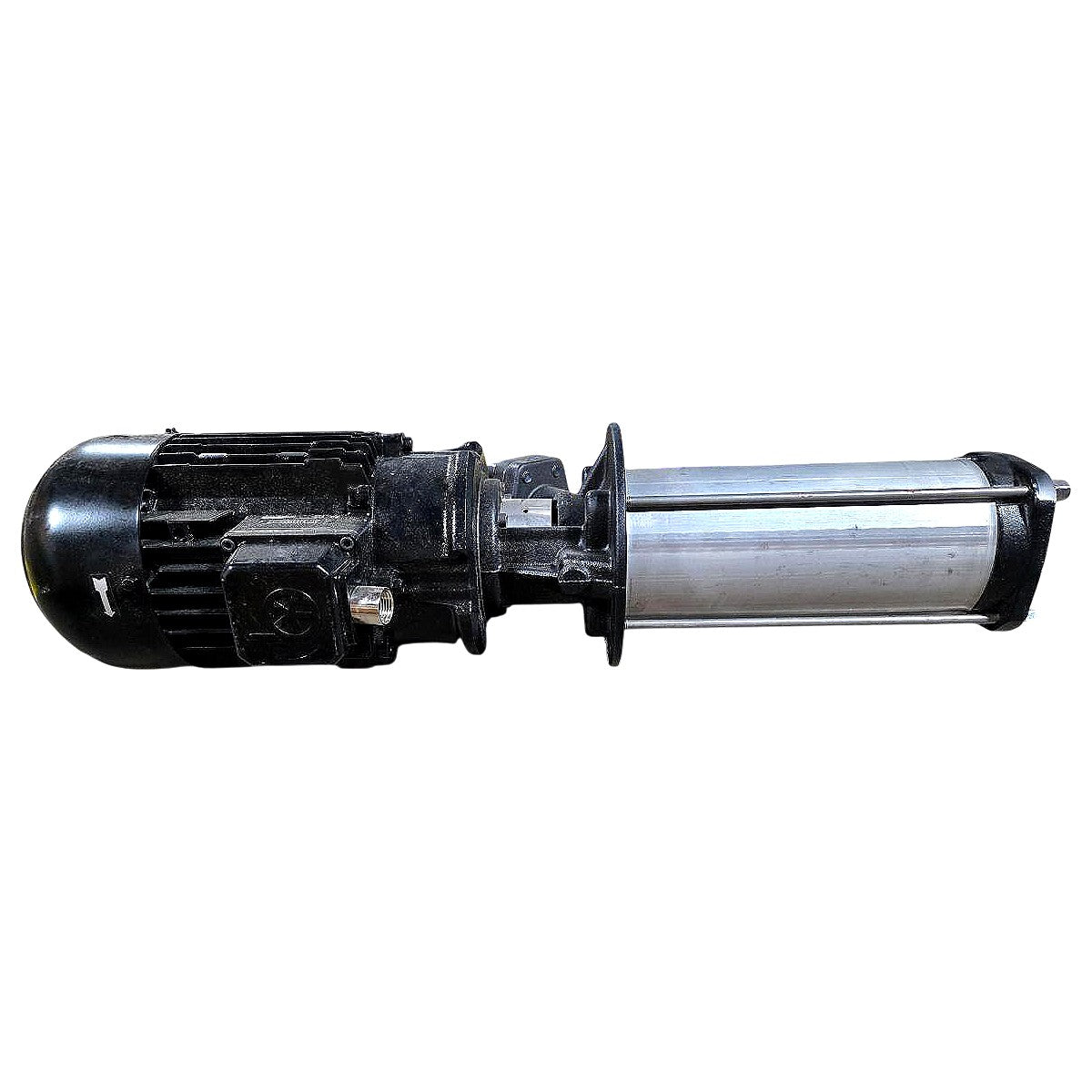

The Brinkmann STH607B290-XZ+1150 is a new, high-pressure multi-stage vertical immersion (coolant through-tank) pump from Brinkmann Pumpen GmbH, engineered specifically for machine-tool coolant supply applications such as CNC machining centers, grinding machines, and high-pressure coolant systems requiring through-spindle or through-tool delivery. The model code decodes as follows: STH = high-pressure immersion pump series with stainless-steel pump stack; 607 = pump series/frame size; B290 = 290 mm immersion depth (submerged tube length); XZ = special/modified configuration code (Brinkmann factory suffix); +1150 = integrated motor code indicating a 3-phase, 50/60 Hz motor (per Brinkmann STH-series motor suffix convention, 1150 designates the motor variant, typically 1.1 kW / 1.5 HP at 2-pole or 4-pole). The pump features a stainless-steel multi-stage pump barrel visible in photos, cast-iron motor bracket and suction elbow, and a flanged tank-mounting plate for installation directly through a coolant reservoir lid. The STH607 series is rated for clean water-miscible coolants and cutting oils, and delivers elevated output pressure compared to standard single-stage coolant pumps, making it suitable for high-pressure coolant (HPC) delivery to machine tool spindles. This unit ships new-in-box with original Brinkmann installation/safety instructions as confirmed visible in the packaging photo.

Product Specifications
