Bucher T58C405R02S0-01 5HP 15Gal 2000PSI Hydraulic Power Unit

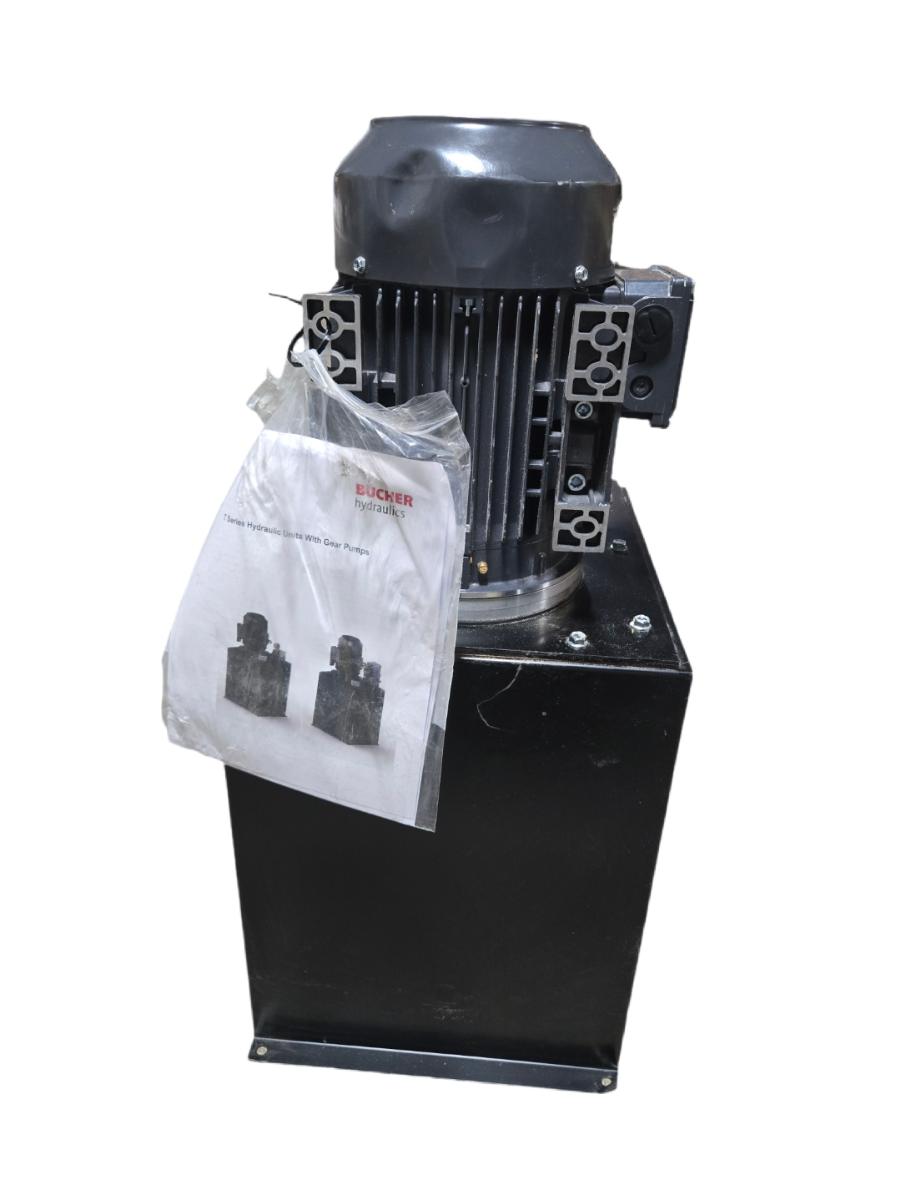

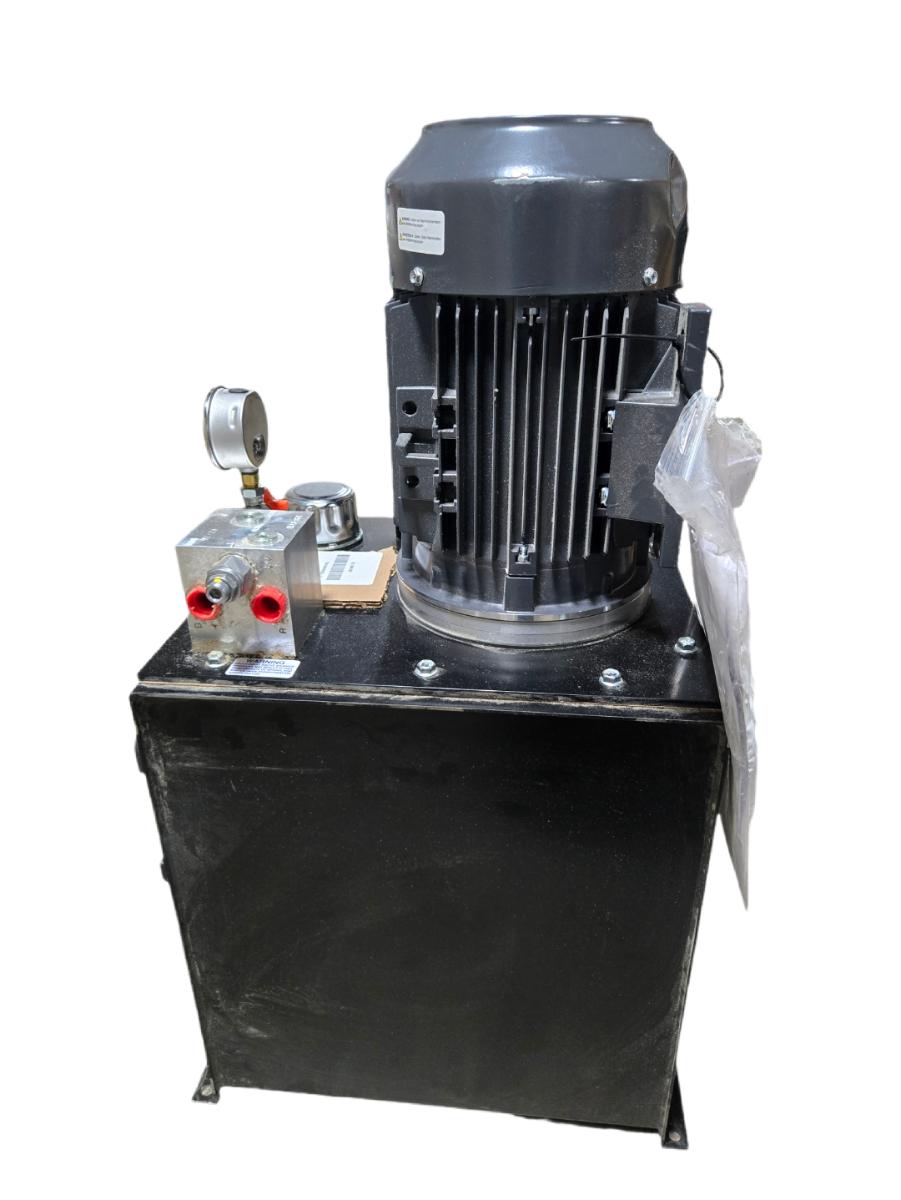

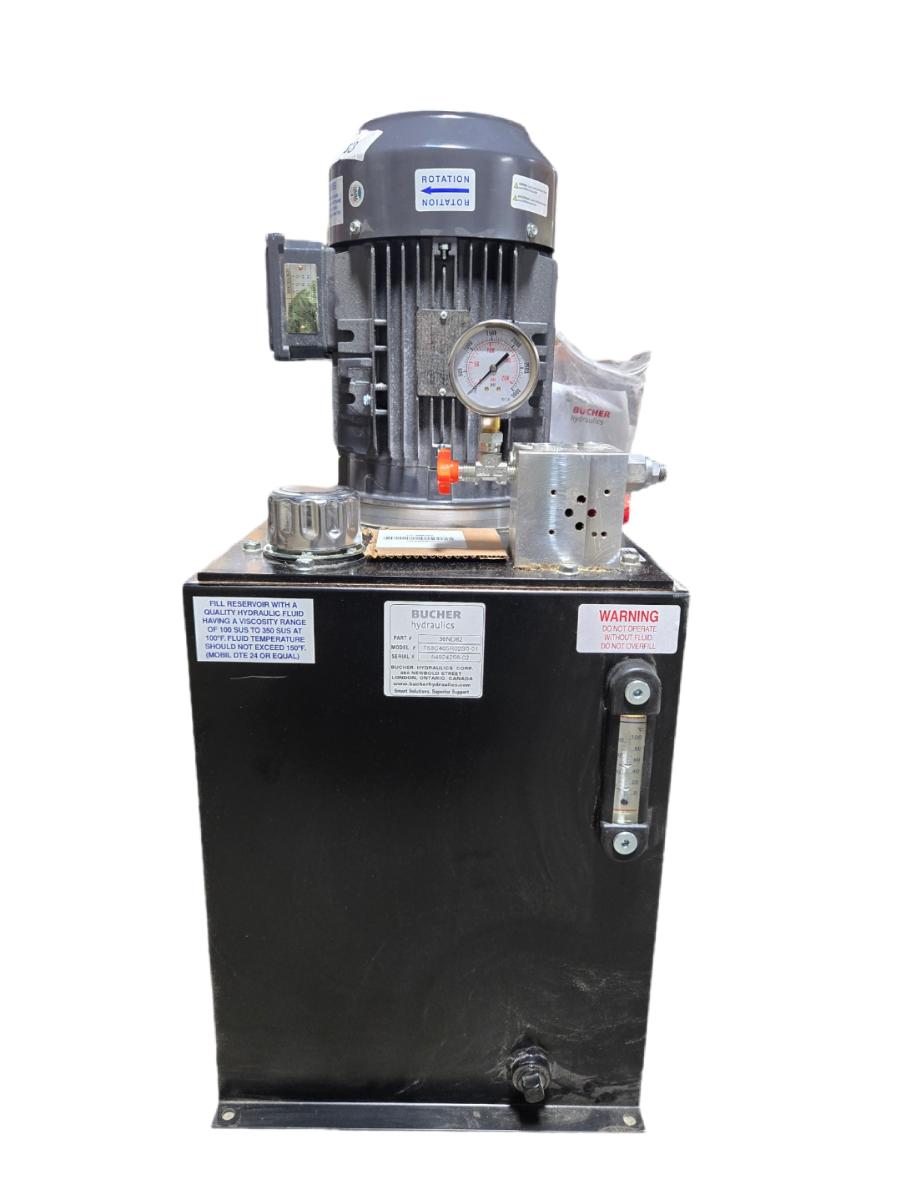

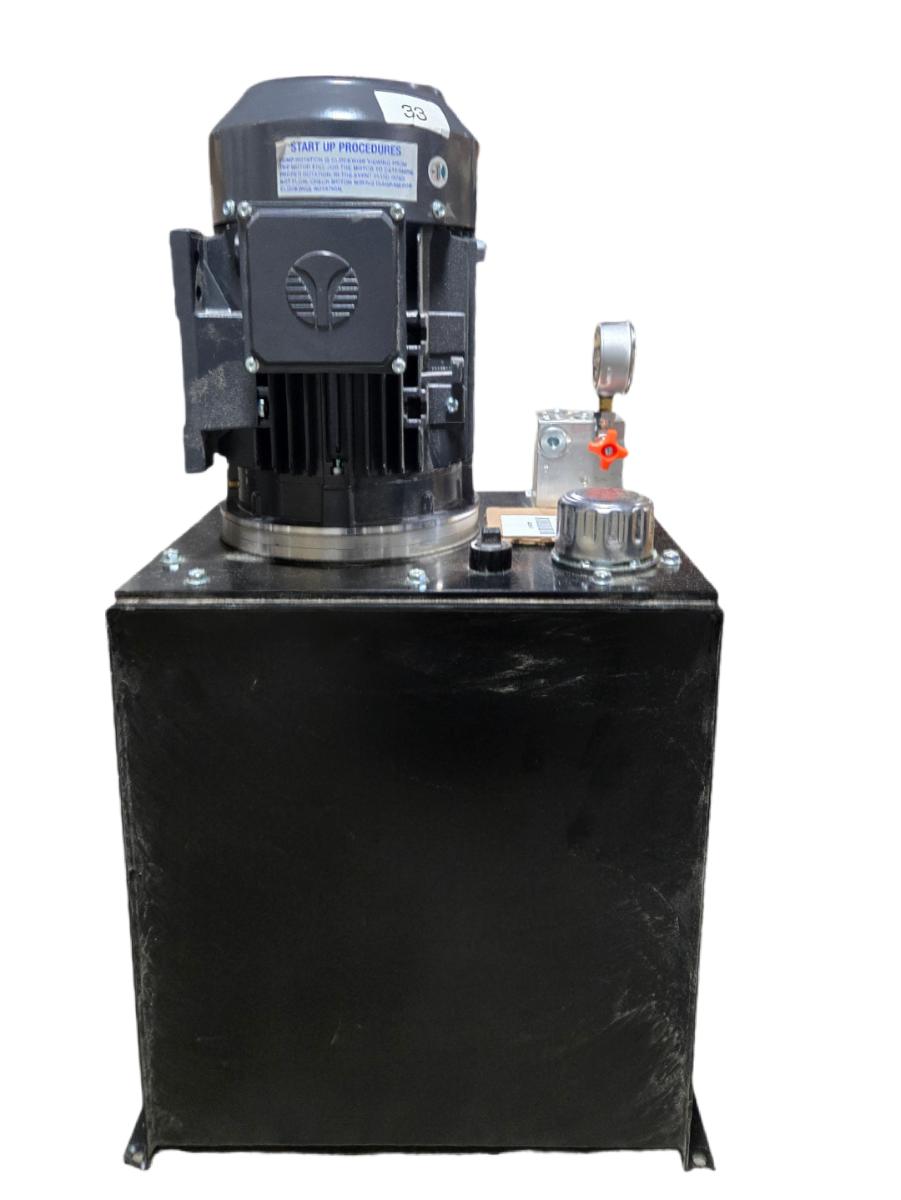

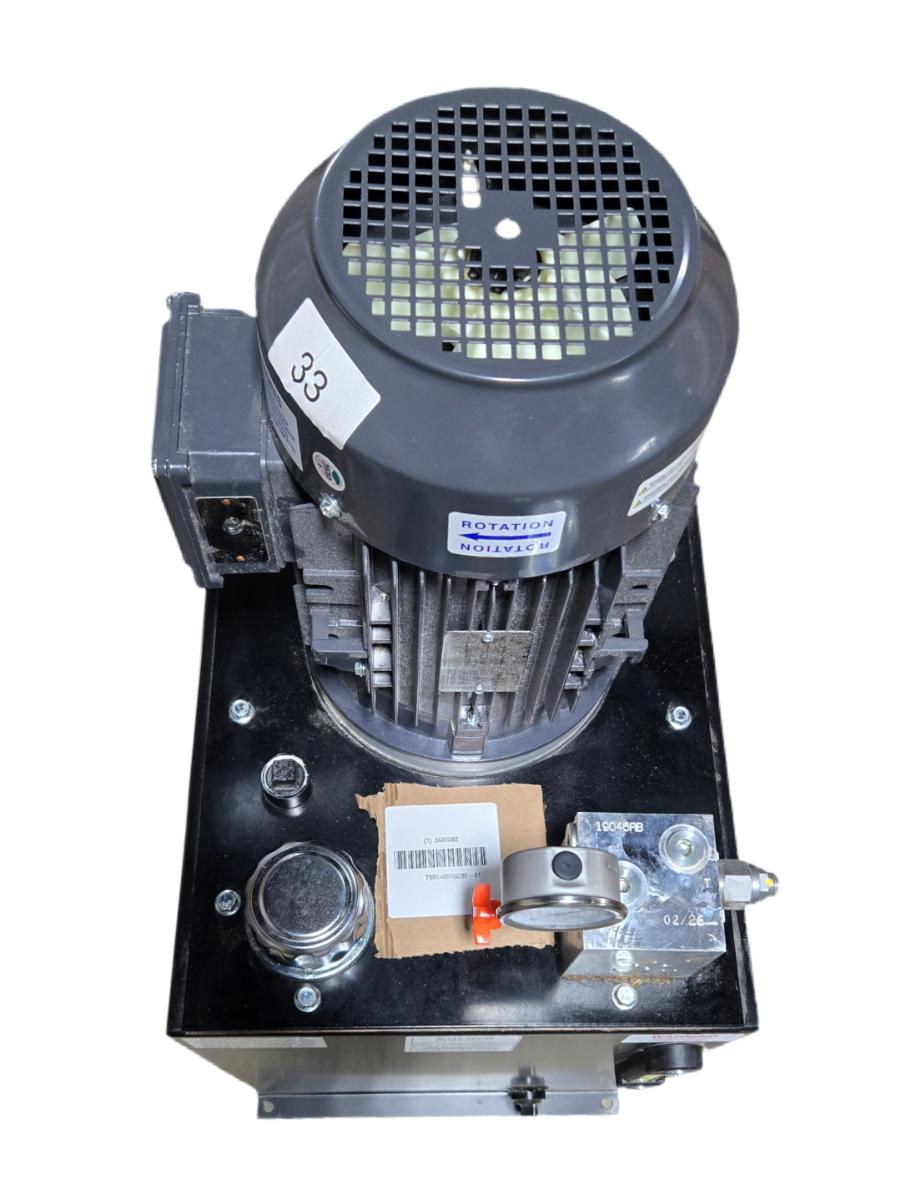

This is a new (other) Bucher Hydraulics T58C405R02S0-01 T-Series hydraulic power unit combining a gear pump with an electric motor mounted vertically on a welded steel reservoir, manufactured by Bucher Hydraulics Corp. of London, Ontario, Canada. The unit delivers 3.7 GPM flow at up to 2,000 PSI maximum operating pressure, driven by a 5 HP three-phase electric motor with clockwise rotation as viewed from the motor end; the motor is mounted via a bell-housing/flange adapter directly to the gear pump on top of the 15-gallon steel reservoir. The manifold block includes a factory-set relief valve with an orange star-handle adjustment knob, pressure gauge, and SAE work-port connections; a side-mounted sight glass/level indicator and a bottom drain plug are also present. The reservoir fill label specifies hydraulic fluid with a viscosity range of 100–350 SUS at 100°F (Mobil DTE 24 or equivalent), with a maximum operating fluid temperature of 150°F. This unit is suited for industrial press, clamp, lift, or other stationary hydraulic circuit applications requiring a compact, self-contained power source; it ships with original Bucher T-Series documentation included.

Product Specifications
