Bucher T58C405R02S0-01 5HP 15Gal 2000PSI Hydraulic Power Unit

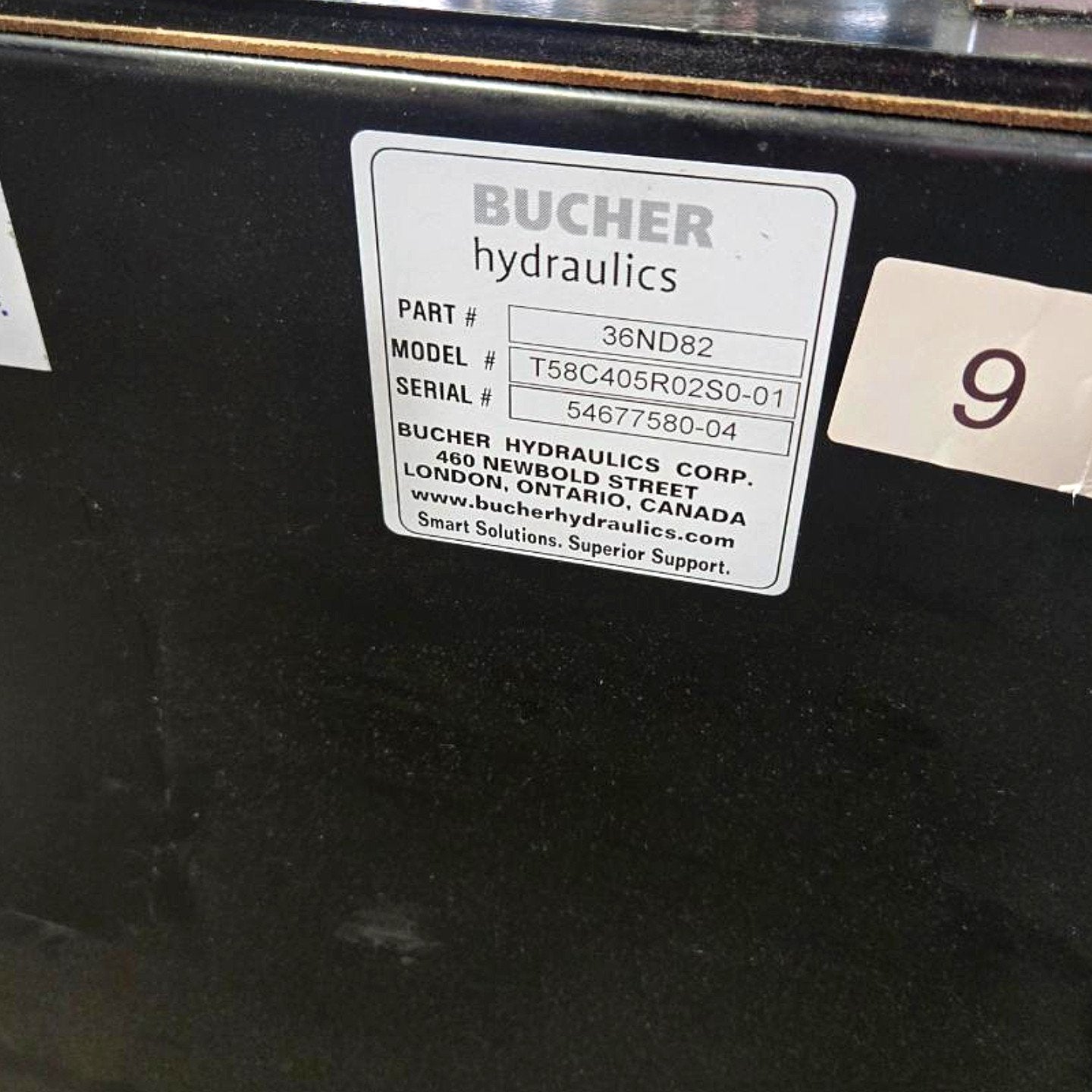

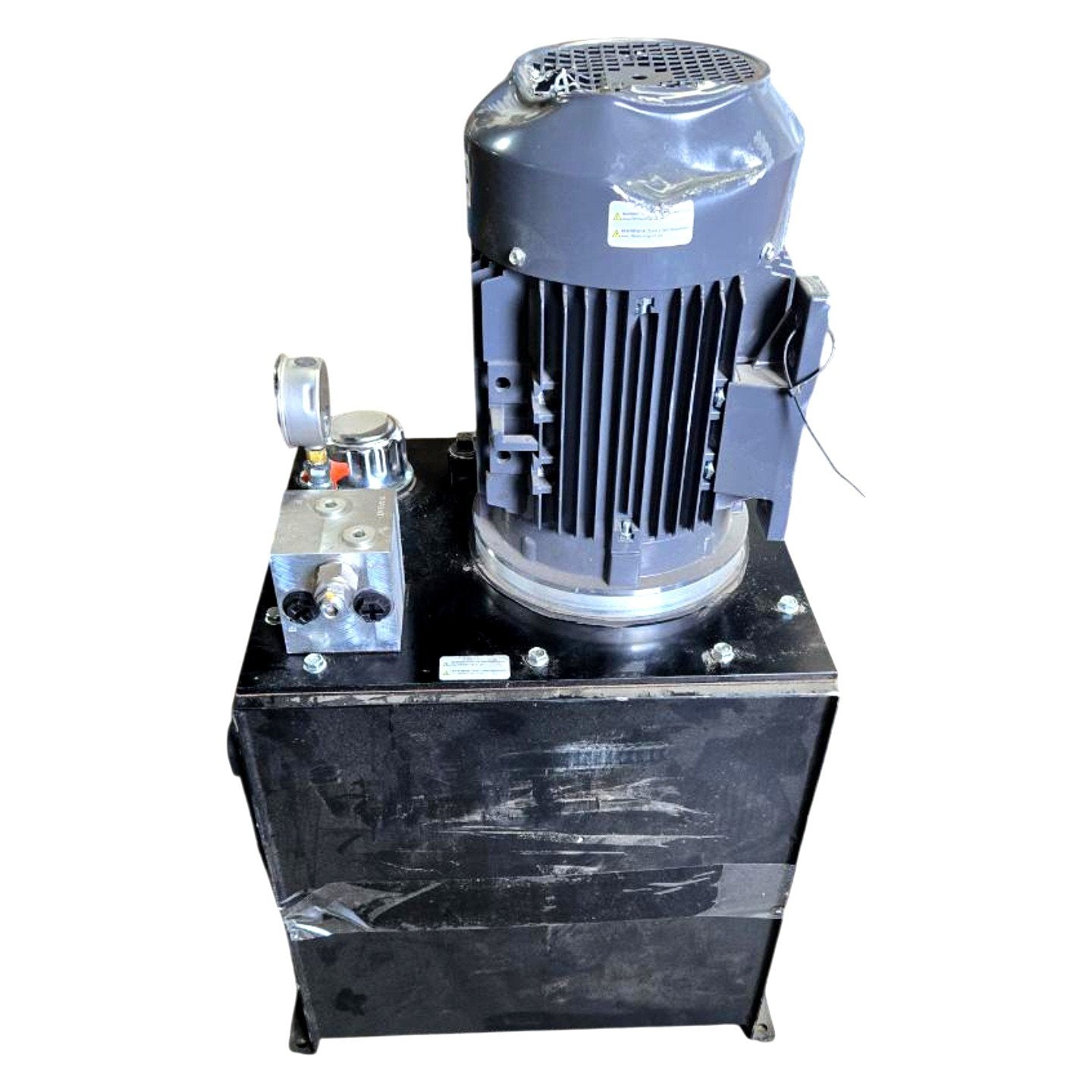

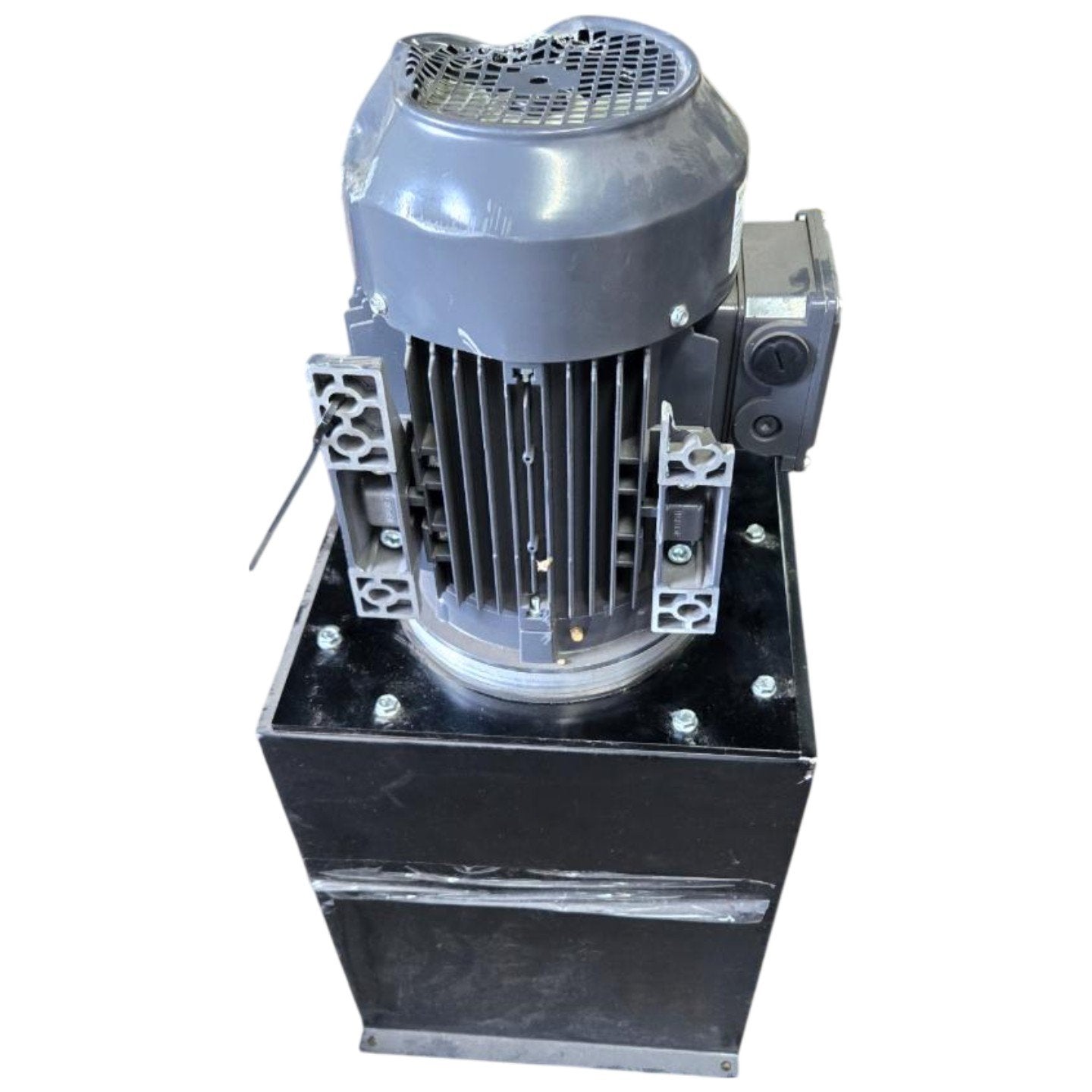

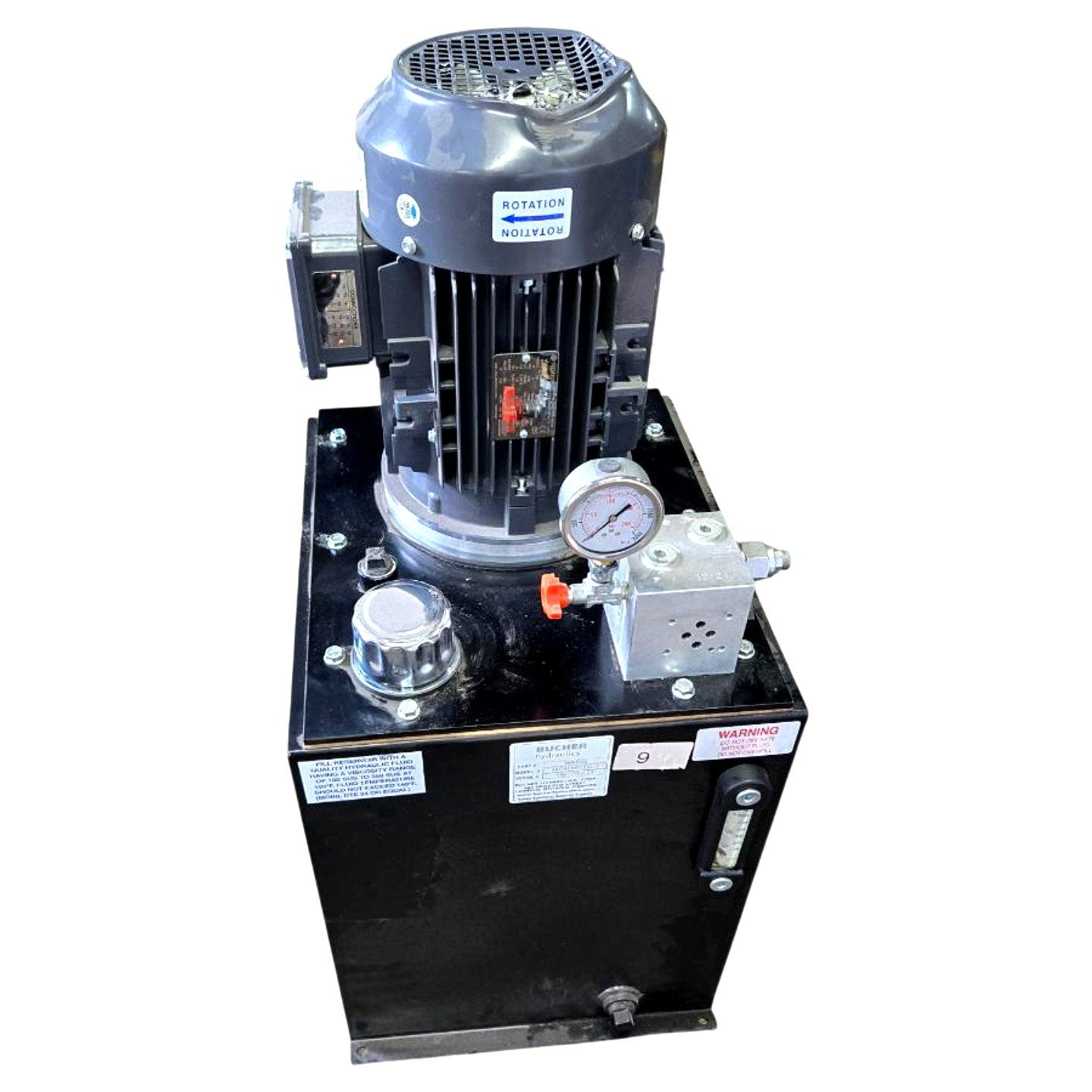

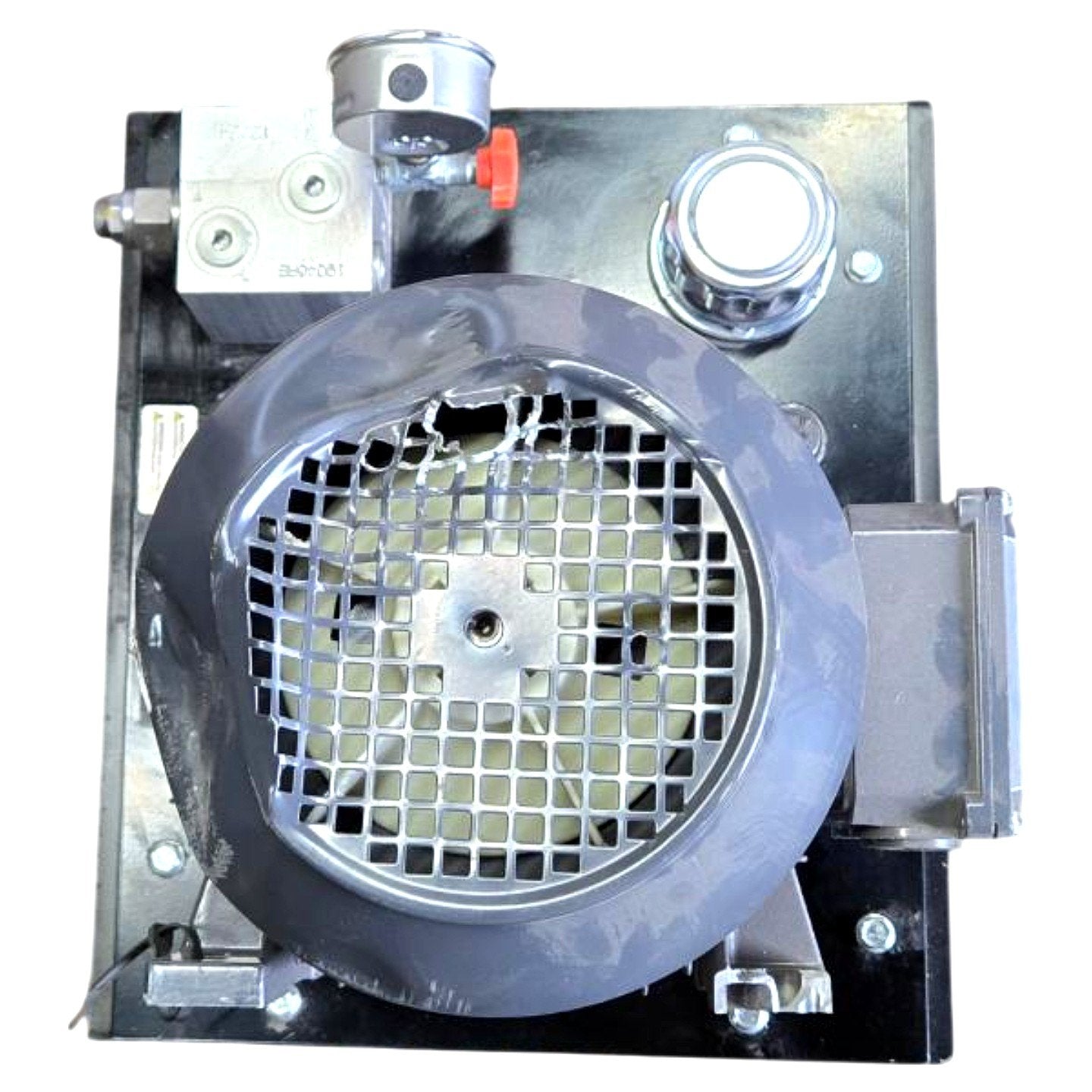

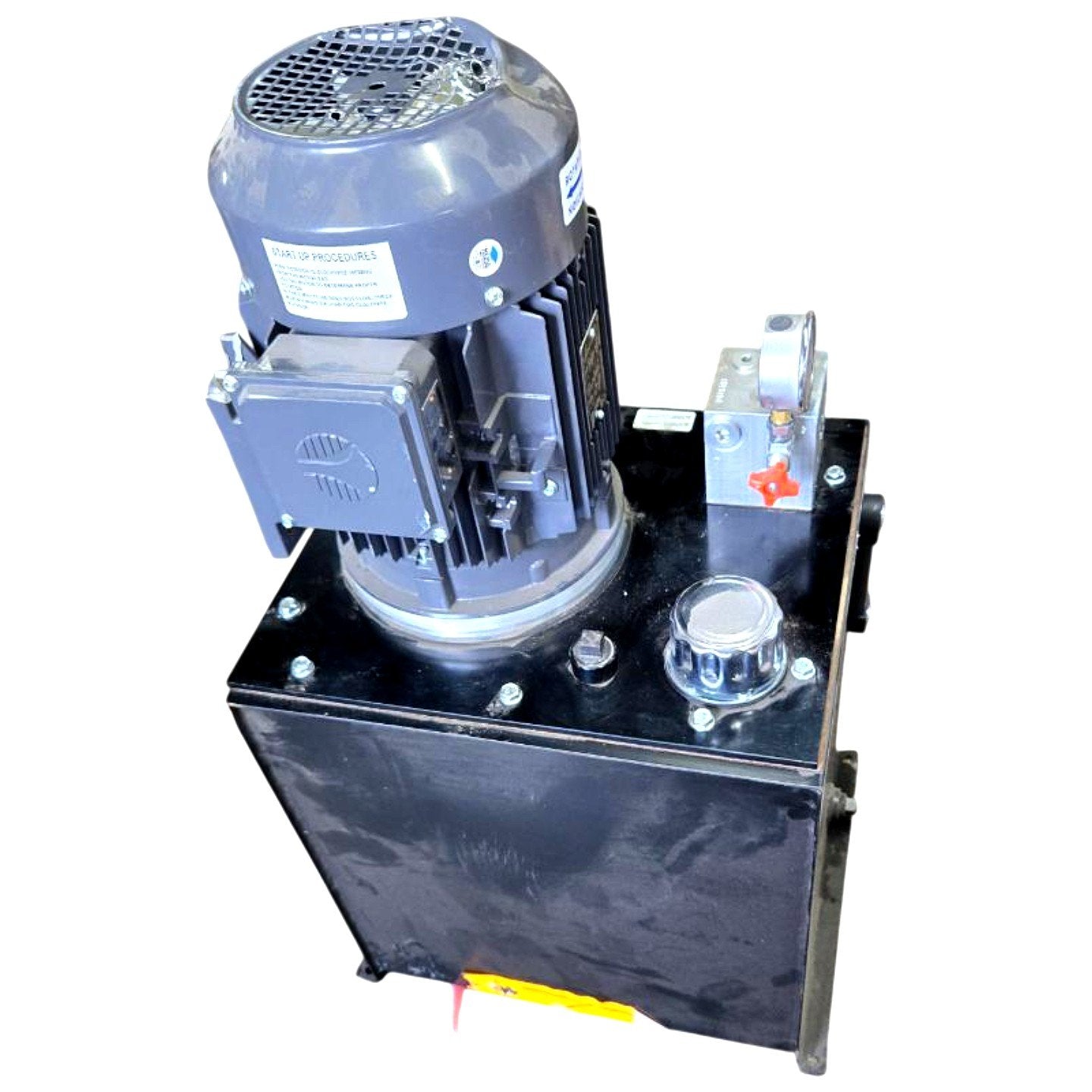

This is a Bucher Hydraulics (Part # 36ND82, Model # T58C405R02S0-01, Serial # 54677580-04) complete electric-motor-driven hydraulic power unit, listed as new — other condition, manufactured by Bucher Hydraulics Corp., 460 Newbold Street, London, Ontario, Canada. The unit integrates a vertical-mount TEFC induction motor driving an internal gear pump through a bell-housing/flexible-coupling assembly, with a fabricated steel reservoir, an air/oil-filter combination fill cap, a side-mount oil-level sight gauge, a pressure gauge, a manual relief valve with red knob, and a manifold-mounted valve block on the reservoir top plate. Decoding the model number T58C405R02S0-01: 'T' denotes a tank/power-unit assembly, '58' indicates the reservoir size (approximately 15 U.S. gallons / 58 liters), 'C' designates the configuration class, '405' encodes the motor frame/power rating (5 HP, 3-phase, likely 208-230/460V), 'R02' specifies the pump displacement code (nominally 2 cc/rev gear pump producing flows consistent with approximately 3–4 GPM at rated speed), 'S0' indicates the valve stack configuration (single-station, no solenoid — manual directional or relief only), and '01' is the revision/build variant. Maximum system pressure is 2000 PSI as stated in the product title and consistent with Bucher's T-series compact power unit ratings. The unit is suitable for industrial clamping, pressing, lift table, dock leveler, and similar intermittent-duty hydraulic circuits requiring a self-contained power source.

Product Specifications
