Burndy CBX1441610K Copper Ground Bus Bar 14-Hole 4/0-6 AWG Panel Mount

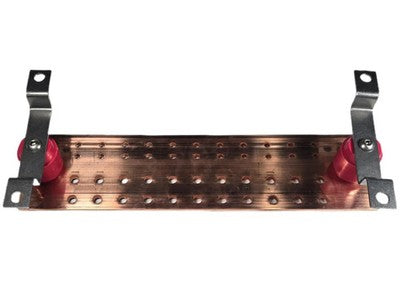

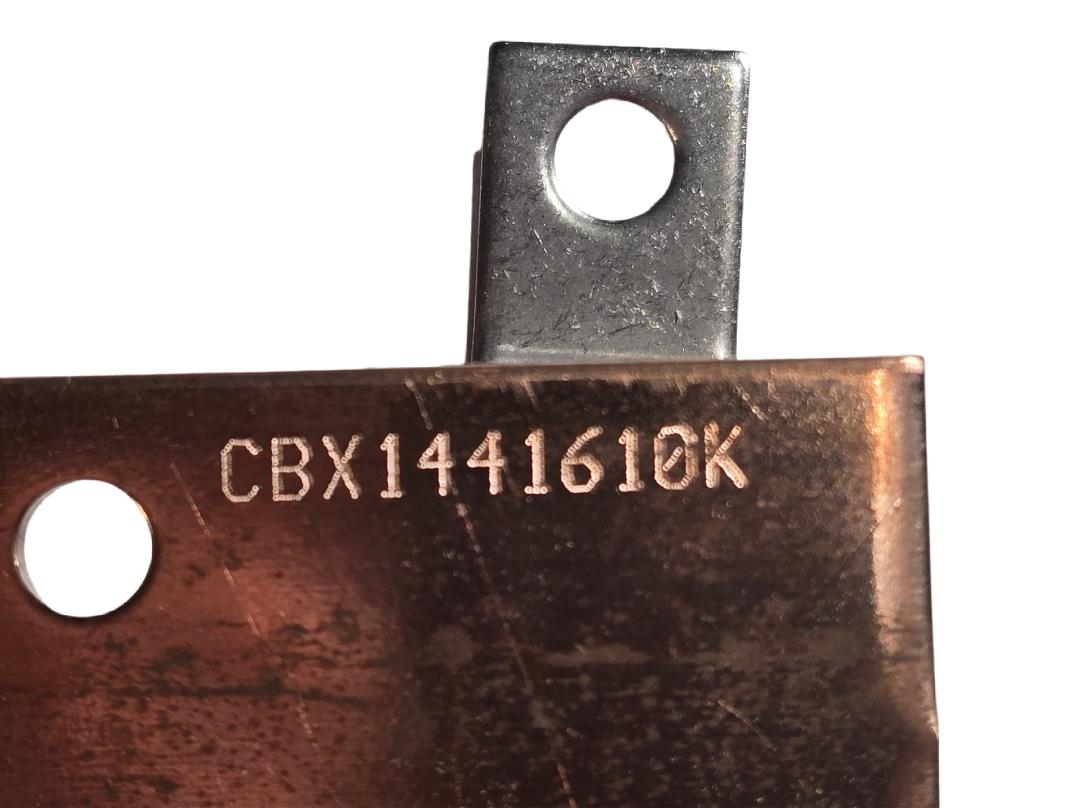

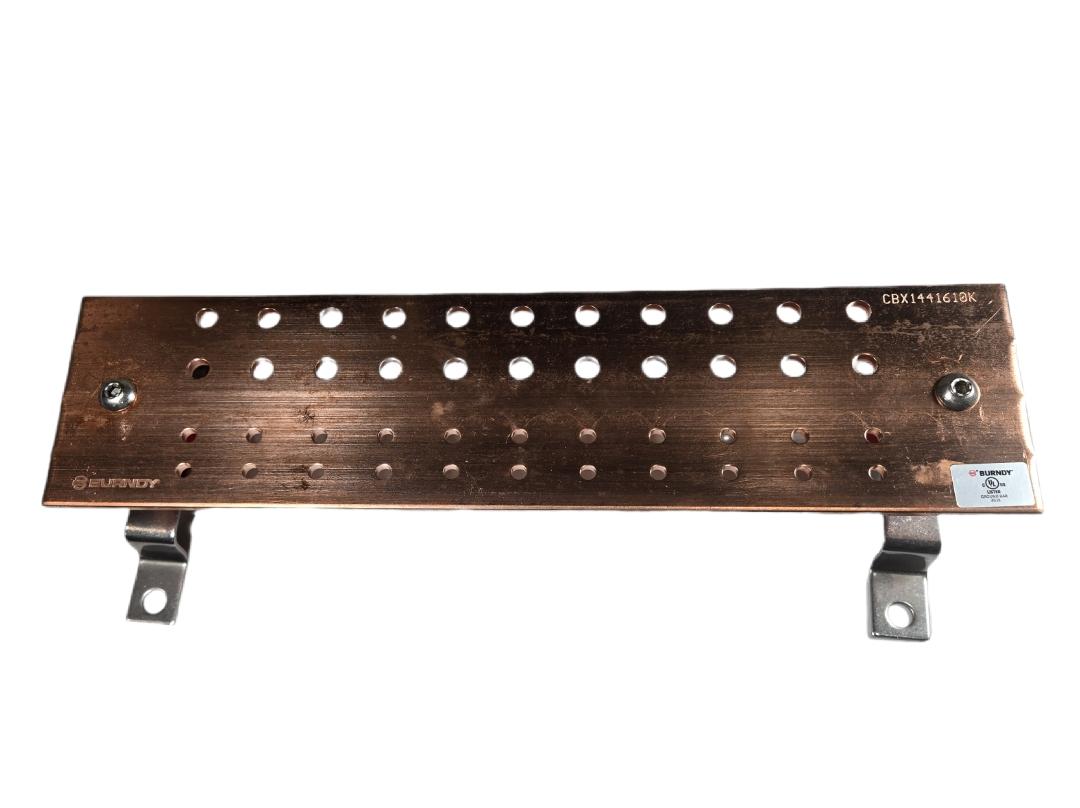

The Burndy CBX1441610K is a new, bare copper ground bus bar designed for grounding and bonding applications in electrical panels, switchgear, and distribution equipment. The part number encodes the CBX series bus bar configuration: 14 conductors, 4/0 AWG maximum conductor capacity, 16-inch body length, and a 10-hole or similar positional variant, with two stainless steel panel-mount brackets factory-installed at each end. The bus bar body is machined from high-conductivity copper and features two rows of drilled holes sized to accept compression lugs and mechanical connectors across a wide AWG range; the red plastic end caps visible on the short edges are port protectors or end insulators. The UL-listed label (visible in photos) confirms compliance with UL 467 grounding and bonding standards, making this bar suitable for use in grounded neutral systems, equipment grounding conductors, and telecommunications bonding backbone applications.

Product Specifications
