Burndy YAD6CM6E14 #6 AWG 1/4in Stud Tin-Plated Copper Ring Lug 10 Pack
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

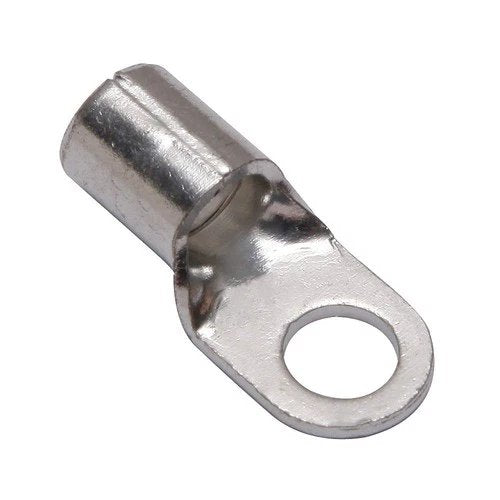

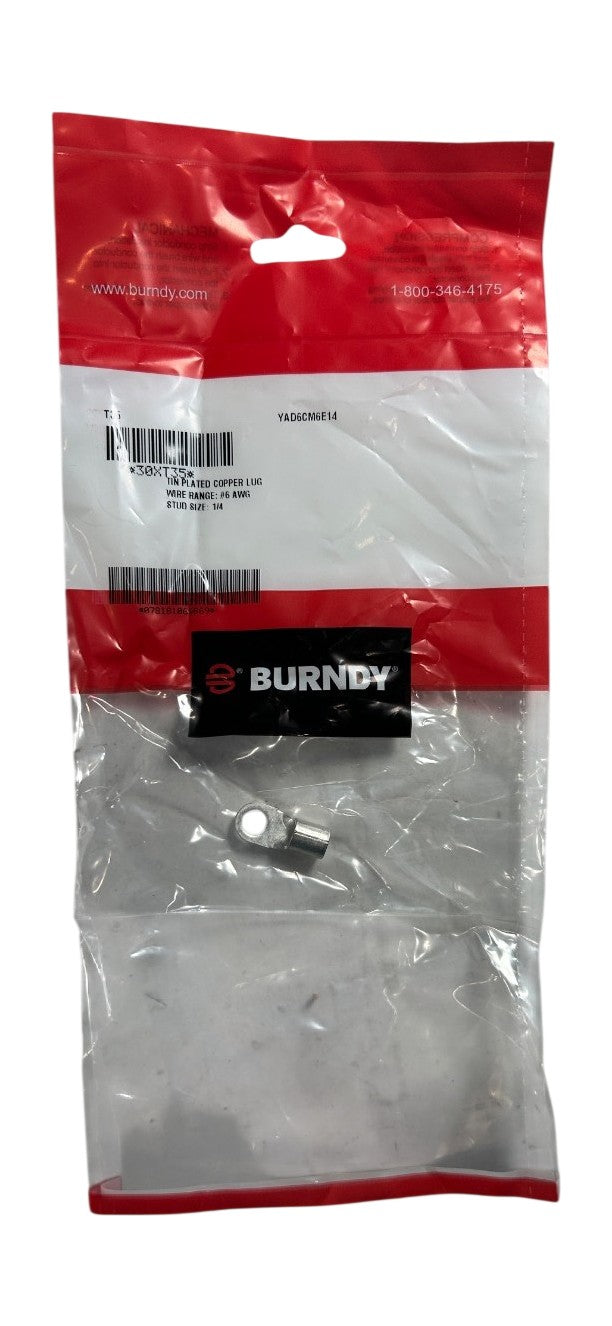

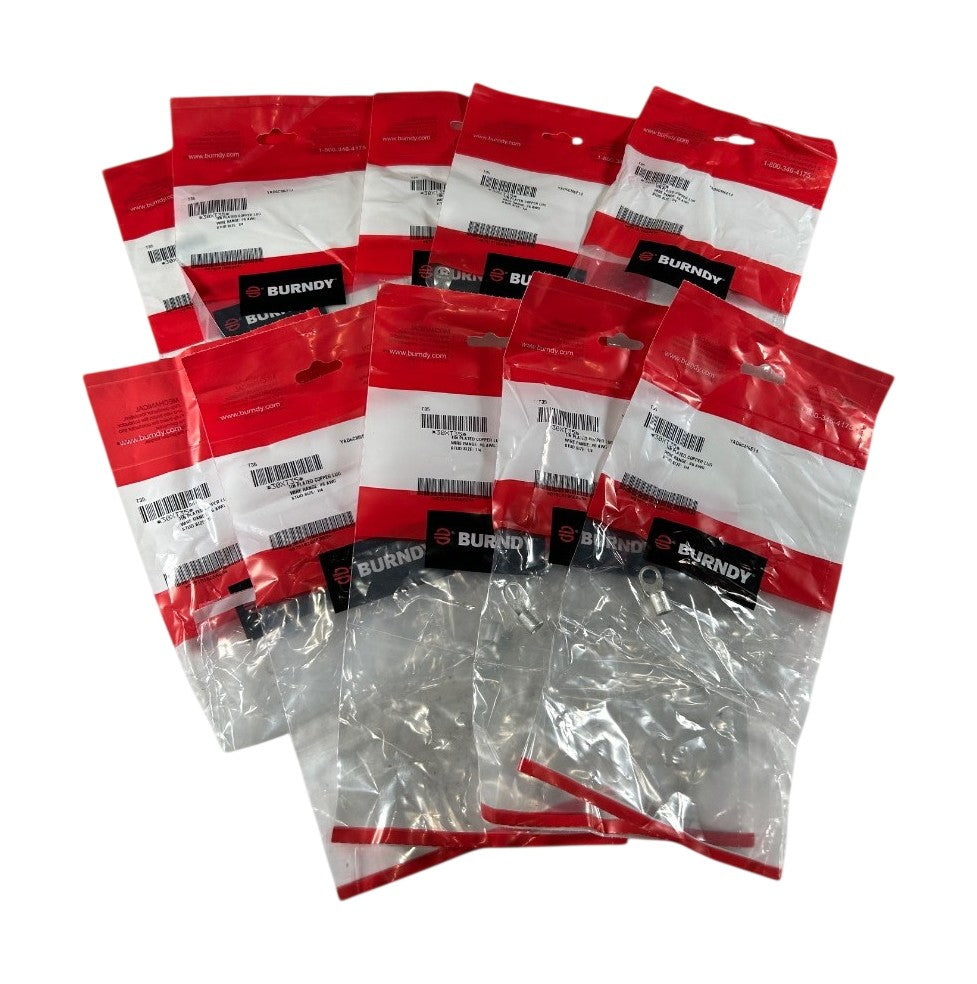

The Burndy YAD6CM6E14 is a new, uninsulated tin-plated copper compression ring terminal (lug) designed for #6 AWG wire with a 1/4-inch stud hole, as confirmed by the package label. Burndy's YAD-series lugs are manufactured from electrolytic copper and electrotin-plated to resist corrosion and provide a low-resistance electrical connection; the barrel is designed for hydraulic or mechanical compression crimping using compatible Burndy tooling. This lug is used in grounding, bonding, and power distribution applications where a secure, permanent ring-tongue termination to a 1/4-inch stud, bolt, or busbar is required. The listing includes 10 individually packaged pieces (10 bags of 1 each as shown), all factory-sealed and new.
Product Specifications
| Brand | Burndy |
| Part Number (MPN) | YAD6CM6E14 |
| Wire Range | #6 AWG |
| Stud Size | 1/4 in |
| Terminal Type | Uninsulated Ring Tongue (Lug) |
| Material | Electrolytic Copper |
| Finish / Plating | Tin-Plated |
| Insulation | None (Uninsulated) |
| Connection Method | Compression Crimp |
| Quantity | 10 pieces (10 individual bags) |
| Condition | New |
