Bussmann FWP-250A 250A 700V AC/DC Fast-Acting Semiconductor Fuse
Regular price
$43.69
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

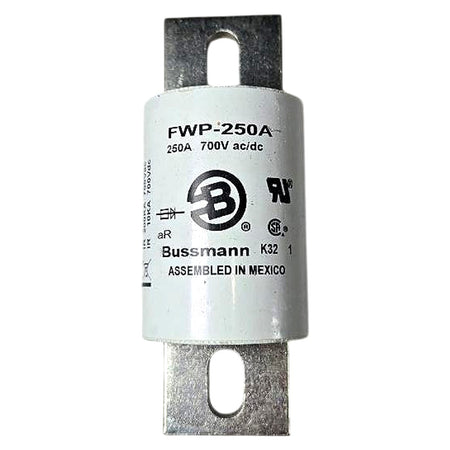

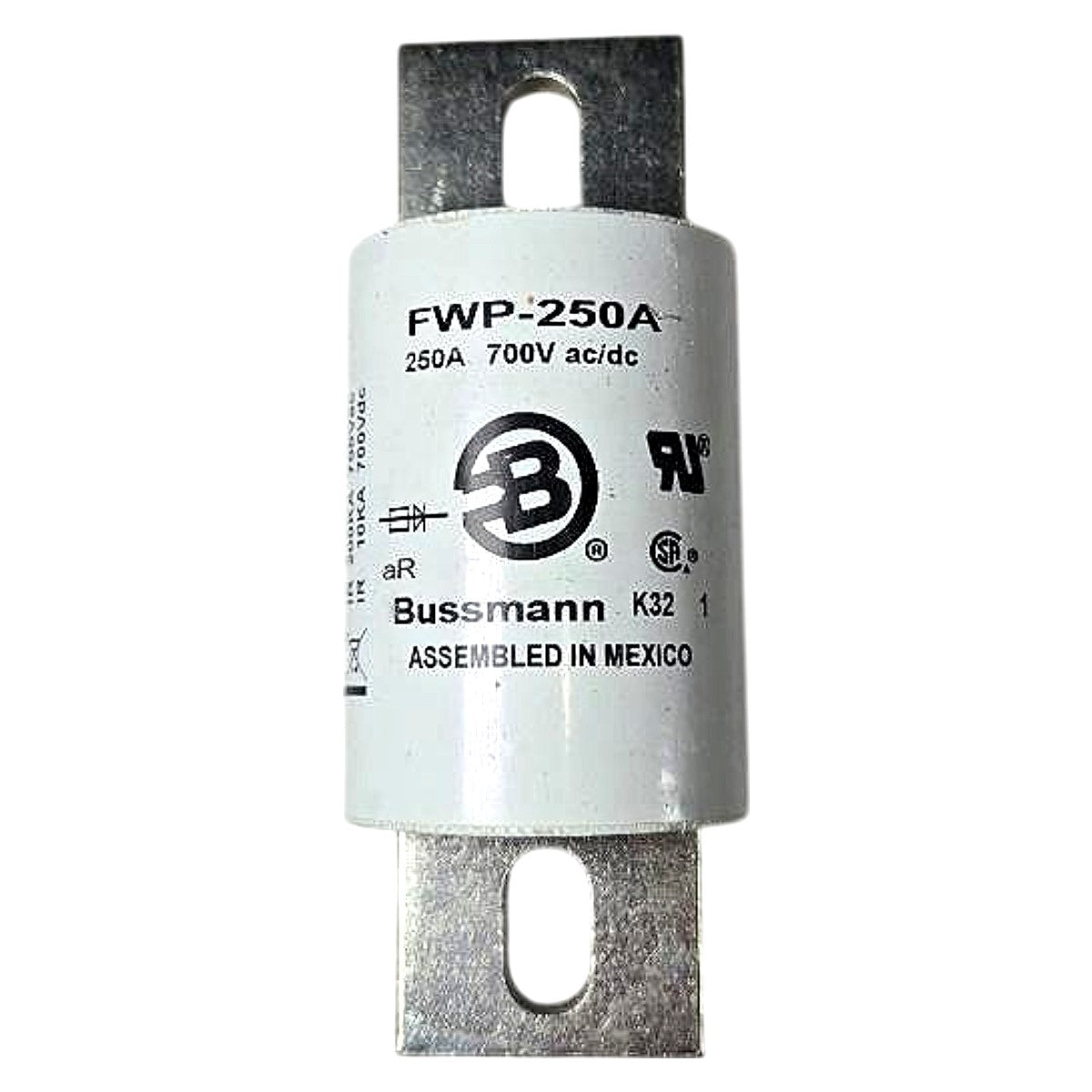

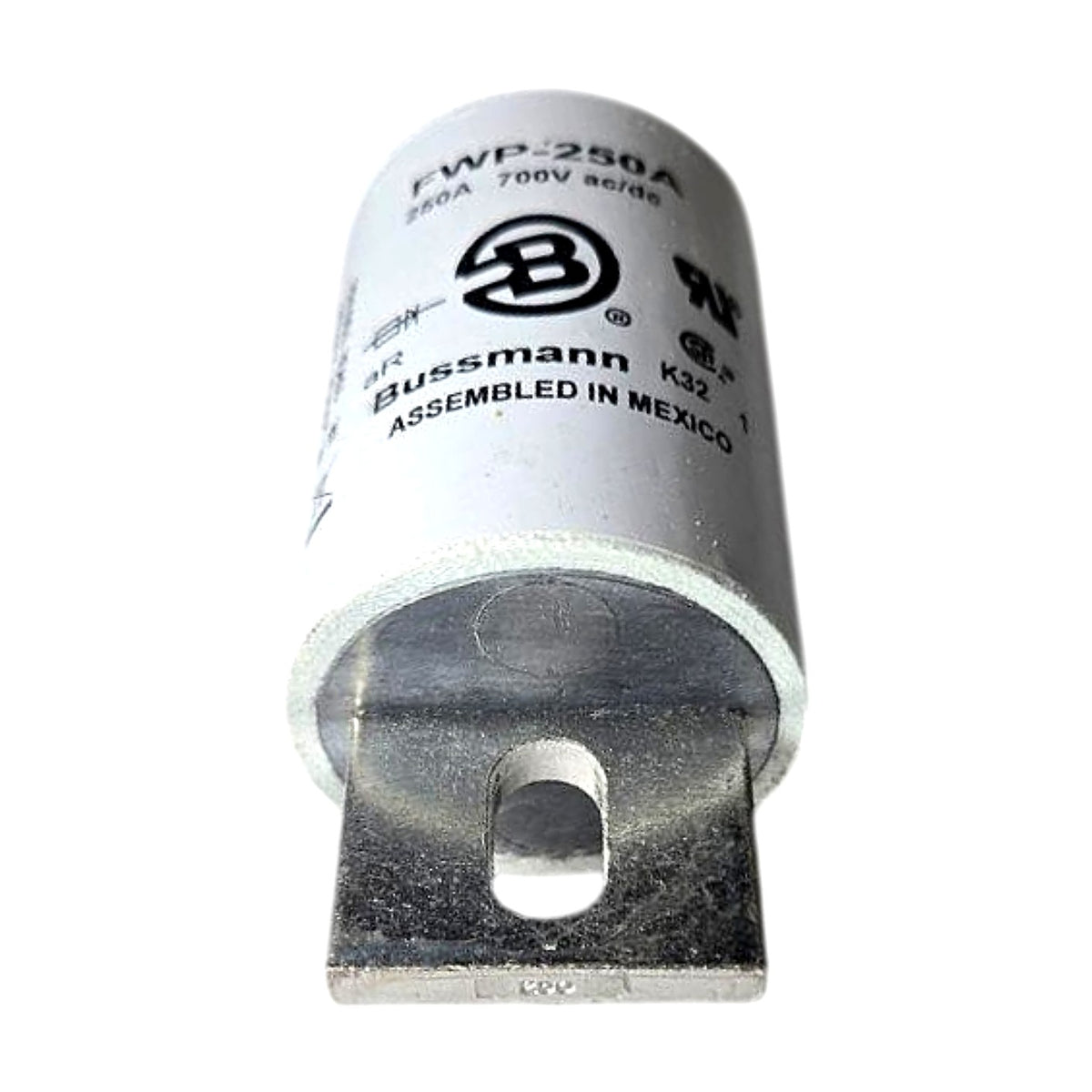

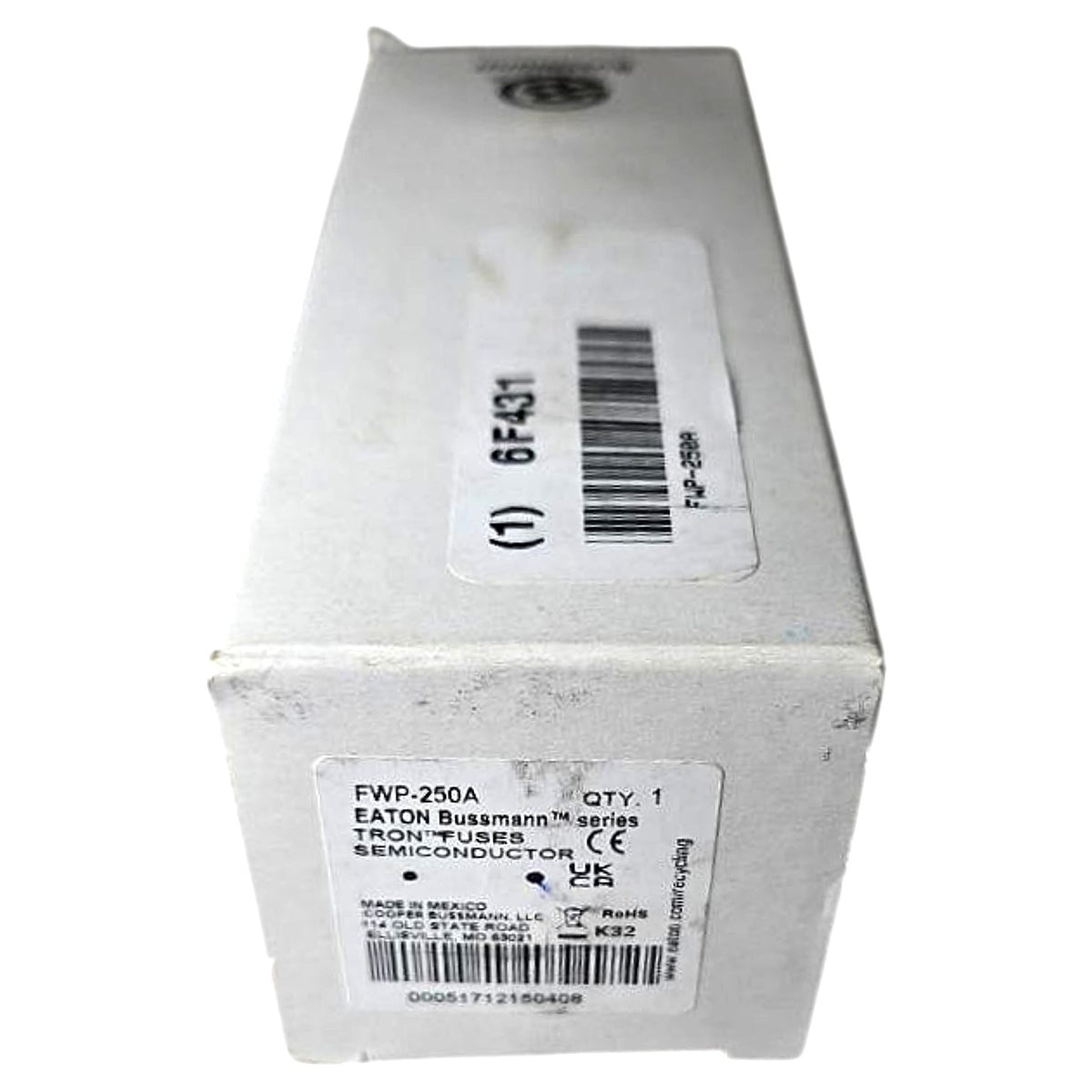

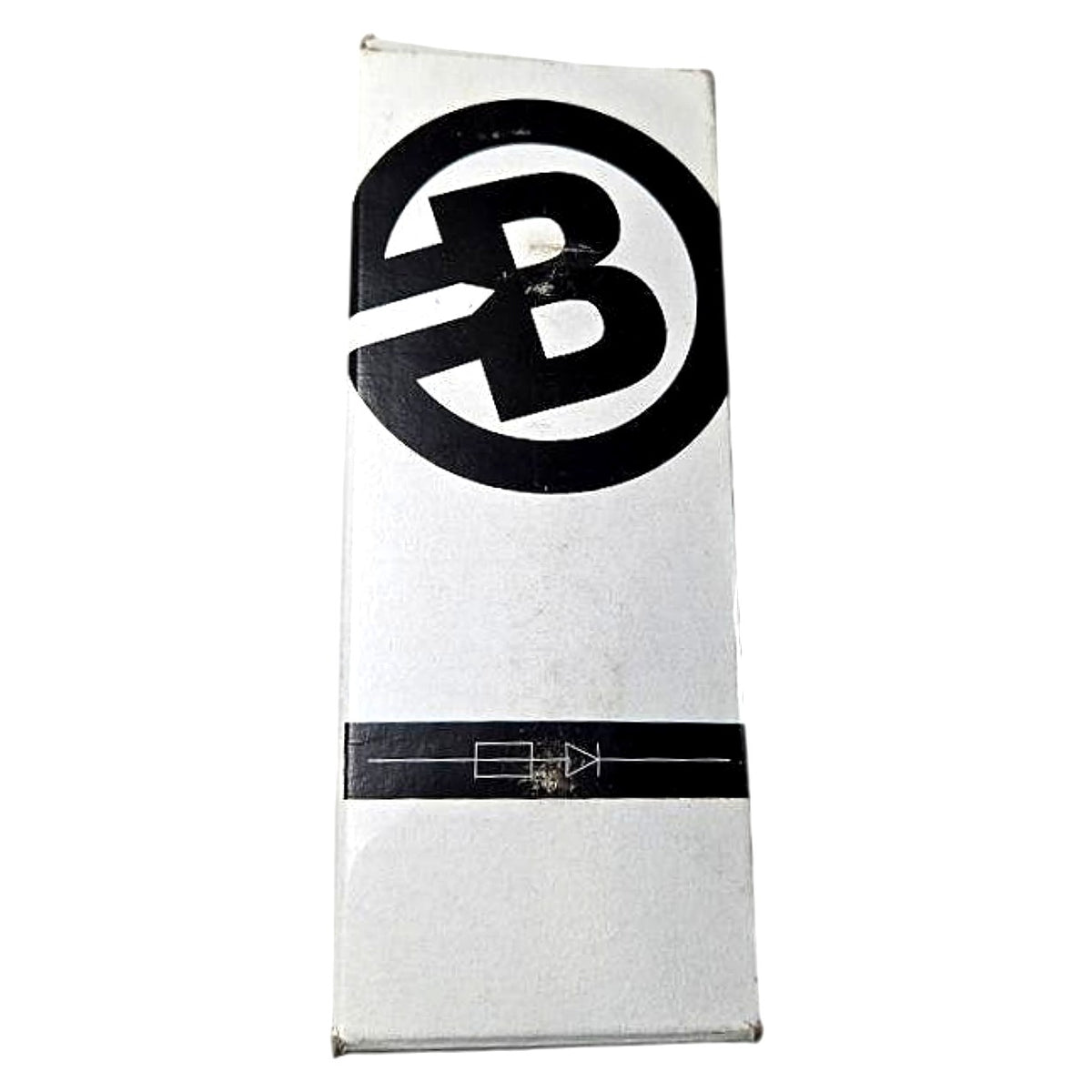

The Bussmann (Eaton) FWP-250A is a Tron FWP series fast-acting semiconductor fuse rated 250 A at 700 V AC/DC, marked class aR for partial-range short-circuit protection of power semiconductors such as diodes, SCRs and drives. It has a white cylindrical body with silver-plated flat blade terminals, each with a slotted mounting hole, and carries UL recognized and CSA marks on the fuse body. The box is also marked CE, UKCA and RoHS, and the fuse is assembled in Mexico. This unit is new and comes in its original Eaton Bussmann packaging.
Product Specifications
| Brand | Bussmann (Eaton) |
| MPN | FWP-250A |
| Series | Tron FWP |
| Current Rating | 250 A |
| Voltage Rating | 700 V AC/DC |
| AC Voltage Rating | 700 V |
| DC Voltage Rating | 700 V |
| Fuse Type | Semiconductor Fuse |
| Speed | Fast-Acting |
| Fuse Class | aR |
| Terminal Type | Flat Blade w/ Slotted Mounting Hole |
| Body Color | White |
| Terminal Material | Silver-Plated Metal |
| Country of Manufacture | Mexico |
| Certifications | UL Recognized, CSA, CE, UKCA, RoHS |
| Application | Semiconductor Protection |
| Quantity | 1 Fuse |
