C&C Industries C200 Series 6 in DN150 A536/CF8M/416SS NBR Wafer Butterfly Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

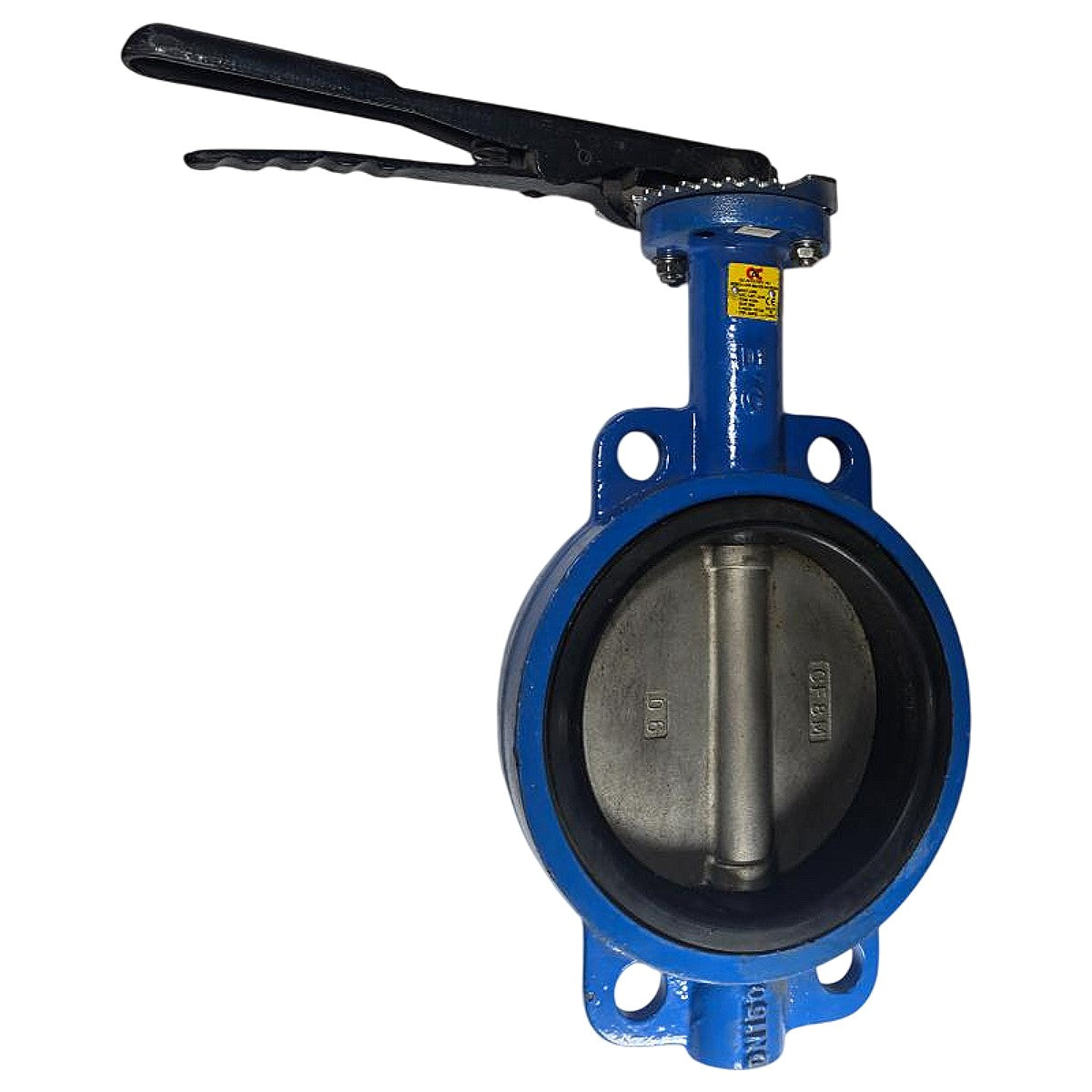

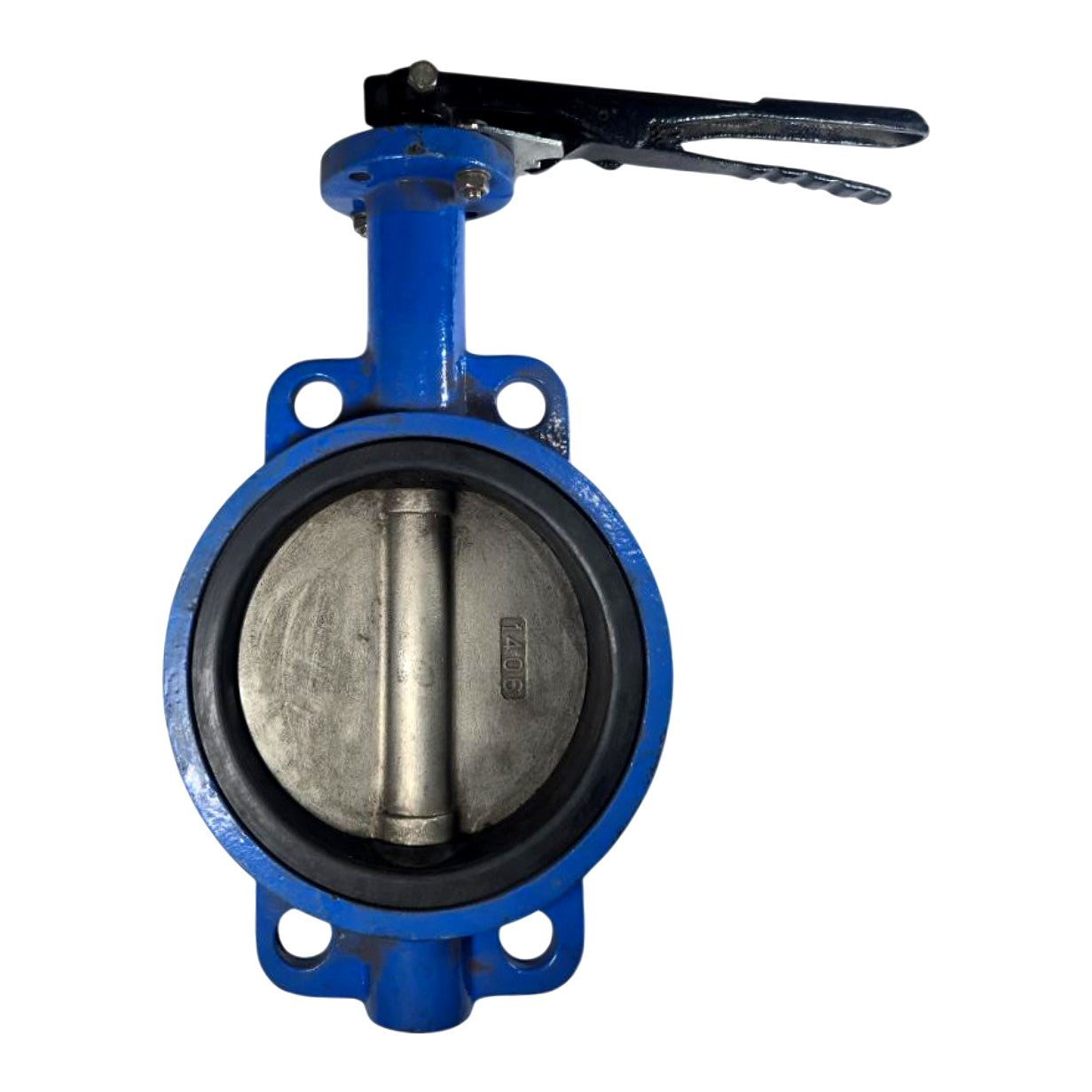

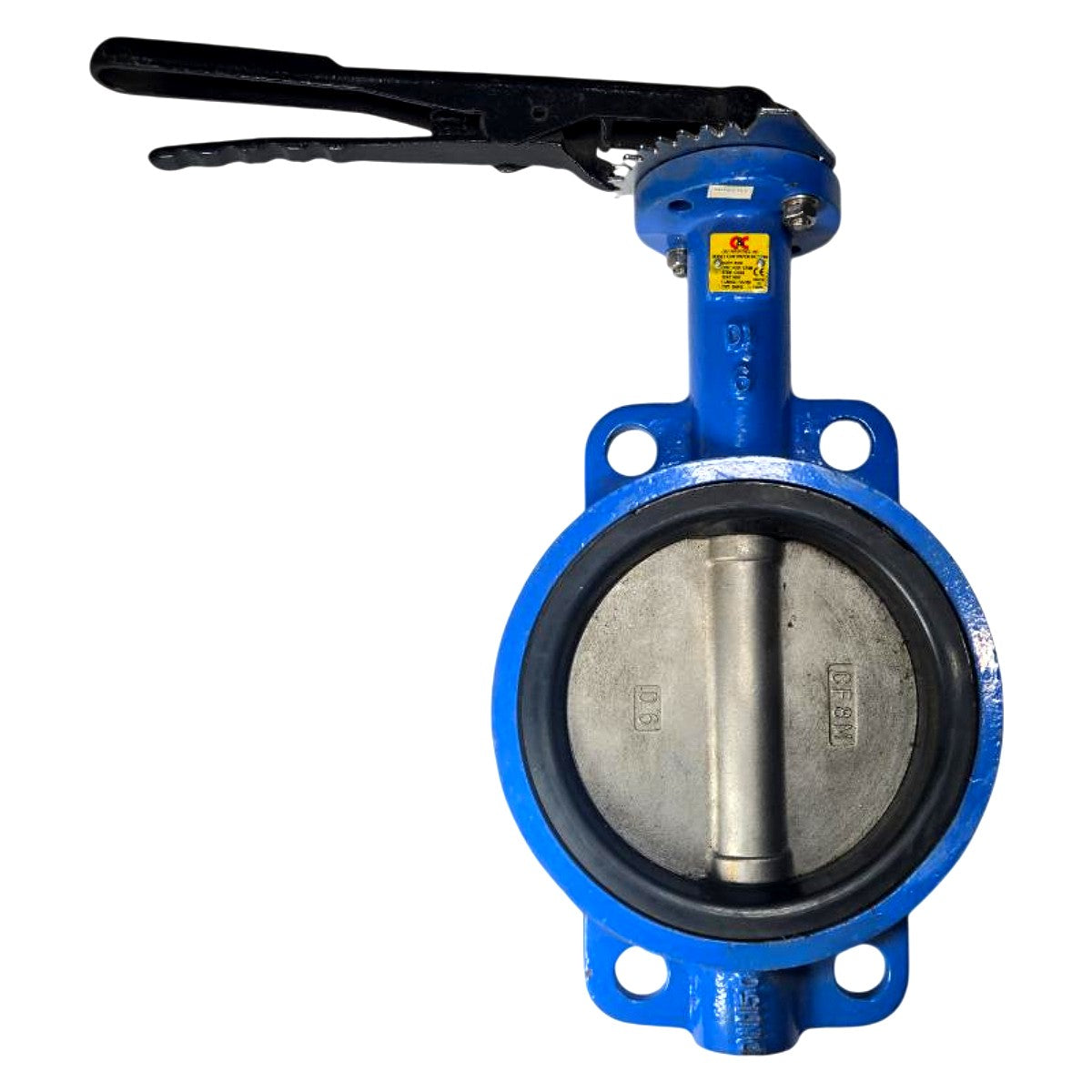

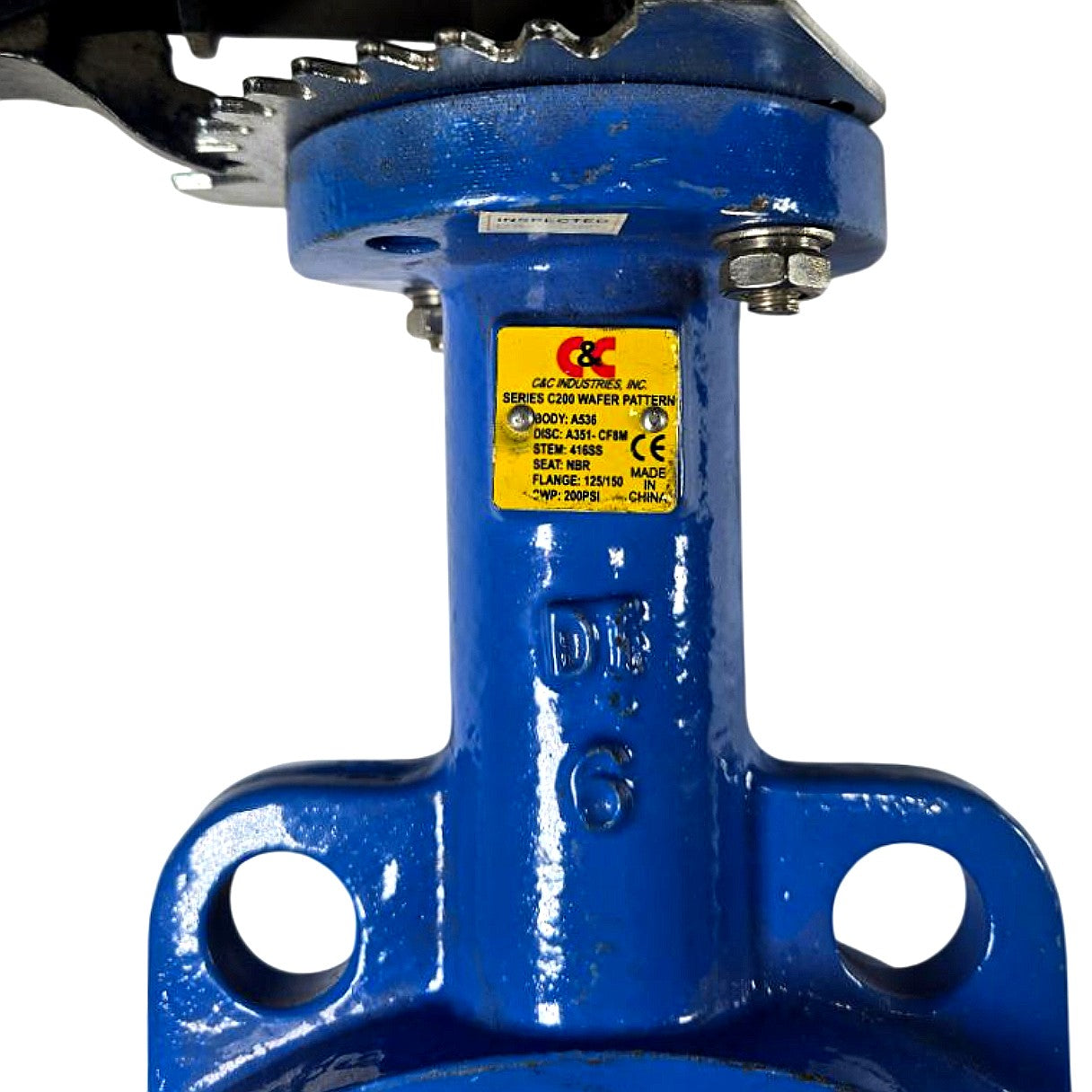

The C&C Industries Series C200 is a 6-inch (DN150) wafer-pattern butterfly valve rated at 200 PSI CWP, designed for installation between ANSI 125/150 flanges without the need for flange studs passing through the body. The body is cast from ASTM A536 ductile iron with a blue epoxy coating, the disc is investment-cast ASTM A351-CF8M (316 stainless steel equivalent), the stem is 416 stainless steel, and the seat/liner is NBR (Buna-N) rubber, making the valve well-suited for water, mild chemicals, and HVAC service. A 10-position ratcheting lever handle with a locking pawl provides quarter-turn on/off operation; the disc casting is clearly marked "CF8M" and the body neck is cast "DN150 / 6," confirming all label data. This new valve carries CE marking and is compatible with ISO 5211 direct-mount actuator pads should lever replacement be needed.
Product Specifications
| Brand | C&C Industries, Inc. |
| Series | C200 Wafer Pattern |
| Part Number | BF060LWSD1BL |
| Pipe Size | 6 in (DN150) |
| Valve Type | Wafer Pattern Butterfly Valve |
| Actuation | 10-position ratcheting lever handle |
| Body Material | ASTM A536 Ductile Iron |
| Disc Material | ASTM A351-CF8M (316 SS equivalent) |
| Stem Material | 416 Stainless Steel |
| Seat/Liner Material | NBR (Buna-N) |
| Flange Standard | ANSI 125/150 |
| Cold Working Pressure (CWP) | 200 PSI |
| Operation | Quarter-turn (90°) |
| Body Finish | Blue epoxy coated |
| Certifications | CE |
| Condition | New |
