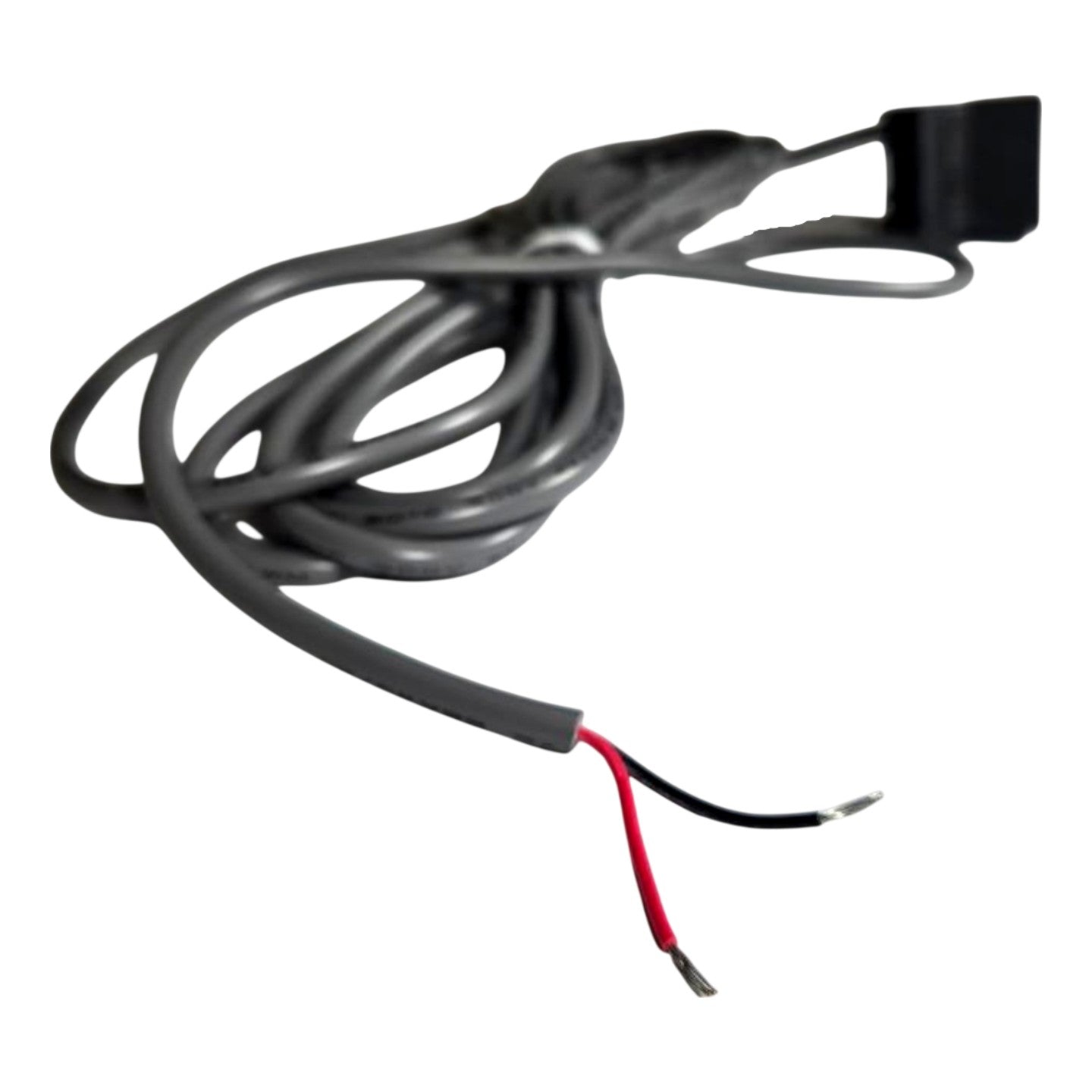

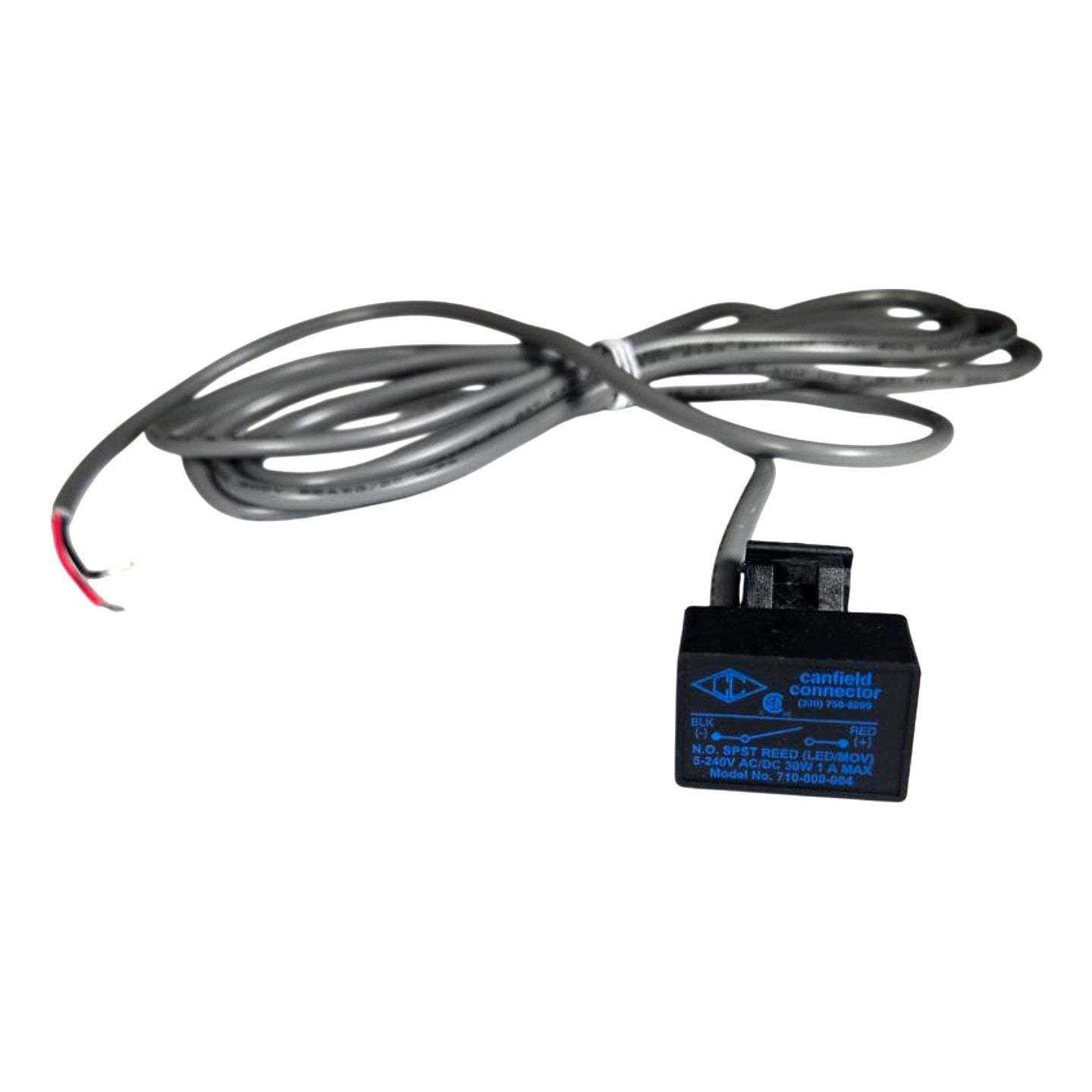

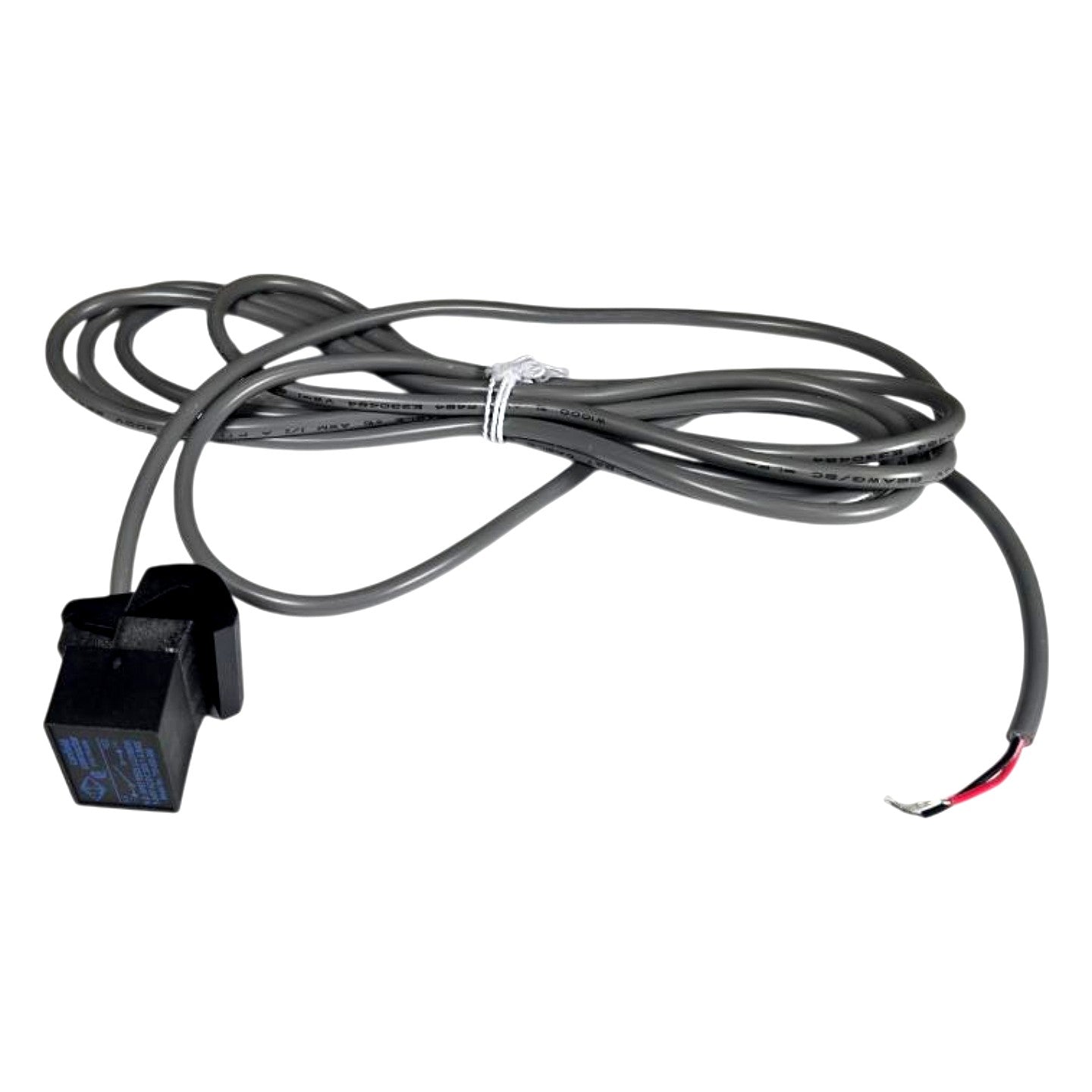

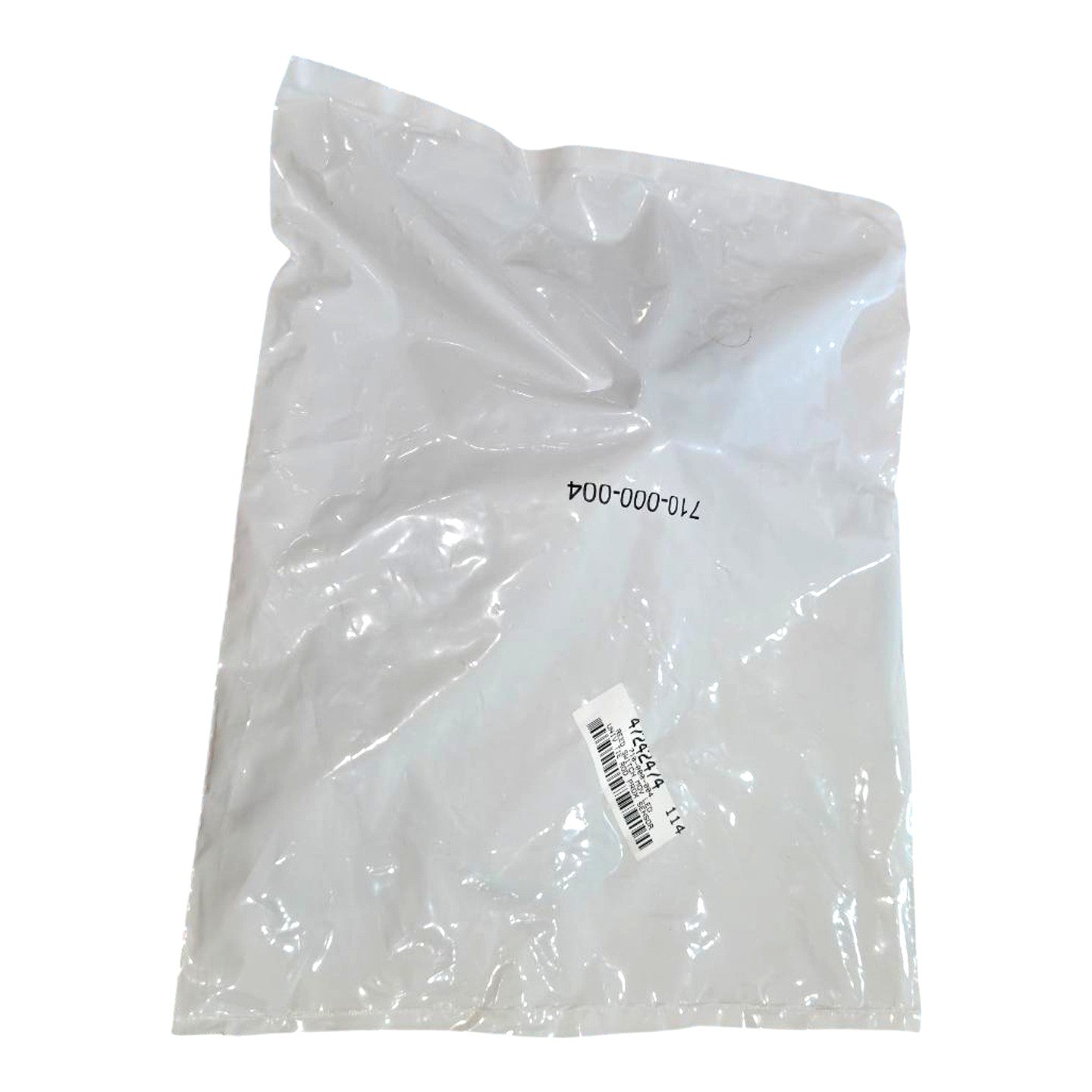

The Canfield Connector 710-000-004 is a new, factory-packaged normally open (N.O.) SPST reed switch designed for position sensing on tie-rod pneumatic cylinders with 2 to 6-inch bore diameters. The compact black overmolded housing mounts directly into the T-slot or tie-rod groove of compatible cylinders and includes integrated LED status indication and MOV (metal oxide varistor) transient voltage suppression for load protection. Rated 5–240V AC/DC, 30W, 1A maximum, the switch operates across a wide voltage range suitable for both AC and DC control circuits. The 2-wire hookup uses color-coded leads — black (–) and red (+) — terminated in stripped, tinned wire ends for direct field wiring without a connector. The gray PVC-jacketed cable provides chemical and abrasion resistance in typical industrial pneumatic environments.
Product Specifications
| Brand | Canfield Connector |
| Model Number | 710-000-004 |
| Switch Type | N.O. SPST Reed |
| Switching Action | Normally Open (N.O.) |
| Voltage Range | 5-240V AC/DC |
| Max Power | 30W |
| Max Current | 1A |
| Number of Wires | 2 |
| Wire Colors | Black (-), Red (+) |
| Indicators | LED |
| Transient Protection | MOV (Metal Oxide Varistor) |
| Compatible Bore Range | 2 to 6 in |
| Cylinder Type | Tie-Rod |
| Cable Jacket Material | PVC (Polyvinylchloride) |
| Wire Termination | Stripped/tinned bare leads |
| Condition | New |
