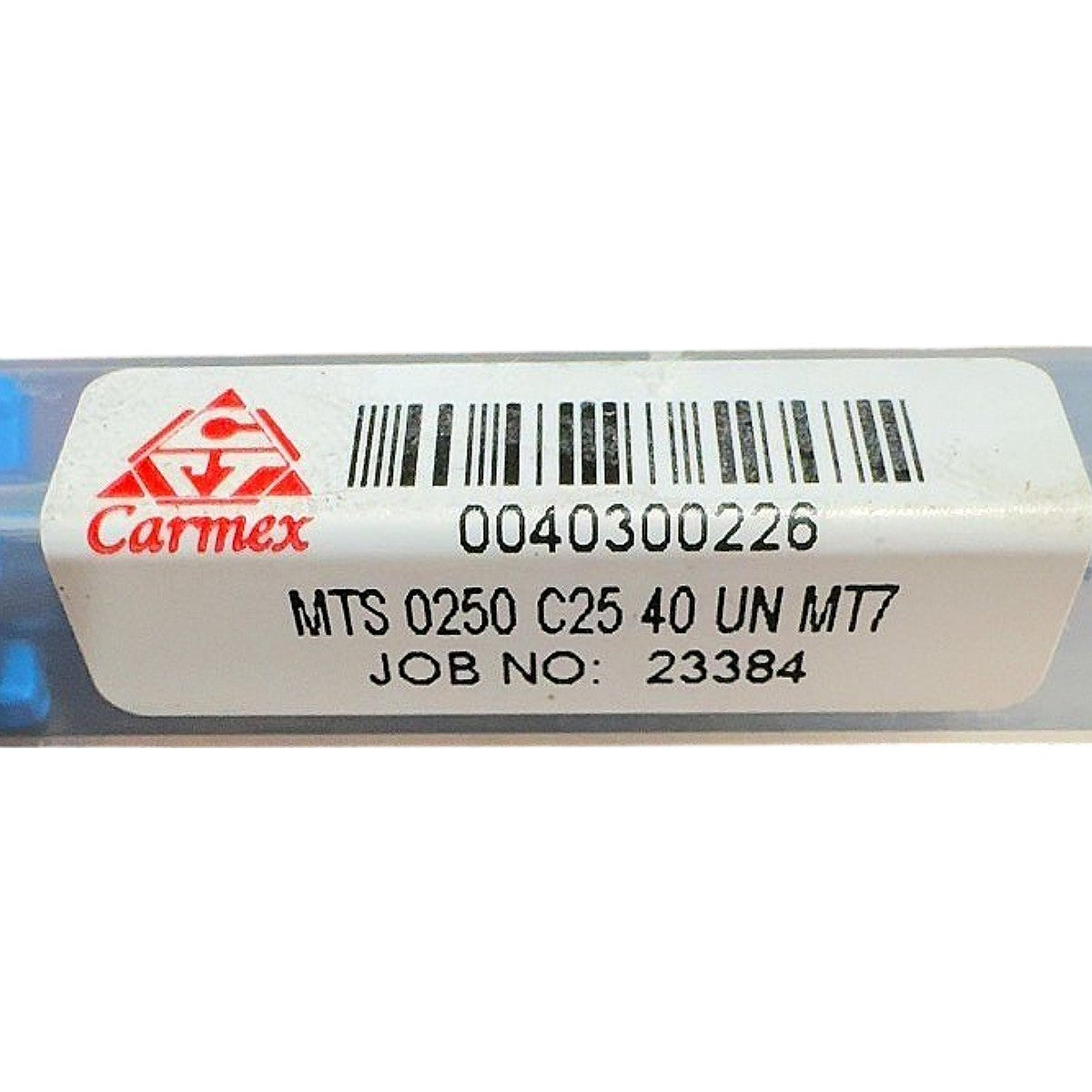

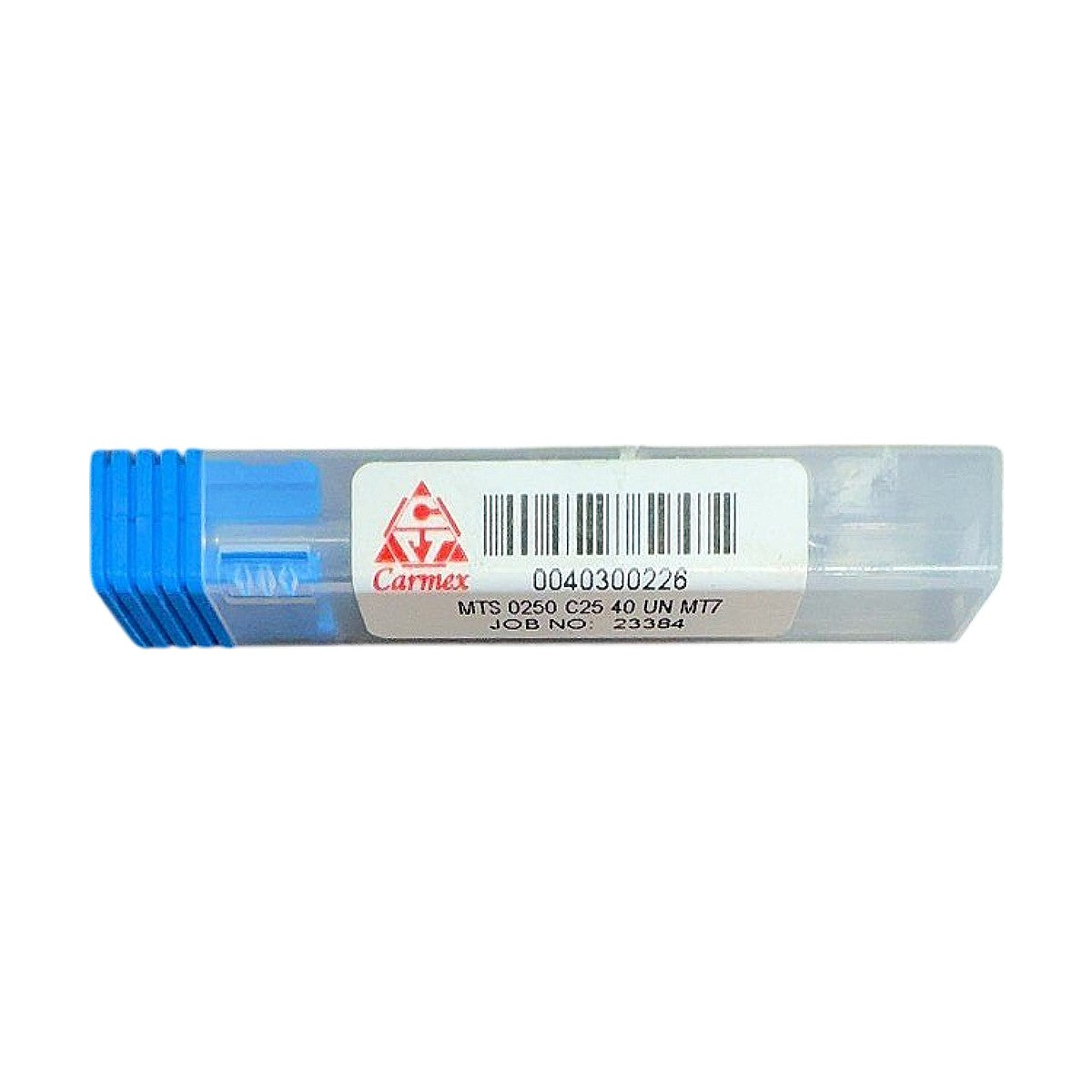

Carmex MTS 0250 C25 40 UN MT7 1/4in 40 UN Solid Carbide Thread Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

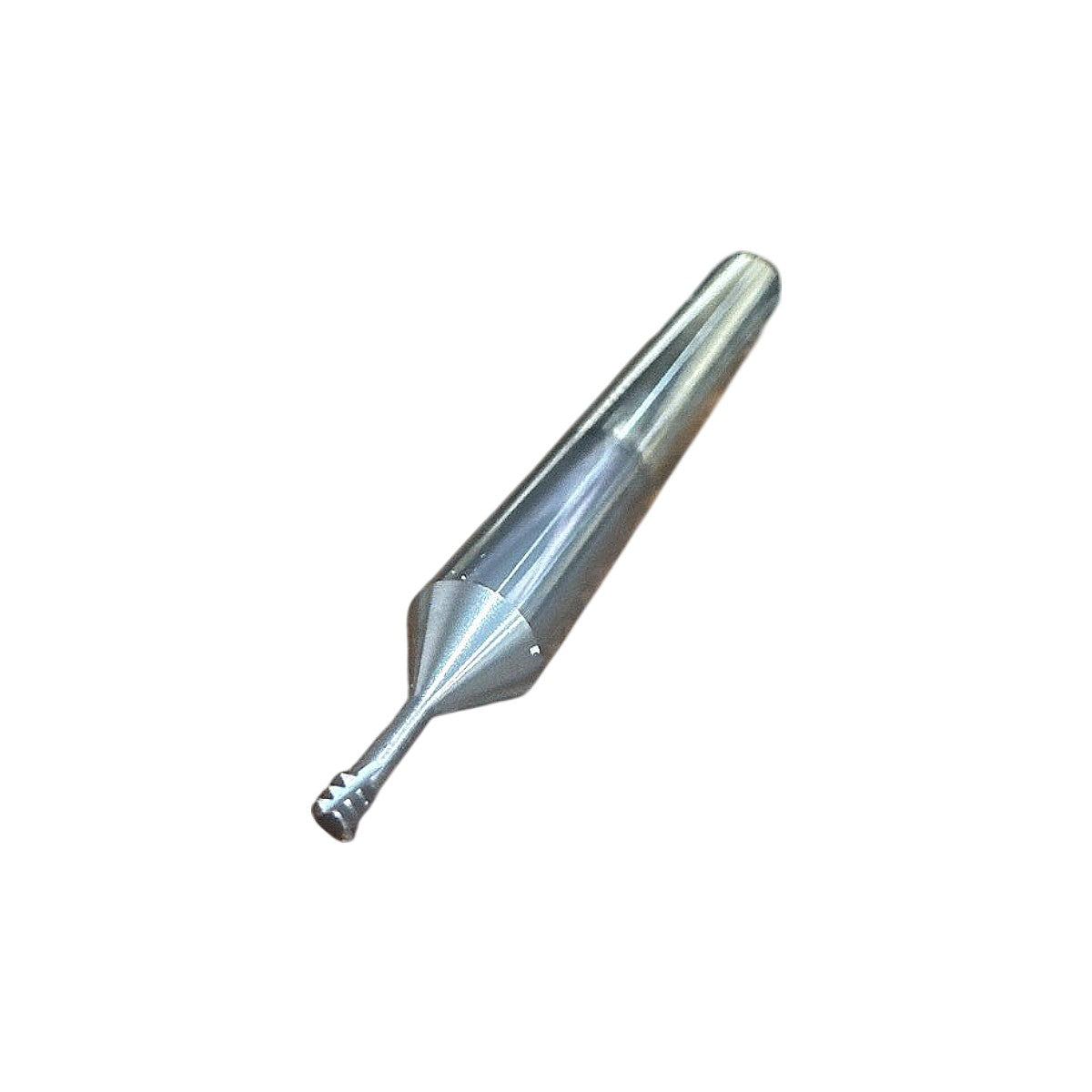

The Carmex MTS 0250 C25 40 UN MT7 is a new solid carbide miniature thread milling cutter from Carmex's MTS (Miniature Thread and Slot) series, designed to produce UN (Unified National) thread forms with a 40 TPI pitch in a 1/4 in (0.250 in) cutting diameter. The tool features a tapered neck (visible in photos) between the cutting head and the cylindrical shank — a geometry characteristic of the Carmex MTS line — which provides clearance when milling threads in small-diameter bores, preventing shank interference. Grade MT7 is Carmex's uncoated ultra-fine grain carbide substrate optimized for non-ferrous materials, plastics, and other soft-to-medium materials where a bright (uncoated) finish reduces built-up edge; the C25 designation indicates a 1/4 in (6.35 mm) cylindrical shank diameter and 40 mm overall length. This single-piece thread mill is used on CNC machining centers with helical interpolation to produce internal threads, offering the advantage of generating multiple thread pitches and both right- and left-hand threads with a single tool.
Product Specifications
| Brand | Carmex |
| MPN | MTS 0250 C25 40 UN MT7 |
| Series | MTS (Miniature Thread & Slot) |
| Cutting Diameter | 0.250 in (6.35 mm) |
| Shank Diameter | 0.250 in (6.35 mm) — C25 |
| Overall Length | 40 mm — encoded as 40 in designation |
| Thread Standard | UN (Unified National) |
| Thread Pitch | 40 TPI |
| Carbide Grade | MT7 (Carmex ultra-fine grain, uncoated) |
| Coating | None (bright/uncoated) |
| Tool Type | Solid carbide thread mill |
| Neck Geometry | Tapered neck relief |
| Application | Internal UN thread milling via helical interpolation |
| Condition | New |
