Chicago-Latrobe 47475 #16 Wire Gauge HSS Twist Drill Bit (6 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

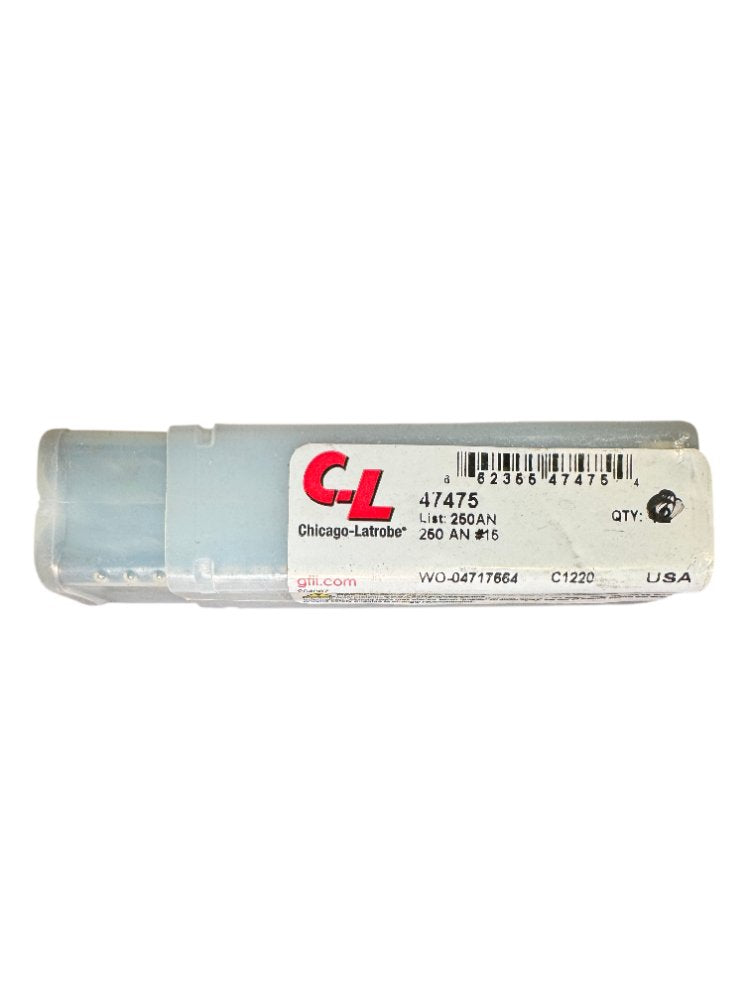

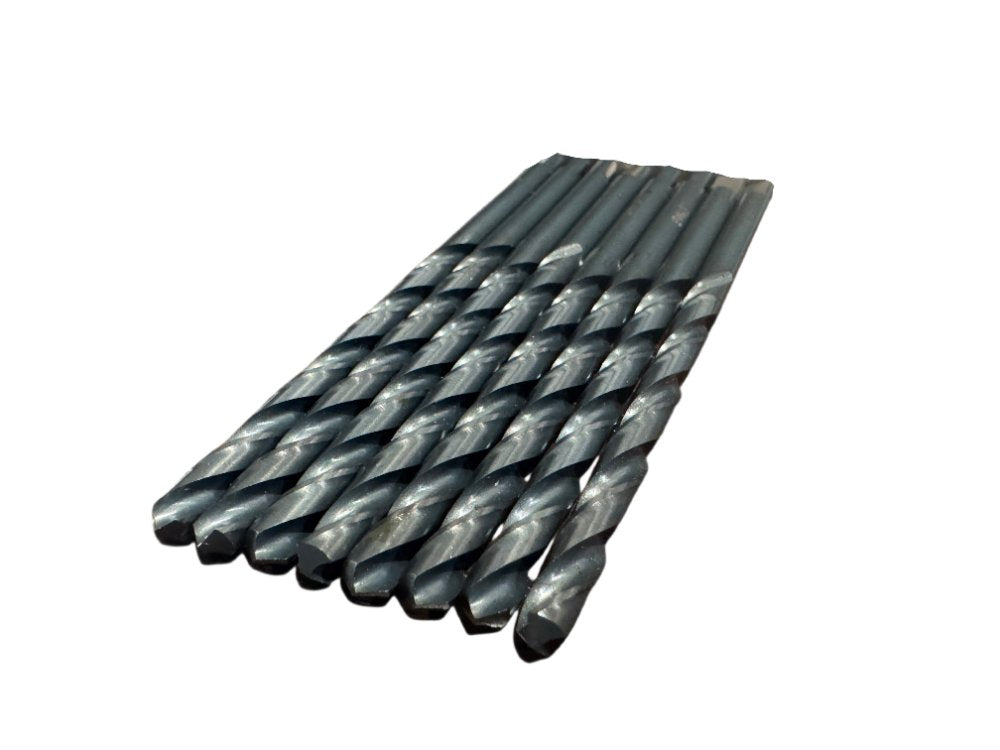

This is a new, factory-packaged set of 6 Chicago-Latrobe List 250AN #16 wire gauge twist drill bits (part number 47475), manufactured in the USA. The List 250AN series is a jobber-length HSS (high-speed steel) drill ground to a 118° conventional point angle with a straight shank, designed for general-purpose drilling in steel, cast iron, aluminum, and similar materials. The steam-oxide (black oxide) finish visible on the flutes provides mild corrosion resistance and reduces friction during cutting. Wire gauge #16 corresponds to a diameter of 0.177 inches (4.496 mm), and jobber-length geometry provides the standard flute-to-shank length ratio suited for use in drill presses, CNC machining centers, and hand-held power drills with a standard 3-jaw chuck. The quantity of 6 pieces per package is confirmed on the label (QTY: 6).
Product Specifications
| Brand | Chicago-Latrobe |
| Part Number (MPN) | 47475 |
| List Series | 250AN |
| Wire Gauge Size | #16 |
| Decimal Equivalent Diameter | 0.177 in (4.496 mm) |
| Material | High-Speed Steel (HSS) |
| Point Angle | 118° |
| Shank Type | Straight shank |
| Length Style | Jobber length |
| Finish / Coating | Black oxide (steam oxide) |
| Country of Origin | USA |
| Quantity per Package | 6 pieces |
| Condition | New |
