Chromalox KV-3T1-0217-M1-F 10kW 480V 3Ph 2" NPT Incoloy Immersion Heater
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

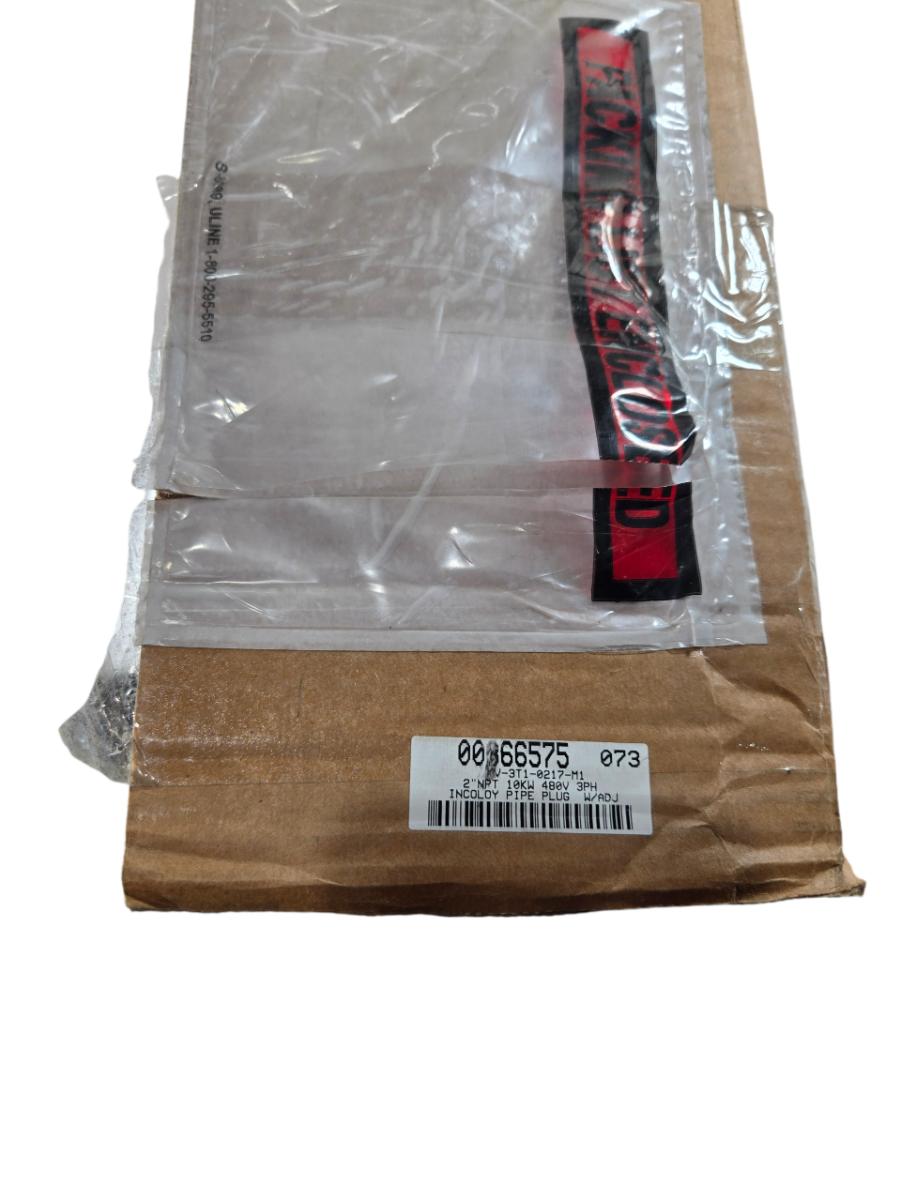

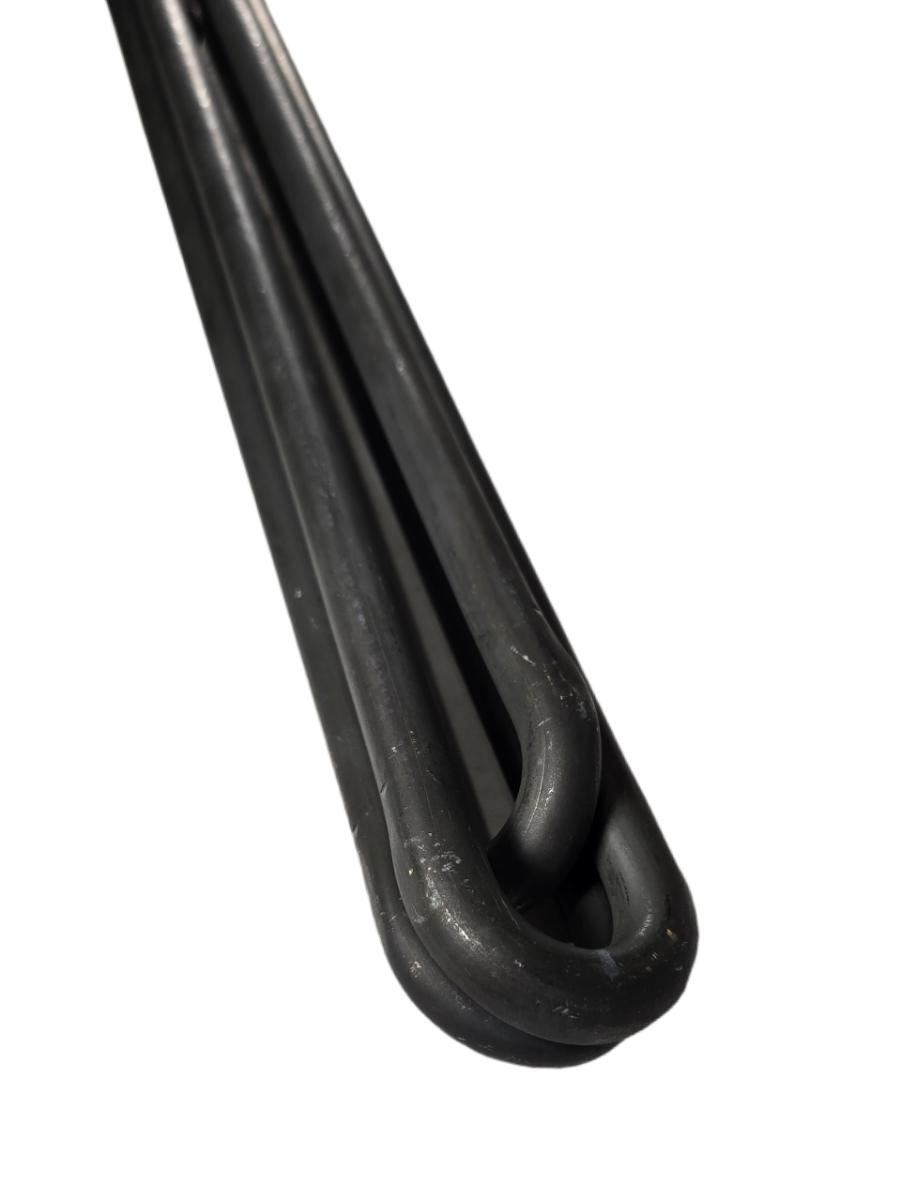

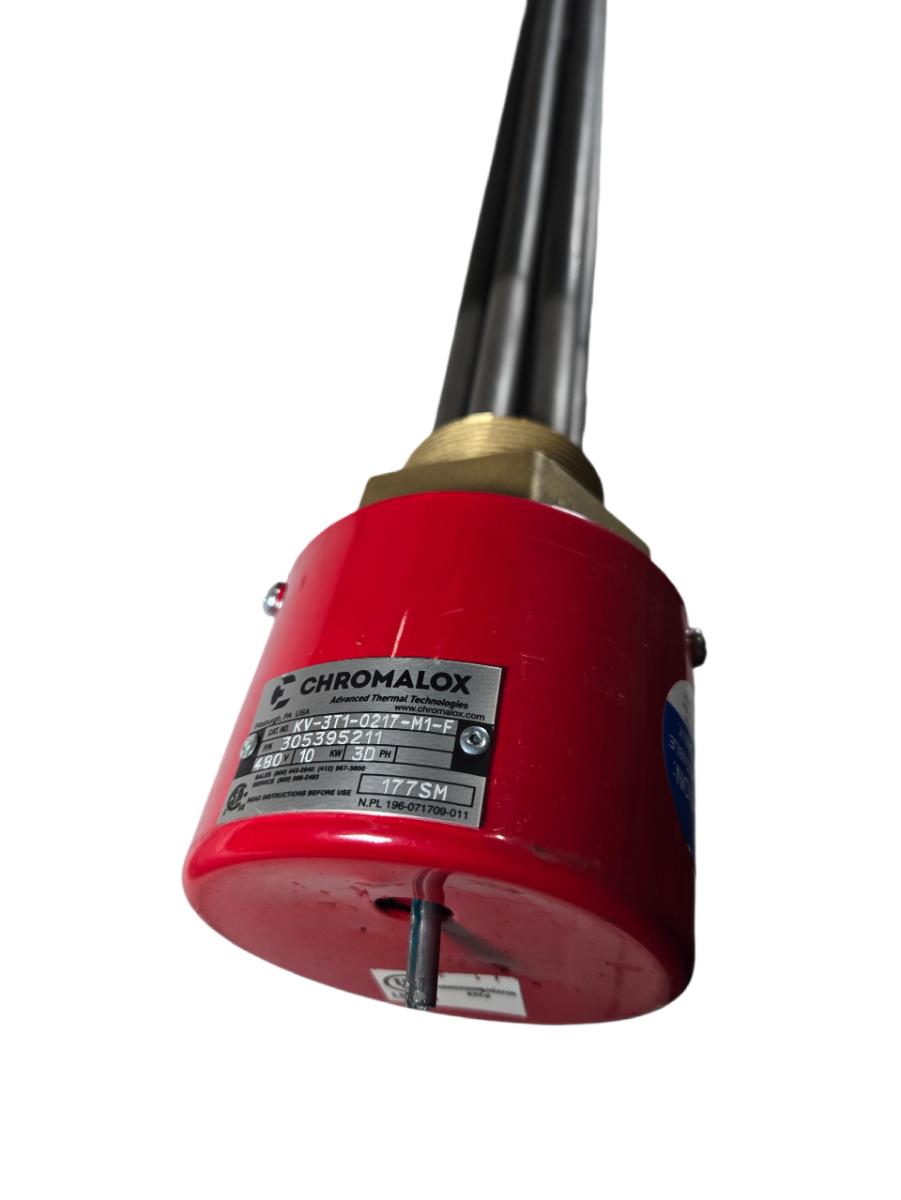

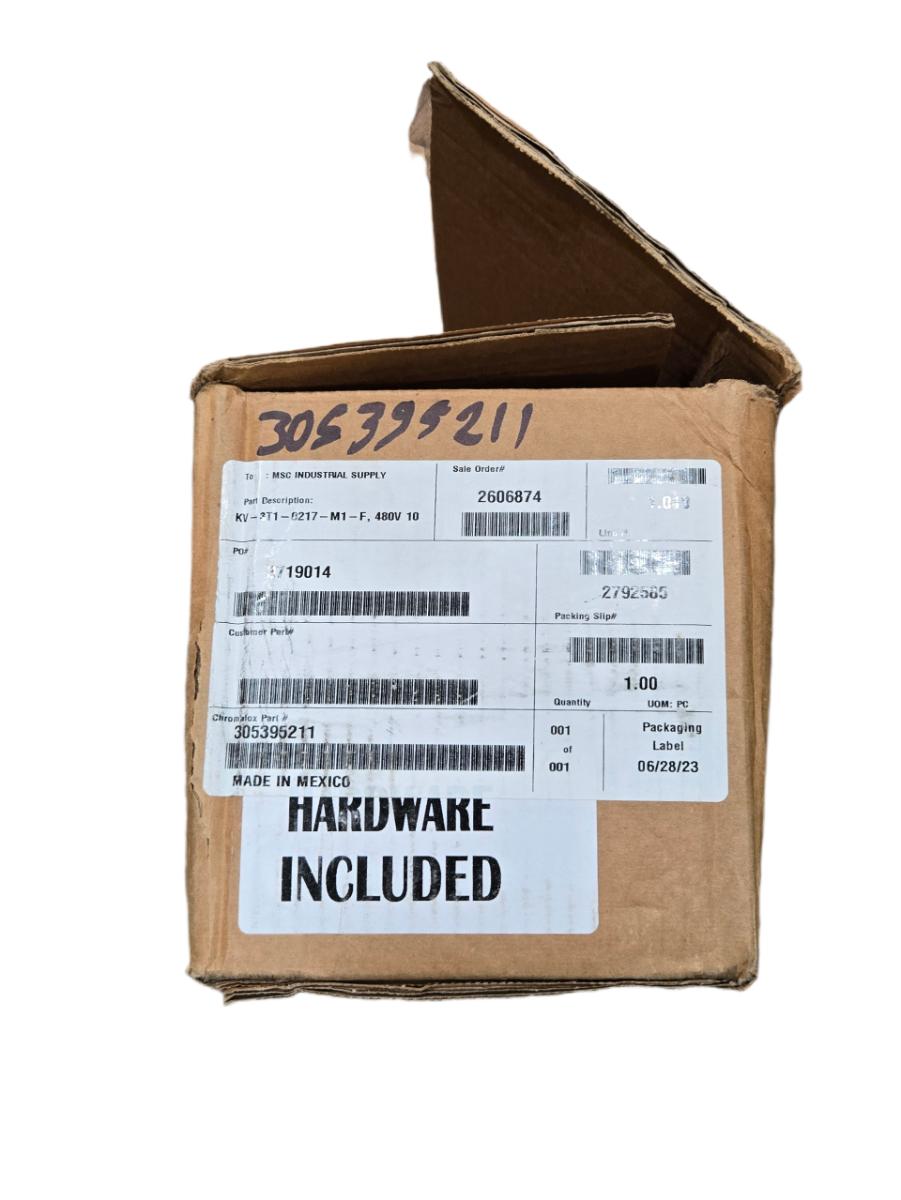

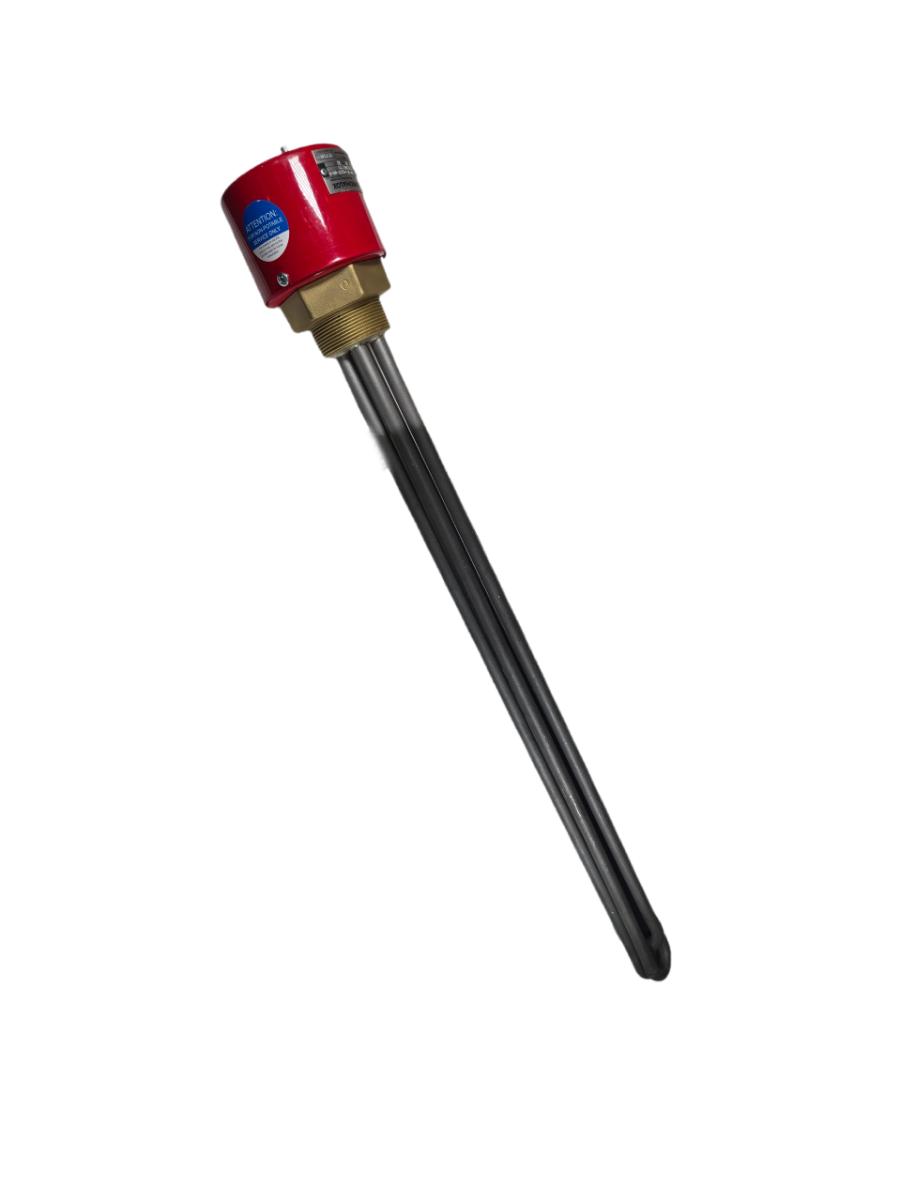

This is a new Chromalox KV-3T1-0217-M1-F screw plug immersion heater rated at 10 kW, 480V, 3-phase, featuring an Incoloy sheath and a 2" NPT brass pipe plug for direct tank or vessel installation. The KV series uses a hairpin-bent U-shaped tubular element configuration visible in the close-up photos, with the element looping back through a single plug — a design that concentrates heating surface in a compact insertion length while allowing removal without draining large systems. The red cast enclosure houses an adjustable built-in thermostat (M1 suffix), and the -F suffix denotes the terminal housing style; Chromalox part number 305395211 and the shipping label confirm the description as a 2" NPT, 10 kW, 480V, 3-phase Incoloy pipe plug heater with adjustable thermostat. Typical applications include water, oils, mild chemical solutions, and process tanks where a threaded pipe plug connection is required; hardware is included per the original packaging.
Product Specifications
| Manufacturer | Chromalox |
| Model / Catalog Number | KV-3T1-0217-M1-F |
| Chromalox Part Number | 305395211 |
| Power Rating | 10 kW |
| Voltage | 480V |
| Phase | 3-Phase |
| Connection Size | 2" NPT |
| Fitting Material | Brass |
| Sheath Material | Incoloy |
| Element Configuration | U-shaped hairpin tubular (screw plug type) |
| Thermostat | Adjustable (built-in, M1 suffix) |
| Terminal Enclosure | Red cast housing (F-style) |
| Condition | New |
| Hardware | Included |
| Country of Origin | Mexico |
