Cleveland C12297 1-13/32 in HSS Taper Shank Drill Bit Black Oxide
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

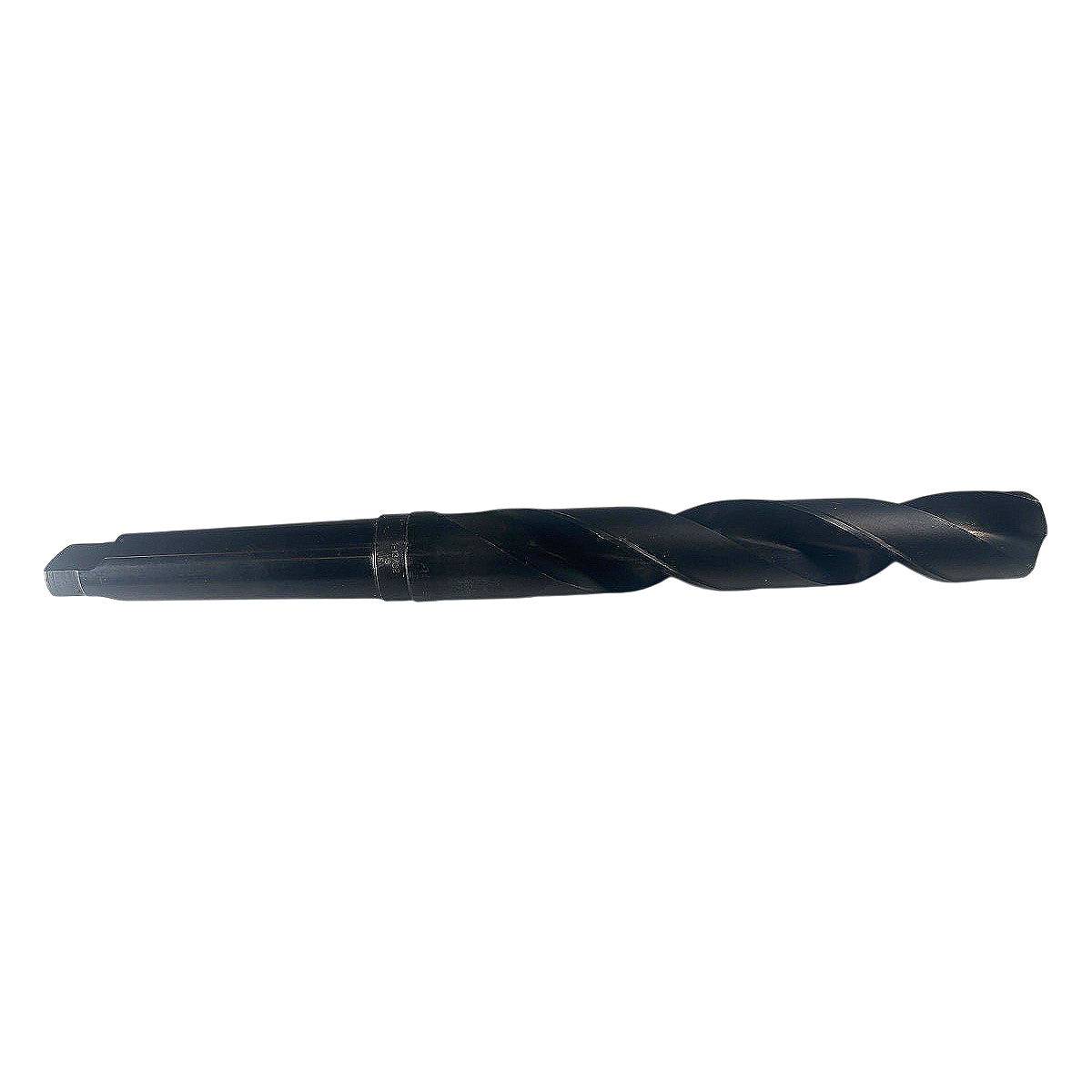

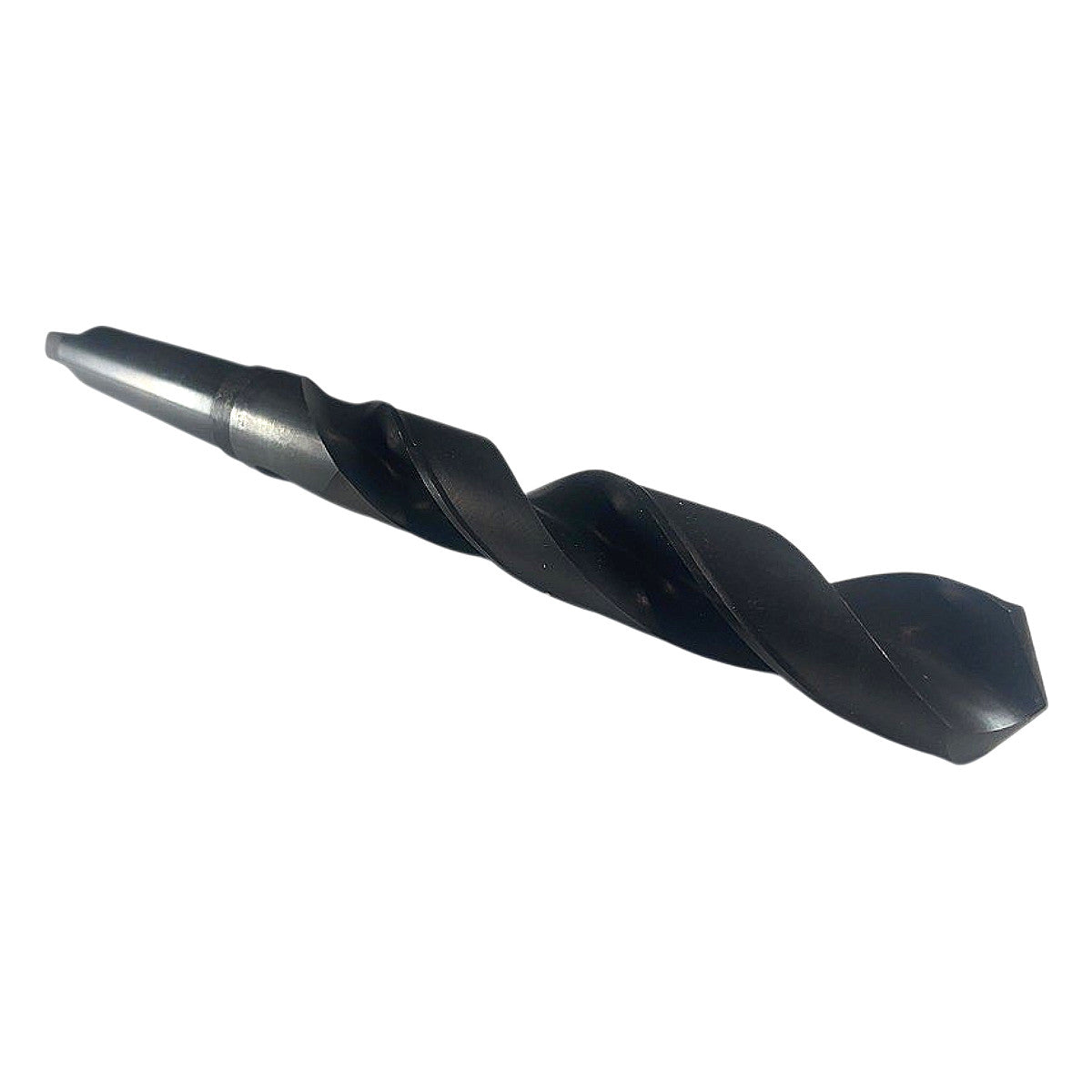

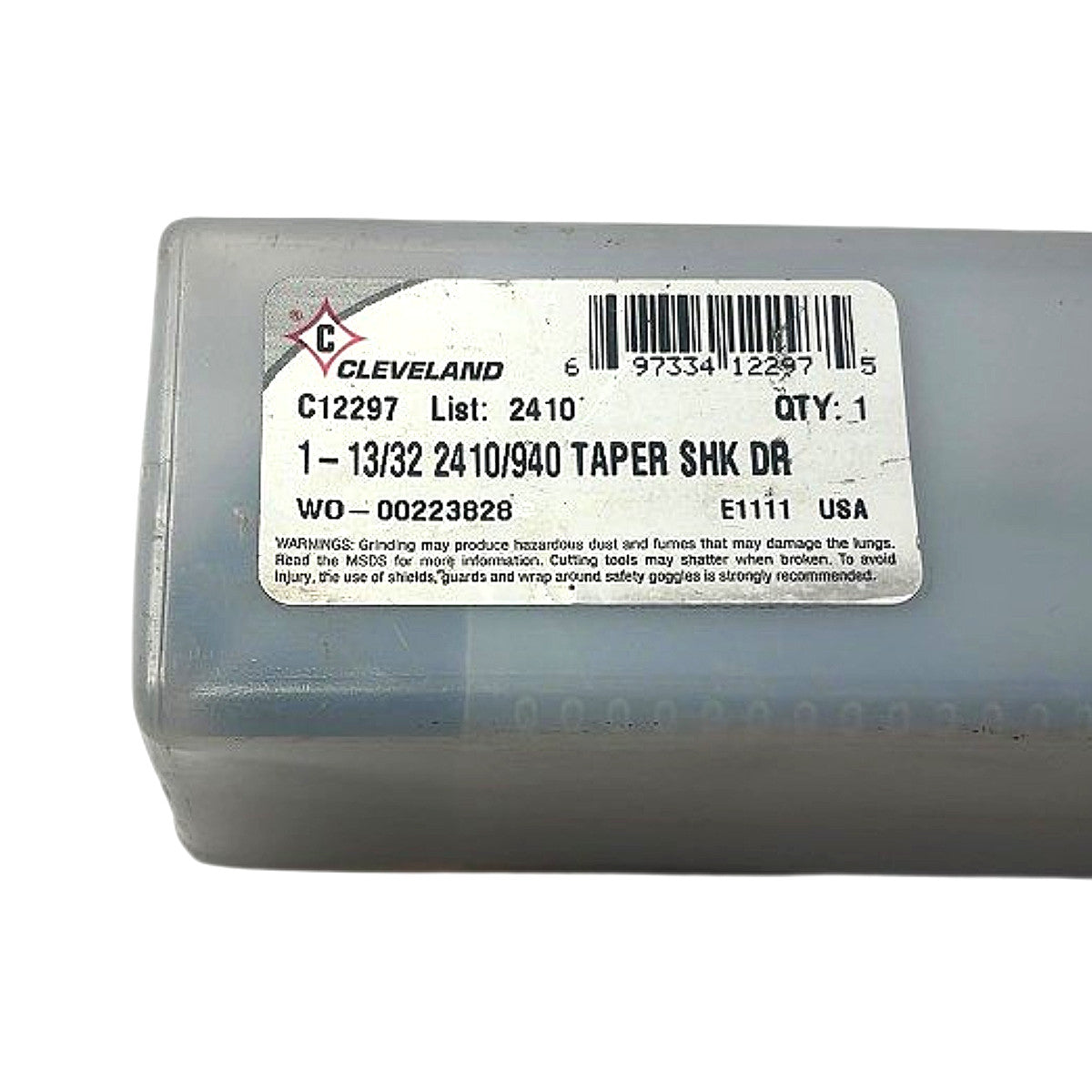

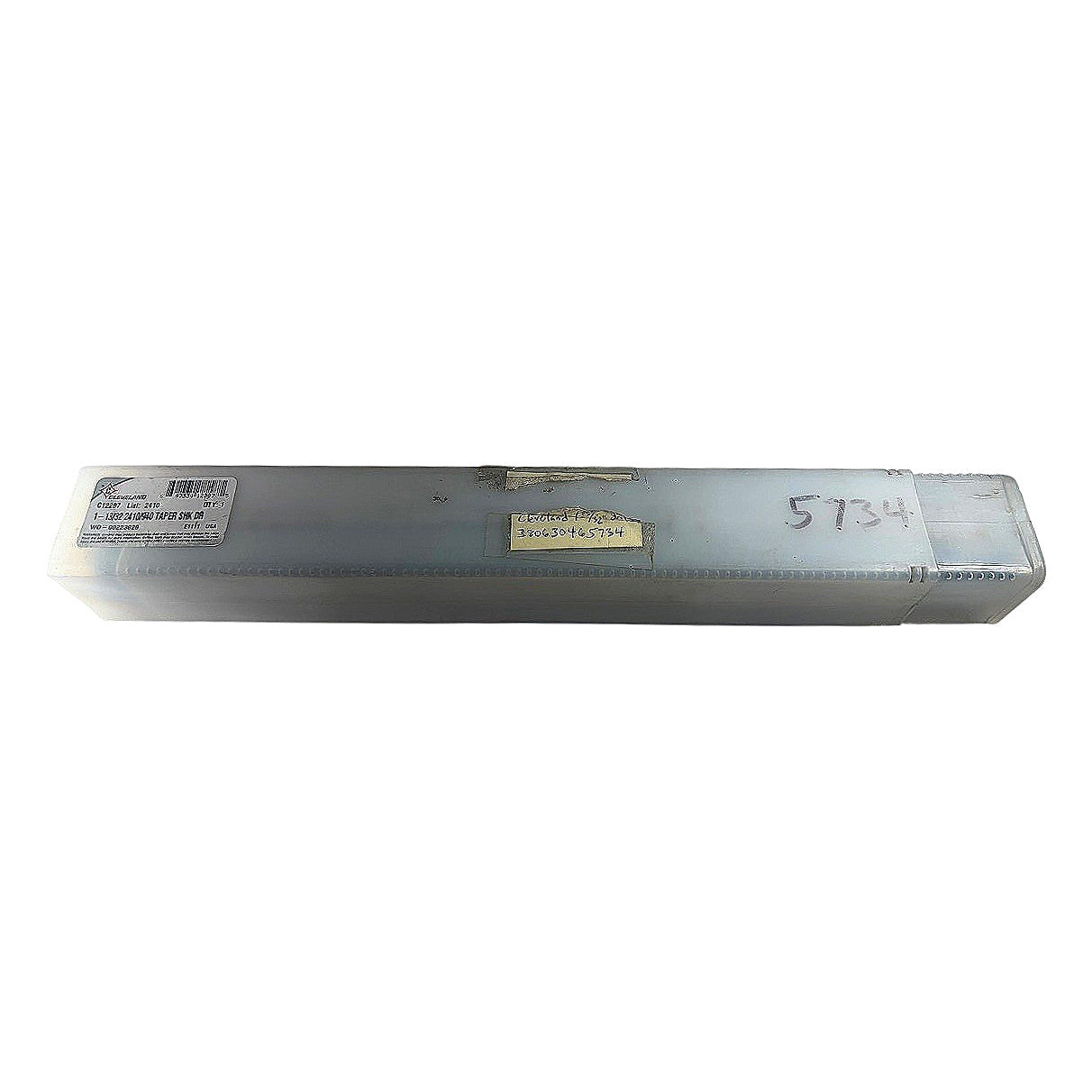

The Cleveland C12297 is a new, USA-made 1-13/32 in (1.40625 in) high-speed steel taper shank twist drill from the 2410/940 series, featuring a black oxide finish for corrosion resistance and reduced friction during chip evacuation. The drill is ground to a standard 118° included point angle with a conventional two-flute geometry suited for drilling ferrous and non-ferrous metals in production and job-shop environments. The Morse Taper shank (MT4, standard for this diameter range) seats directly into compatible taper-shank spindles, drill press quills, or lathe tailstocks without an adapter chuck, providing rigidity for large-diameter hole-making. Cleveland's 2410/940 designation indicates a heavy-duty, black oxide–treated HSS construction manufactured to ANSI B94.11M standards. This drill ships in its original OEM plastic case, unopened and unused.
Product Specifications
| Brand | Cleveland |
| Part Number (MPN) | C12297 |
| Series | 2410/940 |
| Drill Diameter | 1-13/32 in (1.40625 in) |
| Shank Type | Morse Taper (MT4) |
| Material | High-Speed Steel (HSS) |
| Coating / Finish | Black Oxide |
| Point Angle | 118° |
| Number of Flutes | 2 |
| Flute Type | Spiral (twist) |
| Country of Origin | USA |
| Quantity | 1 |
| Condition | New in OEM case |
| Standard | ANSI B94.11M |
