Cleveland ICHS-21-D-100 Marathon 5K33JNA943B 1/3HP Piston Pump Assembly

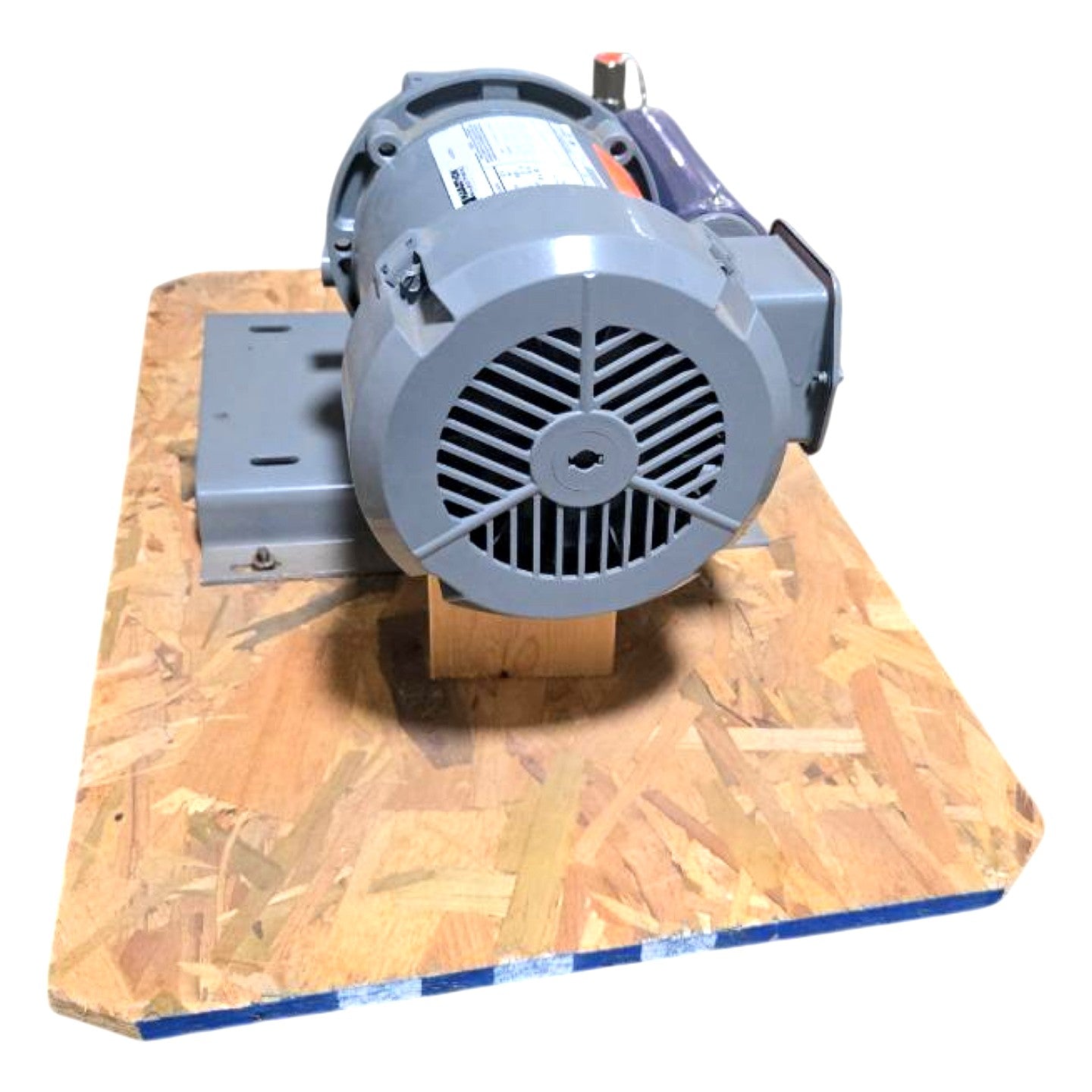

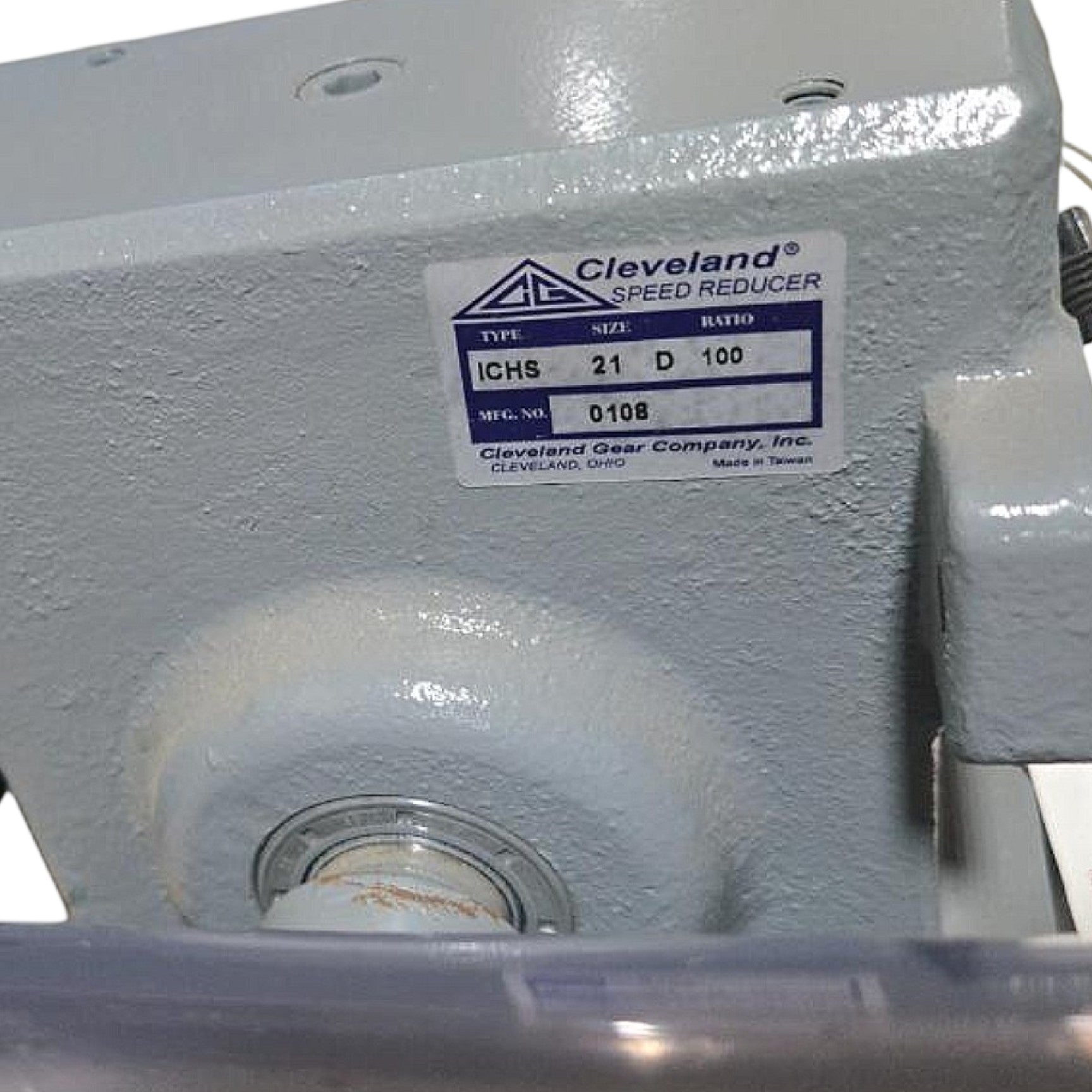

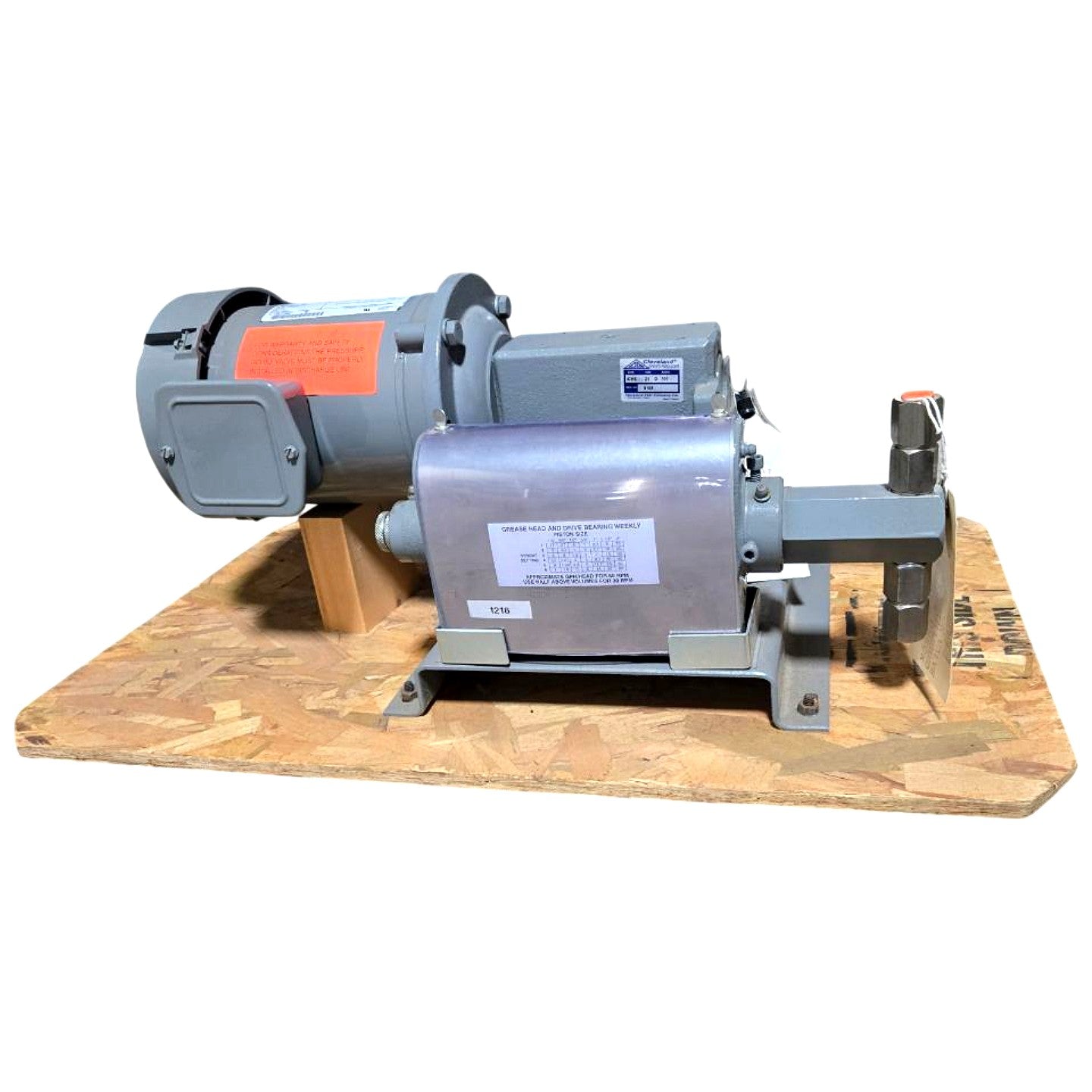

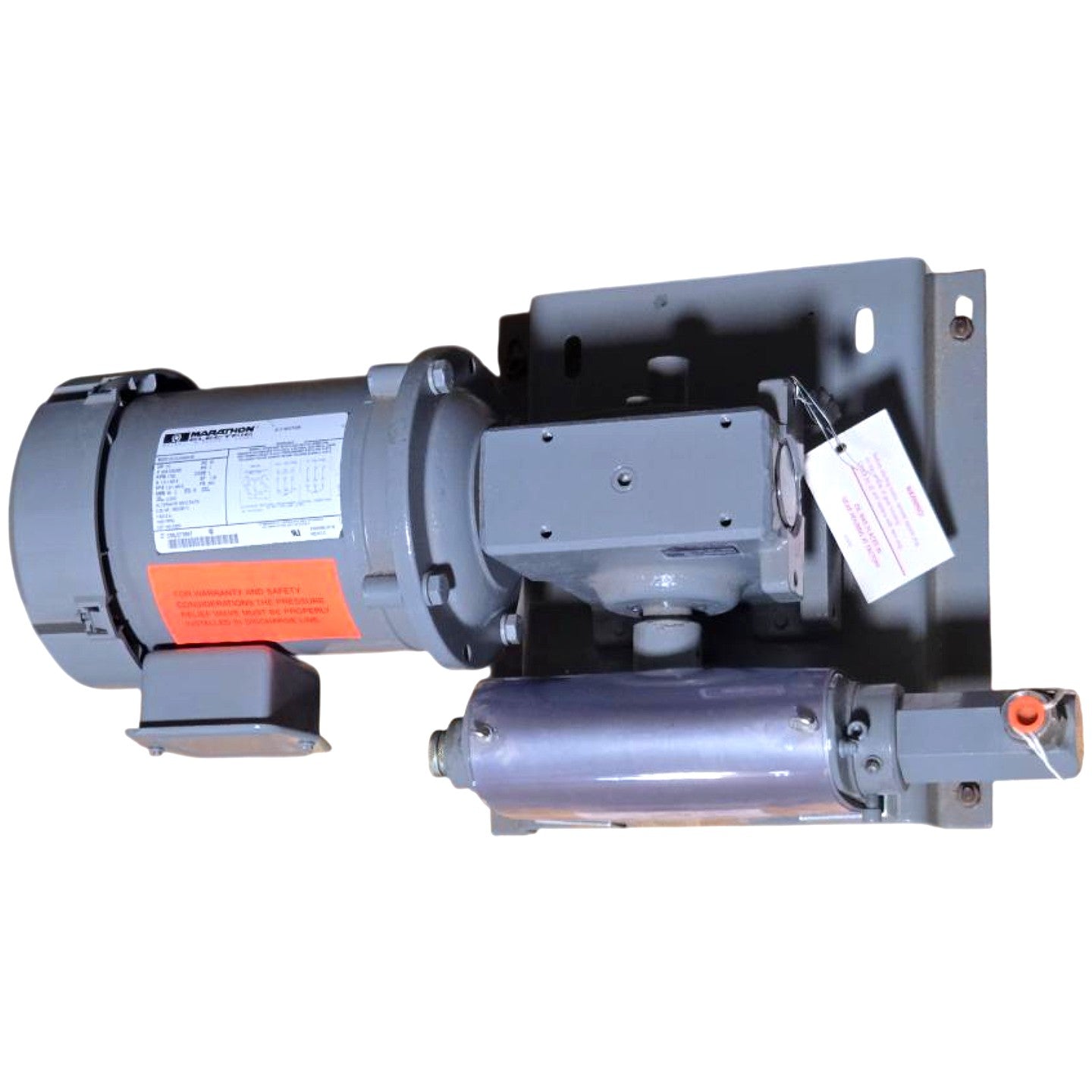

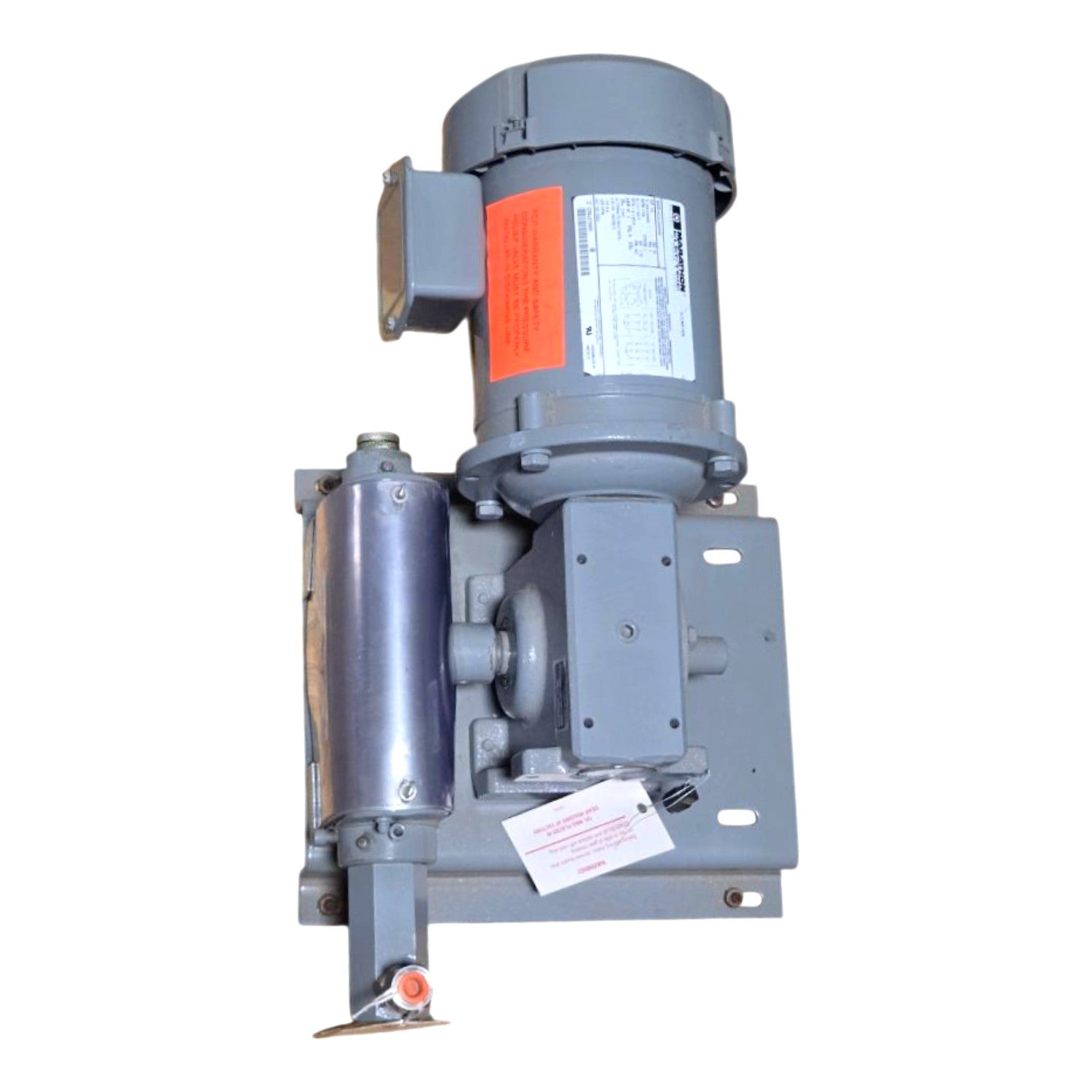

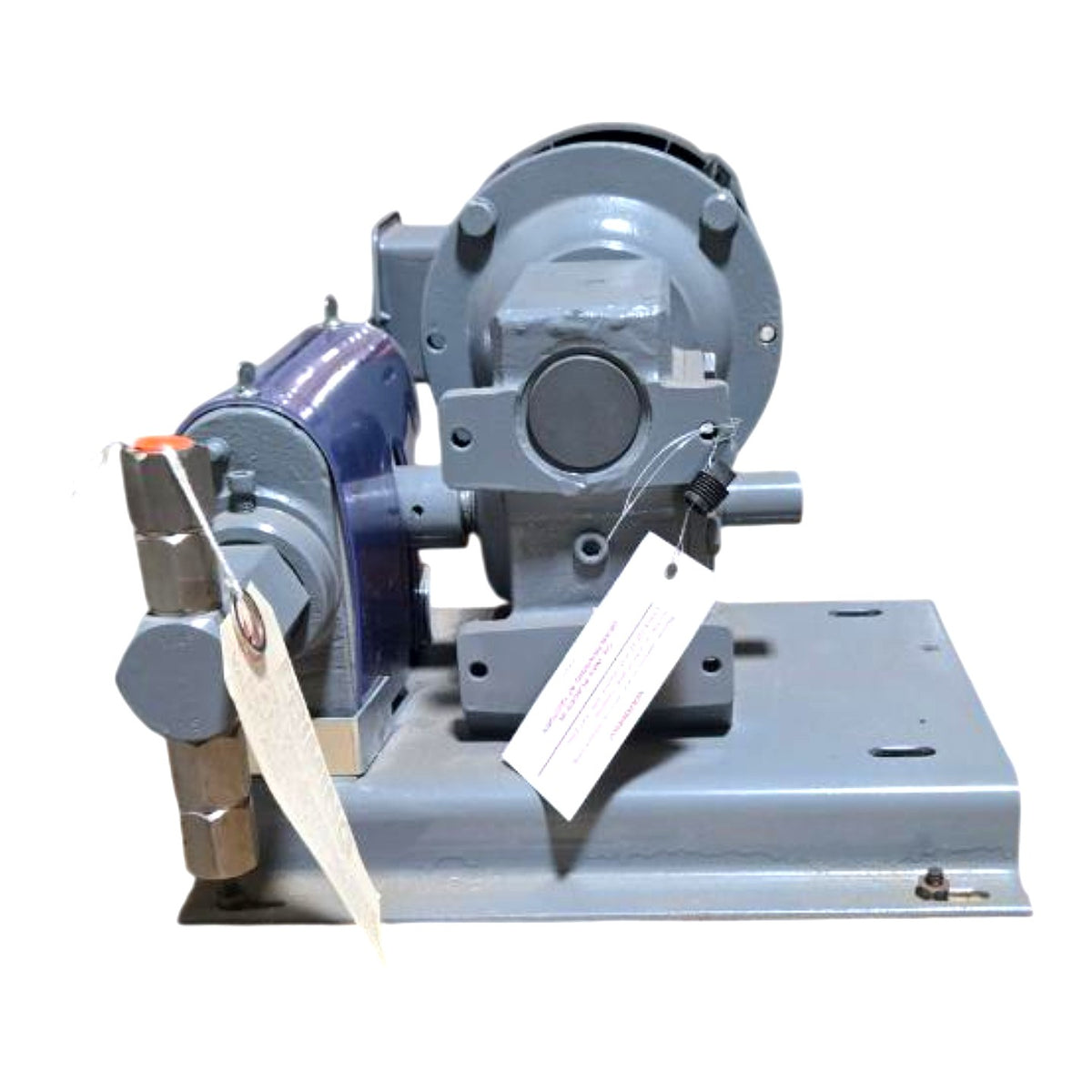

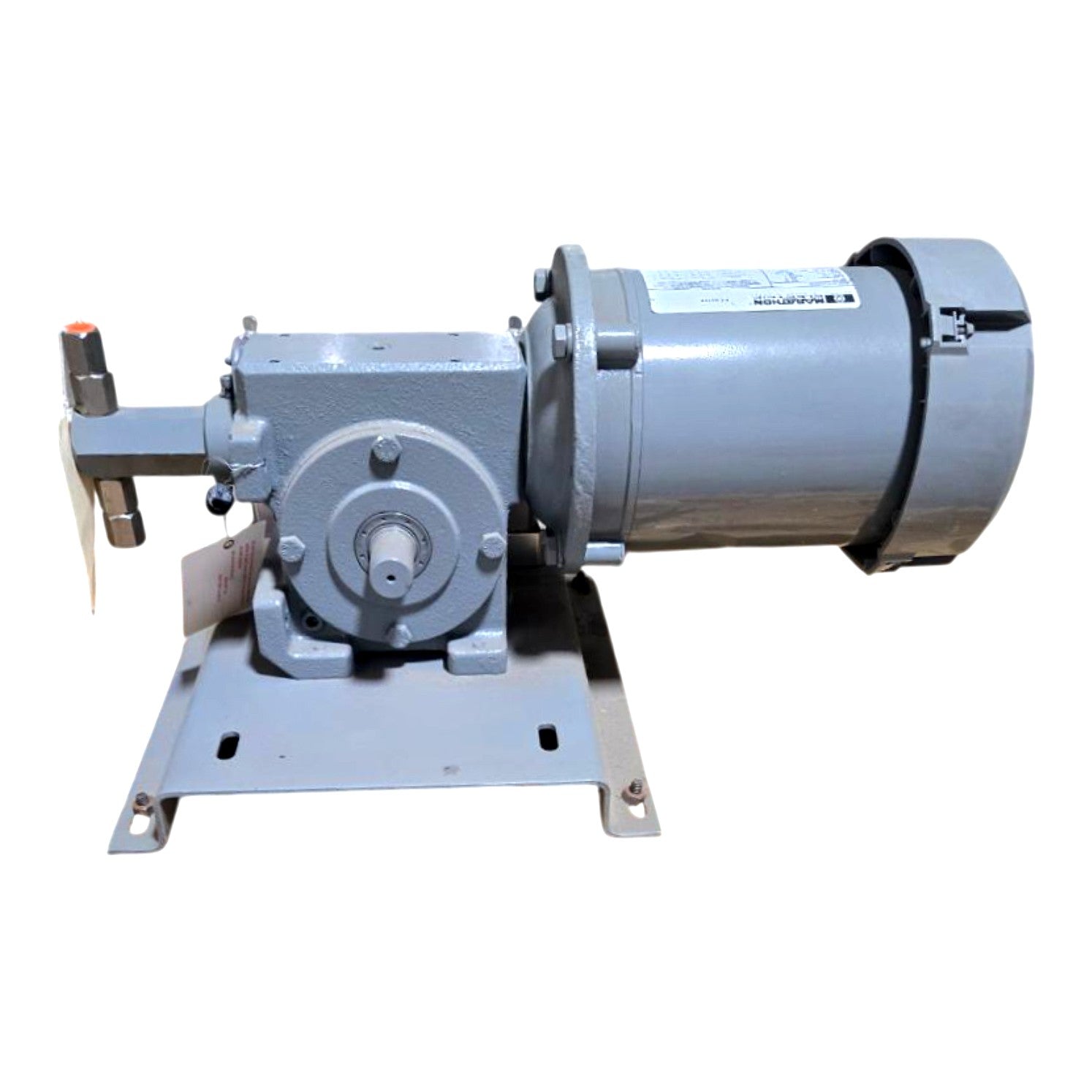

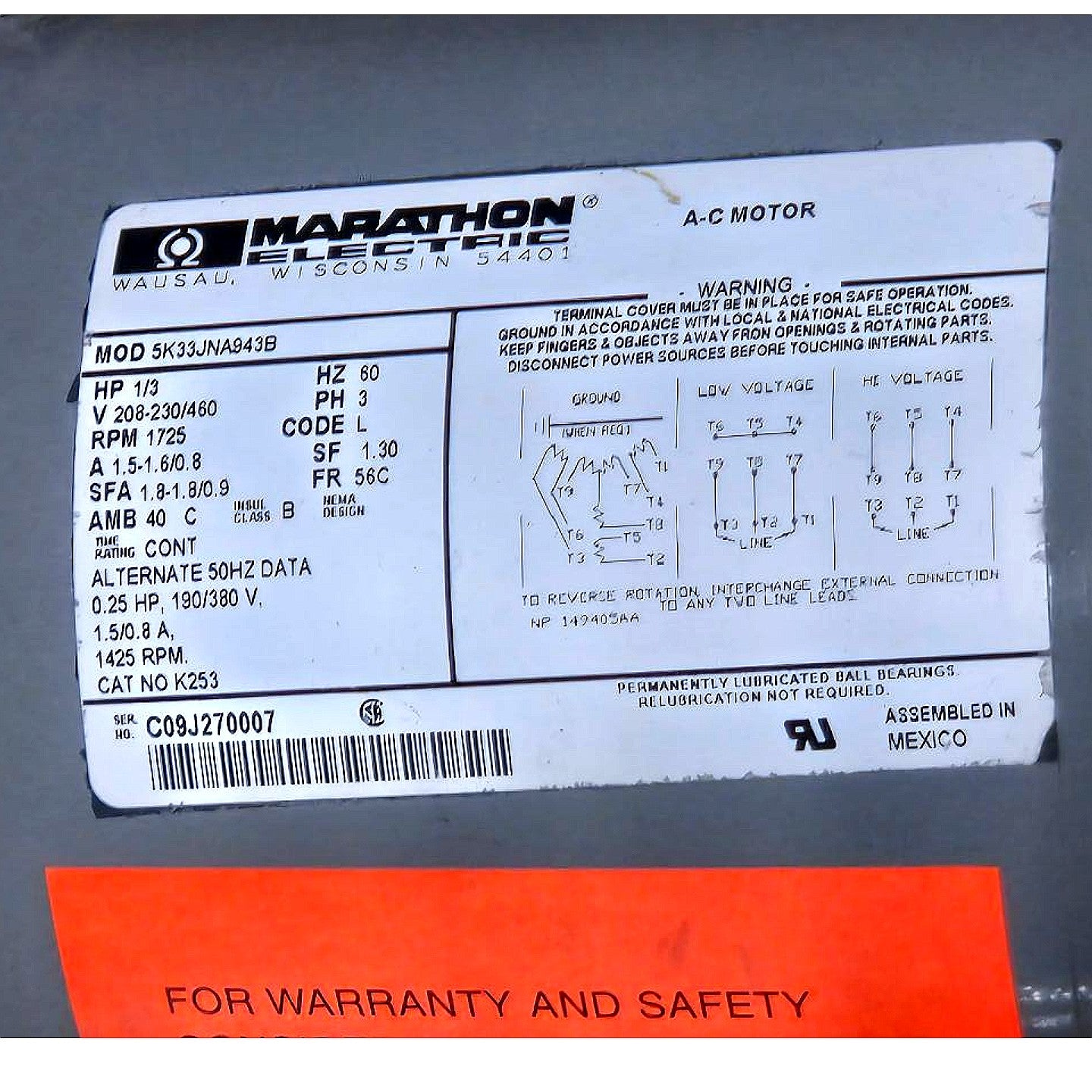

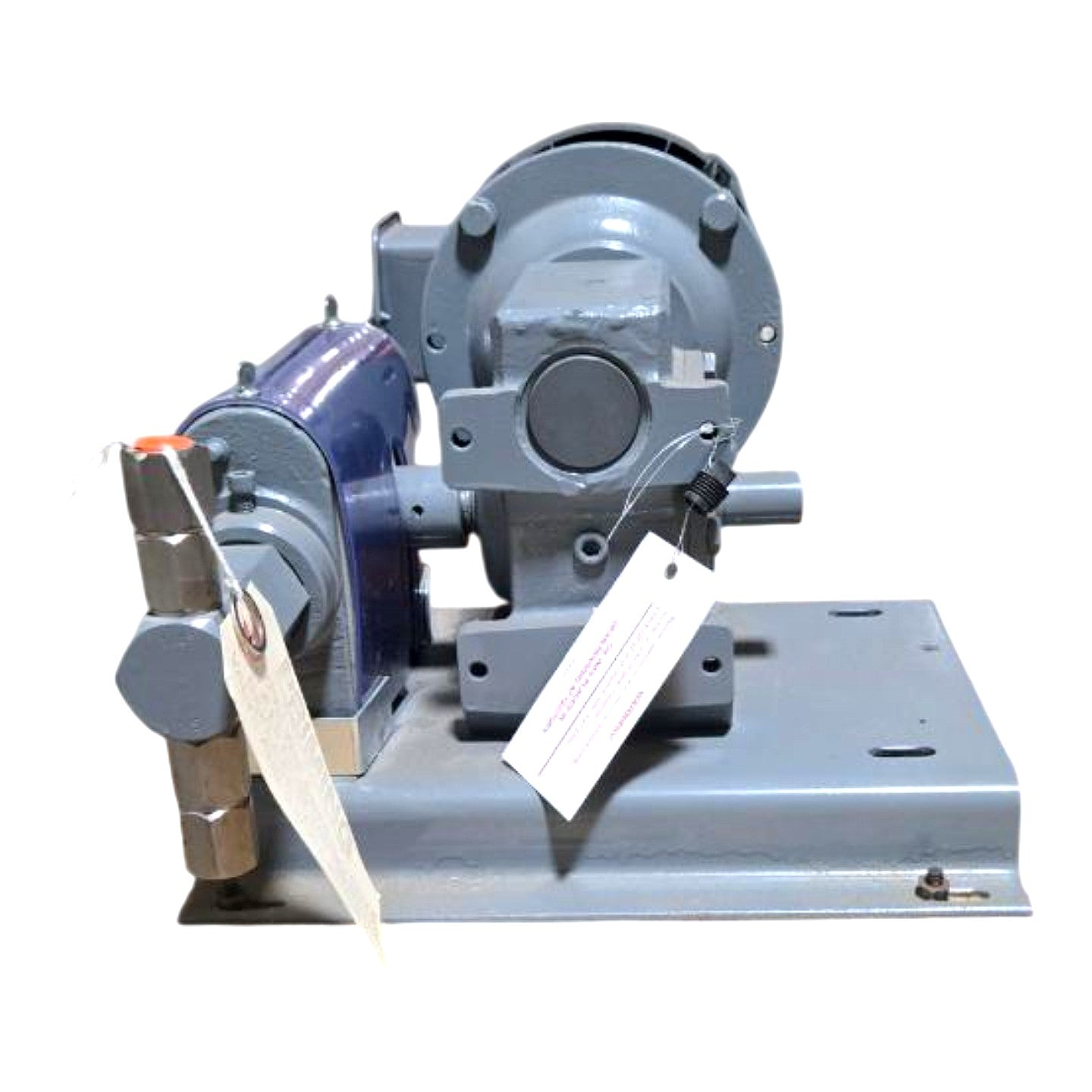

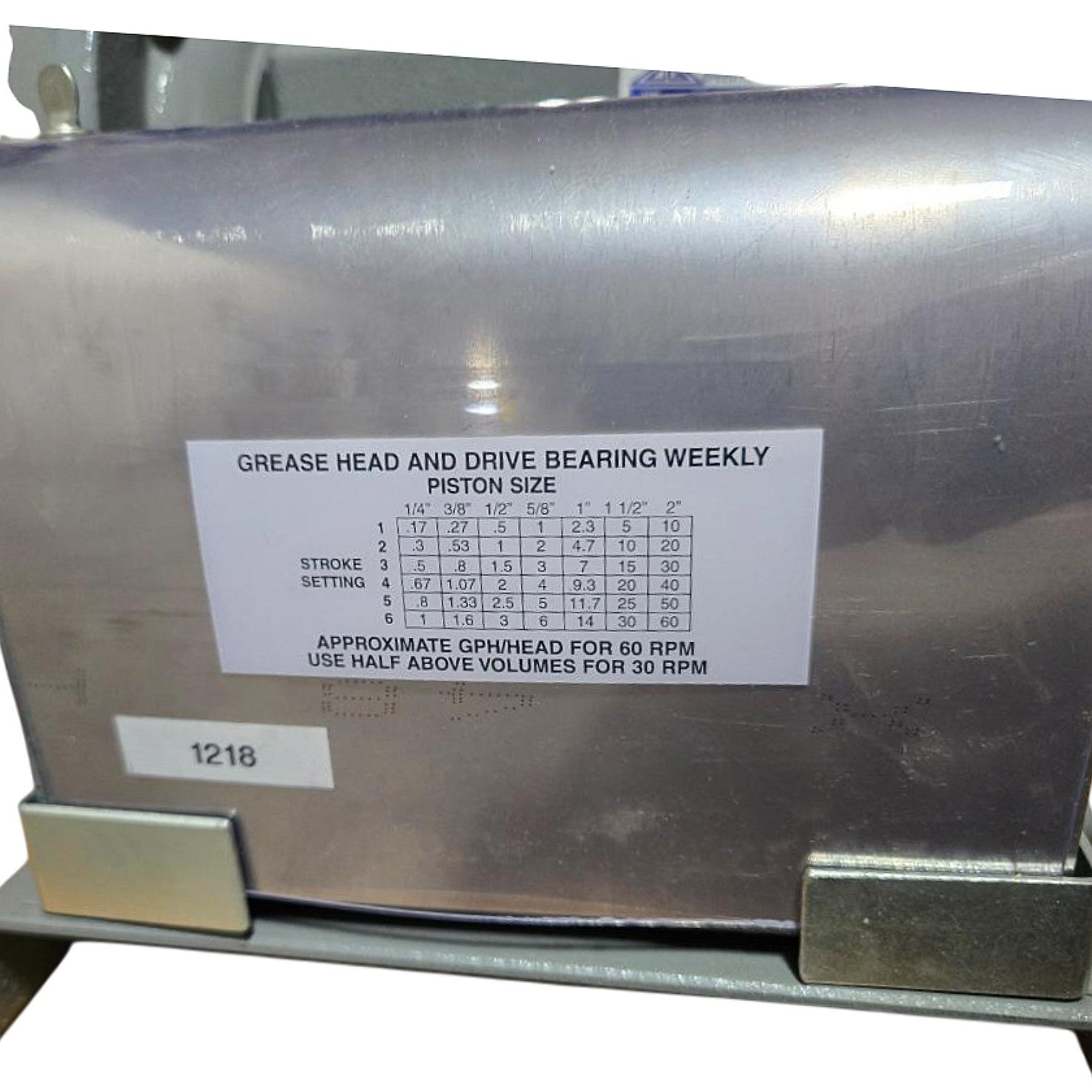

This is a new, complete motor-driven piston metering pump assembly consisting of three integrated components mounted on a common steel baseplate: a Cleveland Gear Company ICHS Type worm-gear speed reducer (Size 21, Configuration D, 100:1 ratio, Mfg. No. 0108), a Marathon Electric 3-phase AC motor (Model 5K33JNA943B, Cat. No. K253, 1/3 HP, 208-230/460V, 1725 RPM, Frame 56C, SF 1.30, Class B insulation, TEFC-style), and a reciprocating piston pump head with a stainless steel cylinder housing. The Cleveland ICHS-21-D-100 worm reducer steps the motor's 1725 RPM input down by a 100:1 ratio to approximately 17 RPM at the pump drive shaft, providing the low-speed reciprocating motion required for accurate liquid metering; the pump label references flow rates at 30 and 60 RPM output, with piston sizes ranging from 1/4" to 2" and stroke settings 1–6 yielding approximately 0.17 to 60 GPH per head at 60 RPM depending on piston size and stroke adjustment. The stainless pump head features threaded high-pressure inlet and outlet fittings visible in the photos, and the drive end of the reducer accepts a standard C-face 56C motor mount. Weekly greasing of the pump head and drive bearings is specified per the label affixed to the pump cylinder. This assembly is suited for chemical injection, water treatment dosing, and industrial liquid metering applications requiring precise, adjustable volumetric output.
