CM 3222 Series 632 1/2 Ton 4"-12" I-Beam Push Beam Trolley
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

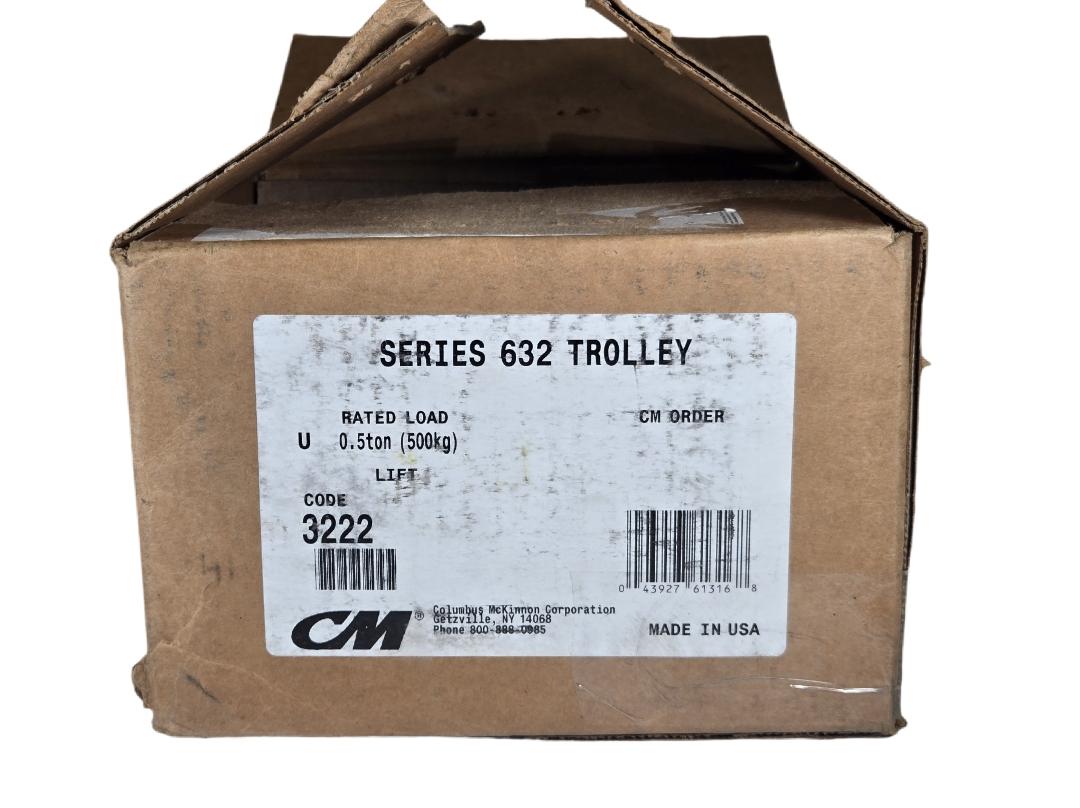

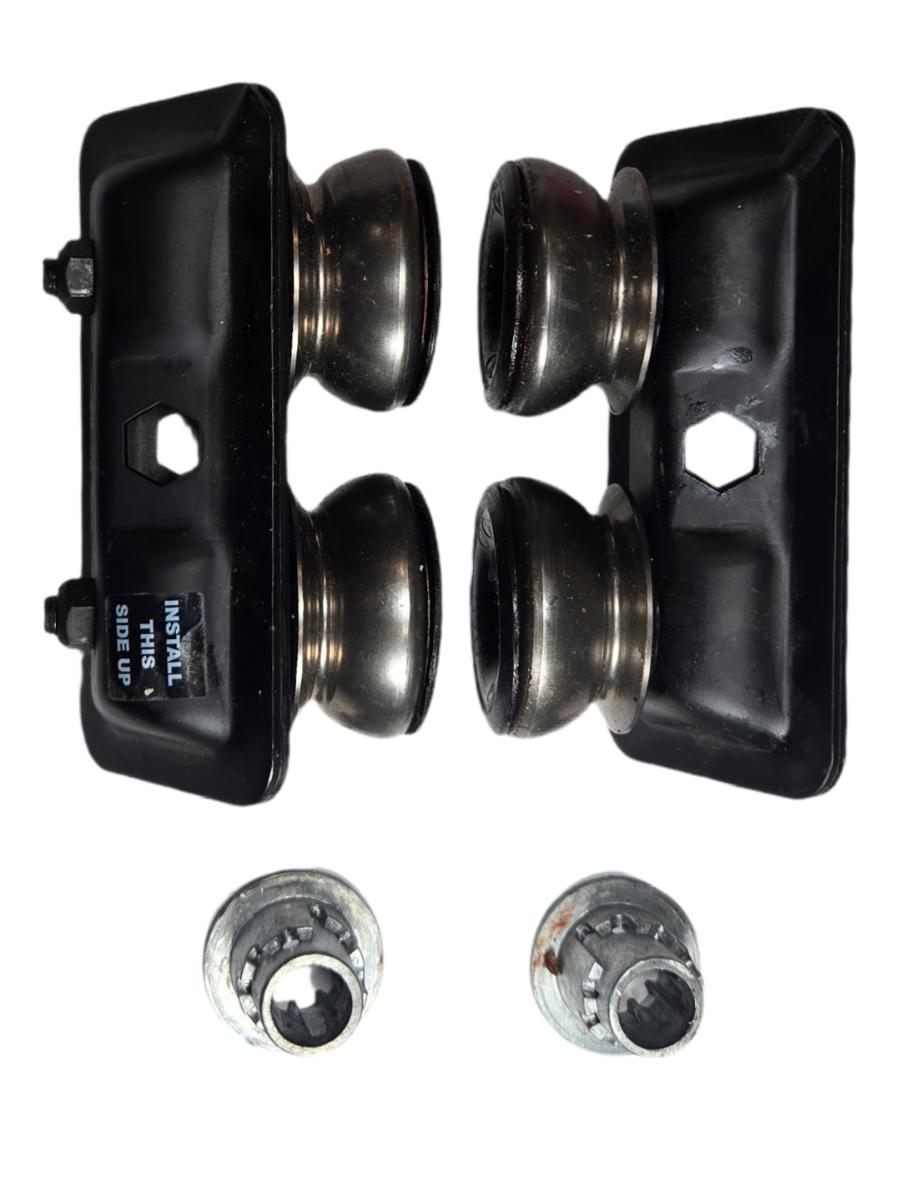

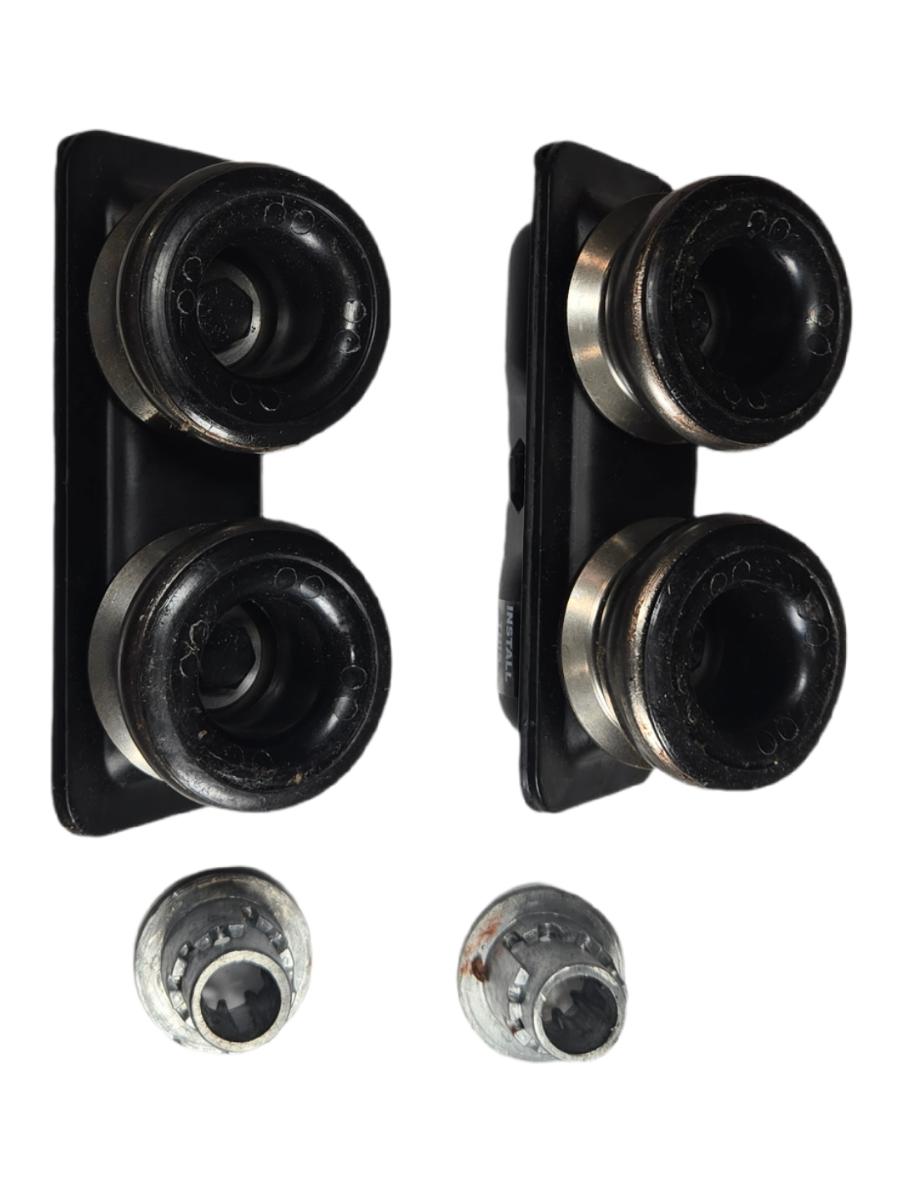

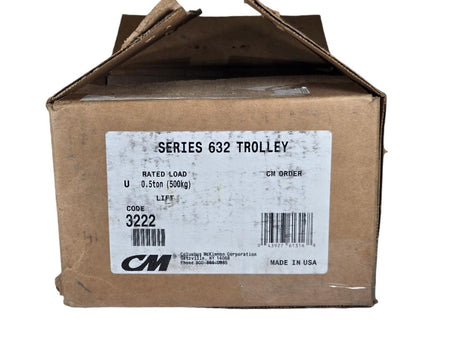

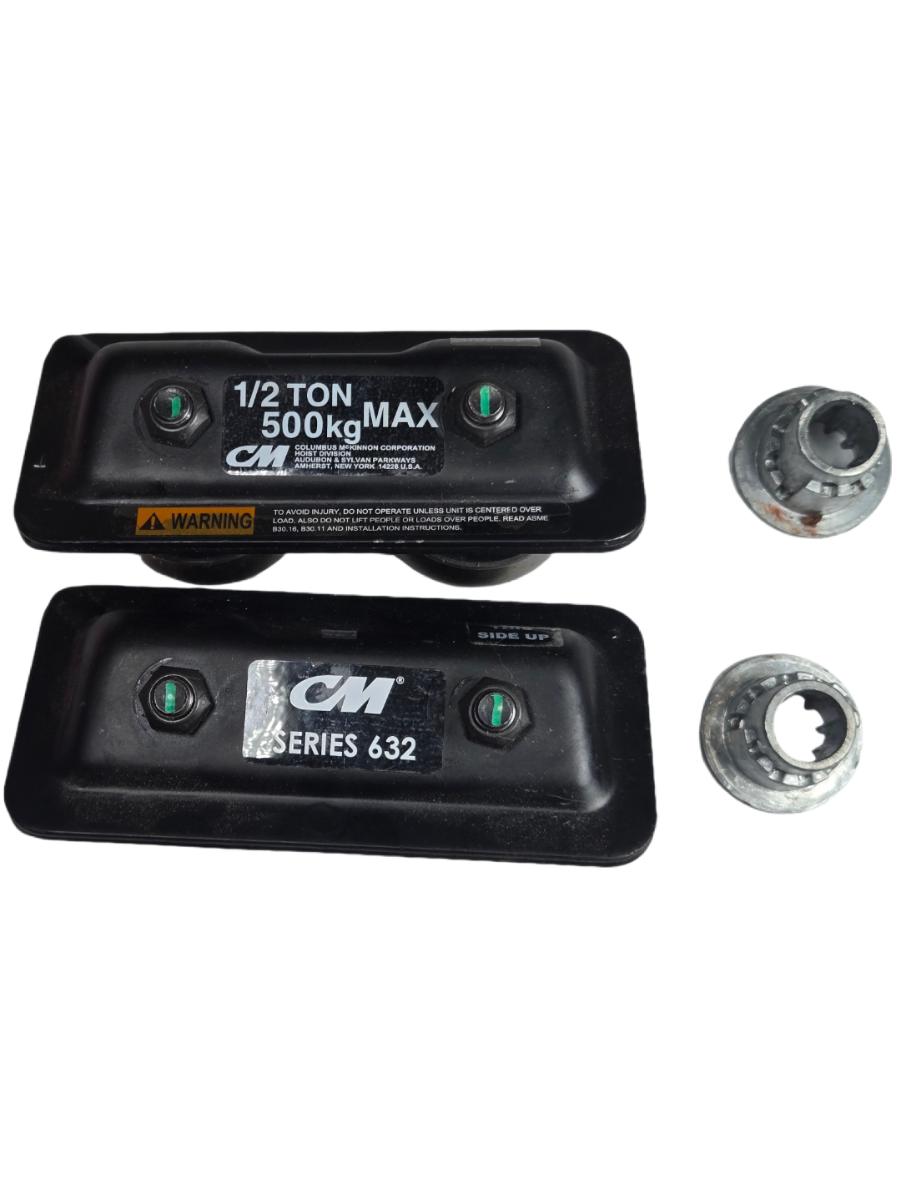

This is a Columbus McKinnon (CM) Series 632 Low Headroom Push Beam Trolley, model code 3222, rated at 1/2 ton (500 kg) capacity, manufactured in the USA and listed in new-other condition in original CM packaging. The trolley features four ball-bearing wheels with 2-3/4" diameter steel wheels that ride directly on the bottom flange of a standard I-beam, accommodating flange widths from 2-5/8" to 5-1/16" and compatible with 4" to 12" I-beams with a minimum 7" radius curve. The low headroom design minimizes the distance between the beam and the hook, making it well-suited for facilities with limited vertical clearance; the adjustable side plates (visible in photos with hex-head adjustment hardware) allow field adjustment to fit the beam flange width without special tooling. Each trolley includes two tapered flange-retention nuts (visible as separate components in photos) and is labeled per ASME B30.16 and B30.11 standards.
Product Specifications
| Manufacturer | Columbus McKinnon Corporation (CM) |
| Model / Series | Series 632 |
| CM Code / Model Number | 3222 |
| Rated Load Capacity | 0.5 ton (500 kg) |
| Trolley Type | Low Headroom Push Beam Trolley |
| Wheel Type | Ball bearing |
| Wheel Diameter | 2-3/4 in |
| Number of Wheels | 4 (2 per side) |
| Compatible I-Beam Size Range | 4 in to 12 in |
| Flange Width Range (Adjustable) | 2-5/8 in to 5-1/16 in |
| Minimum Curve Radius | 7 in |
| Applicable Standards | ASME B30.16, ASME B30.11 |
| Country of Origin | USA |
| Condition | New — other (in original CM box) |
| Quantity in Lot | 2 wheel assemblies |
