CM Valustar 2401 1/4 Ton 10 ft Lift 115V Hook Mount Electric Chain Hoist
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

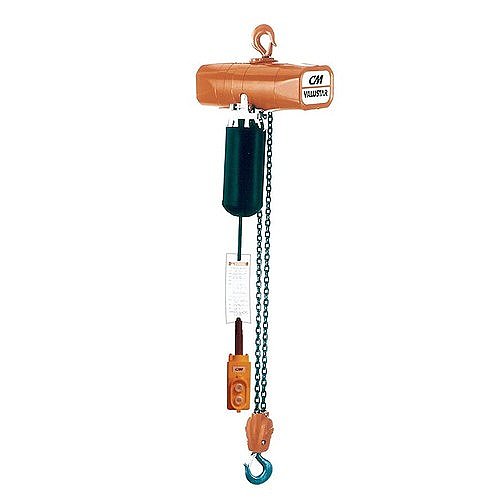

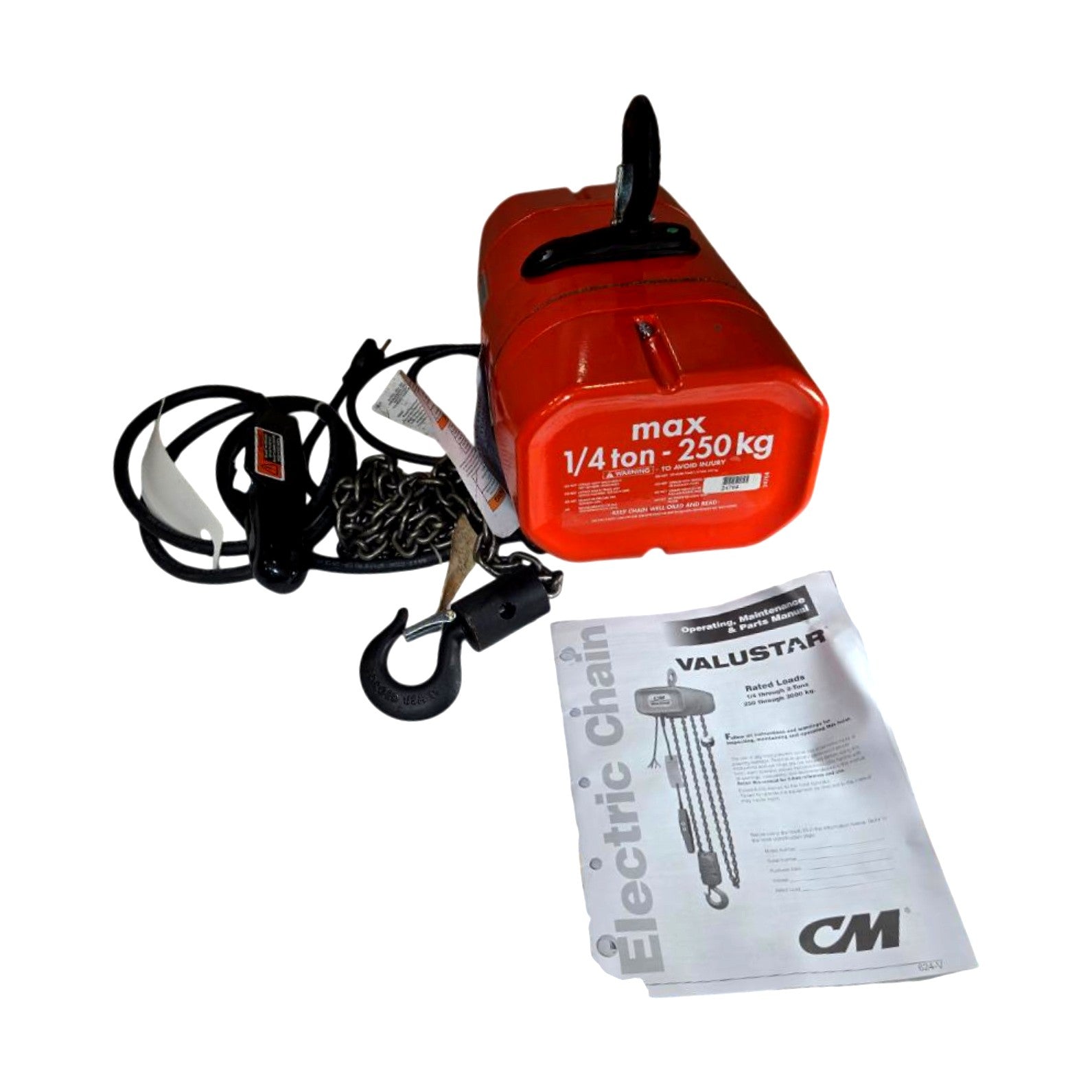

The Columbus McKinnon (CM) Valustar Model WB (Code 2401) is a new, single-phase electric chain hoist rated for 1/4 ton (250 kg / 500 lb) with a 10 ft (3 m) lift height and hook mount suspension. Power supply is 110–120V / 1-phase / 60 Hz, drawing 7.7 amps from a 1/2 HP (0.37 kW) motor, with a lift speed of 16 FPM (4.8 MPM). The unit weighs 27.7 kg (61 lb) and is manufactured in the USA at Columbus McKinnon Corp., Getzville, NY; it ships with the load chain, hook block with safety latch, pendant push-button control, and the factory operating/maintenance/parts manual. The Valustar line is designed for light-duty industrial and commercial lifting applications where a compact, affordable single-reeved chain hoist on standard I-beam or hook-mount trolley is required — the hook suspension allows direct mounting from a fixed structural hook or integrated with a compatible CM push or geared trolley.
Product Specifications
| Brand | Columbus McKinnon (CM) |
| Product Line | Valustar |
| Model | WB |
| Code / Catalog # | 2401 |
| Rated Load Capacity | 1/4 ton (250 kg / 500 lb) |
| Lift Height | 10 ft (3 m) |
| Lift Speed | 16 FPM (4.8 MPM) |
| Power Supply | 110-120V / 1-phase / 60 Hz |
| Motor Horsepower | 1/2 HP (0.37 kW) |
| Amperage Draw | 7.7 A |
| Suspension Type | Hook mount |
| Reeving | Single |
| Hoist Unit Weight | 27.7 kg (61 lb) |
| Condition | New |
| Country of Origin | USA |
| Manufacture Date | 2024/01 |
