Cox Reels PC10-3012-B 30ft 12AWG SJO 20A 115V Retractable Cord Reel
Regular price
$523.44
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

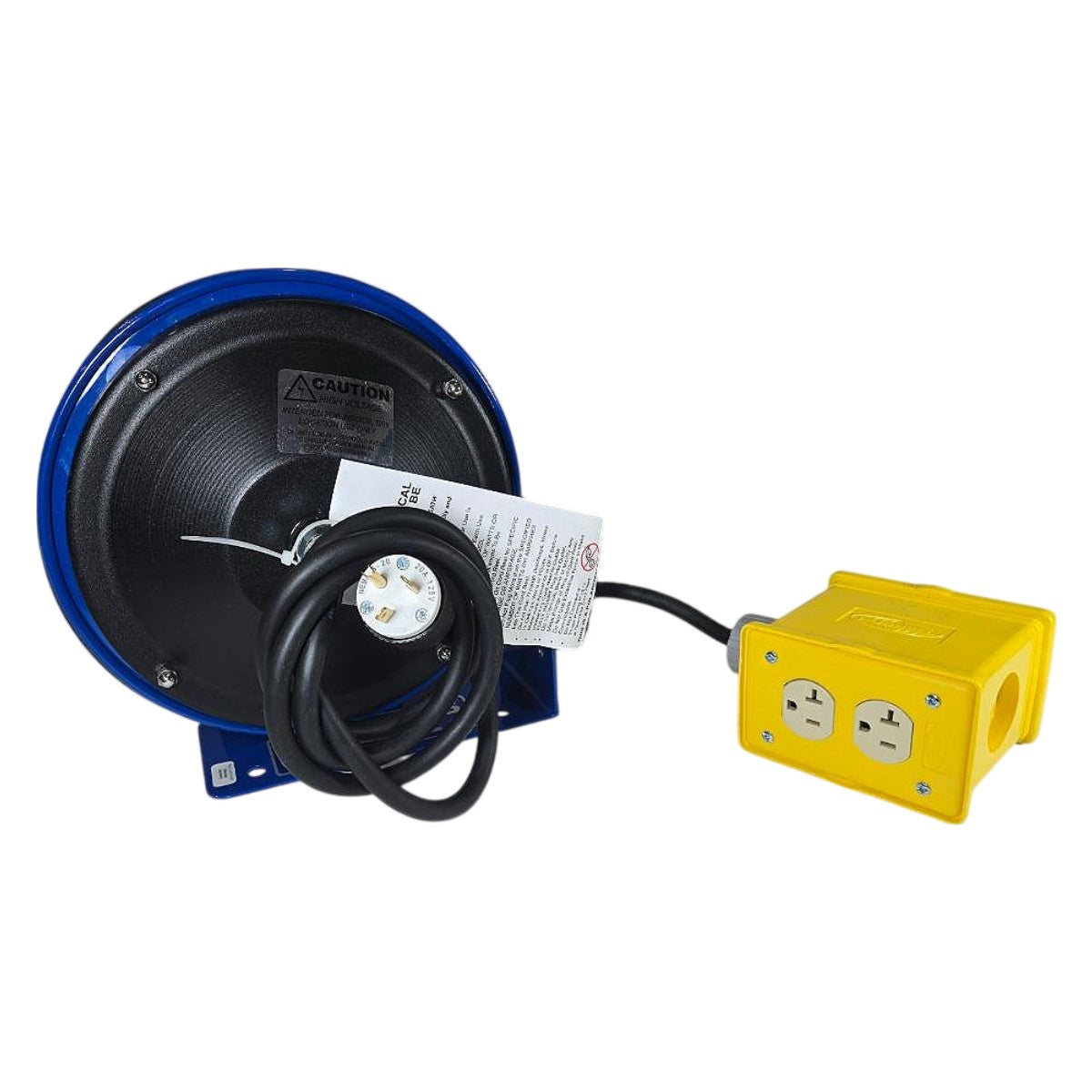

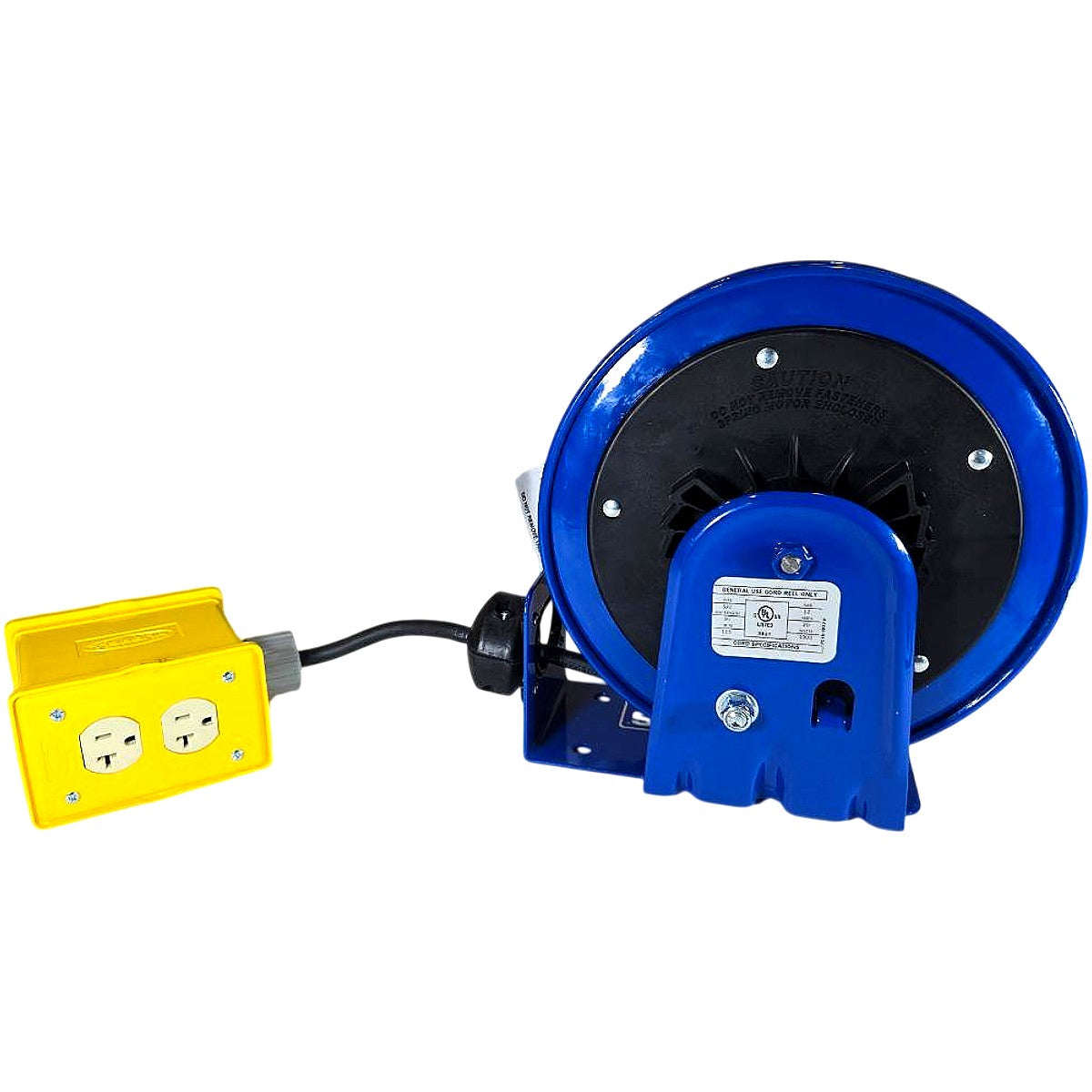

The Cox Reels PC10-3012-B is a spring-driven retractable extension cord reel holding 30 ft of 12 AWG SJO cord, rated 20 A at 115 V (2300 W) and listed as a general use cord reel. The cord terminates in a yellow quad box with two 20 A duplex receptacles (5-20R) and the supply end has a 5-20P NEMA 20 A 125 V plug. The reel has a blue powder-coated steel frame with a black housing and a ratchet lock that holds the cord at the desired length, and a bracket base with mounting holes for fixed installation. It is UL Listed (c-UL-us) with CE marking and made in the USA by Cox Reels. This unit is new and ships in its original carton.
Product Specifications
| Brand | Cox Reels |
| Manufacturer Part Number | PC10-3012-B |
| Cord Length | 30 ft |
| Wire Gauge | 12 AWG |
| Cord Type | SJO |
| Amperage | 20 A |
| Voltage | 115 V |
| Wattage | 2300 W |
| Color | Blue |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Outlet Box | Yellow Quad Box, 2 Duplex Receptacles |
| Number of Outlets | 4 |
| Retraction Type | Spring Driven, Ratchet Lock |
| Reel Type | Retractable |
| Mounting | Bracket Base w/ Mounting Holes |
| Frame Material | Steel, Powder-Coated |
| Series | PC10 |

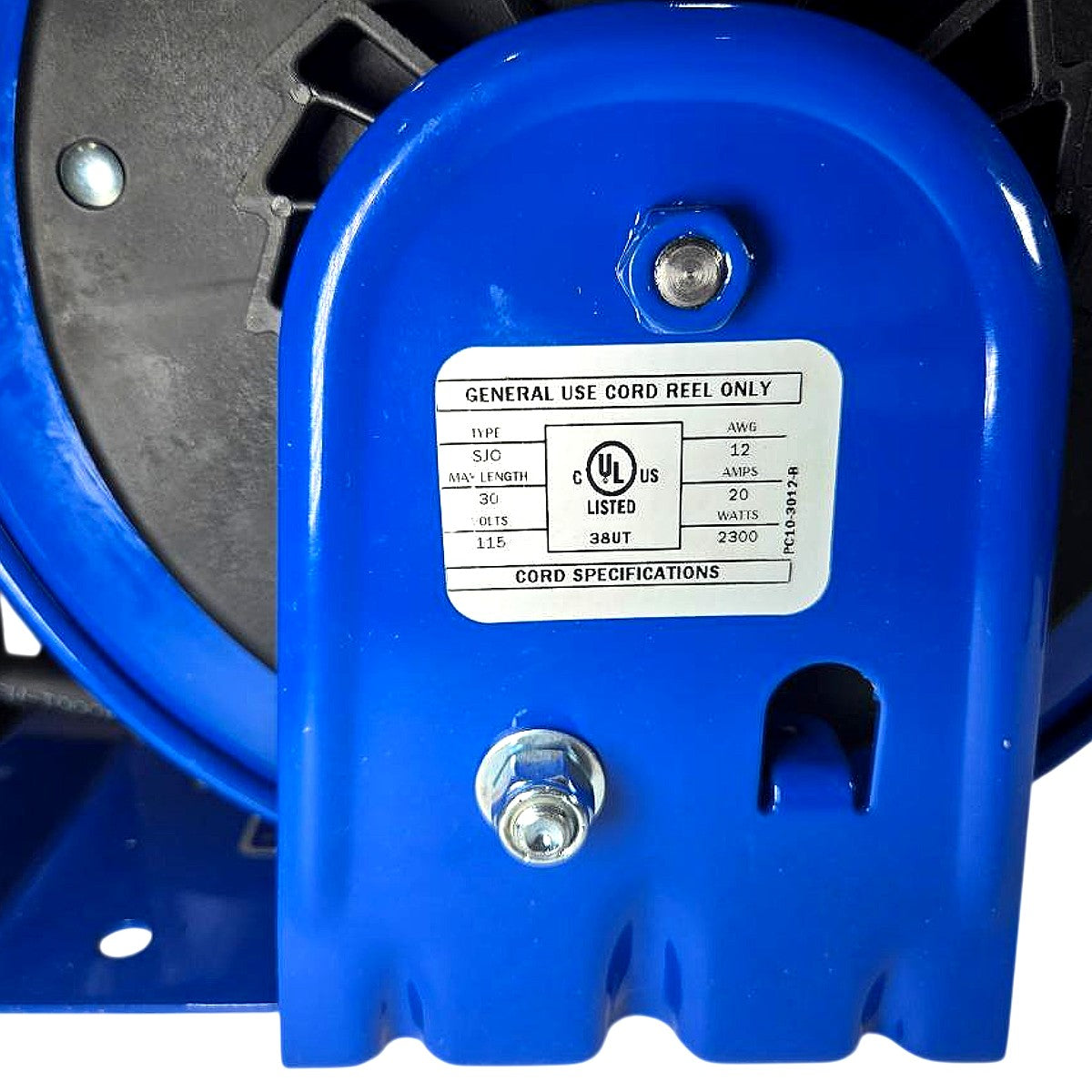

| Certification | UL Listed (c-UL-us), CE |
| UL File Number | 38UT |
| Application | General Use |
| Country of Origin | USA |
| Warranty | 2 Year |
| UPC | 067425592444 |
