Craig Tool 42R-5 5/16" Carbide Port Contour Reamer 5/16 Tube 1/2-20 Thread
Regular price
$375.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

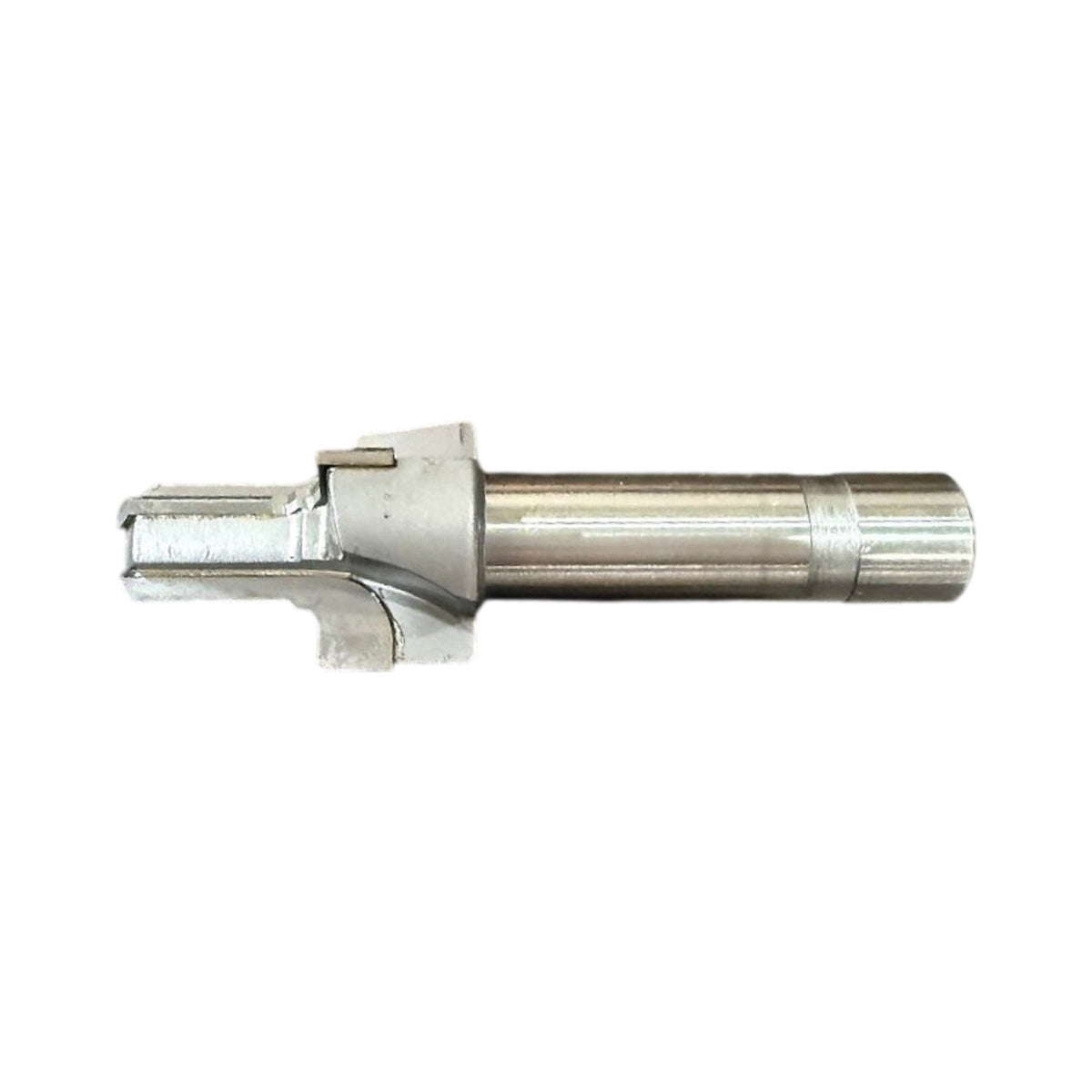

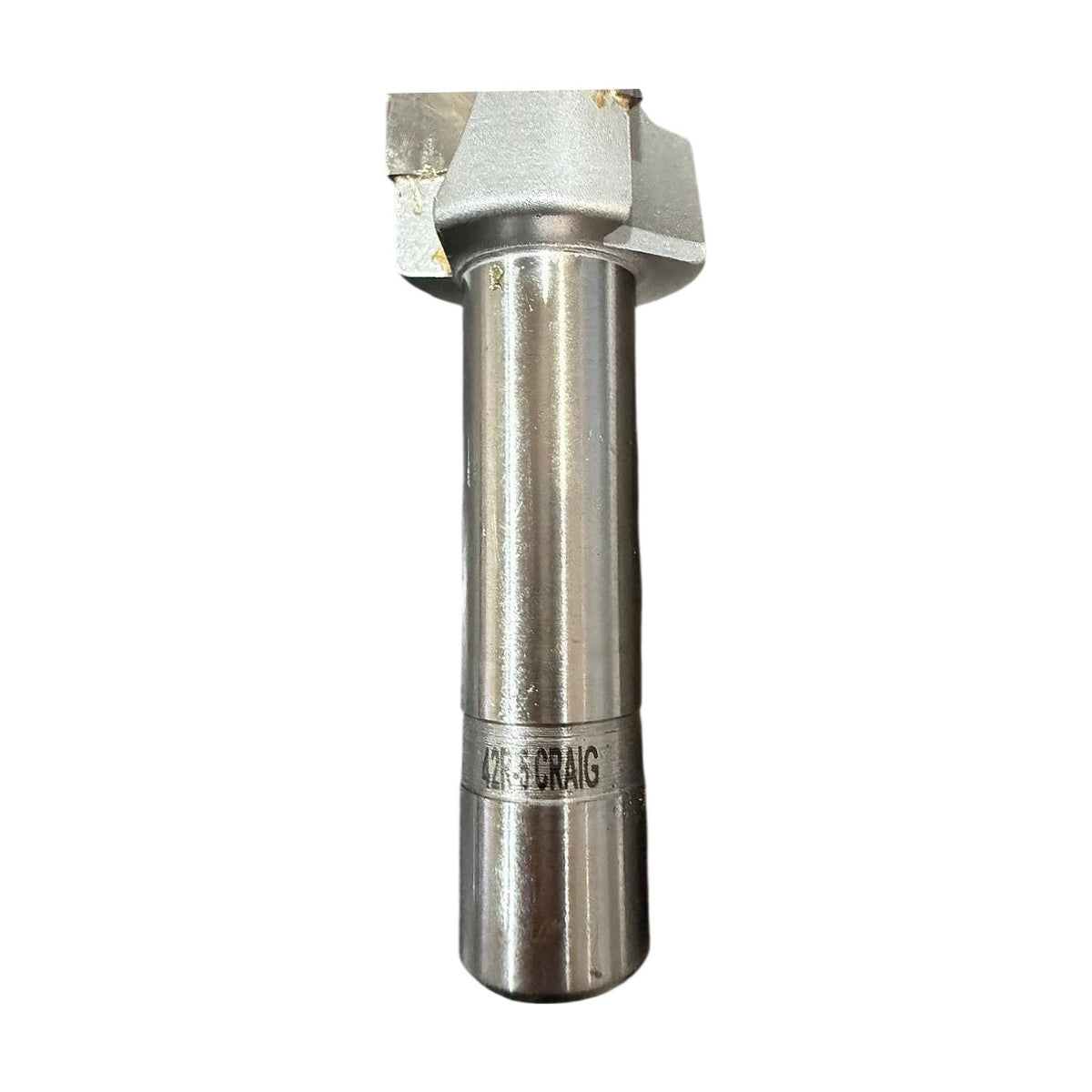

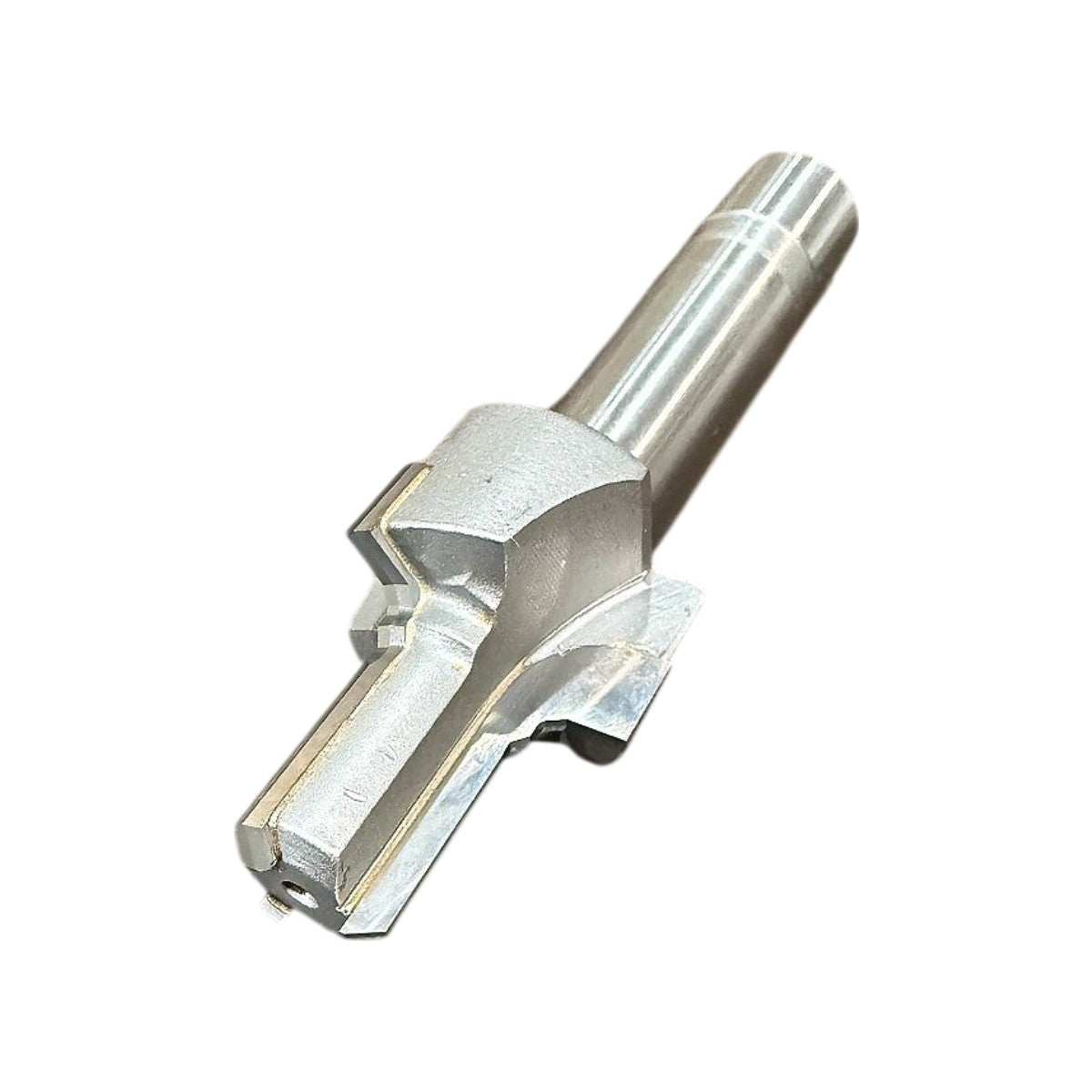

This Craig Tool 42R-5 is a carbide-tipped port contour reamer for finishing SAE straight-thread O-ring ports sized for 5/16 in tube with a 1/2-20 thread. It cuts the port contour in a single pass, producing the spot face, chamfer and O-ring sealing seat for hydraulic port fittings. The straight round shank is laser-marked 42R-5 CRAIG and chucks in a standard collet or drill chuck. It is used on hydraulic manifolds, valve bodies and fluid-power blocks. This item is new.
Product Specifications
| Brand | Craig Tool |
| Manufacturer Part Number | 42R-5 |
| Thread Size | 1/2-20 |
| Tube Size | 5/16 in |
| Port Type | SAE Straight Thread O-Ring Port |
| SAE Dash Size | -5 |
| Cutting Material | Carbide |
| Cutting Edge Type | Carbide Tipped |
| Operation | Port Contouring, Reaming |
| Shank Type | Straight Round |
| Finish | Uncoated |
| Flutes | 4 |
