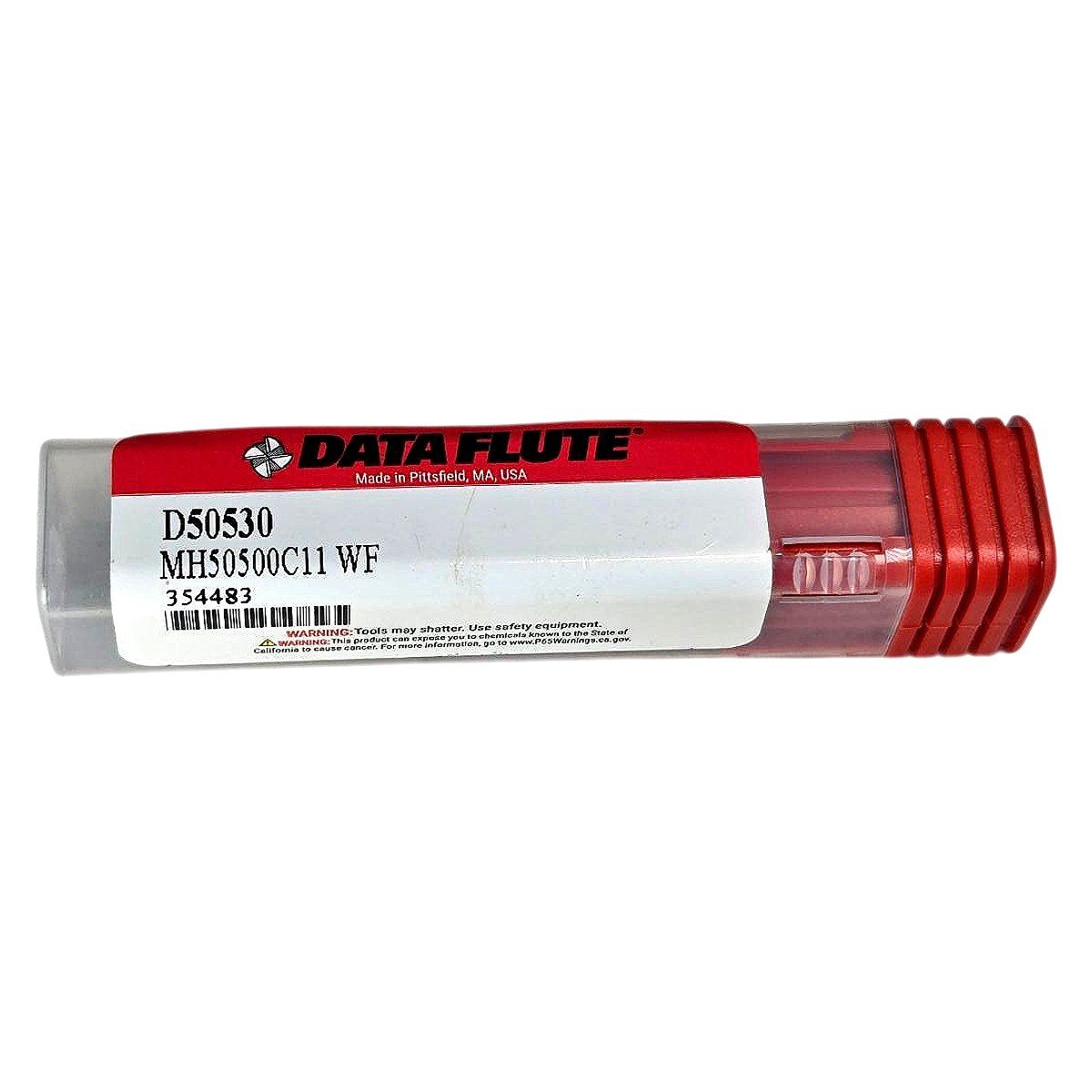

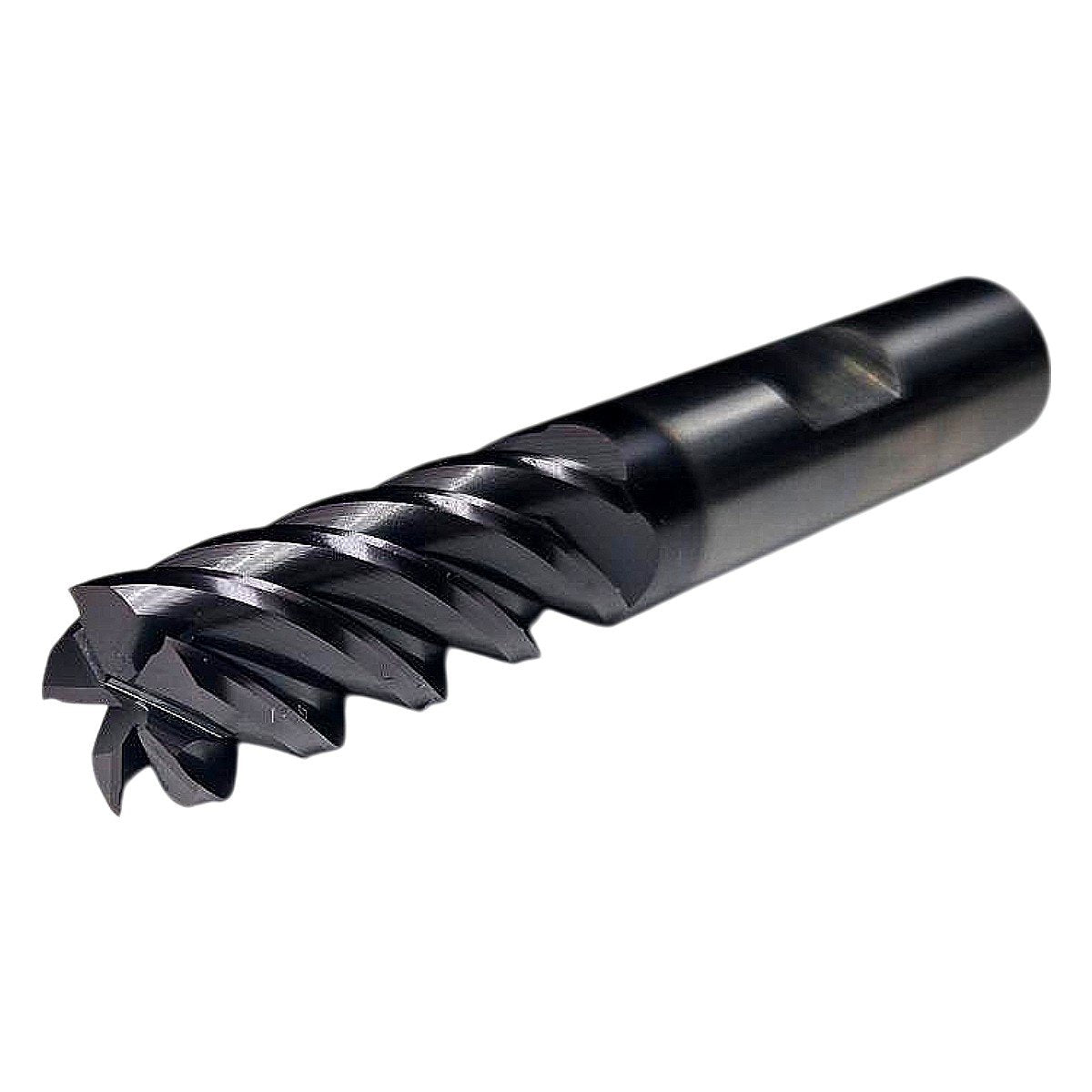

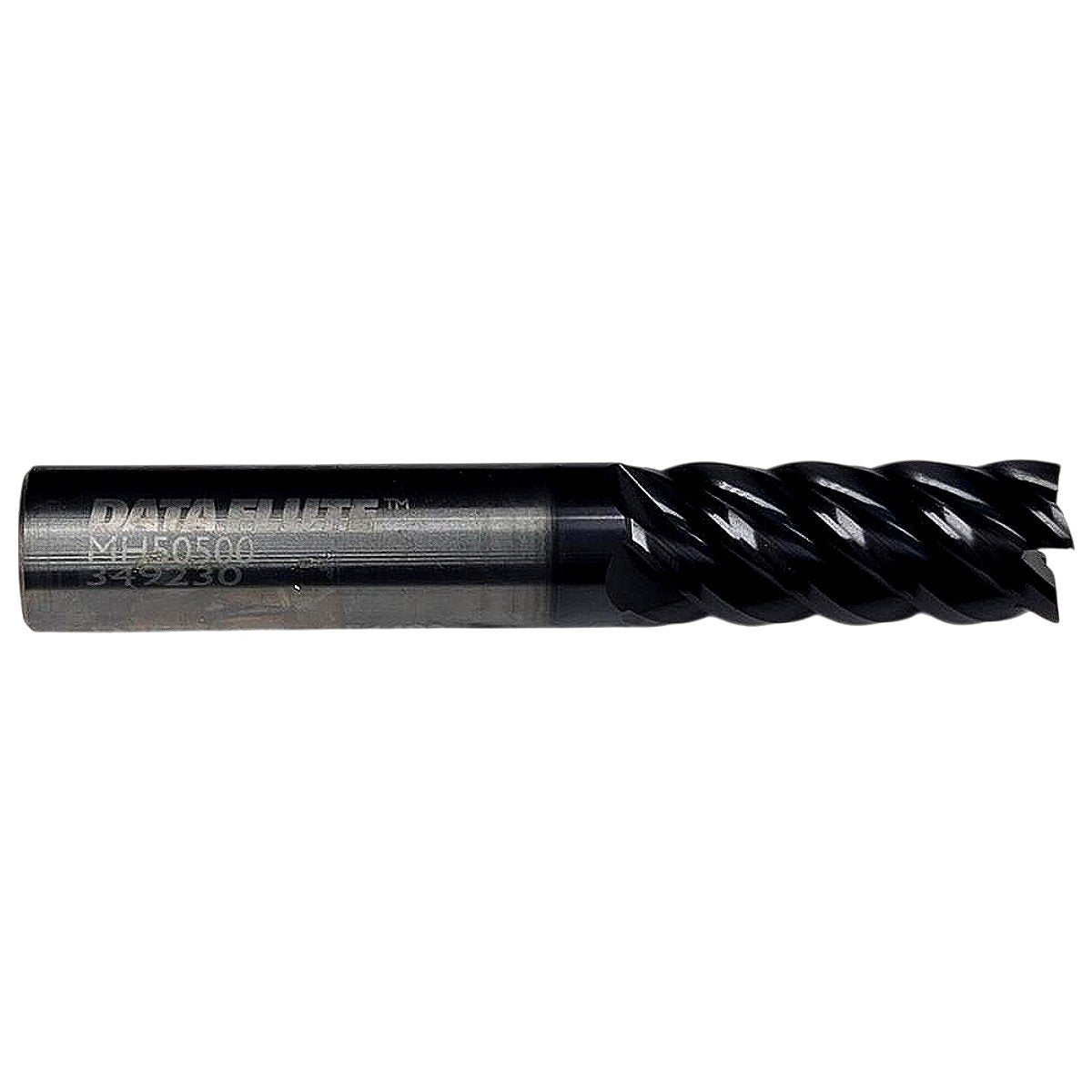

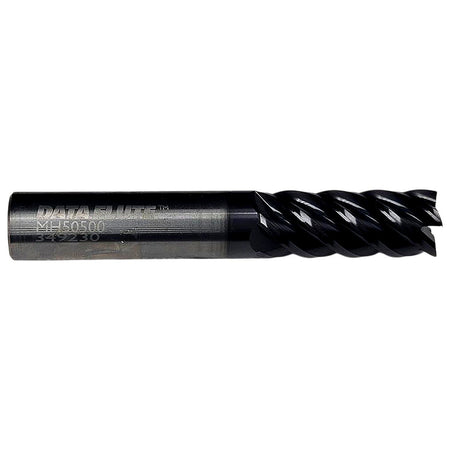

The Data Flute MH50500C11 WF (catalog number D50530) is a solid carbide, 5-flute, variable-helix end mill in the MH (Multi-Helix) series, ground to a 1/2 in cutting diameter with a 1/2 in shank diameter, 1-1/4 in length of cut, and 3 in overall length. The Weldon flat (WF) on the shank provides positive anti-pullout engagement with set-screw style toolholders, making it reliable for aggressive material removal in steel, stainless steel, titanium, and other ferrous alloys. The tool carries a dark Physical Vapor Deposition (PVD) black coating — visible across all product photos — which reduces friction, improves wear resistance, and extends tool life in demanding milling operations. The "C11" suffix in the part number designates a center-cutting geometry with 11° helix variation (variable helix), which suppresses chatter and enables high-efficiency milling (HEM) and trochoidal toolpath strategies. Manufactured in Pittsfield, MA, USA by Data Flute and supplied new in the original sealed tube with factory label intact.
Product Specifications
| Brand | Data Flute |
| MPN | MH50500C11 WF |
| Catalog Number | D50530 |
| Series | MH (Multi-Helix) |
| Cutting Diameter | 1/2 in (0.500 in) |
| Shank Diameter | 1/2 in (0.500 in) |
| Length of Cut (LOC) | 1-1/4 in (1.250 in) |
| Overall Length (OAL) | 3 in |
| Number of Flutes | 5 |
| Helix Type | Variable helix |
| End Geometry | Center cutting, square end |
| Shank Style | Weldon flat (WF) |
| Material | Solid carbide |
| Coating | PVD black (dark nitride-type) |
| Country of Origin | USA (Pittsfield, MA) |
| Condition | New |
