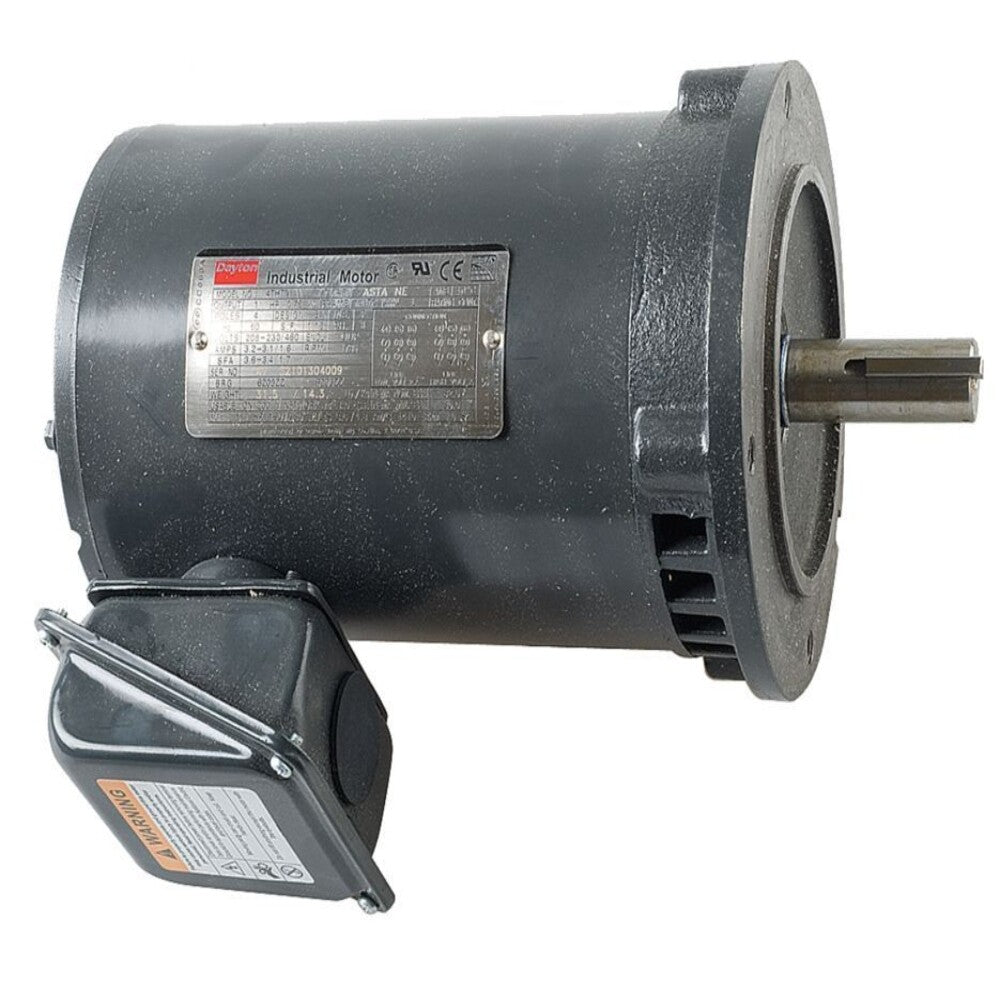

Home » Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -
Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -0
Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -1
Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -0
Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -1
Dayton

Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM -

Only 3 left
SKU: 1001e83G
$160.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

AC Motor Type Does Not Apply
Enclosure Type ODP (Open Drip-Proof)
NEMA Frame Suffix B
AC Frequency Rating 60 Hz
Current Type AC
DC Stator/Winding Type Does Not Apply
AC Phase Three Phase
IEC Frame Size 56C
MPN 11W330
Shaft Diameter 5/8 in
Rated Load (HP) 1/4
Special Motor Construction General Purpose
Brand Dayton
Nominal Rated Input Voltage 208-230/460 V
Service Factor 1.15

Dayton 11W330 General Purpose Motor 1/4HP 208-230/460V 3-Phase 56C 3460 RPM

DaytonGeneral Purpose MotorMotor Application: General ApplicationMotor Design: 3-PhaseMotor Enclosure Design: Open DripproofHP: 1/4Nameplate RPM: 3460Frame: 56CVoltage: 208-230/460Hz: 60Phase: 3Full Load Amps: 0.80-0.80/0.40No. of Speeds: 1Motor Mounting Type: FaceMotor Mounting Position: All AngleMotor Thermal Protection: NoneIns. Class: FMotor Service Factor: 1.15Motor Bearings: BallFrame Material: SteelMax. Ambient Temp.: 40 Degrees CMotor Shaft Rotation: CW/CCWShaft Dia.: 5/8"Shaft Length: 1-7/8"Length Less Shaft: 6-15/16"Overall Length: 8-13/16"Motor Shaft Design: KeyedRPM Range: 3001-3600Standards: UL, CSA, CEDuty: ContinuousMotor Efficiency Group: Premium EfficientNominal Efficiency: 72.0RPM Group: 3001-3600Model: 11W330WE STAND BEHIND OUR PRODUCTS SO PLEASE FEEL FREE TO CHOOSE (CONTACT SELLER) FROM DROP DOWN BOX AND THEN CHOOSE (MESSAGE SELLER) IF YOU ENCOUNTER ANY ISSUES. ALL OTHER OPTIONS AFFECT OUR SELLER RATING SO WE WILL WORK QUICKLY TO RESOLVE ALL MATTERS TO YOUR SATISFACTION.
Dayton

General Purpose Motor

Motor Application: General Application
Motor Design: 3-Phase
Motor Enclosure Design: Open Dripproof
HP: 1/4
Nameplate RPM: 3460
Frame: 56C
Voltage: 208-230/460
Hz: 60
Phase: 3
Full Load Amps: 0.80-0.80/0.40
No. of Speeds: 1
Motor Mounting Type: Face
Motor Mounting Position: All Angle
Motor Thermal Protection: None
Ins. Class: F
Motor Service Factor: 1.15
Motor Bearings: Ball
Frame Material: Steel
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CW/CCW
Shaft Dia.: 5/8"
Shaft Length: 1-7/8"
Length Less Shaft: 6-15/16"
Overall Length: 8-13/16"
Motor Shaft Design: Keyed
RPM Range: 3001-3600
Standards: UL, CSA, CE
Duty: Continuous
Motor Efficiency Group: Premium Efficient
Nominal Efficiency: 72.0
RPM Group: 3001-3600

Model: 11W330
