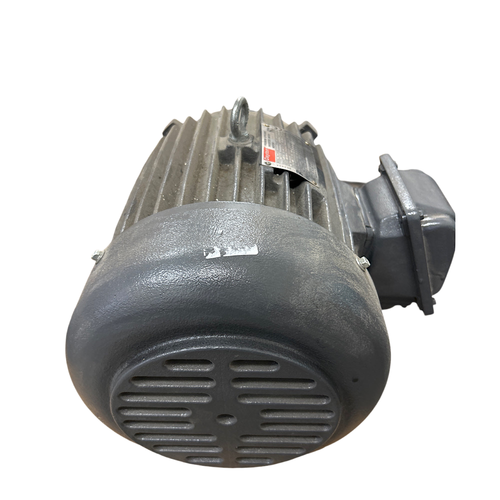

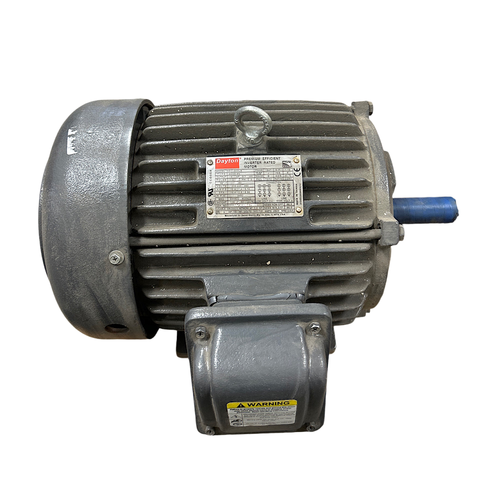

Dayton 2MXU6 5HP 3PH 3500 RPM 230/460V 12/6A 60 Hz General Purpose Motor -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | Dayton |
| MPN | 2MXU6 |
| Rated Load (HP) | 5 |
| Current Type | AC |
| Nominal Rated Input Voltage | 230/460V AC |
| AC Phase | 3 |
| Service Factor | 1.15 |
| NEMA Frame Suffix | 184T |
| Shaft Diameter | 1-1/8 in |
| IEC Frame Size | 184T |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Model | General Purpose Motor |
| Phase | Three |
| HP | 5 |
| Nameplate RPM | 3,500 |
| No. of Speeds | 1 |
| Voltage | 230/460V AC |
| Full Load Amps | 12/6.0 A |
| Hz | 60 Hz |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 104 °F |
| Duty Cycle | Continuous |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Shaft Rotation | CW/CCW |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-1/8 in |
| Shaft Length | 2-3/4 in |
| Length Less Shaft | 13-1/16 in |
| Motor Bearings | Ball |
| Overall Length | 16-3/16 in |
| RPM Range | 3,001-3,600 |
Dayton 2MXU6 5HP 3PH 3500 RPM 230/460V 12/6A 60 Hz General Purpose Motor
