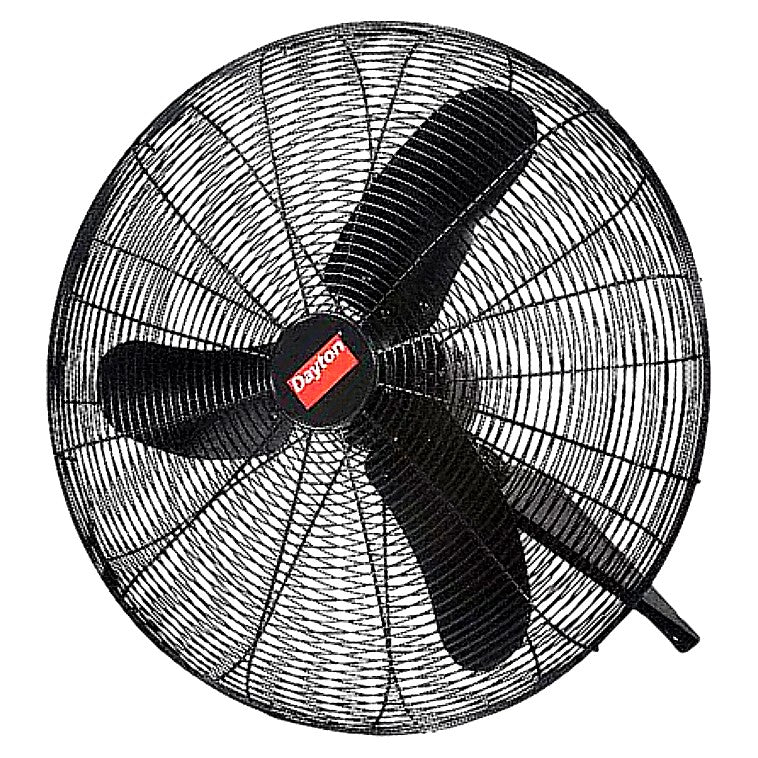

Dayton 2RDZ9 30in 1/4HP 120V Quiet Design Oscillating Wall Mount Fan
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

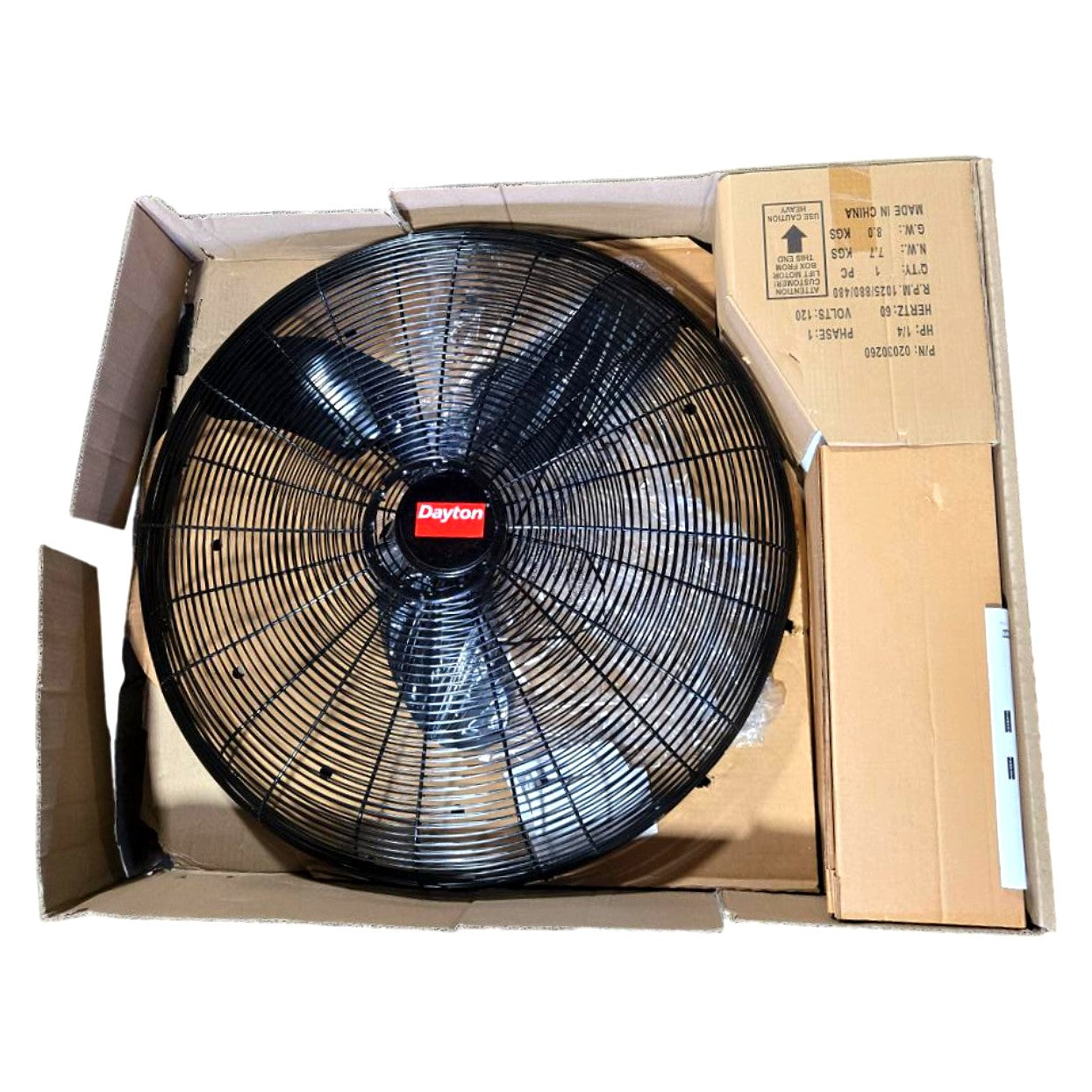

The Dayton 2RDZ9 is a new 30-inch quiet-design oscillating wall-mount fan rated 1/4 HP at 120V AC, 60 Hz, single-phase, designed for sustained industrial and commercial ventilation duty. The fan carries a Type 30P designation and Model 9538 classification, runs at three selectable speeds with RPM settings of 1,025 / 880 / 480, and oscillates to distribute airflow across a wide coverage area — making it well-suited for warehouses, garages, manufacturing floors, gymnasiums, and loading docks. The heavy-gauge steel wire guard and metal blade assembly are finished in black powder coat; the unit is CETL Listed for safety compliance and ships at a gross weight of approximately 8.0 kg (17.6 lbs) as confirmed on the original carton label. Mounting hardware and a wall-mount bracket are included; the unit is assembled in the USA per the original packaging.
Product Specifications
| Brand | Dayton |
| MPN | 2RDZ9 |
| Model | 9538 |
| Fan Type | Oscillating Wall-Mount |
| Blade Diameter | 30 in |
| Motor HP | 1/4 HP |
| Voltage | 120V AC |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed Settings (RPM) | 1025 / 880 / 480 RPM |
| Number of Speeds | 3 |
| Type Code | 30P |
| Mount Type | Wall Mount w/ Bracket |
| Oscillating | Yes |
| Gross Weight | 8.0 kg (17.6 lbs) |
| Net Weight | 7.2 kg (15.9 lbs) |
| Certifications | CETL Listed |
| Color/Finish | Black powder coat |
| Origin | Assembled in USA |
| Condition | New |
