Dayton 3BB88 1/2 HP 120V 111 GPM Submersible Sewage Ejector Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

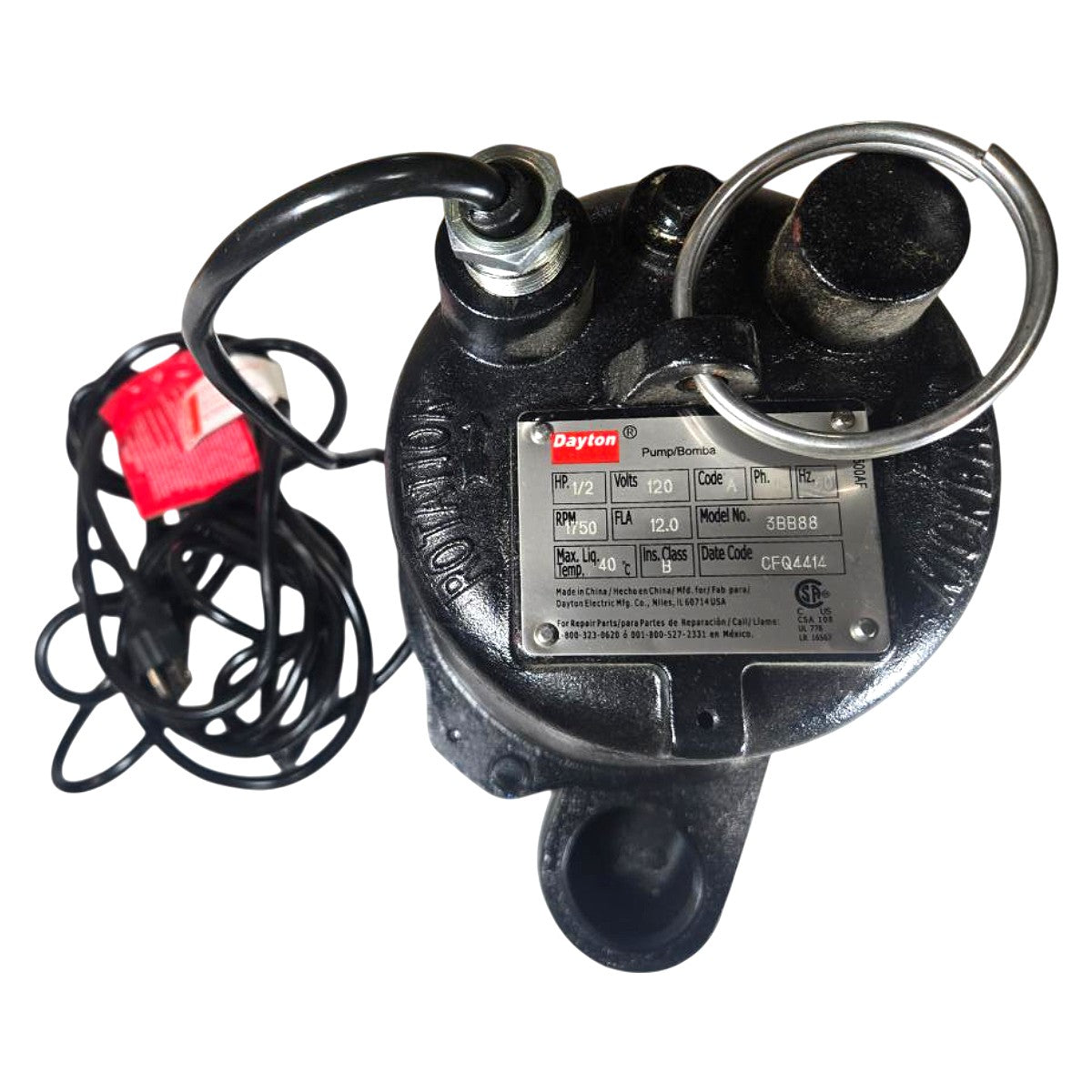

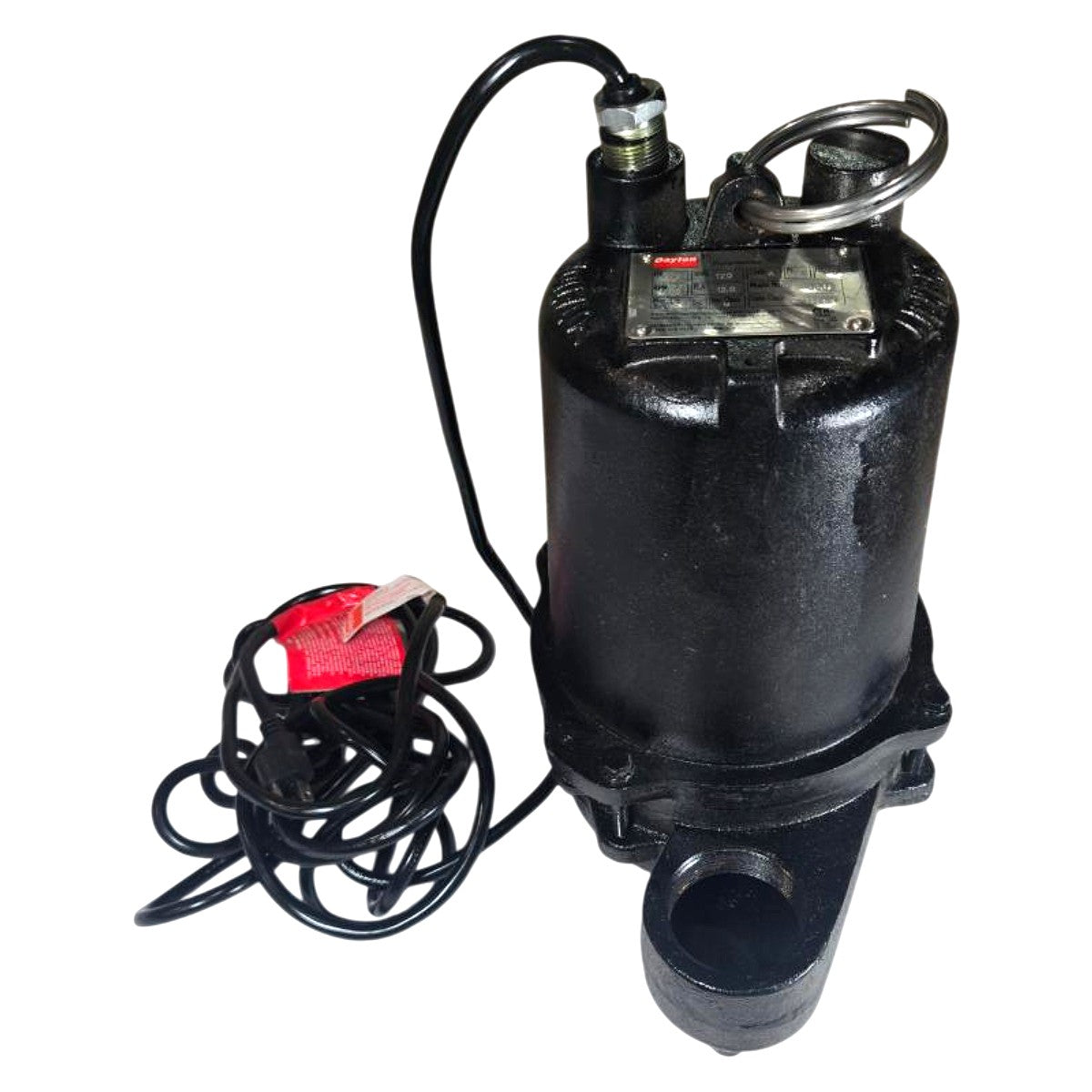

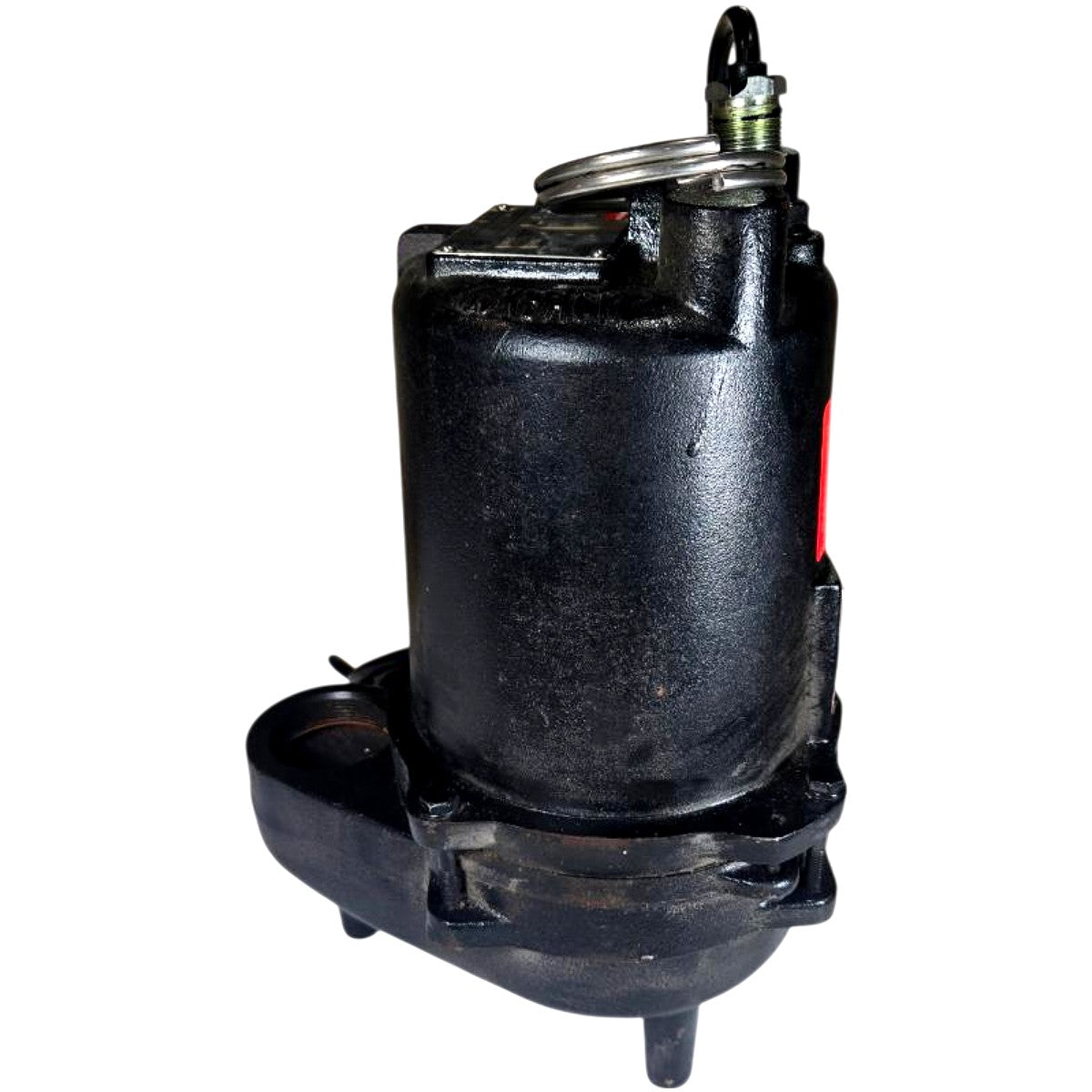

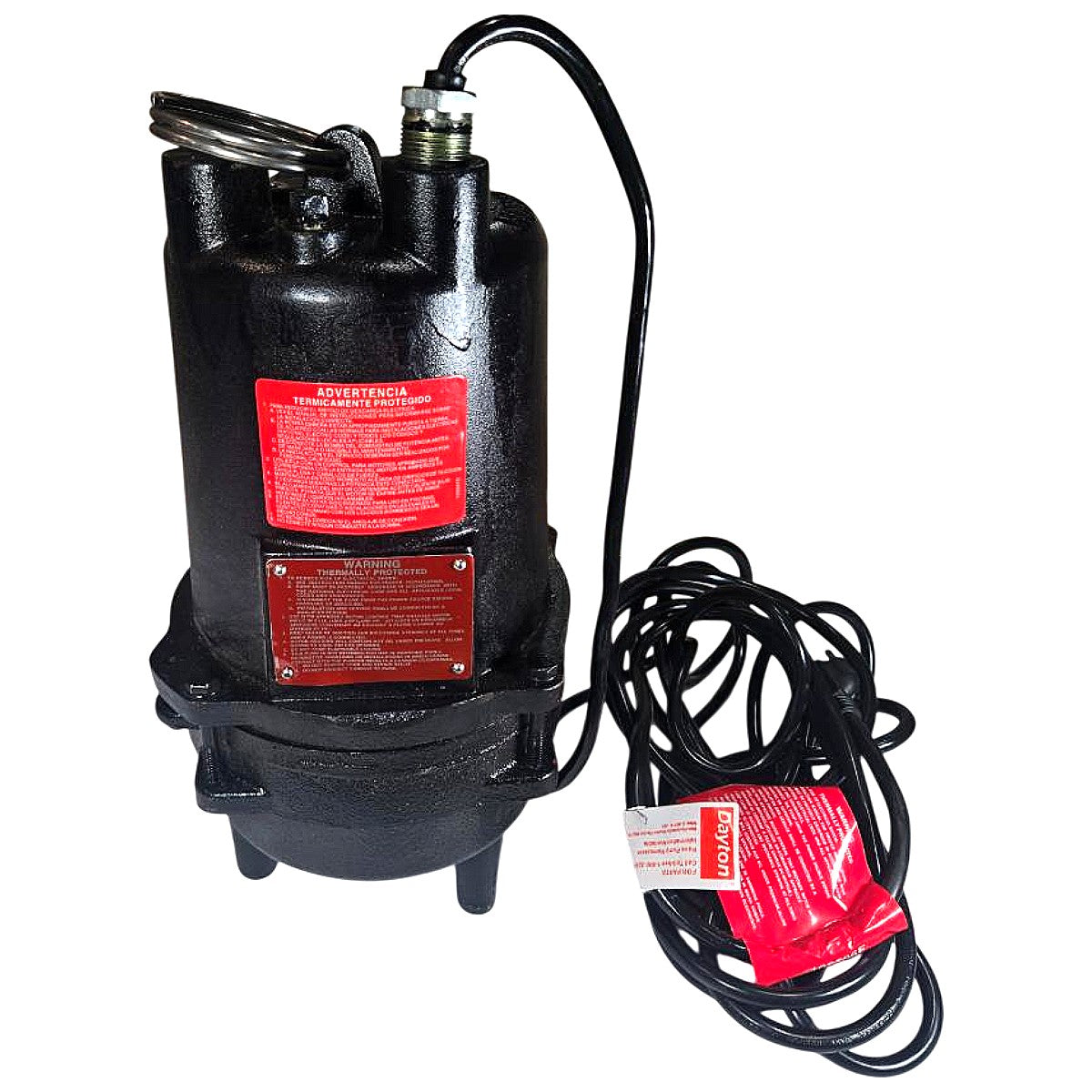

The Dayton 3BB88 is a new 1/2 HP single-phase submersible sewage ejector pump rated at 120V AC with a full-load amperage of 12.0A at 1,750 RPM, as confirmed directly from the nameplate visible in the photos. The cast iron volute and motor housing provide durability in demanding wastewater applications, and the pump is thermally protected with an insulation class B motor capable of handling liquids up to 40°C. Discharge is through a 2 in NPT side outlet, and the pump delivers 111 GPM at 10 ft of head, making it suited for residential and light commercial sewage ejector pit installations. The unit includes a stainless steel lifting bail and ships with warning documentation; CSA and UL listed per nameplate markings.
Product Specifications
| Brand | Dayton |
| Model Number | 3BB88 |
| Pump Type | Submersible Sewage Ejector |
| Horsepower | 1/2 HP |
| Voltage | 120V AC |
| Phase | Single Phase |
| Full Load Amps (FLA) | 12.0 A |
| Speed | 1,750 RPM |
| Flow Rate | 111 GPM @ 10 ft of head |
| Discharge Size | 2 in NPT |
| Motor Insulation Class | Class B |
| Max Liquid Temperature | 40°C (104°F) |
| Housing Material | Cast Iron |
| Thermal Protection | Yes |
| Certifications | CSA, UL Listed |
| Condition | New |
