Dayton 4LE18 2HP 3-Phase 200-240V Submersible Sewage Ejector Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

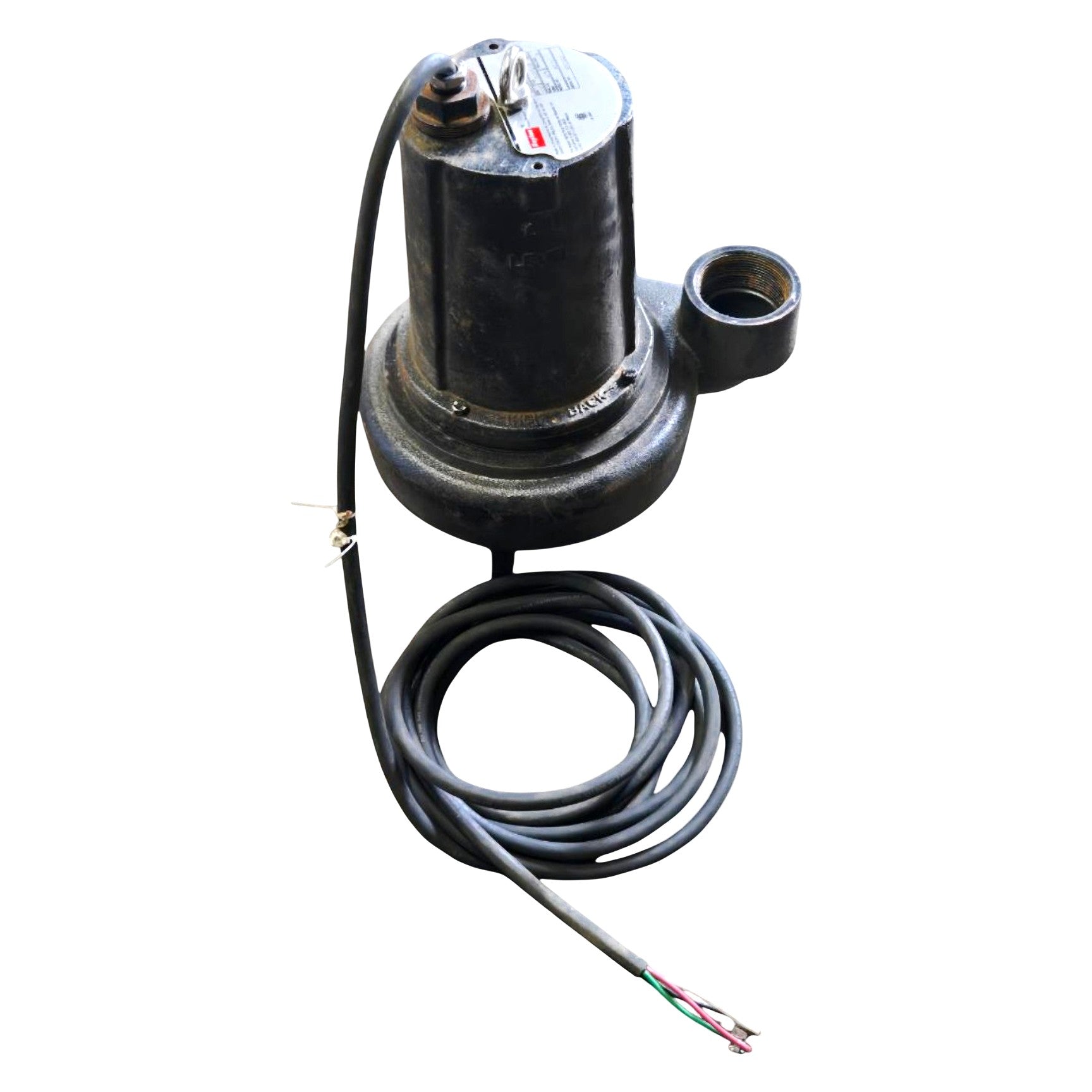

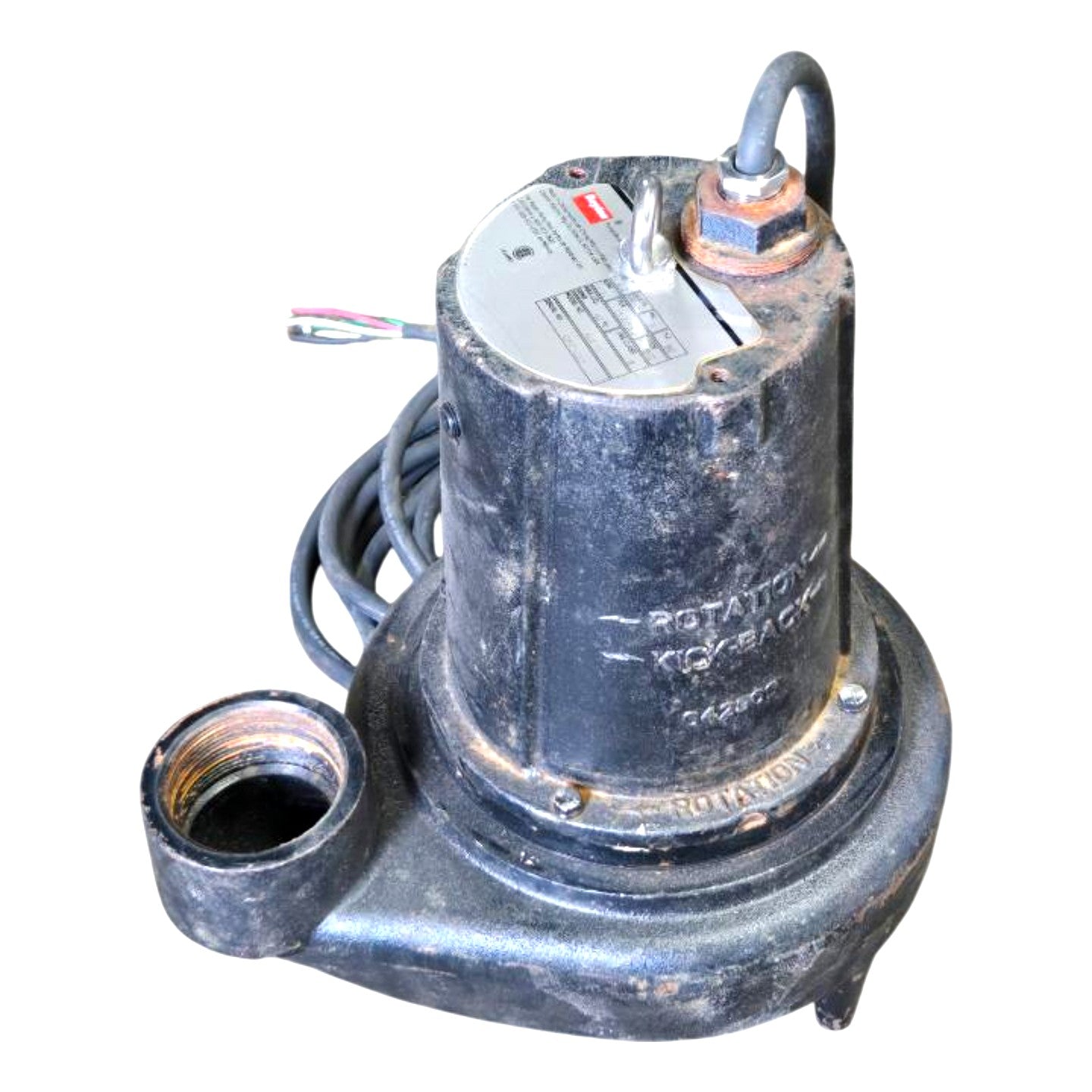

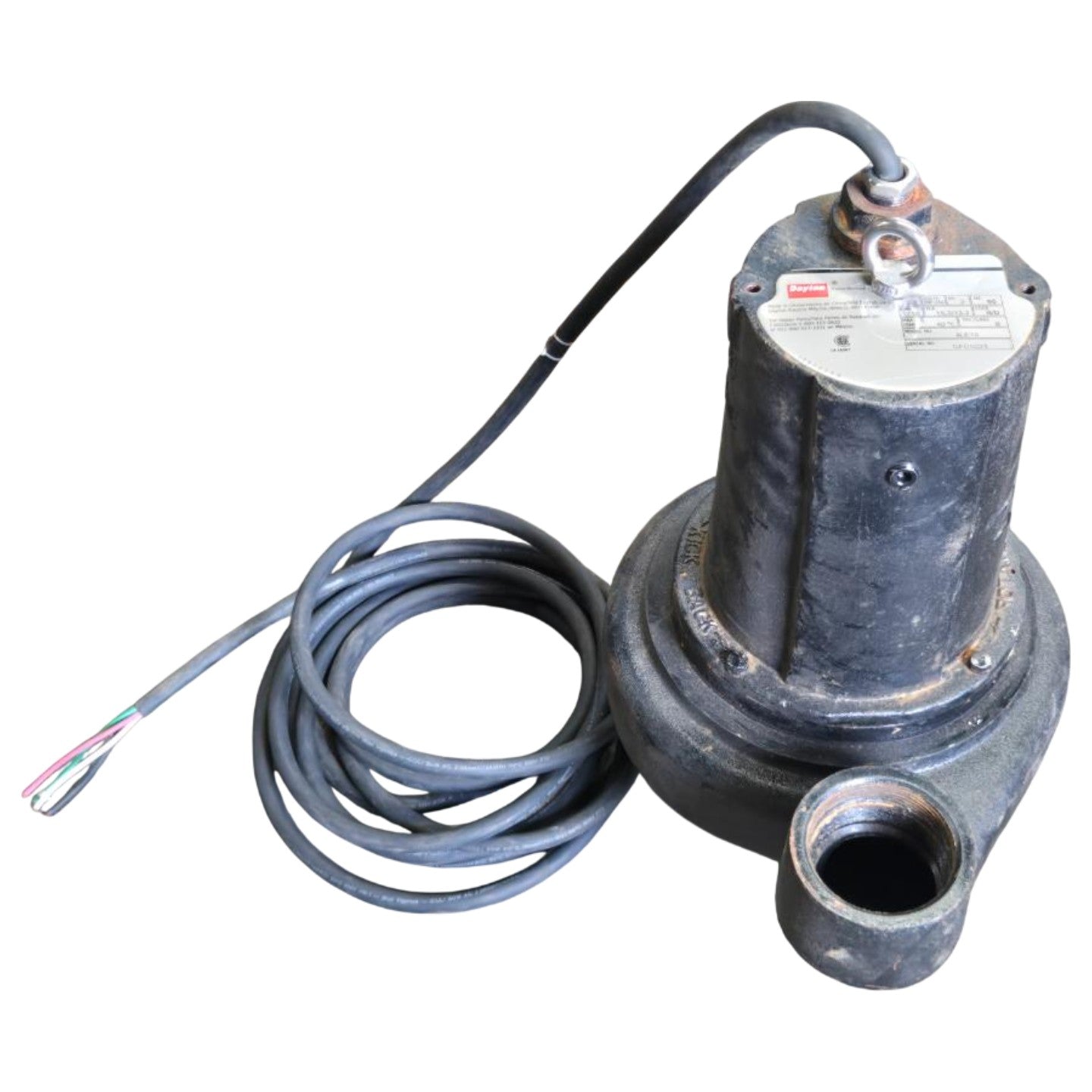

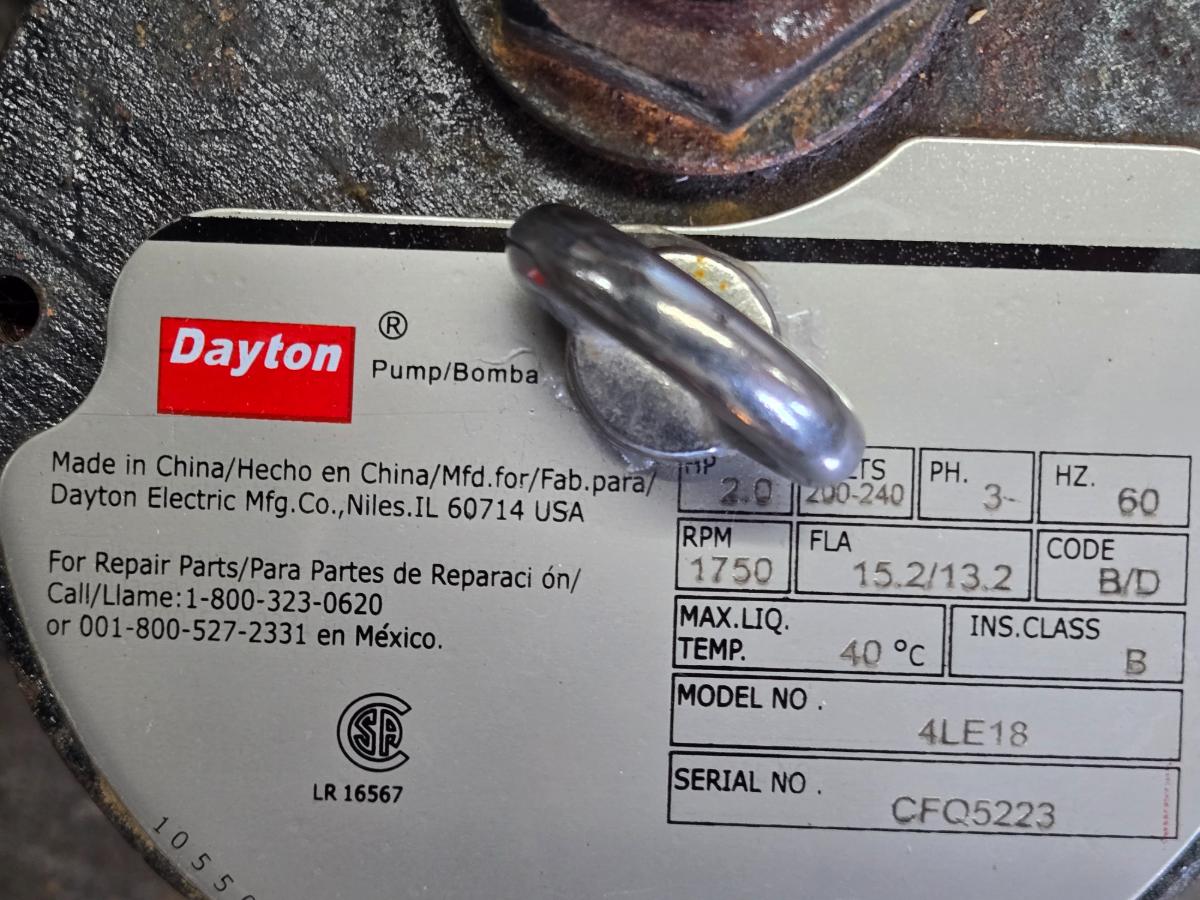

The Dayton 4LE18 is a 2 HP submersible sewage ejector pump rated for 3-phase, 200–240V AC operation at 60 Hz, with a full-load amperage of 15.2A (200V) / 13.2A (240V) and a motor speed of 1750 RPM, as confirmed directly from the nameplate. The cast iron volute and motor housing are built for continuous submersed duty in sewage and wastewater lift station applications, with a maximum liquid temperature rating of 40°C and insulation class B. The discharge port is a female NPT threaded connection sized for standard sewage piping, and the pump features a multi-conductor lead wire (bare end, no plug) for hardwired panel or control panel integration — the motor requires an external starter or VFD suitable for 3-phase operation. This unit is offered in new — other condition, meaning it is unused or uninstalled surplus stock; the nameplate data plate is fully intact and legible, serial number CFQ5223. CSA listed (LR 16567), manufactured by Dayton Electric Mfg. Co., Niles, IL.
Product Specifications
| Brand | Dayton |
| Model Number | 4LE18 |
| Serial Number | CFQ5223 |
| Pump Type | Submersible Sewage Ejector |
| Horsepower | 2 HP |
| Phase | 3-Phase |
| Voltage | 200-240V AC |
| Frequency | 60 Hz |
| Full Load Amps (FLA) | 15.2A @ 200V, 13.2A @ 240V |
| Motor Speed | 1750 RPM |
| Insulation Class | Class B |
| Max Liquid Temperature | 40°C (104°F) |
| NEMA Code Letter | B/D |
| Flow Rate | 375 GPM @ 10 ft of head |
| Discharge Connection | Female NPT threaded |
| Housing Material | Cast iron |
| Power Connection | Bare lead wire, hardwire only, no plug |
| Listing (Safety Cert) | CSA Listed, LR 16567 |
| Country of Origin | China |
| Condition | New - other (unused surplus) |
