Dayton 56JP01 Belt Drive 18.5in Wheel 4674 CFM Upblast Roof Exhaust Fan
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

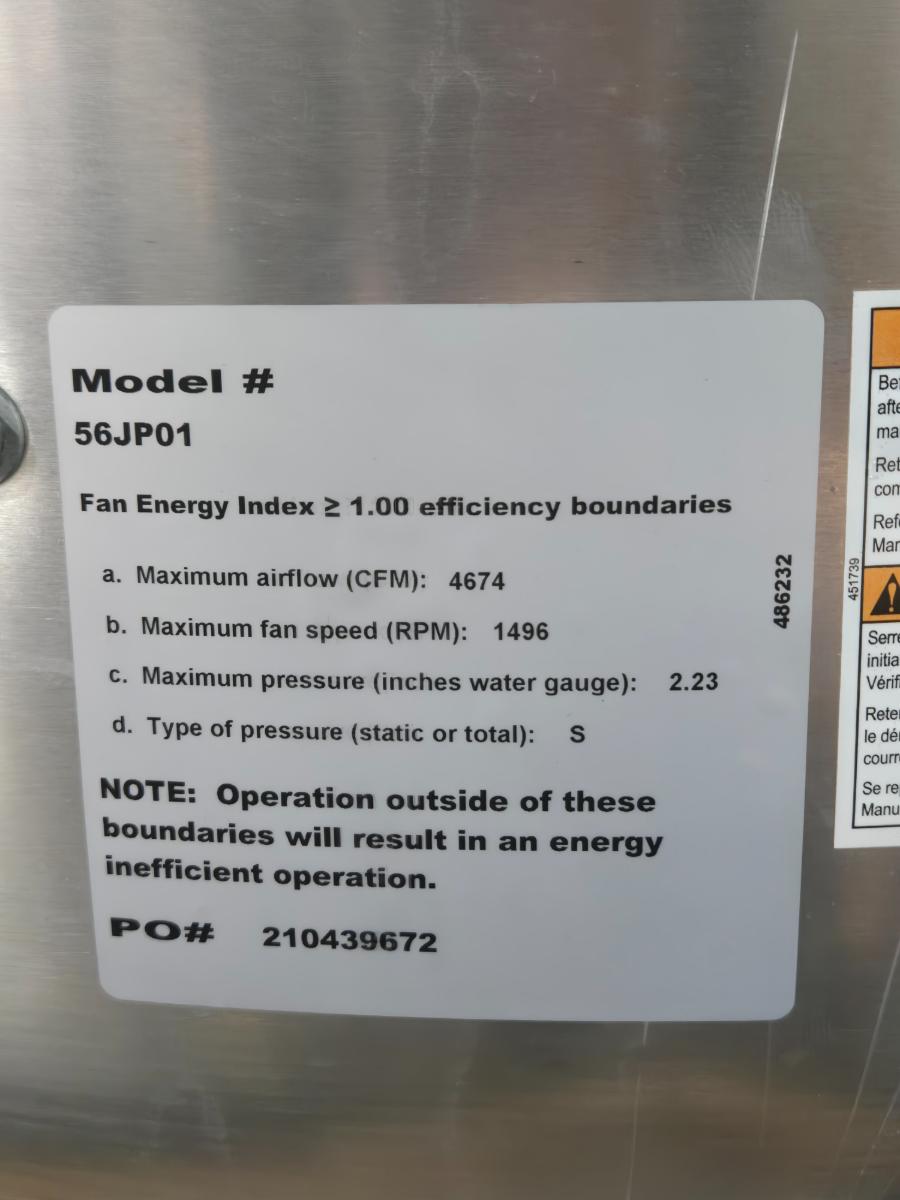

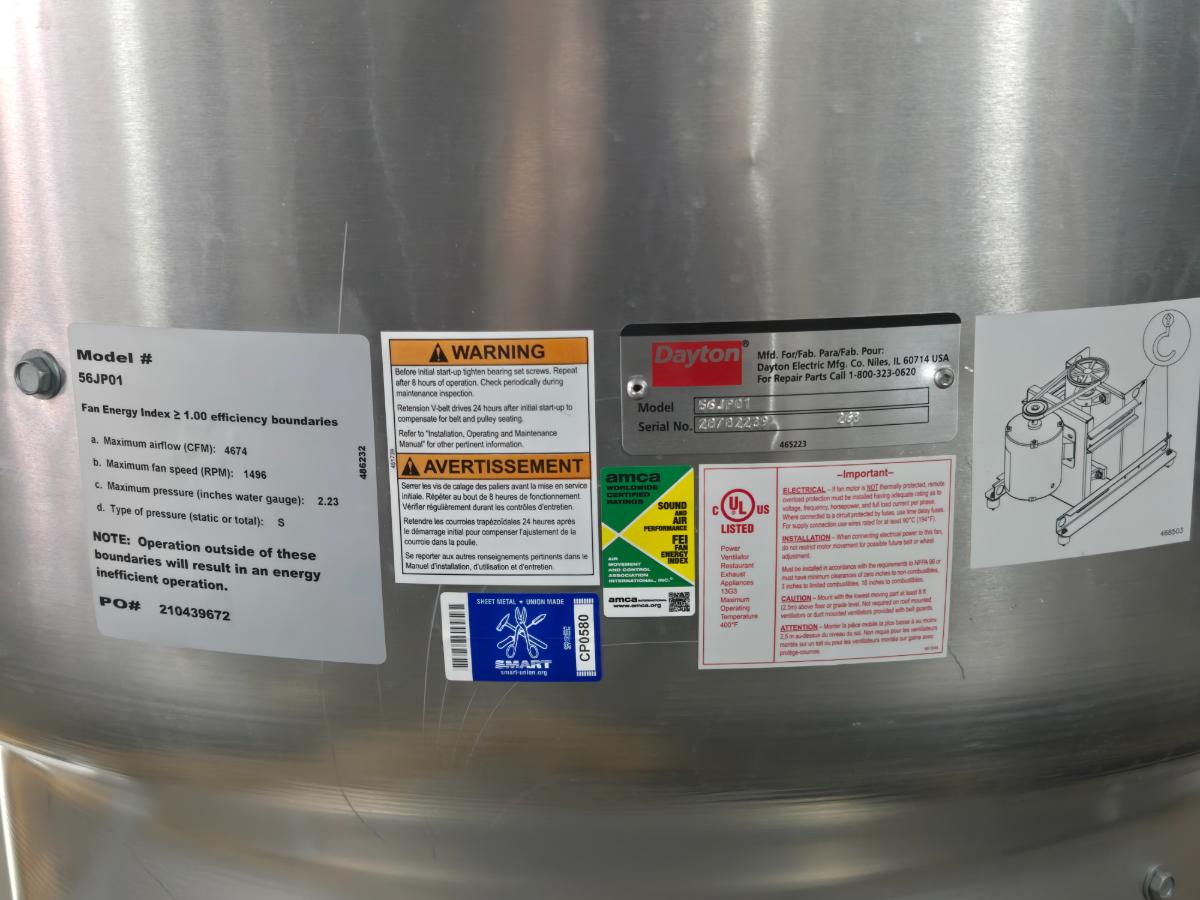

The Dayton 56JP01 is a new centrifugal upblast rooftop exhaust fan with belt-drive configuration, designed for restaurant and commercial kitchen ventilation per AMCA Certified Ratings for Sound and Air Performance. The fan features an 18.5 in backward-inclined or centrifugal wheel housed in an all-aluminum/stainless curb cap assembly, rated for a maximum airflow of 4,674 CFM at a maximum fan speed of 1,496 RPM and maximum static pressure of 2.23 in w.g. — all confirmed from the label affixed to the unit. Per the nameplate, this unit is UL Listed (Power Ventilator, Restaurant Exhaust, Appliances 13GS) and carries an AMCA FEI Fan Energy Index ≥ 1.00, ensuring it meets current ASHRAE 90.1 efficiency requirements; it is rated for a maximum operating temperature of 400°F, making it suitable for cooking exhaust applications under NFPA 96. The unit mounts on a roof curb via the integrated flat base plate, uses a V-belt drive for adjustable speed, and is manufactured by Dayton Electric Mfg. Co., Niles, IL (1-800-323-0620); serial number visible on the nameplate plate begins with 20702239.
Product Specifications
| Brand | Dayton |
| Model Number | 56JP01 |
| Serial Number | 20702239 |
| Fan Type | Centrifugal Upblast Rooftop Exhaust |
| Drive Type | Belt Drive (V-Belt) |
| Wheel Diameter | 18.5 in |
| Maximum Airflow | 4674 CFM |
| Maximum Fan Speed | 1496 RPM |
| Maximum Static Pressure | 2.23 in w.g. |
| Pressure Type | Static (S) |
| Max Operating Temperature | 400°F |
| Fan Energy Index (FEI) | ≥ 1.00 |
| Application | Restaurant Exhaust / Commercial Kitchen |
| Certifications | UL Listed (13GS), AMCA Certified |
| Housing Material | Aluminum / Stainless Steel |
| Mounting Type | Roof Curb Mount, Flat Base Plate |
| Manufacturer | Dayton Electric Mfg. Co., Niles, IL 60714 |
| Condition | New |
