Dayton 5UKG3BG 2HP 3450RPM 115/208-230V 56H TEFC Capacitor Start/Run Motor

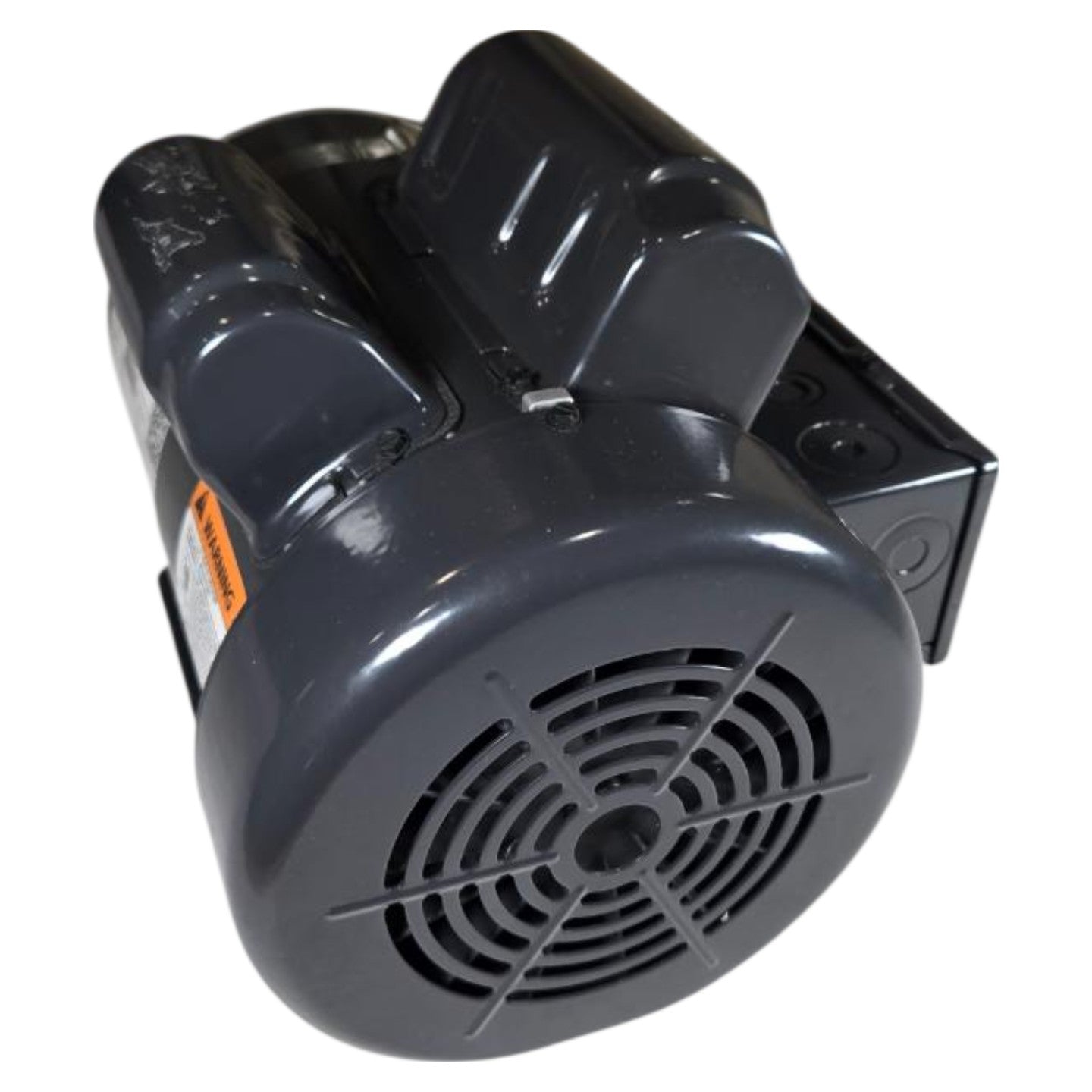

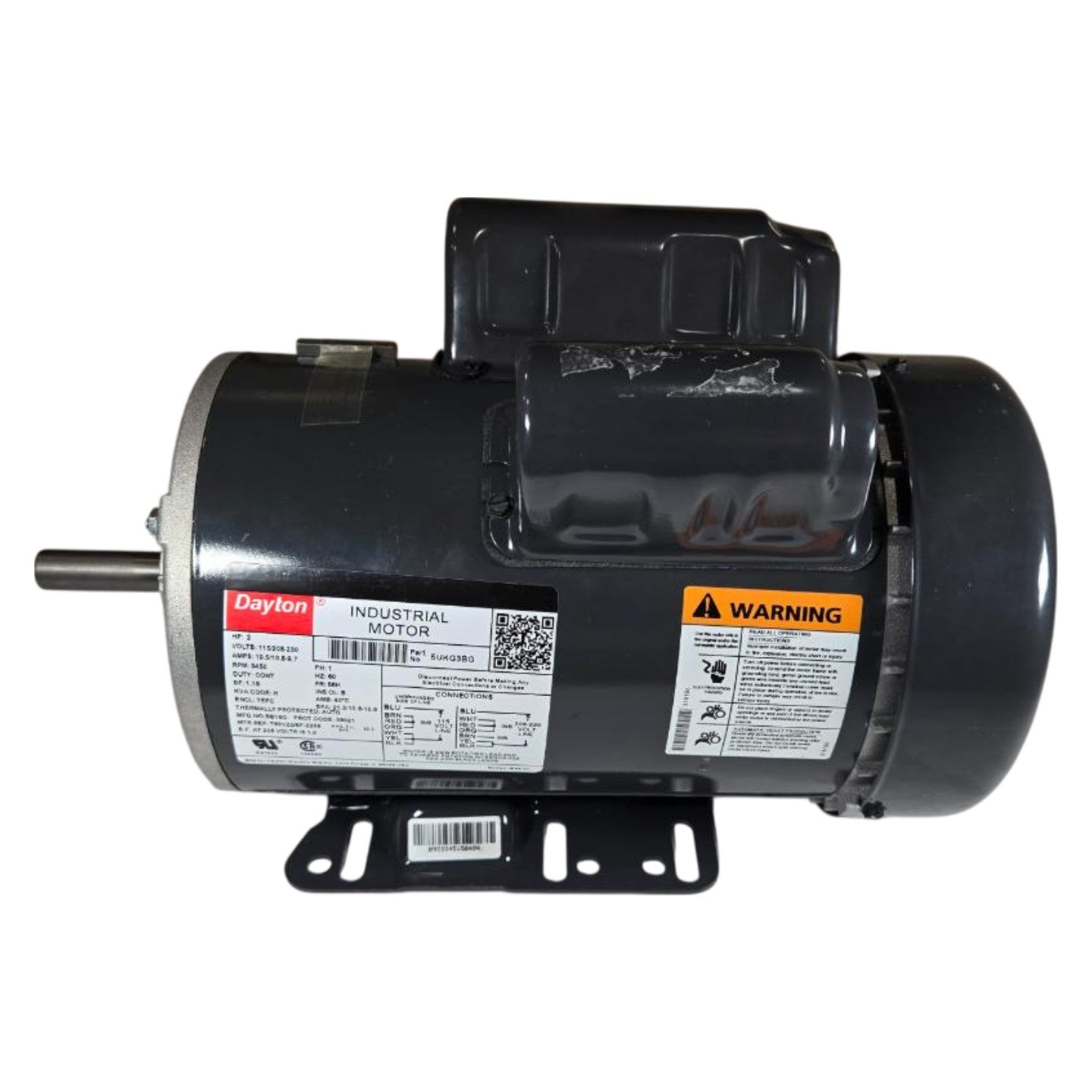

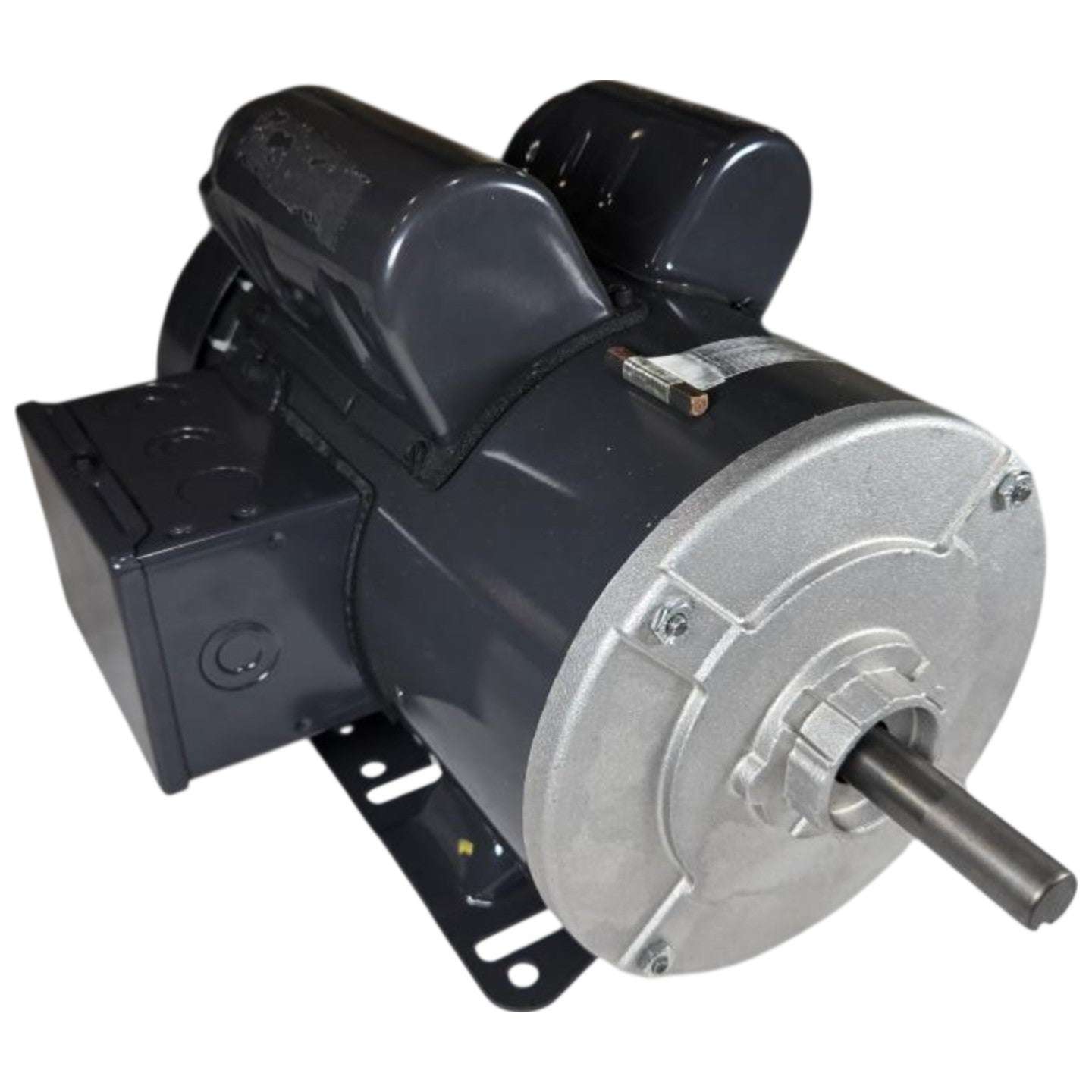

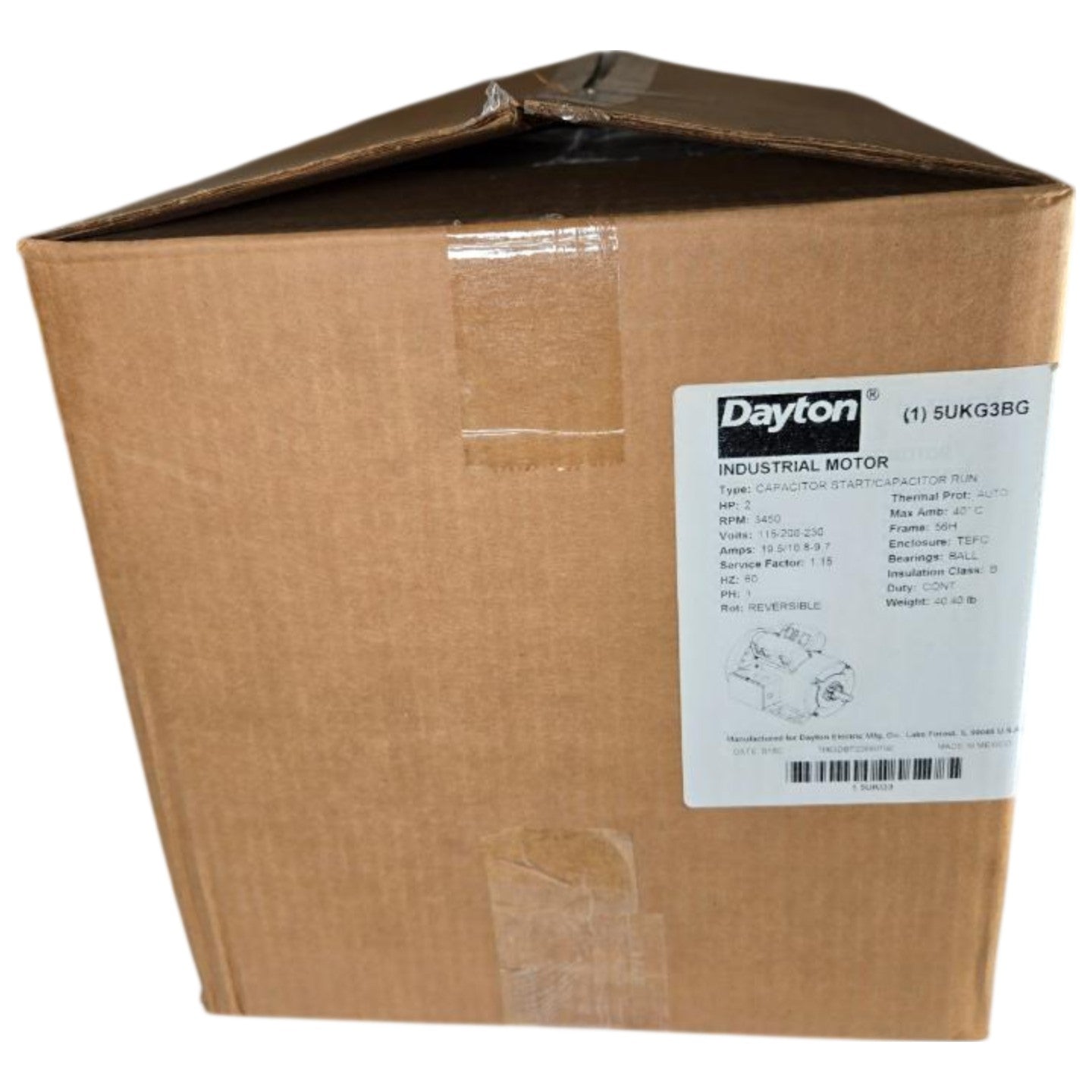

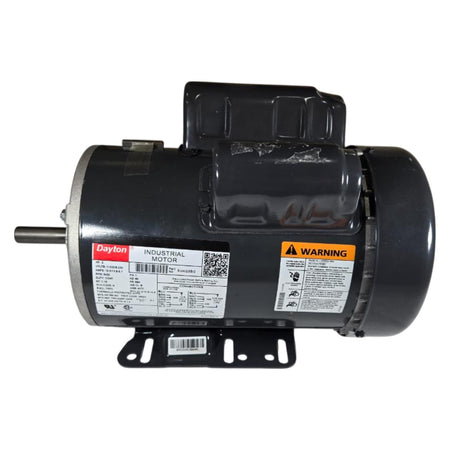

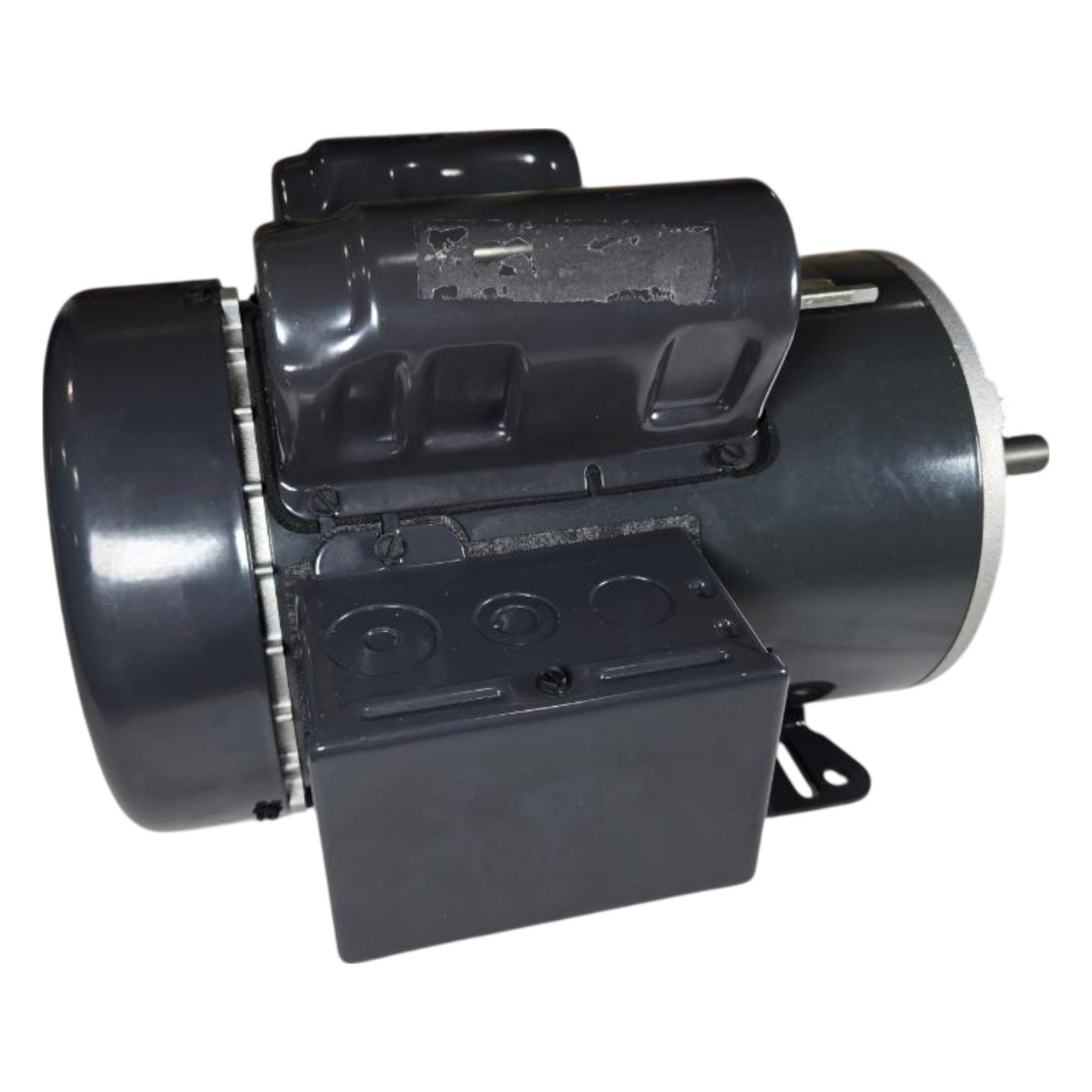

The Dayton 5UKG3BG is a new, capacitor start/capacitor run (CSR) single-phase AC induction motor rated at 2 HP, 3450 RPM, on a NEMA 56H frame with a 5/8 in x 1-7/8 in shaft. It operates on 115/208-230V AC, 60 Hz single-phase power, drawing 19.5 A at 115V or 10.8/9.7 A at 208/230V, and carries a 1.15 service factor with Class B insulation for continuous duty. The enclosure is totally enclosed fan-cooled (TEFC) with ball bearings, automatic thermal overload protection, and a maximum ambient rating of 40°C, making it suited for compressors, pumps, fans, and other belt-drive or direct-drive applications requiring reversible rotation. The 56H frame designation indicates a standard NEMA 56 footprint with a C-face compatible front end (H suffix denotes through-bolt construction with the face removed), and the capacitor housing is mounted on the motor body. Weight per box label is 40.40 lb.

Product Specifications
