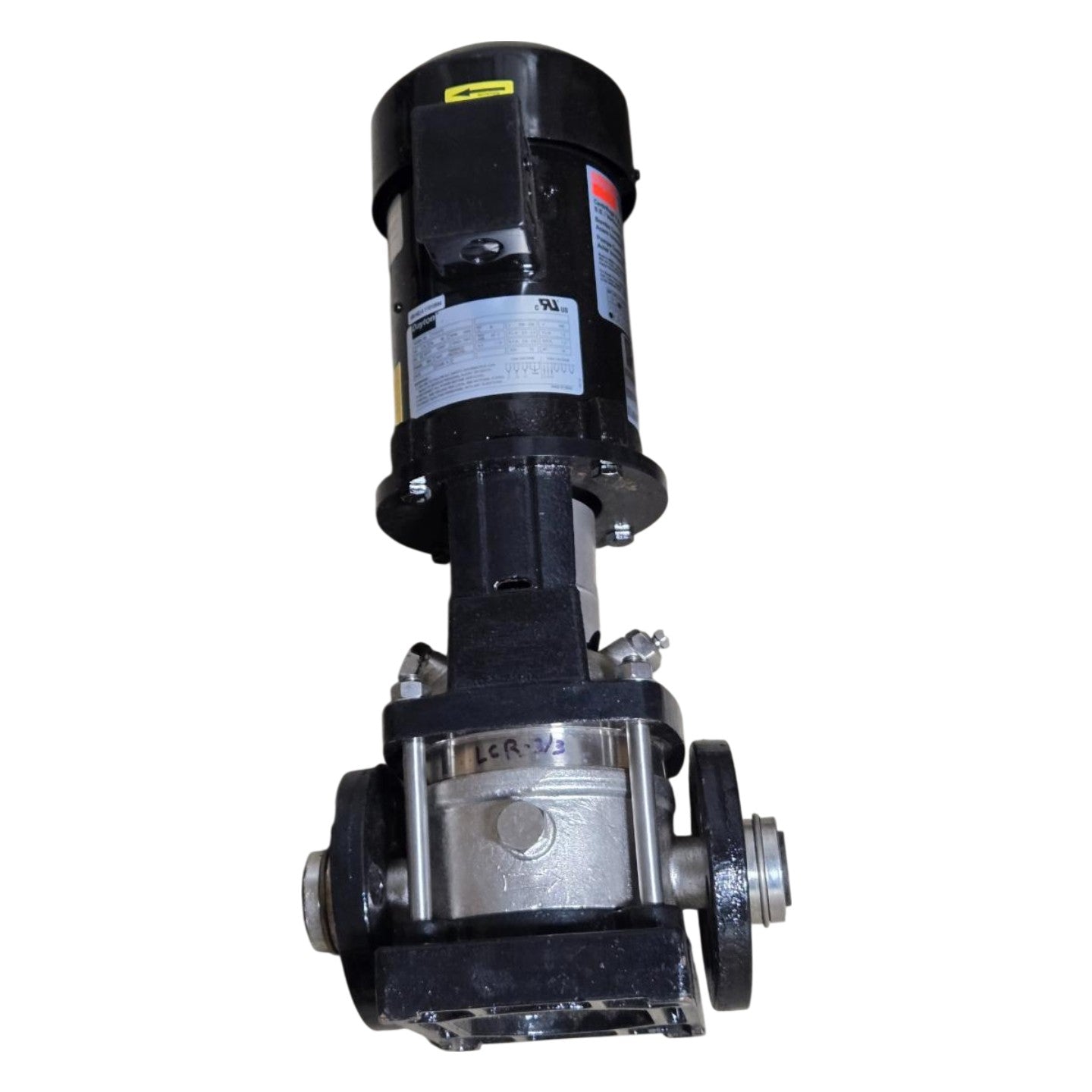

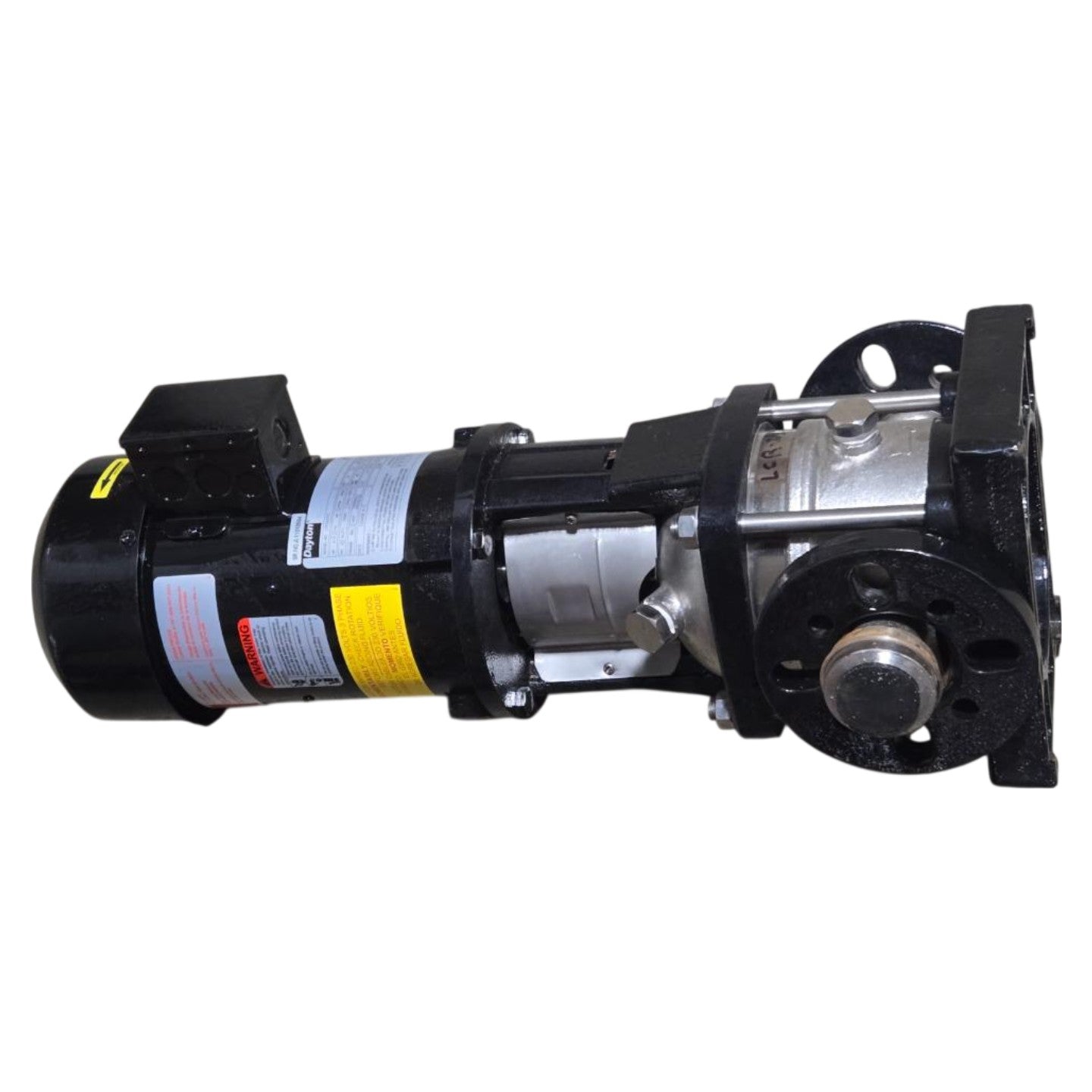

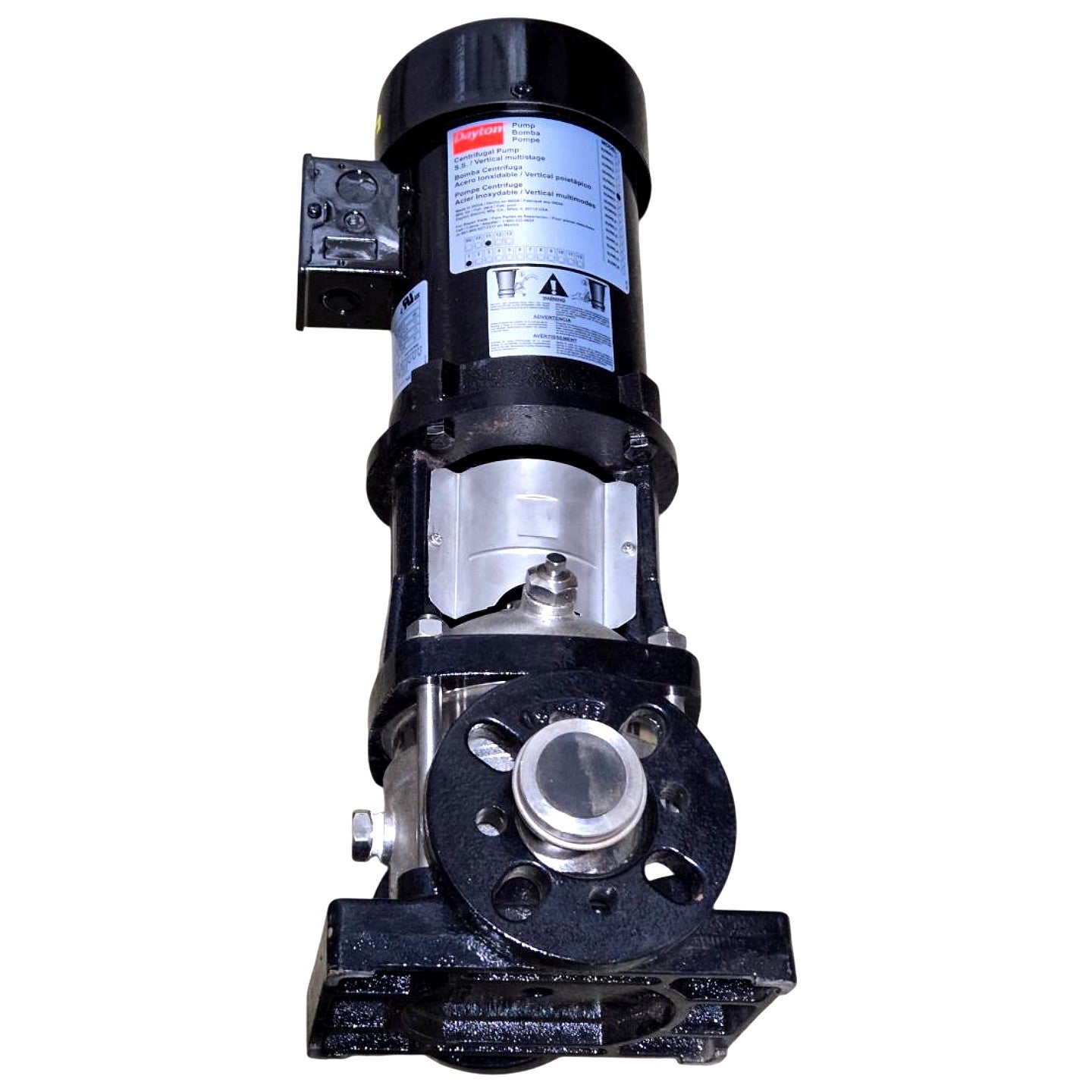

Dayton 5UWK6 0.75 HP 3-Phase Vertical Multistage Centrifugal Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

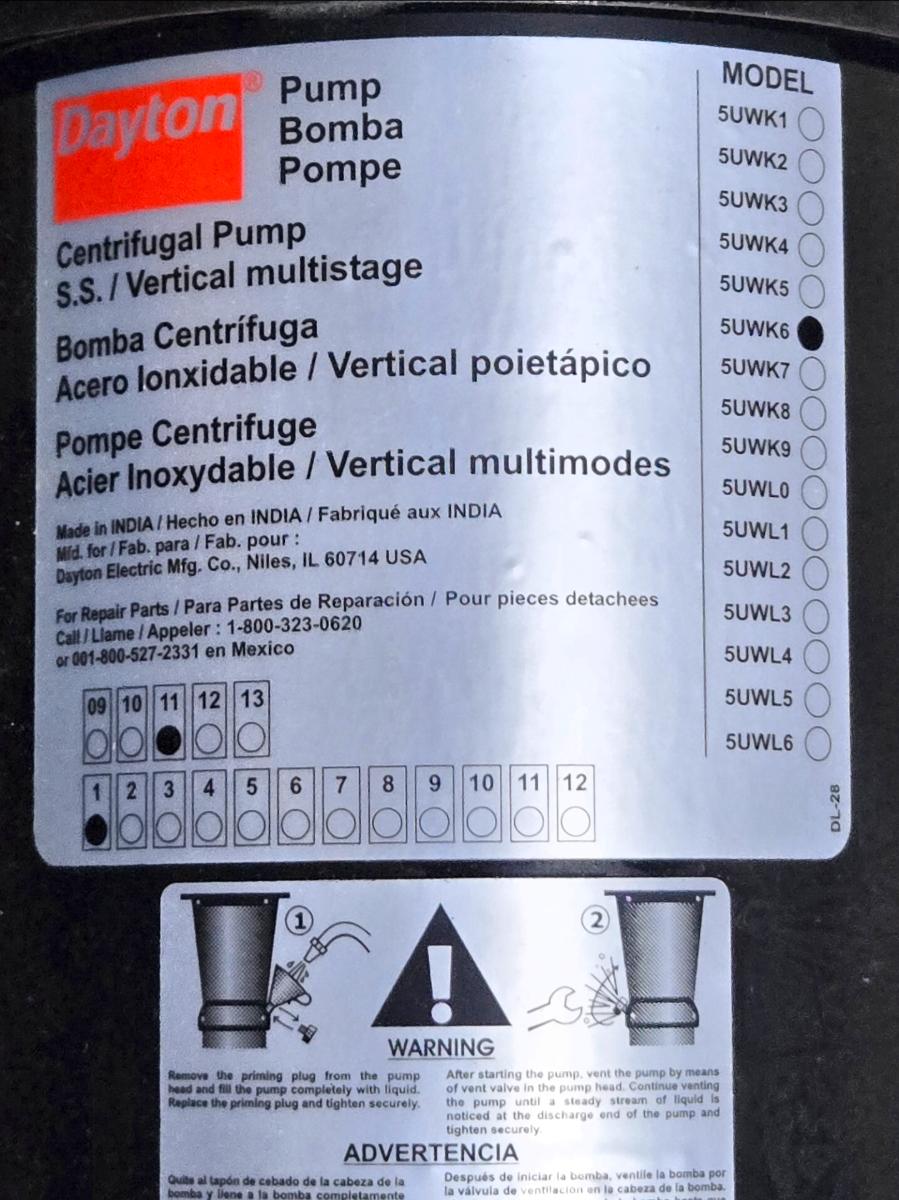

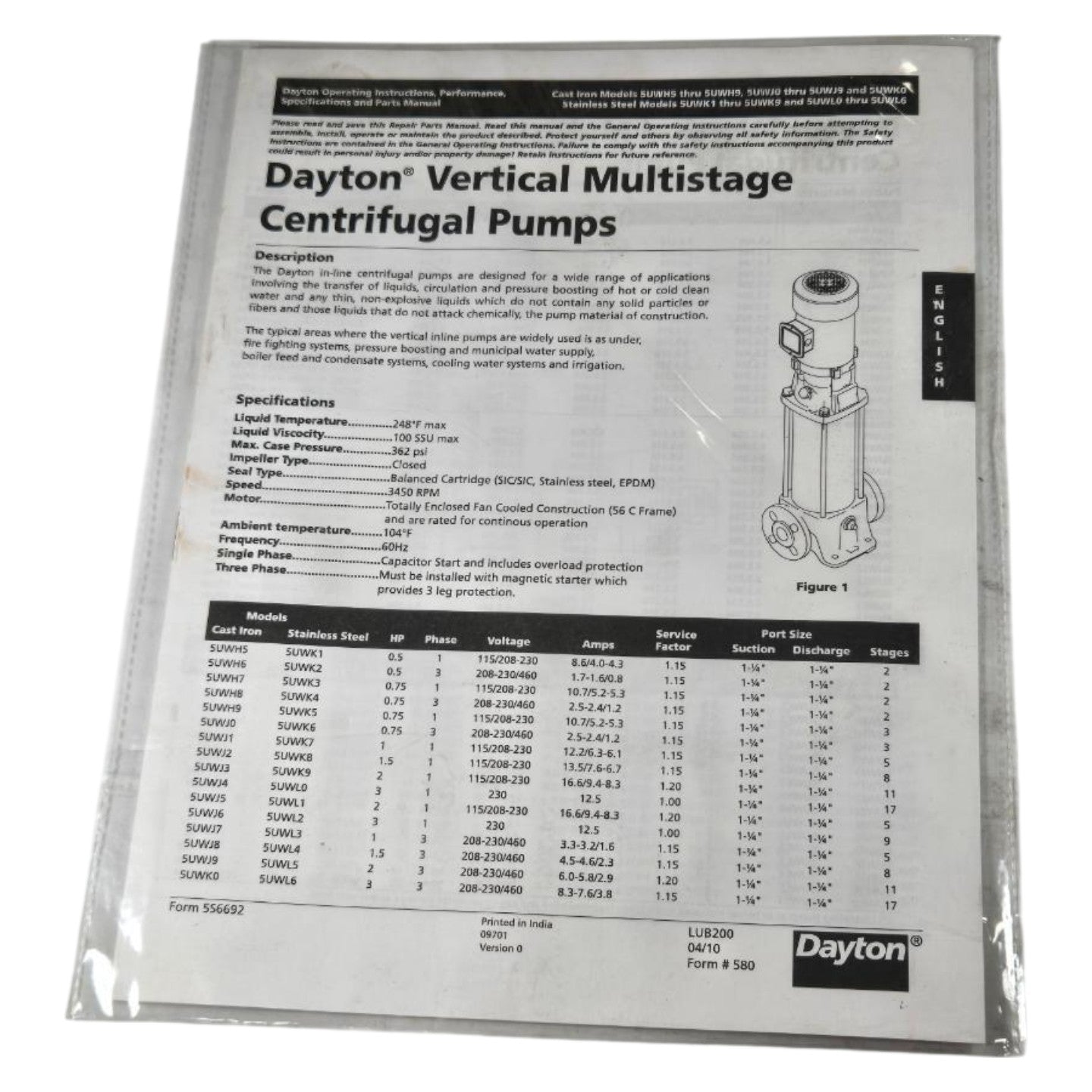

The Dayton 5UWK6 is a new stainless steel vertical multistage centrifugal booster pump rated at 0.75 HP, designed for transferring clean water, circulation, and pressure boosting in applications such as boiler feed, fire suppression, cooling water systems, and municipal water supply. Per the manufacturer spec sheet visible in the photos, this unit runs on 3-phase power at 208-230/460V, draws 2.5-2.4/1.2 amps, operates at 3450 RPM, and delivers a service factor of 1.15 across 3 pump stages. Wetted components are stainless steel construction with a balanced cartridge mechanical seal (SiC/SiC faces, stainless steel hardware, EPDM elastomers), closed impellers, and a max case pressure of 362 psi. The motor is a totally enclosed fan-cooled (TEFC) 56C-frame design rated for continuous duty up to 104°F ambient; 3-phase installations require an external magnetic starter with 3-leg overload protection. Port sizes are 1-1/4 in suction and 1-1/4 in discharge; max liquid temperature is 248°F and max viscosity is 100 SSU.
Product Specifications
| Brand | Dayton |
| MPN | 5UWK6 |
| Pump Type | Vertical Multistage Centrifugal |
| Construction Material | Stainless Steel |
| Horsepower | 0.75 HP |
| Phase | 3-Phase |
| Voltage | 208-230/460V |
| Amperage | 2.5-2.4/1.2 A |
| Speed | 3450 RPM |
| Number of Stages | 3 |
| Service Factor | 1.15 |
| Suction Port Size | 1-1/4 in |
| Discharge Port Size | 1-1/4 in |
| Max Case Pressure | 362 psi |
| Max Liquid Temperature | 248°F |
| Max Liquid Viscosity | 100 SSU |
| Impeller Type | Closed |
| Seal Type | Balanced Cartridge, SiC/SiC, SS, EPDM |
| Motor Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Motor Frame | 56C |
| Ambient Temperature Rating | 104°F max |
| Frequency | 60 Hz |
| Motor Duty | Continuous |
| Country of Origin | India |
| Condition | New |
