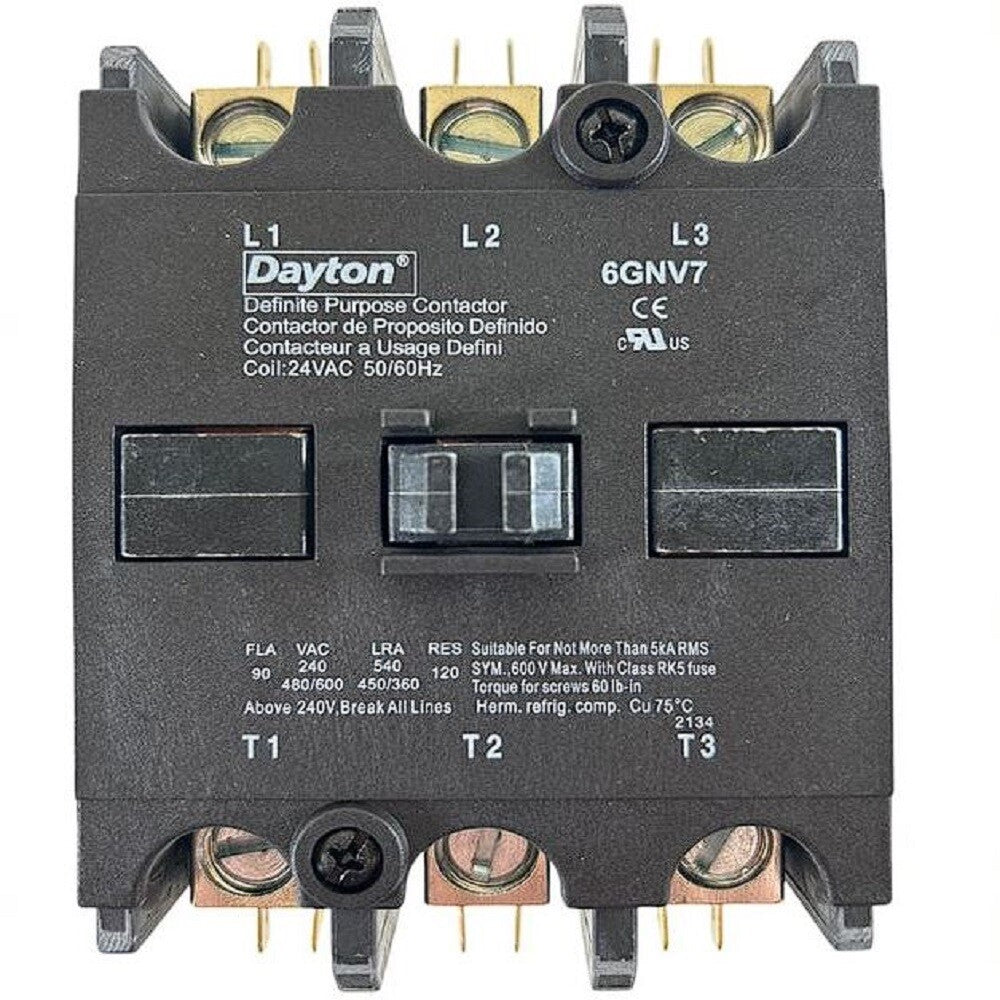

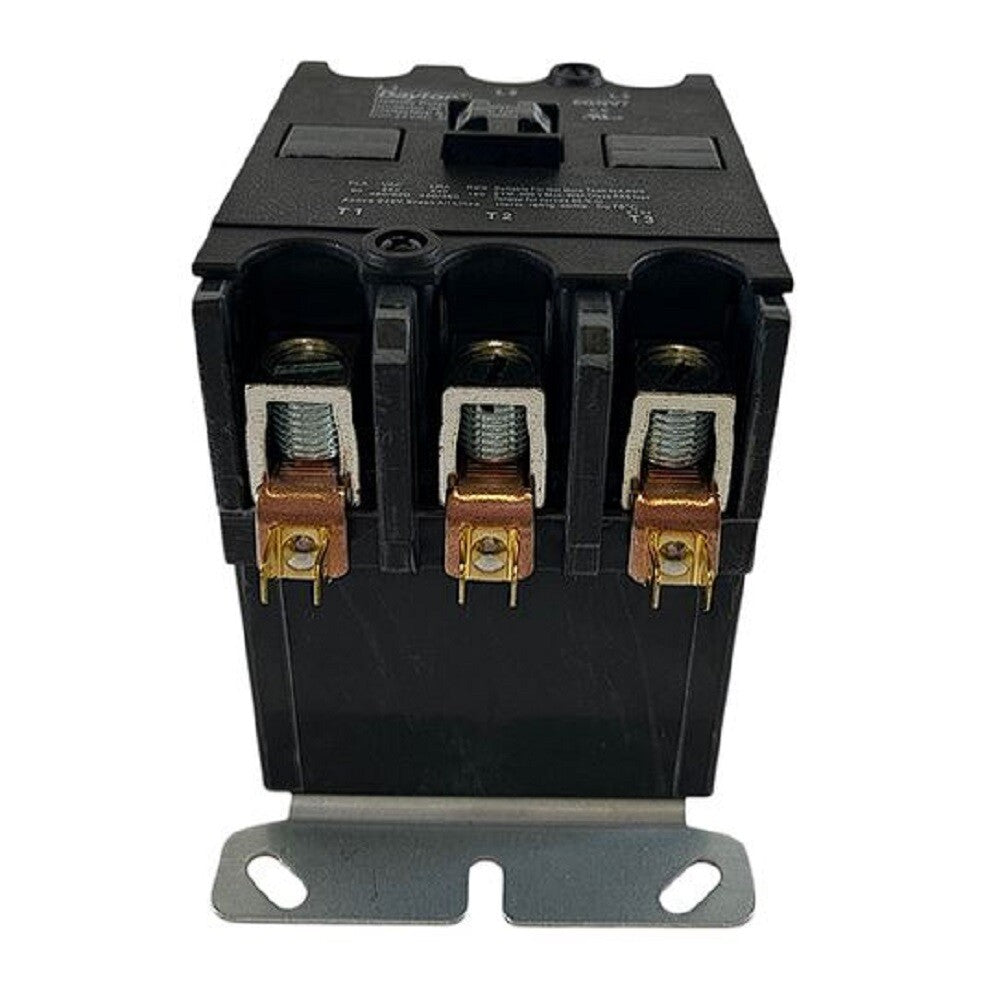

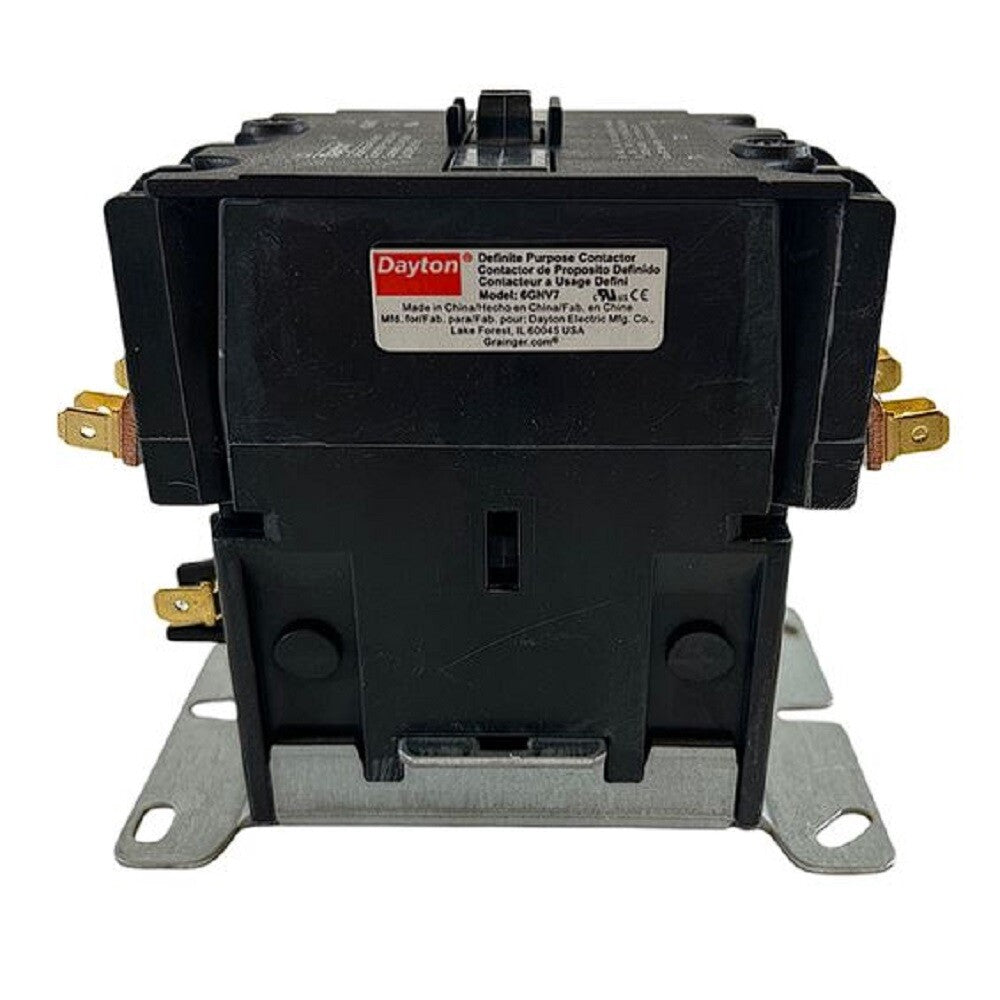

Dayton 6GNV7 24V 50/60Hz 90/120A 3P Definite Purpose Magnetic Contactor -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | Dayton |
| Number of Poles | 3-Pole |
| Coil Voltage | 24 V |
| Number of Phases | N/A |
| Current Type | AC |
| Type | Definite Purpose Magnetic Contactor |
| Current Rating | 90 A |
| Maximum Amperage | 120 A |
| MPN | 6GNV7 |
| Contact Configuration | N/A |
| Mounting Style | N/A |
| Horsepower | 7-1/2 hp |
| Item Width | 3.5 in |
| Item Height | 4.47 in |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Model | Definite Purpose Magnetic Contactor |
| Contactor Style | IEC |
| Reversing Capability | Non-Reversing |
| Main Power Pole Contact Form | 2NO/2NC |
| Includes Auxiliary Contacts | Yes |
| Auxiliary Contacts Included | None |
| Full Load Current - Inductive | 50A |
| Full Load Current - Resistive | 70A |
| Frequency | 50/60Hz |
| Nominal Coil Voltage @ 60Hz | 24V AC |
| IP Horsepower @ Single Phase - 120V AC | 3HP |
| Horsepower @ Single Phase - 240V AC | 7-1/2HP |
| Wire Termination Type | Screw |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 2.95" |
| Overall Width | 2.95" |
| Overall Depth | 4.6" |
| Standards | CSA; UL Listed |
Dayton 6GNV7 24V 50/60Hz 90/120A 3P Definite Purpose Magnetic Contactor
