Dayton 804T19 5kW 480V 3 Phase Heavy-Duty Electric Unit Heater
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

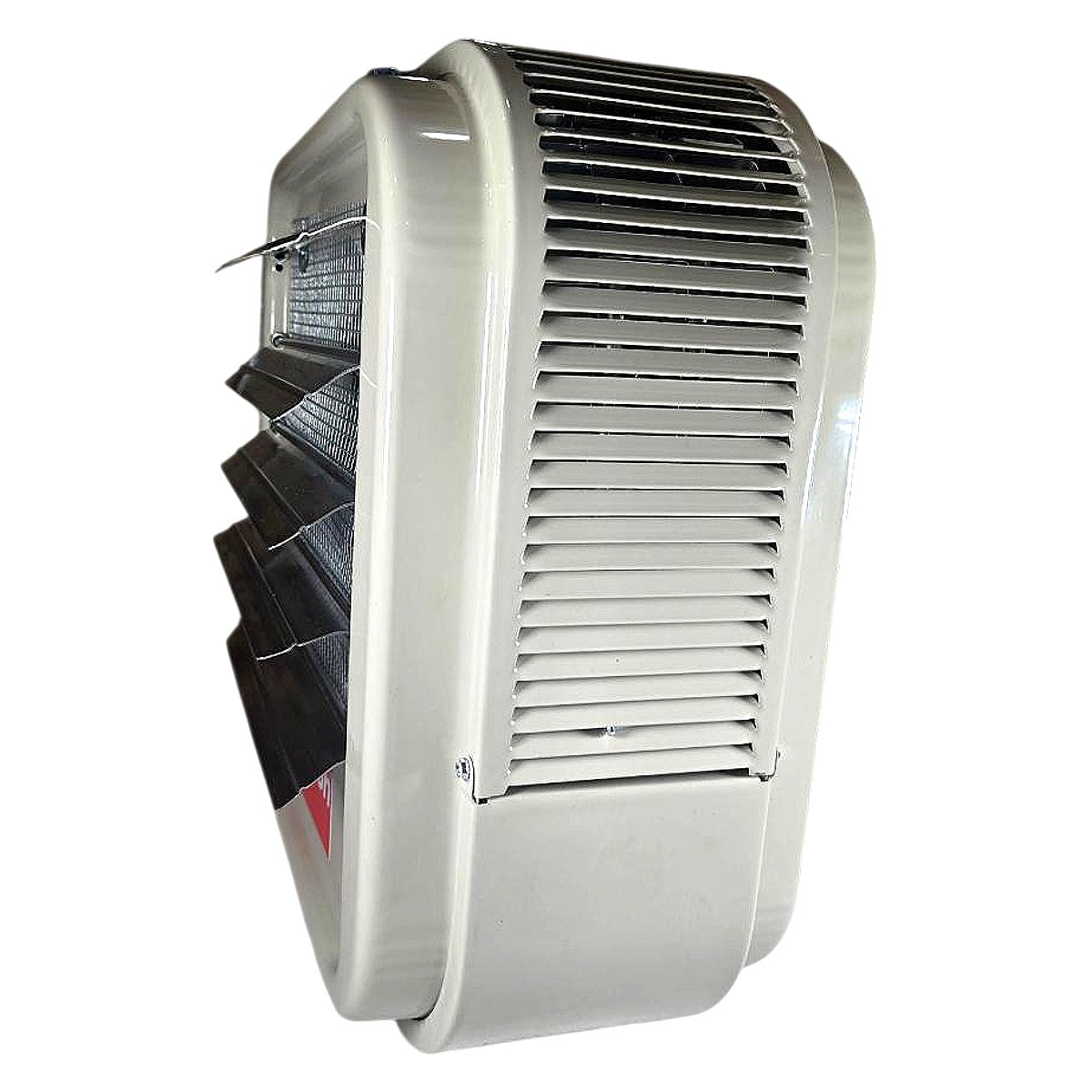

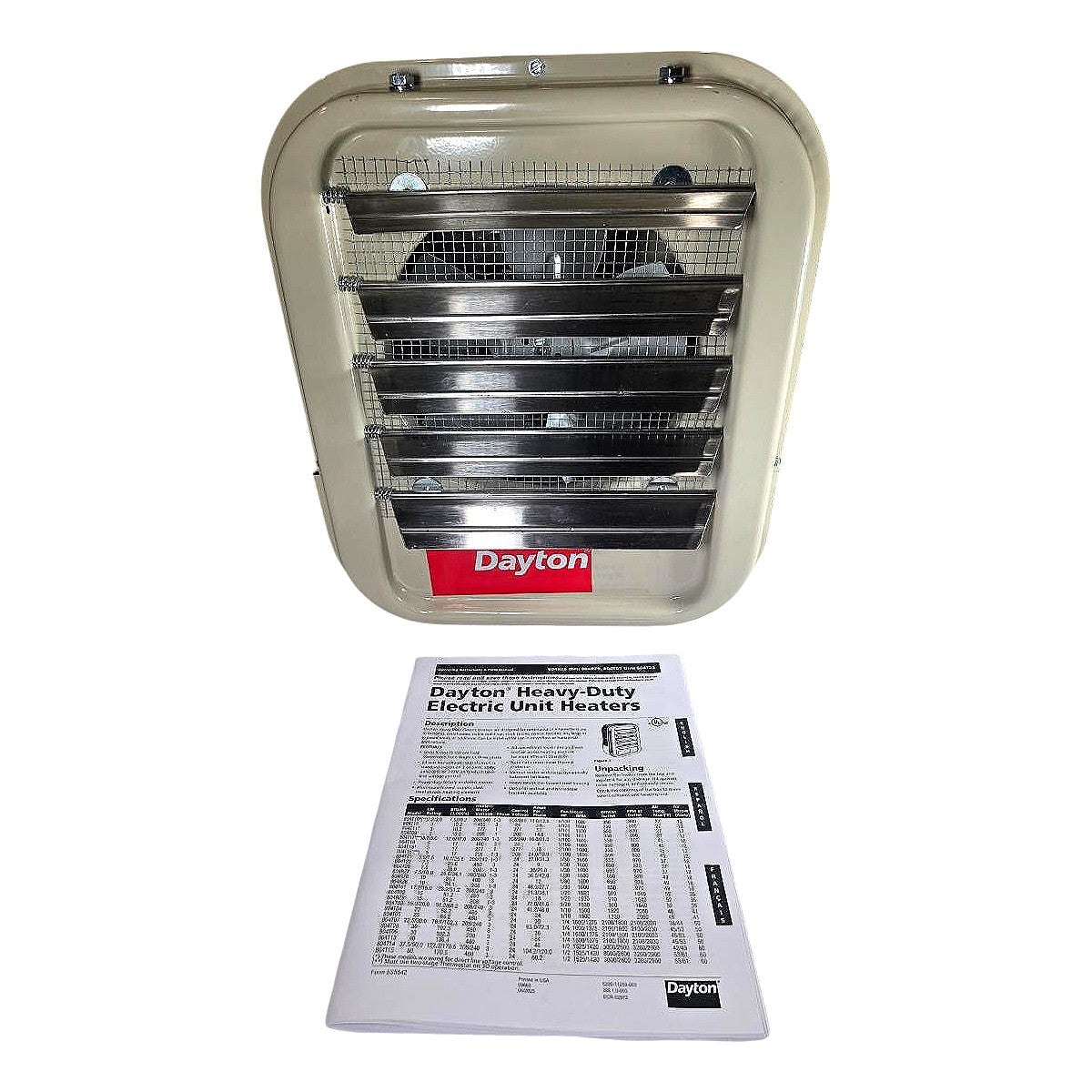

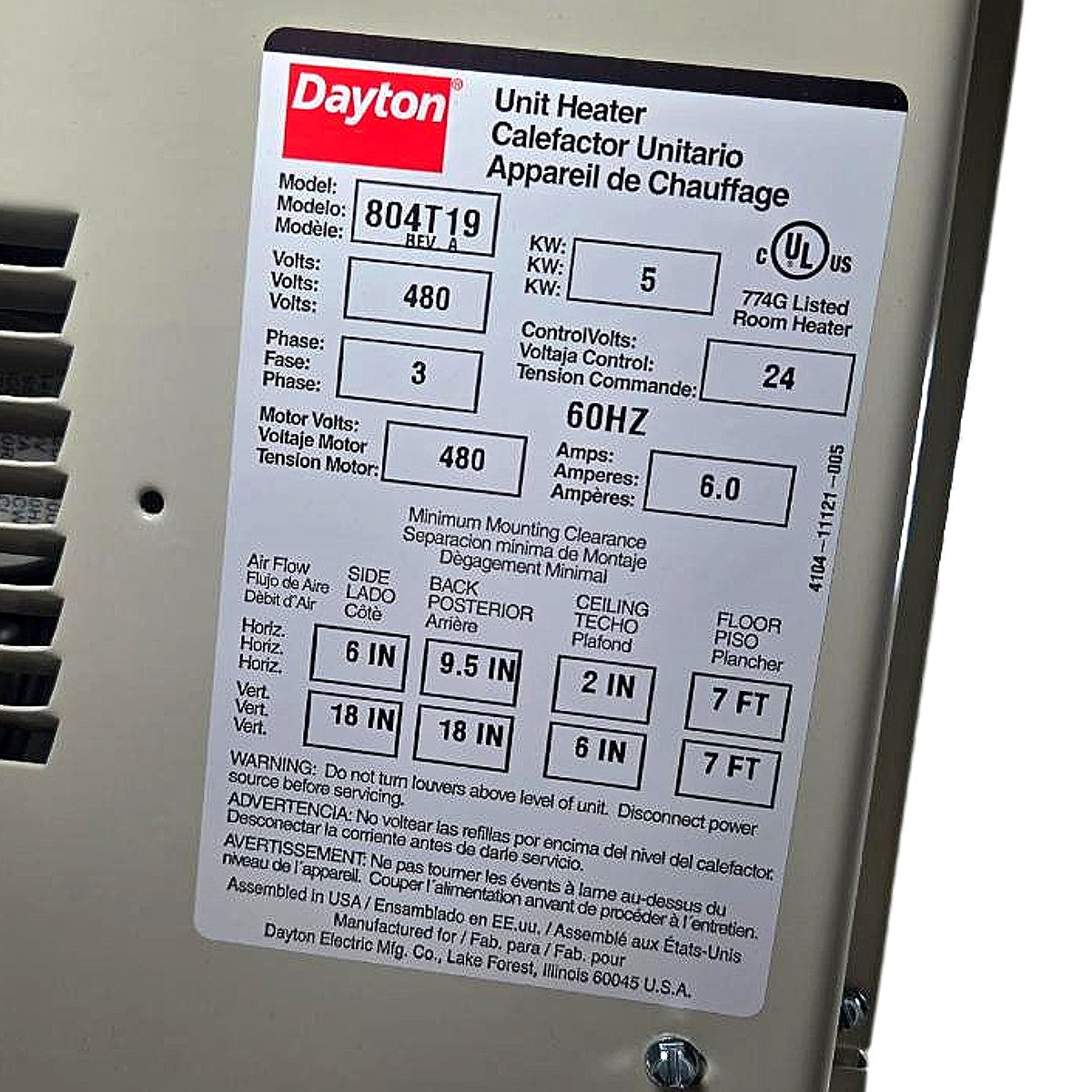

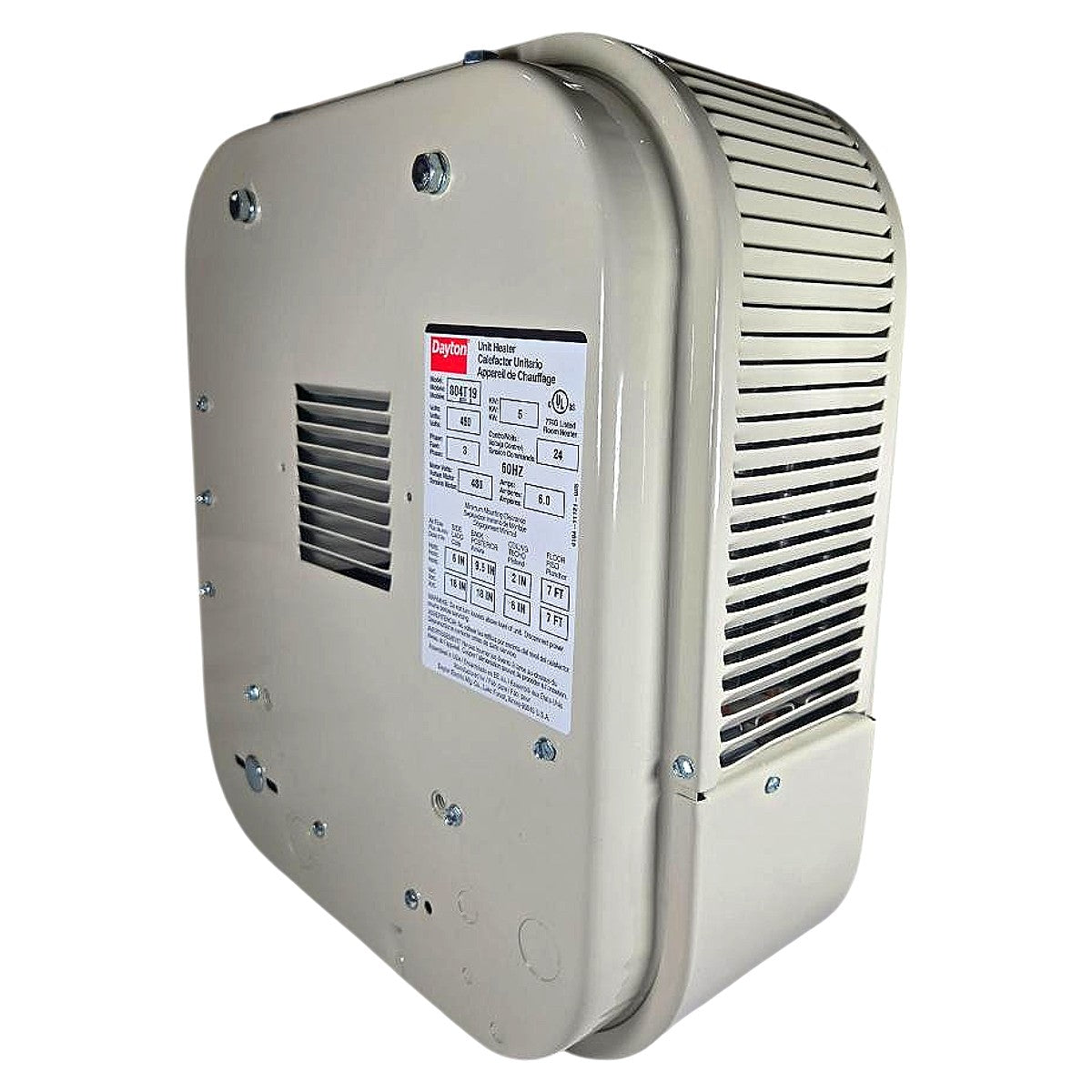

The Dayton 804T19 is a heavy-duty electric unit heater rated 5 kW at 480 V AC, 3 phase, 60 Hz, with a 6.0 A rating on the nameplate and a 480 V fan motor. It uses a 24 V control circuit, so it requires a low-voltage thermostat or control, and the unit is UL listed to the 774G standard as a room heater. The beige steel housing has adjustable stainless-look louvers behind a wire guard, a rear air inlet and side venting, and it mounts to a wall or ceiling for horizontal or vertical airflow. Nameplate minimum mounting clearances for horizontal airflow are 6 in at the side, 9.5 in at the back, 2 in to the ceiling and 7 ft to the floor; for vertical airflow they are 18 in at the side, 18 in at the back, 6 in to the ceiling and 7 ft to the floor. The heater is assembled in the USA and this one is new in its original carton, with the instruction manual shown with the unit.
Product Specifications
| Brand | Dayton |
| MPN | 804T19 |
| Revision | Rev. A |
| Series | Heavy-Duty Electric Unit Heaters |
| Power | 5 kW |
| Voltage | 480 V AC |
| Phase | 3 |
| Frequency | 60 Hz |
| Current | 6.0 A |
| Control Voltage | 24 V |
| Motor Voltage | 480 V |
| Air Flow | 350 cfm |
| Dimensions | 16 in x 14 in x 8-1/2 in |
| Mounting | Wall or Ceiling |
| Heater Type | Electric Unit Heater |
| Housing Color | Beige |
| Louver Direction | Adjustable |
| Min Clearance Horiz. Airflow | Side 6 in, Back 9.5 in, Ceiling 2 in, Floor 7 ft |
| Min Clearance Vert. Airflow | Side 18 in, Back 18 in, Ceiling 6 in, Floor 7 ft |
| Certification | UL Listed (c-UL-us), 774G Room Heater |
| Country of Origin | USA |
| Included | Instruction manual |
