Dayton A750-8TVE 1HP 825RPM 3Ph 56 Frame TEAO Agricultural Fan Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

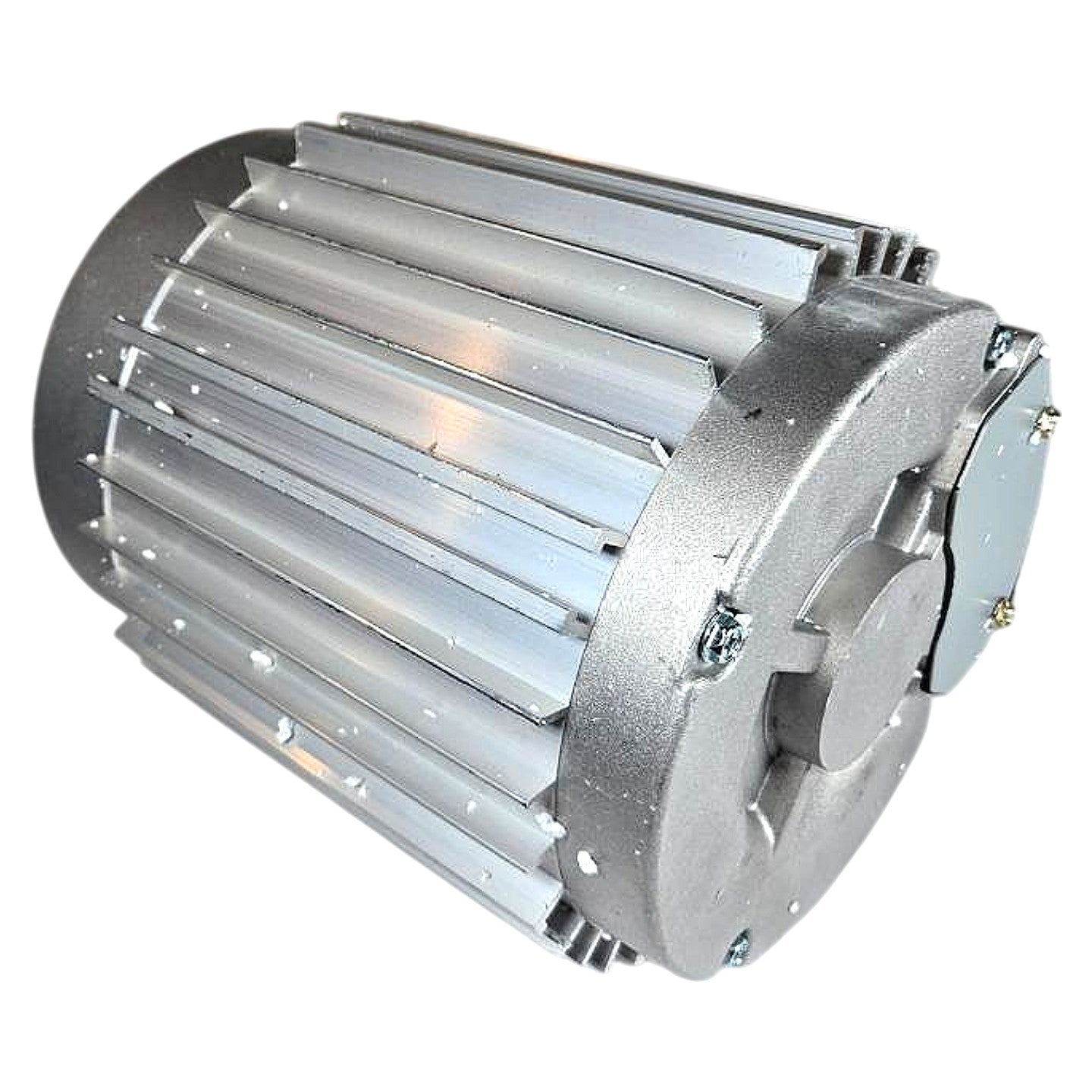

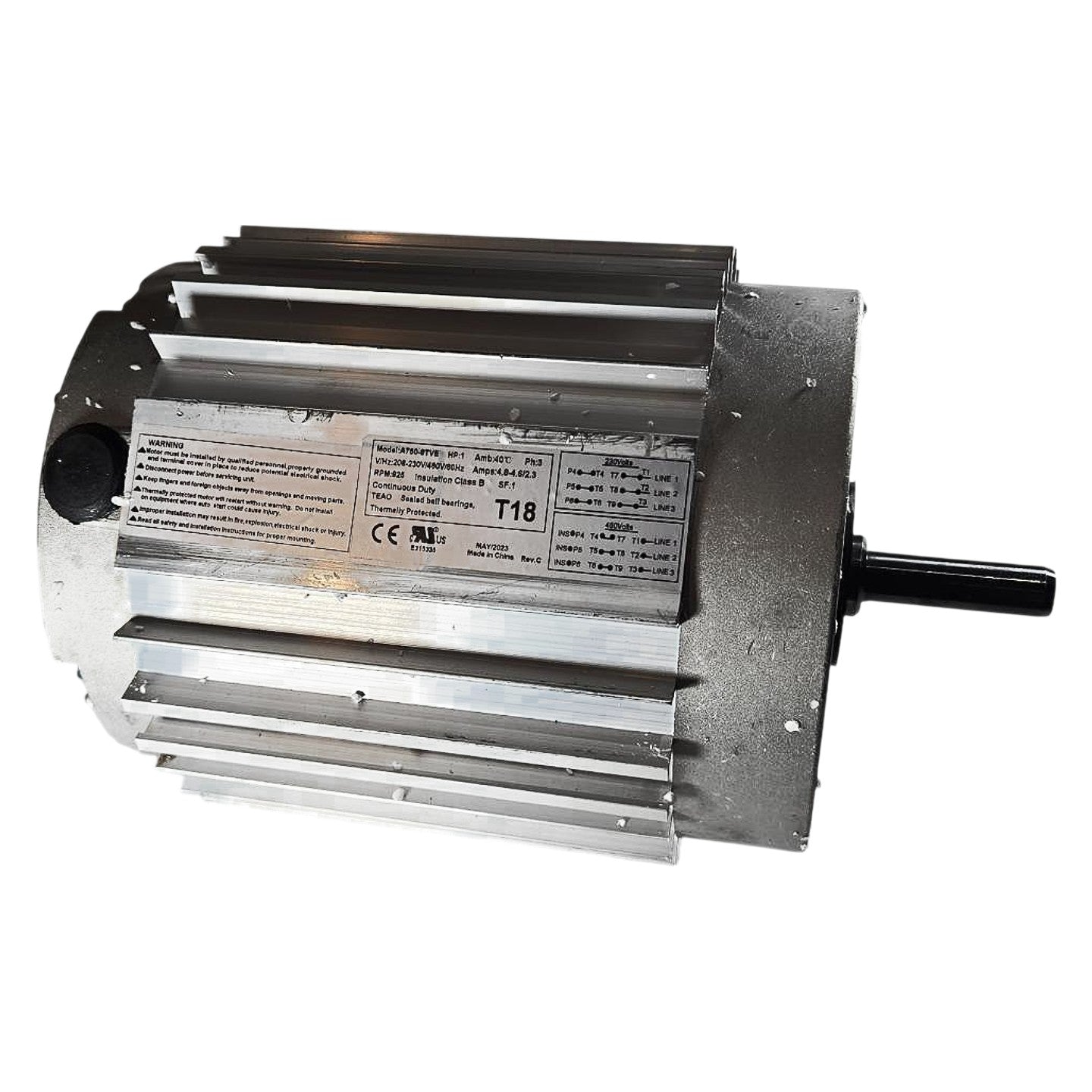

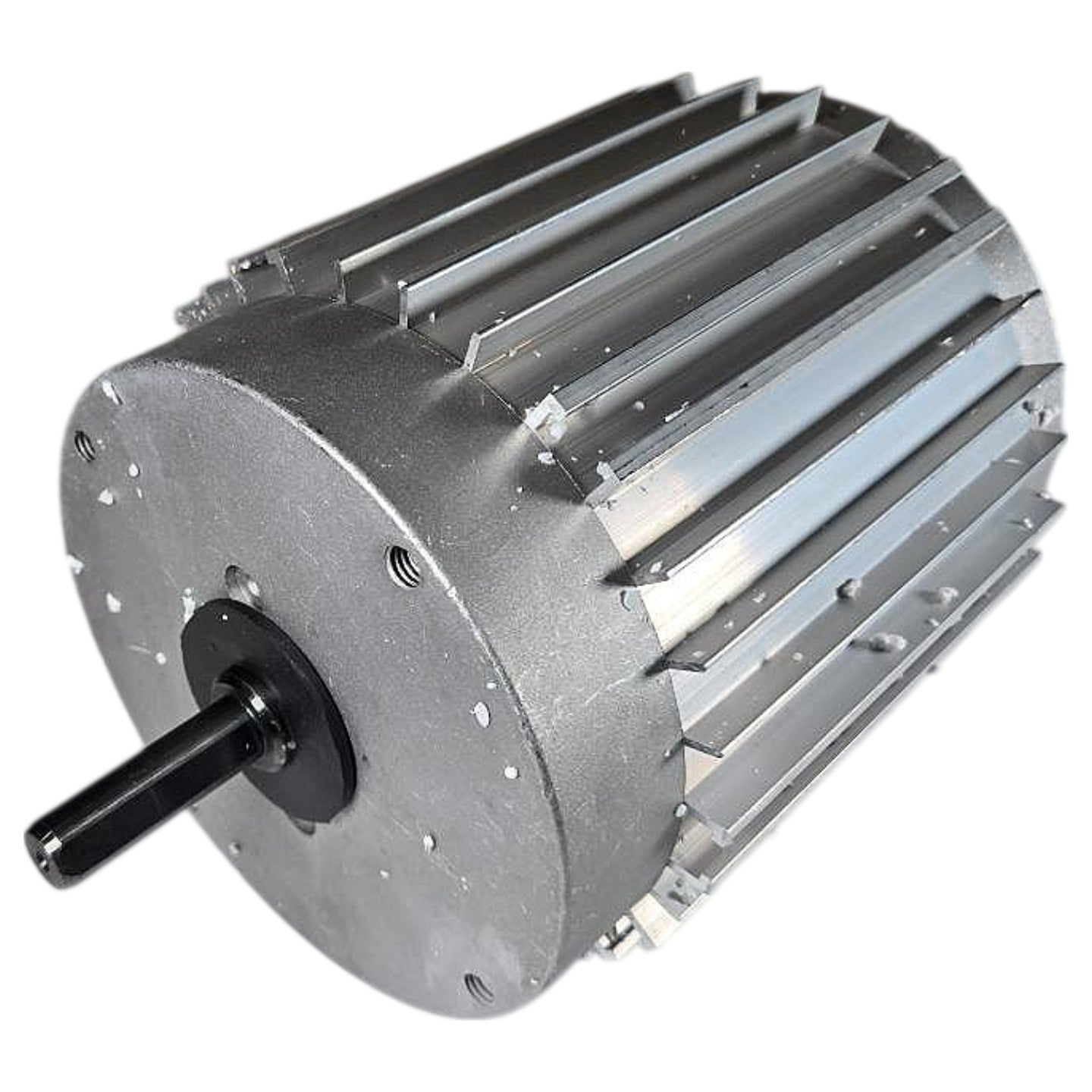

The Dayton A750-8TVE is a new, three-phase totally enclosed air-over (TEAO) agricultural fan motor rated at 1 HP, 825 RPM, designed for continuous duty in agricultural and industrial ventilation applications including grain bin fans, livestock barn fans, and evaporative coolers. The motor operates on 208-230/460V at 60Hz, drawing 4.8-4.6/2.3 amps, and is wound for dual-voltage operation with nine leads supporting both 230V (wye/delta) and 460V configurations as shown on the nameplate wiring diagram. It features a 56 frame C-face aluminum housing with prominent longitudinal cooling fins for passive airflow-assisted heat dissipation, sealed ball bearings, Class B insulation (130°C rated), and a 1.0 service factor with built-in thermal overload protection. The motor is UL/cUL listed, CE marked, rated for 40°C ambient, and carries the T18 designation indicating the shaft and mounting configuration suitable for direct-drive fan applications.
Product Specifications
| Model Number | A750-8TVE |
| Brand | Dayton |
| Horsepower | 1 HP |
| Phase | 3-Phase |
| Speed | 825 RPM |
| Voltage | 208-230/460V |
| Frequency | 60 Hz |
| Amperage | 4.8-4.6/2.3 A |
| Frame Size | 56 |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Insulation Class | Class B (130°C) |
| Service Factor | 1.0 |
| Duty | Continuous |
| Ambient Temperature Rating | 40°C |
| Thermal Protection | Automatic (thermally protected) |
| Bearings | Sealed ball bearings |
| Number of Leads | 9 |
| Mounting | C-Face |
| Housing Material | Aluminum |
| Certifications | UL/cUL Listed, CE |
| Application | Agricultural fan |
| Condition | New |
| Country of Origin | China |
