De-Sta-Co 807-S Pneumatic 145 PSI 1/8 NPT Hold-Down Toggle Clamp
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

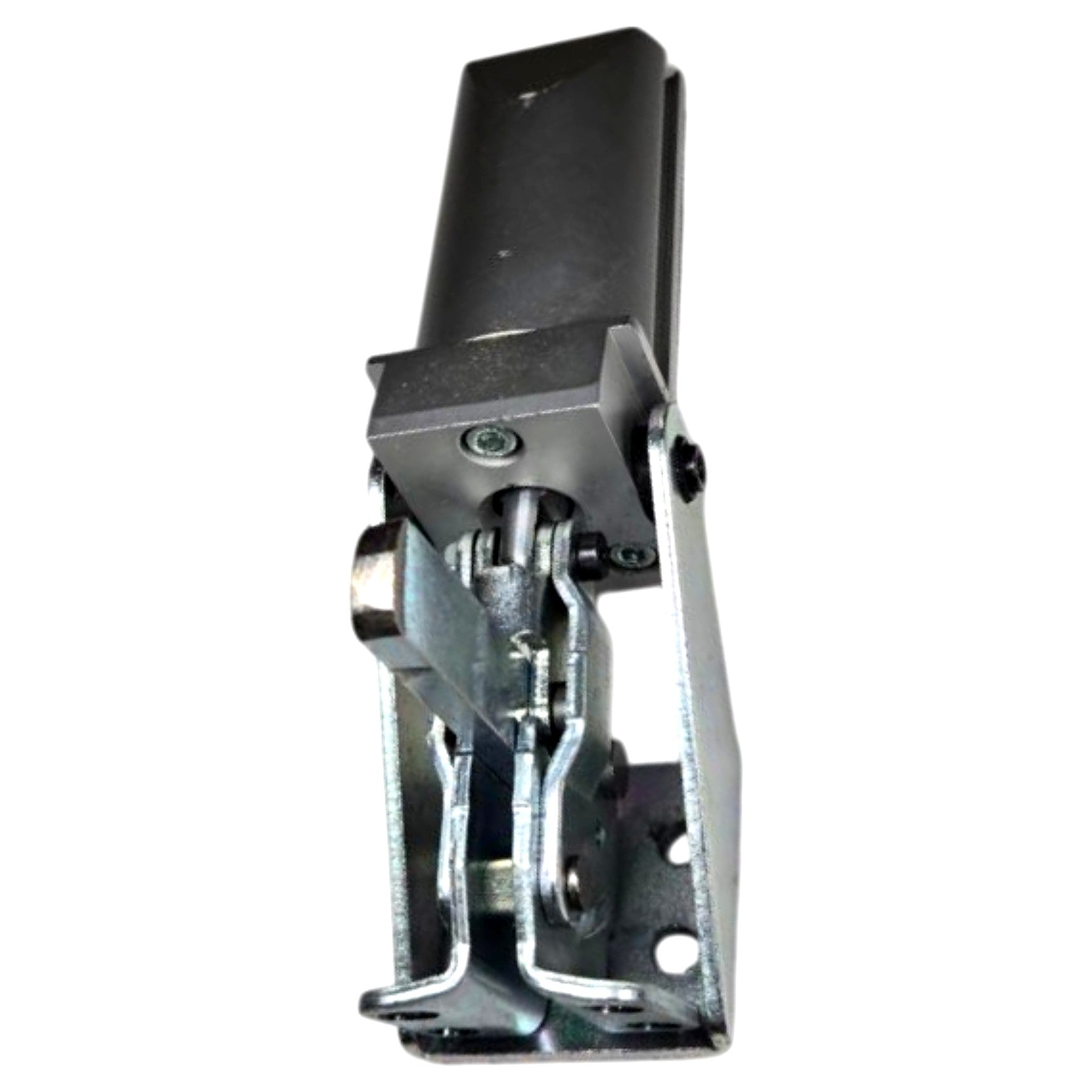

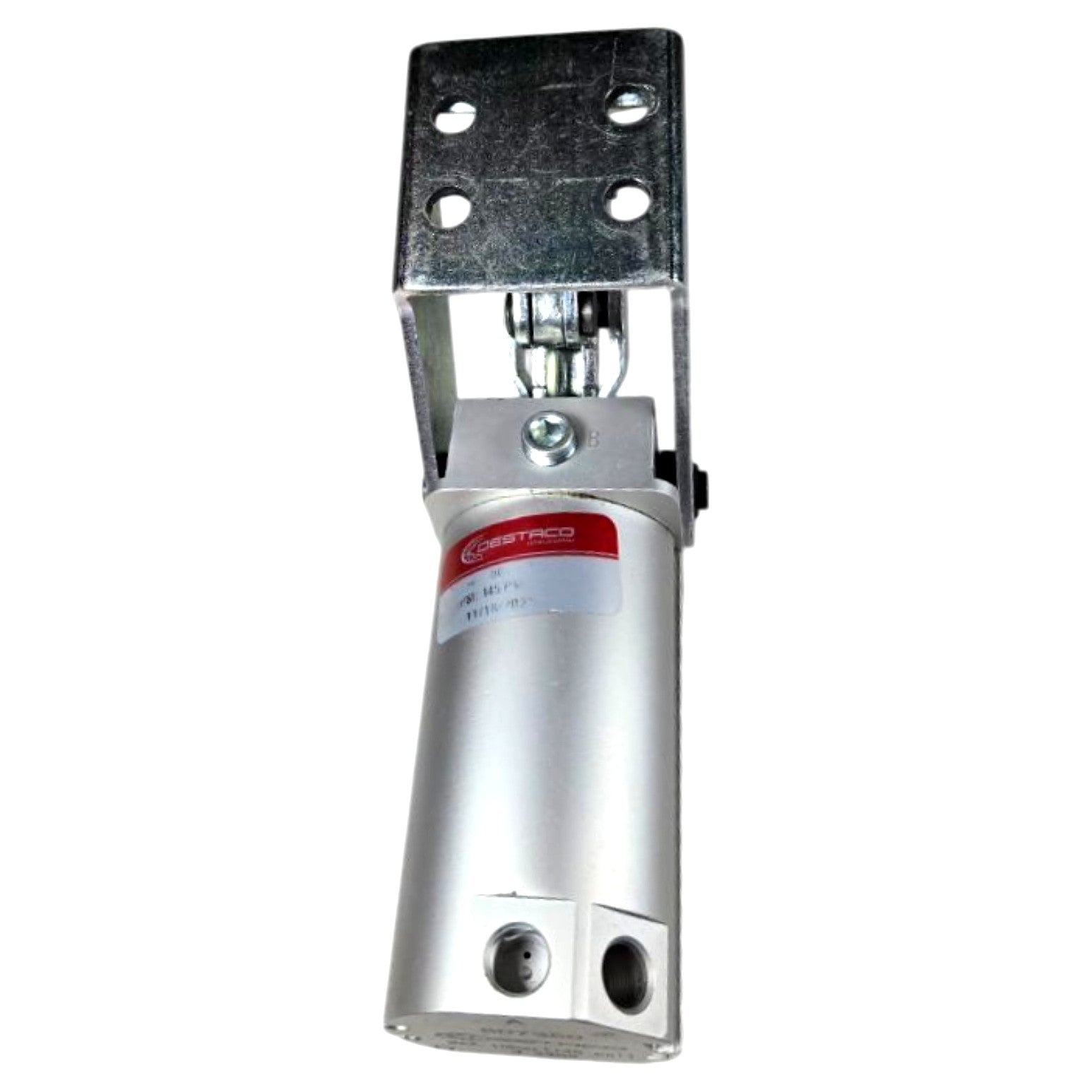

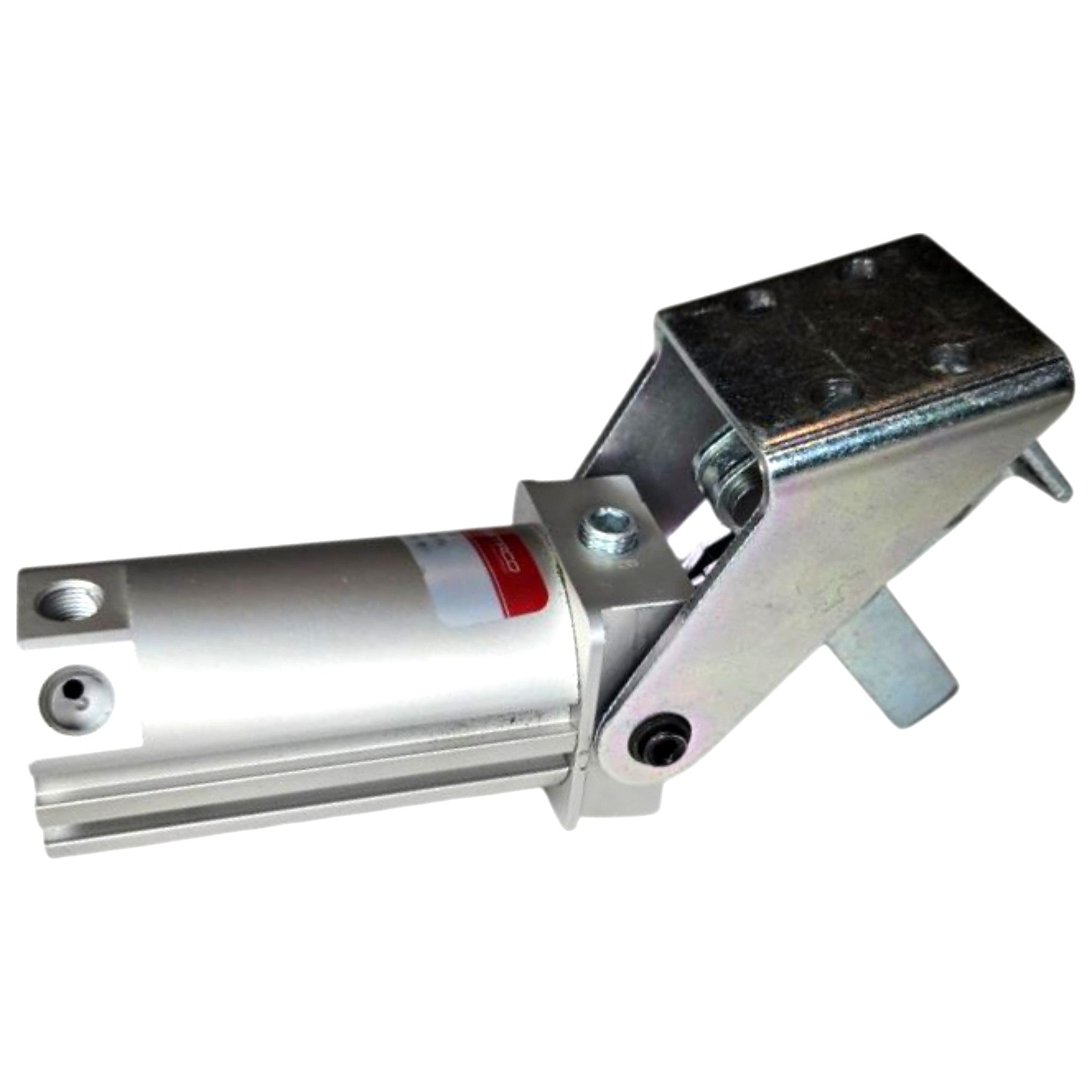

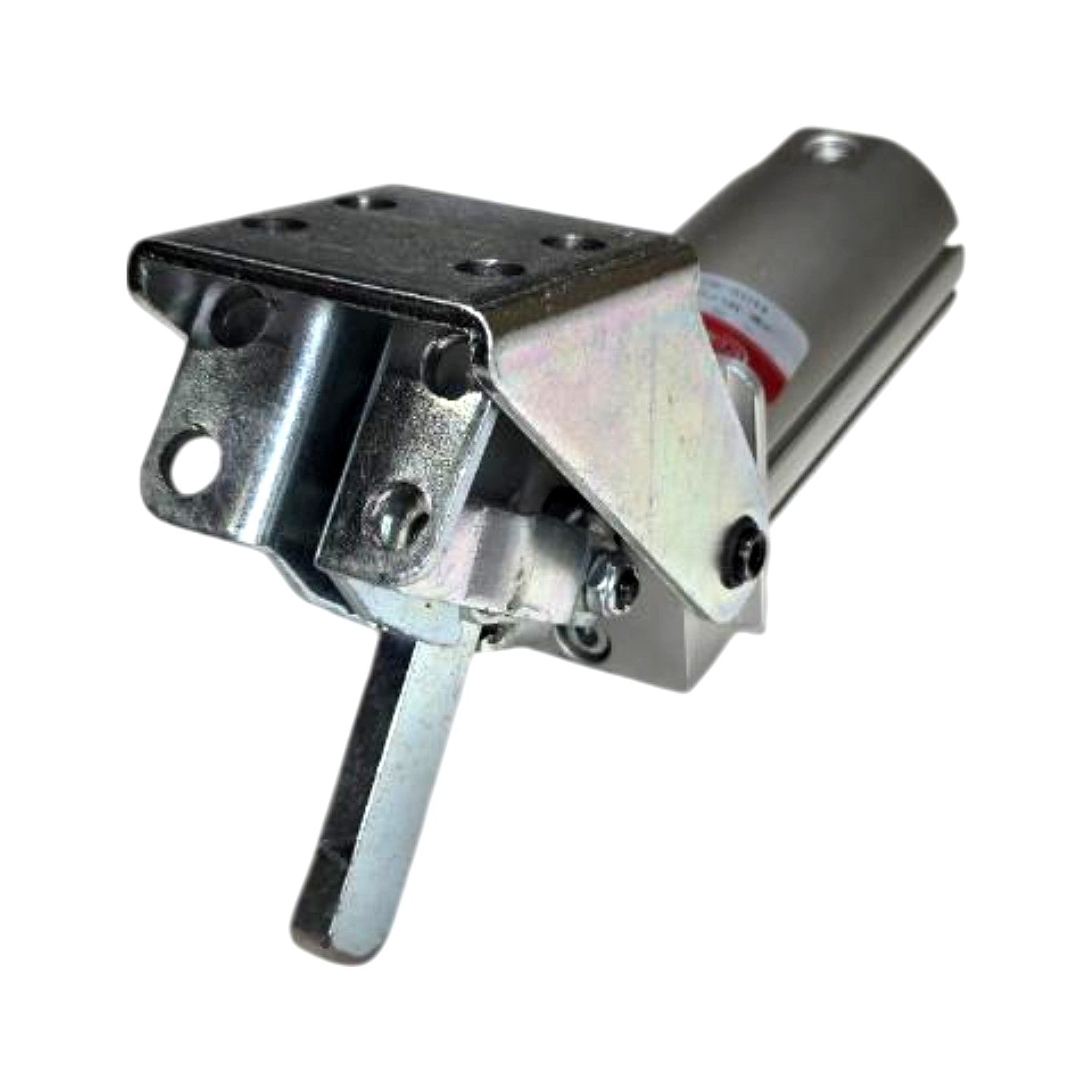

The De-Sta-Co 807-S is a new pneumatic hold-down toggle clamp designed for automated workholding in fixture and jig applications, actuating via a double-acting pneumatic cylinder with 1/8 NPT air ports and a maximum operating pressure of 145 PSI. The clamp features a 103° bar opening arc and 1.38 in. height under bar, providing a consistent and repeatable clamping stroke suited for production-line fixturing in welding, assembly, and machining operations. The body consists of an anodized aluminum cylinder paired with a zinc-plated steel linkage and mounting foot, visible in photos as a silver-body cylinder with galvanized bracket hardware. The 807-S is part of De-Sta-Co's 800-series pneumatic hold-down family, which uses a toggle-over-center locking mechanism to maintain clamping force even in the event of air pressure loss. This unit ships directly from De-Sta-Co factory packaging dated 11/18/2023 and is confirmed new/unused.
Product Specifications
| Brand | De-Sta-Co |
| Part Number | 807-S |
| Clamp Type | Pneumatic Hold-Down Toggle Clamp |
| Actuation | Pneumatic (double-acting cylinder) |
| Max Operating Pressure | 145 PSI |
| Air Port Size | 1/8 NPT |
| Bar Opening Angle | 103° |
| Height Under Bar | 1.38 in |
| Cylinder Body Material | Anodized aluminum |
| Linkage/Bracket Material | Zinc-plated steel |
| Mounting | Integral flat-foot mounting bracket |
| Condition | New |
| Series | 800 Series Pneumatic Hold-Down |
