DelVal 50040241B1B0 4 in DN100 175 PSI DI Body CF8M Disc Wafer Butterfly Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

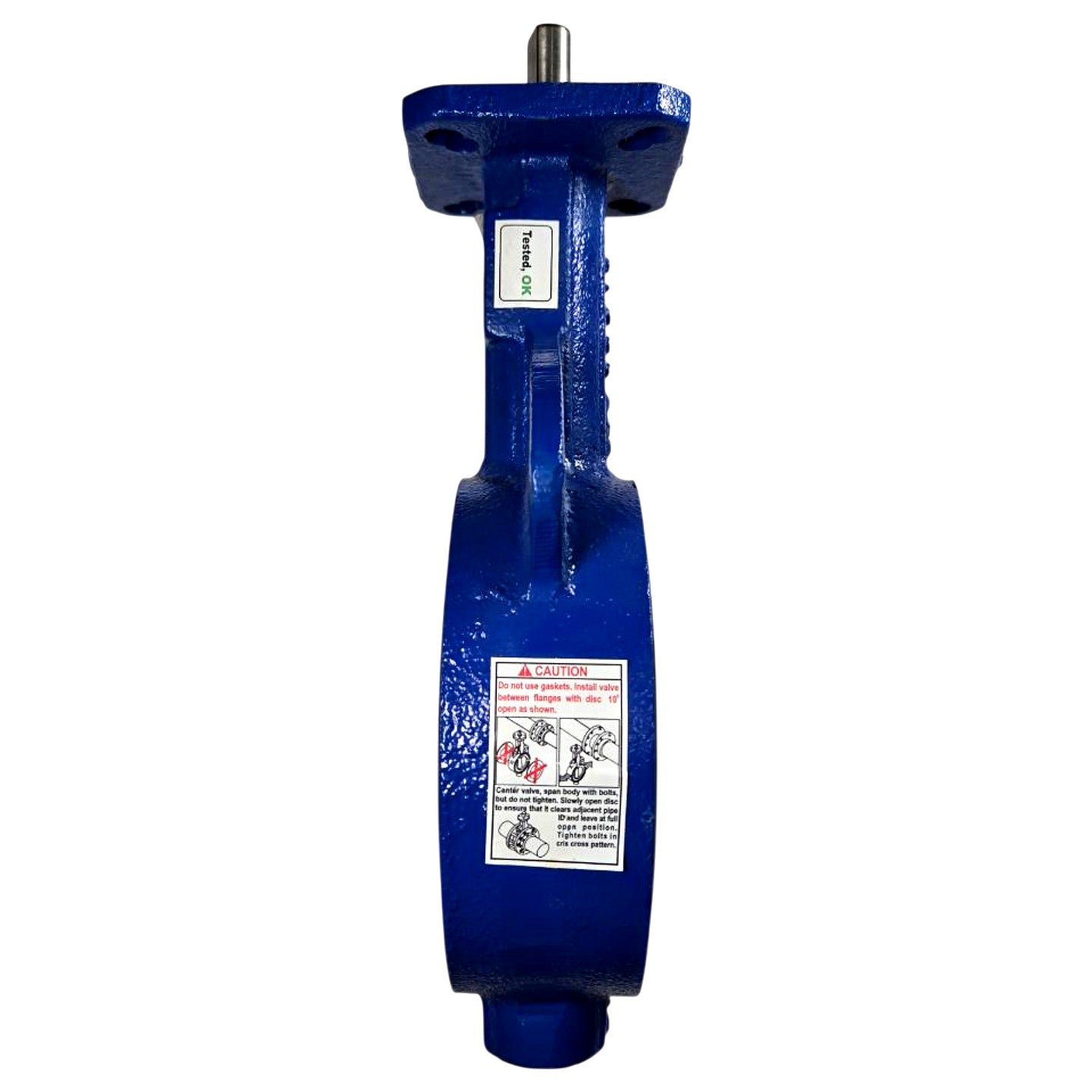

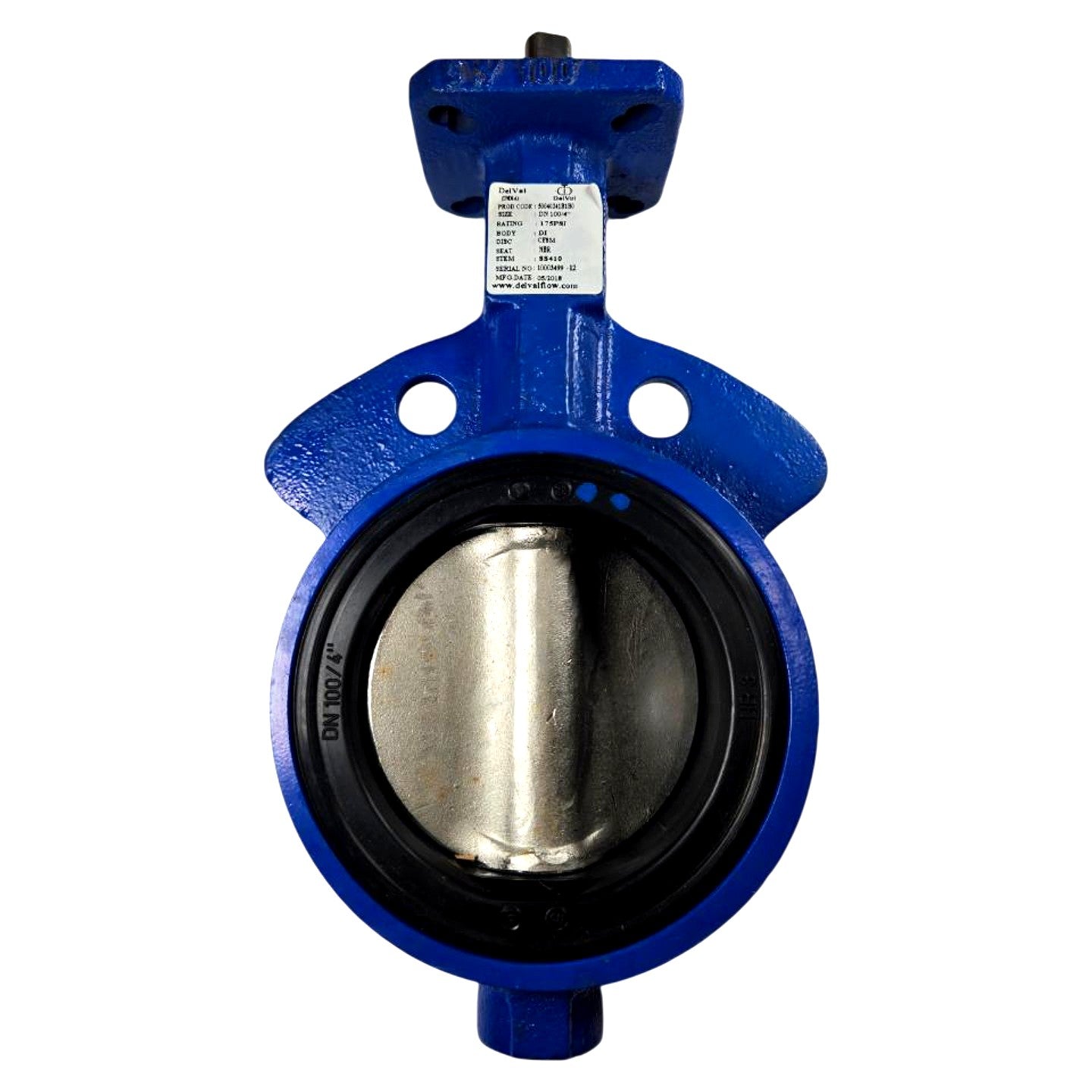

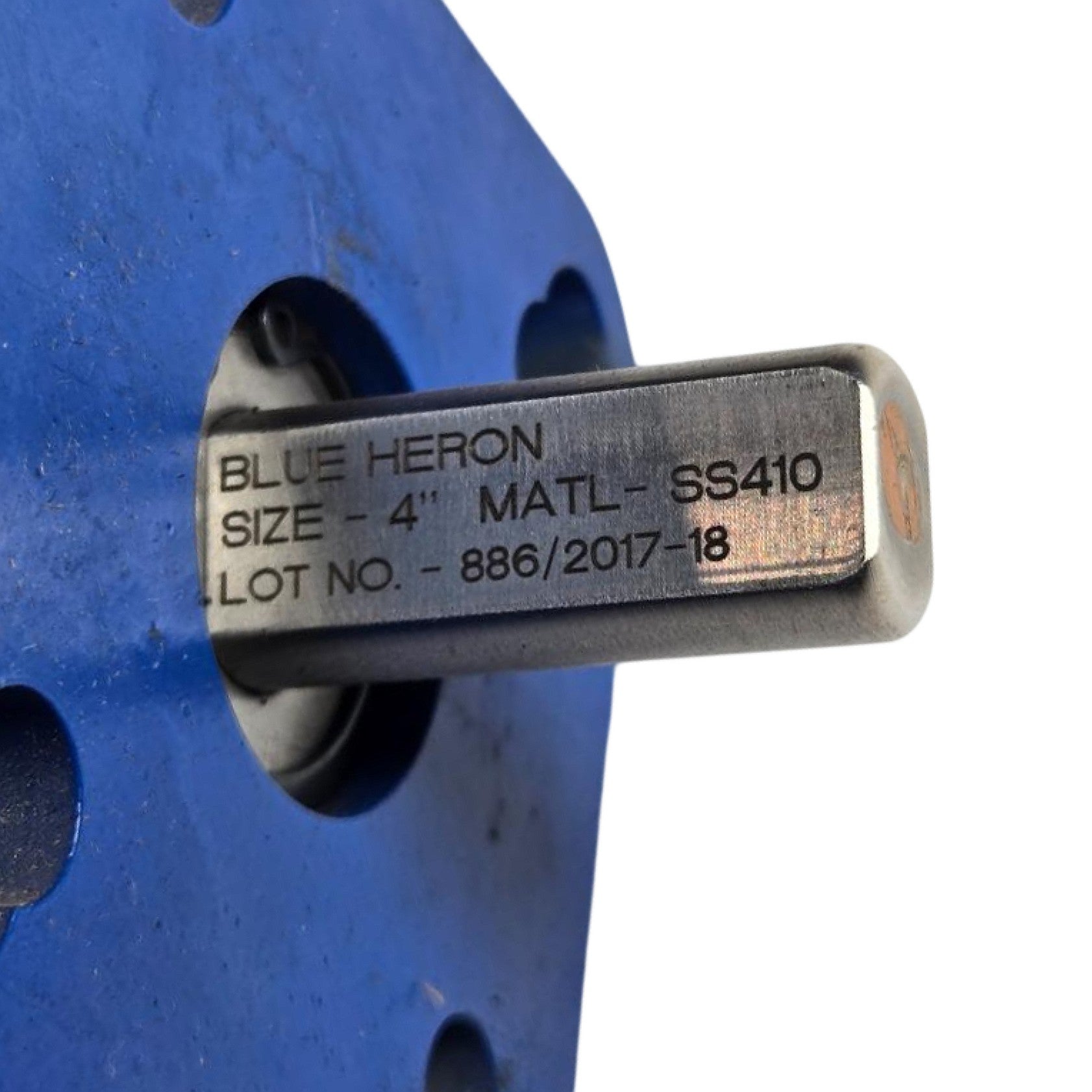

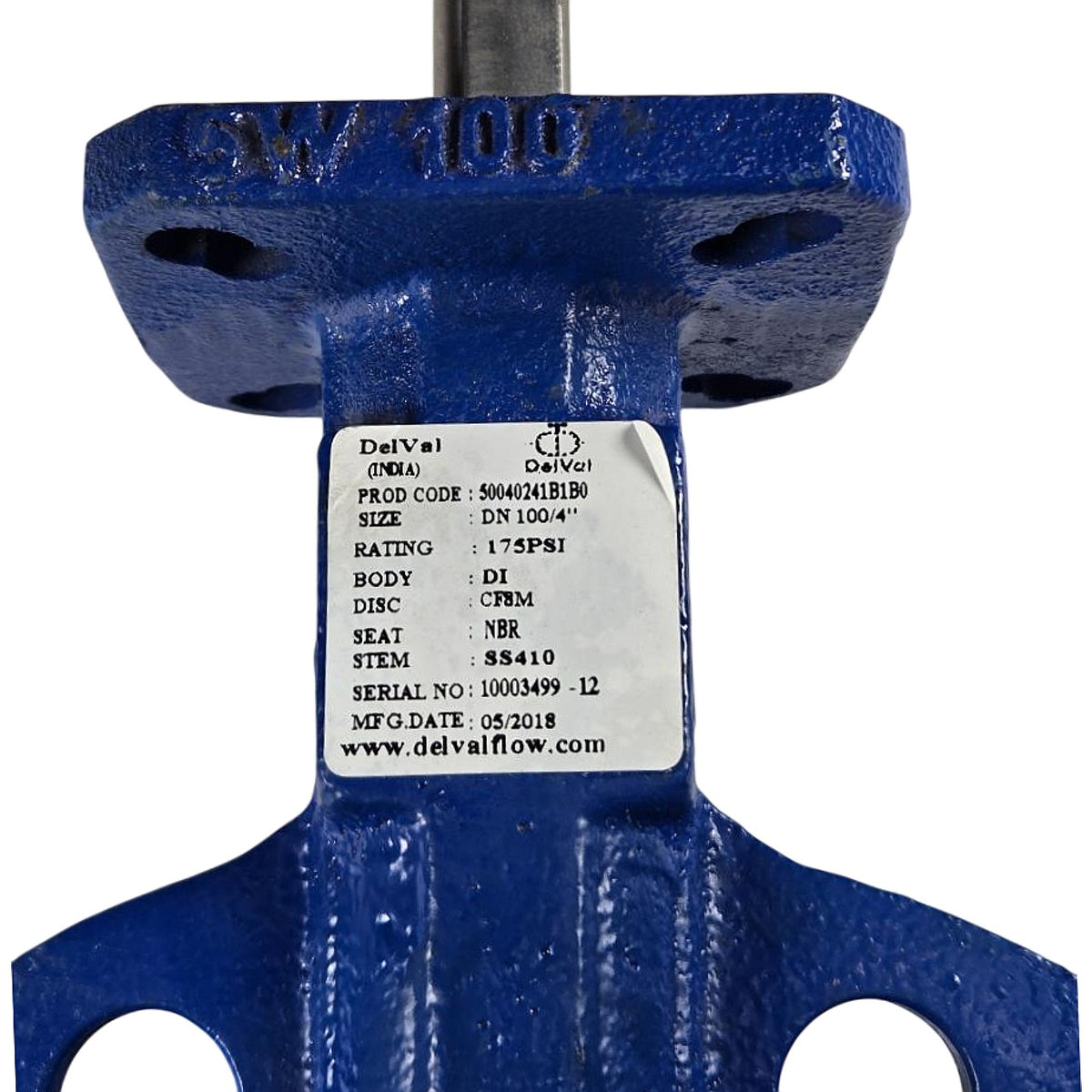

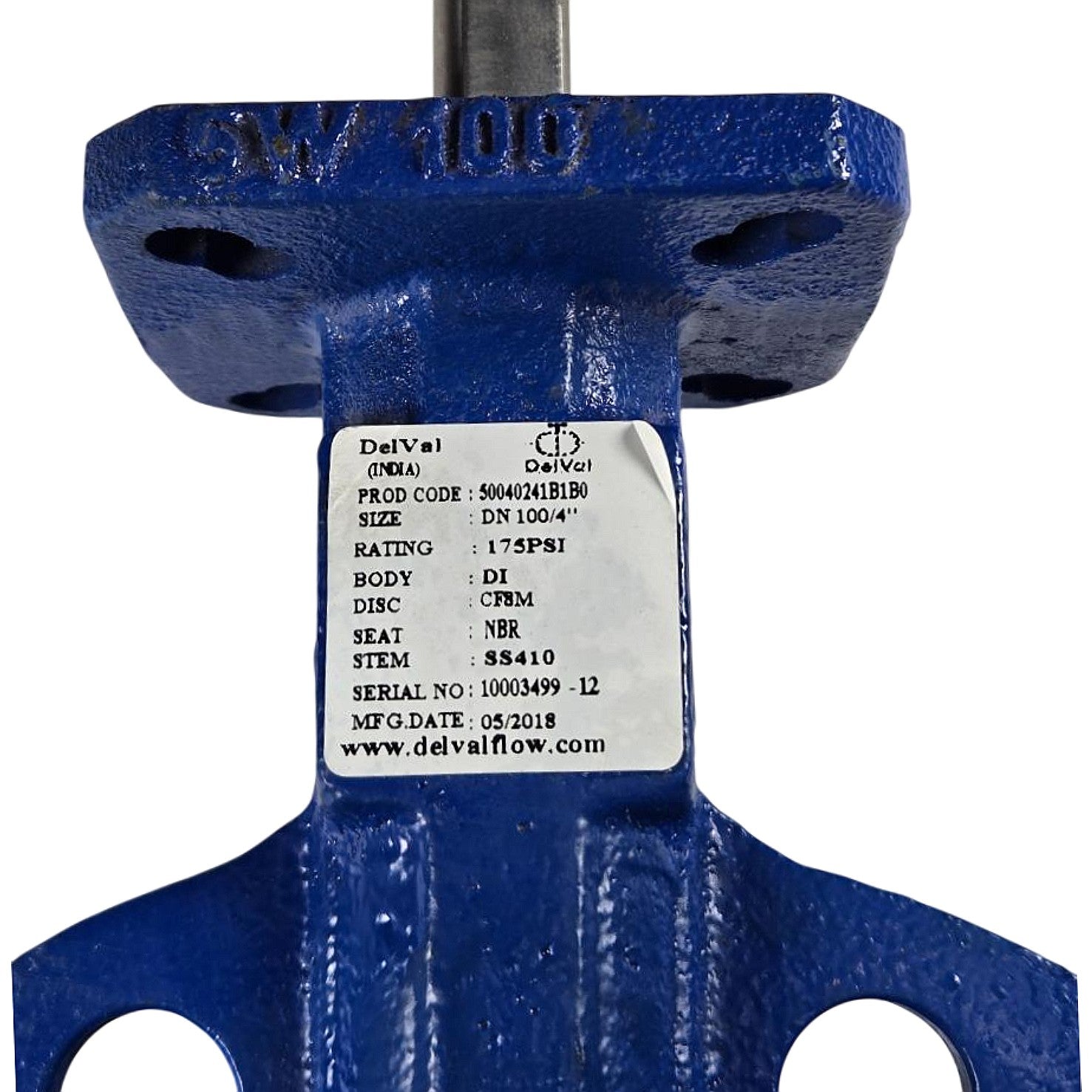

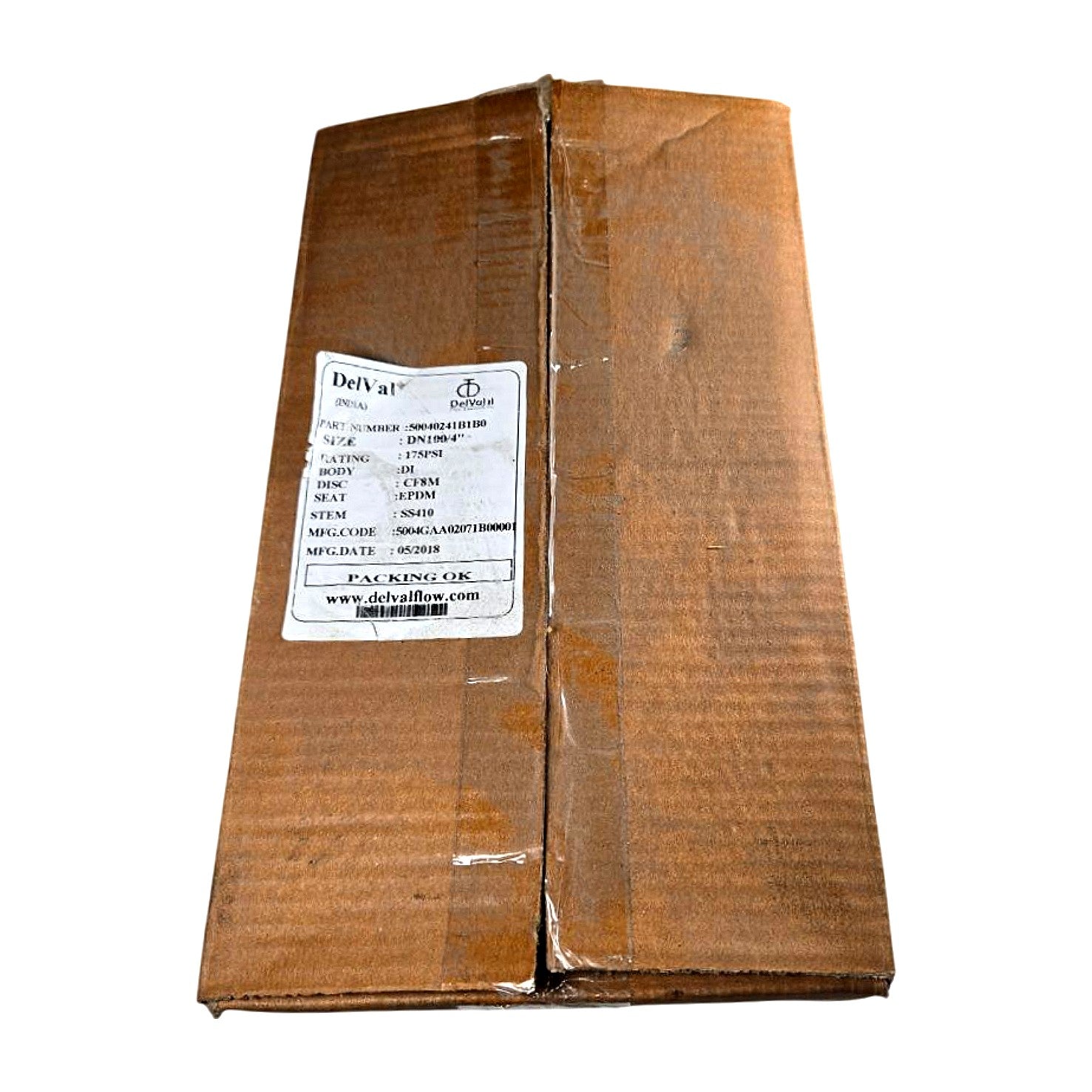

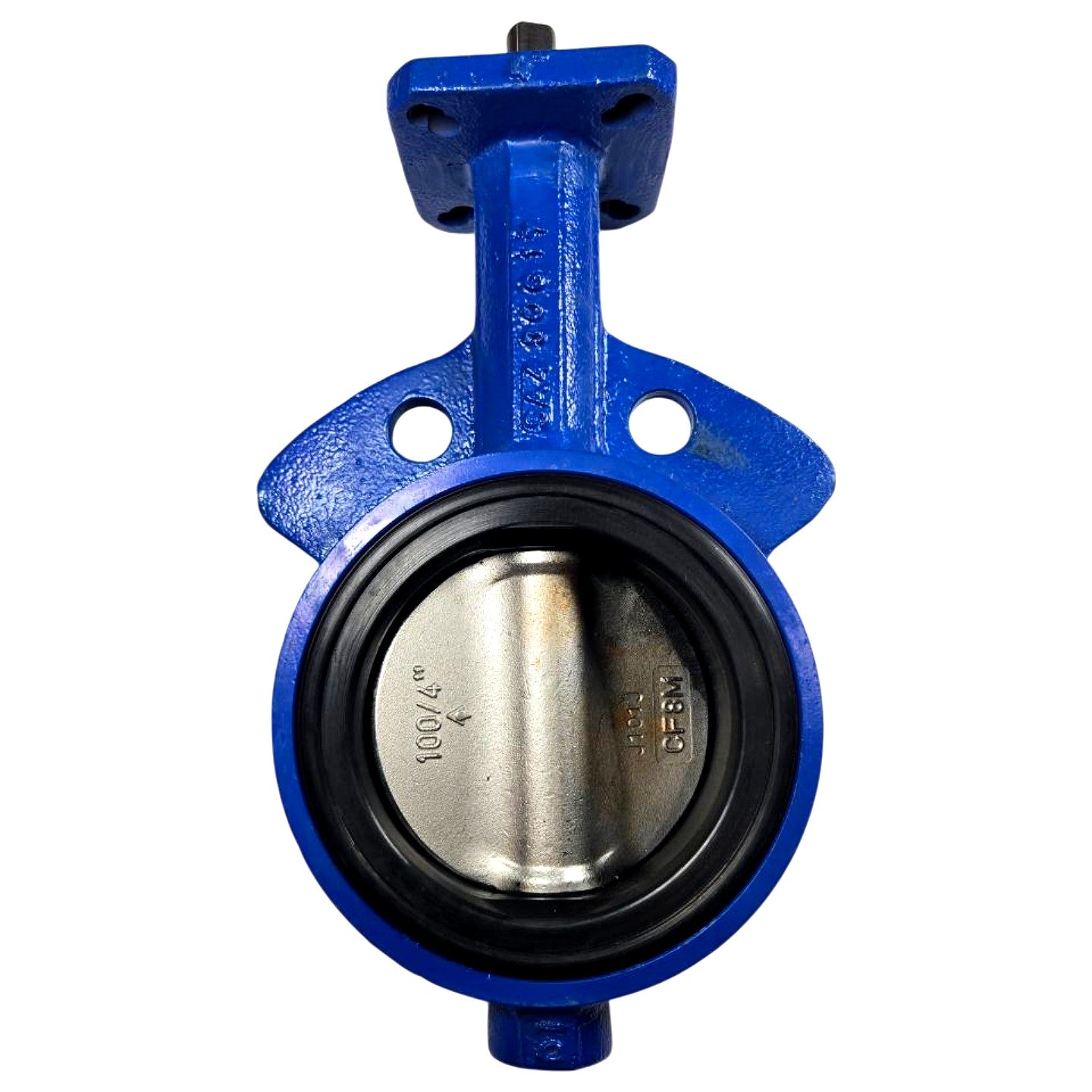

The DelVal 50040241B1B0 is a new 4-inch (DN100) Series 50 wafer-style resilient-seated butterfly valve rated at 175 PSI, manufactured in India by DelVal Flow Controls (www.delvalflow.com) and dated May 2018. The body is ductile iron (DI), the disc is CF8M (316 stainless steel casting grade), the seat is NBR (Buna-N) rubber as confirmed by the product label, and the stem is SS410 (410 stainless steel) as stamped directly on the stem — the outer box also lists an EPDM seat variant under a separate MFG code, but the valve label and seat ring confirm NBR for this unit. The wafer configuration installs between standard flanges without gaskets per the caution label instructions (disc 10° open during installation, bolt tightened in crisscross pattern), and the ISO 5211 top-flange mounting pad accepts standard actuator or lever/gear operator mounting. Suitable for water, HVAC, industrial fluid isolation, and general service applications where CF8M disc corrosion resistance and NBR compatibility are required.
Product Specifications
| Brand | DelVal |
| Part Number | 50040241B1B0 |
| Valve Type | Wafer Resilient Seated Butterfly Valve |
| Size | 4 in (DN100) |
| Pressure Rating | 175 PSI |
| Body Material | Ductile Iron (DI) |
| Disc Material | CF8M (316 SS casting grade) |
| Seat Material | NBR (Buna-N) |
| Stem Material | SS410 (410 Stainless Steel) |
| End Connection | Wafer (flangeless, between-flange) |
| Operator | None (bare stem, operator-ready) |
| Actuator Mounting | ISO 5211 top flange pad |
| Series | Series 50 |
| Manufacture Date | 05/2018 |
| Country of Origin | India |
| Condition | New |
